3-Piece Modular Mobile Holder System (Interchangeable Bases)

Product Overview:This package features a highly versatile, modular mobile phone stand assembly optimized for additive manufacturing. Instead of a rigid single-piece design, this system is engineered with a component-interchangeable architecture. It allows users to choose between two structurally distinct bases depending on their mechanical, space, or aesthetic preferences. The entire assembly relies on precision-toleranced slide-and-snap joints, completely eliminating the need for mechanical fasteners, screws, or adhesive bonding.

Component-by-Component Descriptions:

1. Main Display Cradle (The Red Component)
2. Description: This is the primary ergonomic interface unit that directly supports and stabilizes the mobile device. It is engineered with optimized backrest angles and precision front-retaining lips to accommodate a wide spectrum of modern smartphone dimensions, maintaining absolute stability in both portrait and landscape orientations.

3. Mechanical Function: Serves as the upper assembly unit. The bottom section features a specialized nesting profile designed with fine engineering tolerances. This geometric interface allows it to slide and securely lock onto either of the two companion bases, distributing the weight of the device evenly across the lower structure.

4. Low-Profile Rigid Base (The Black Component)

5. Description: A solid, high-stability lower base alternative featuring a unified perimeter frame. This component is optimized to minimize the vertical footprint on workspaces while maximizing the grounding contact area, preventing tipping even under asymmetric loads.

6. Mechanical Function: Acts as Option A for the lower assembly. It contains an integrated mounting rail that matches the locking mechanism of the Main Display Cradle. The geometry ensures a rigid, seamless fit that can be printed entirely without temporary support structures.

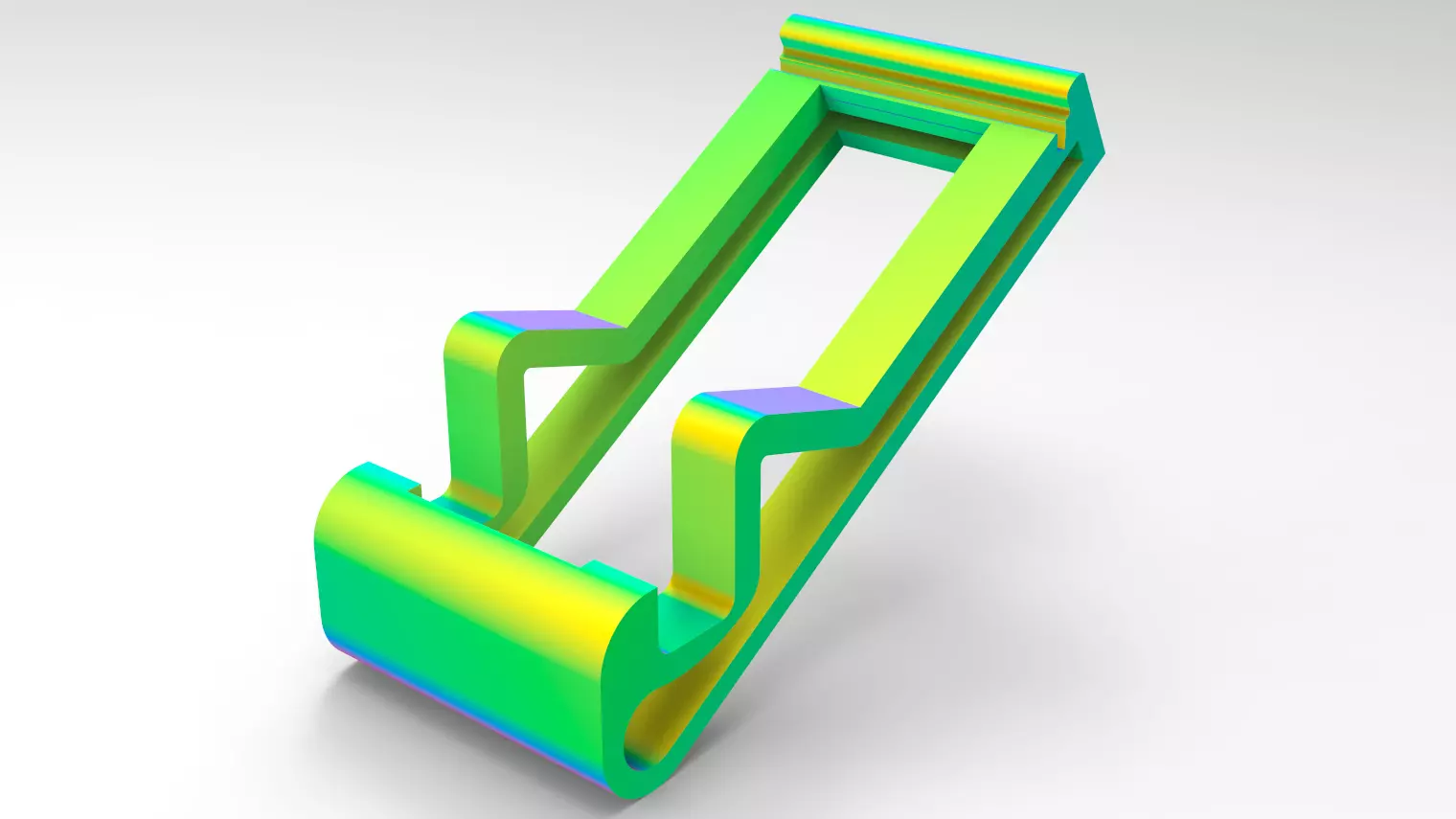

7. Open-Frame Extended Base (The Rainbow/Infrared Component)

8. Description: An advanced, lightweight alternative base option utilizing an extended open-frame geometry. This component is explicitly designed using DfAM (Design for Additive Manufacturing) principles to drastically reduce material usage and total printing time while maintaining robust torsional rigidity.

9. Mechanical Function: Acts as Option B for the lower assembly. It features the exact same modular interface rail as the low-profile base, allowing users to effortlessly detach the Main Display Cradle from one base and re-assemble it onto this extended frame.

Technical & Printing Specifications:

• Assembly Type: Slotted Modular Snap-Fit (3 Parts Total Included).
• Support Material: 100% Support-Free Geometry. All overhangs, bridging zones, and internal channels are calculated within safe printing angles for FDM machines.
• File Formats Included:
  • High-Resolution .STL: Watertight, manifold meshes optimized for instant slicer import.
  • Parametric .STEP: Standardized neutral CAD files for seamless dimensional modification and native engineering application integration.
