Adapter 92x92 - 120x120 - side option 3D print model

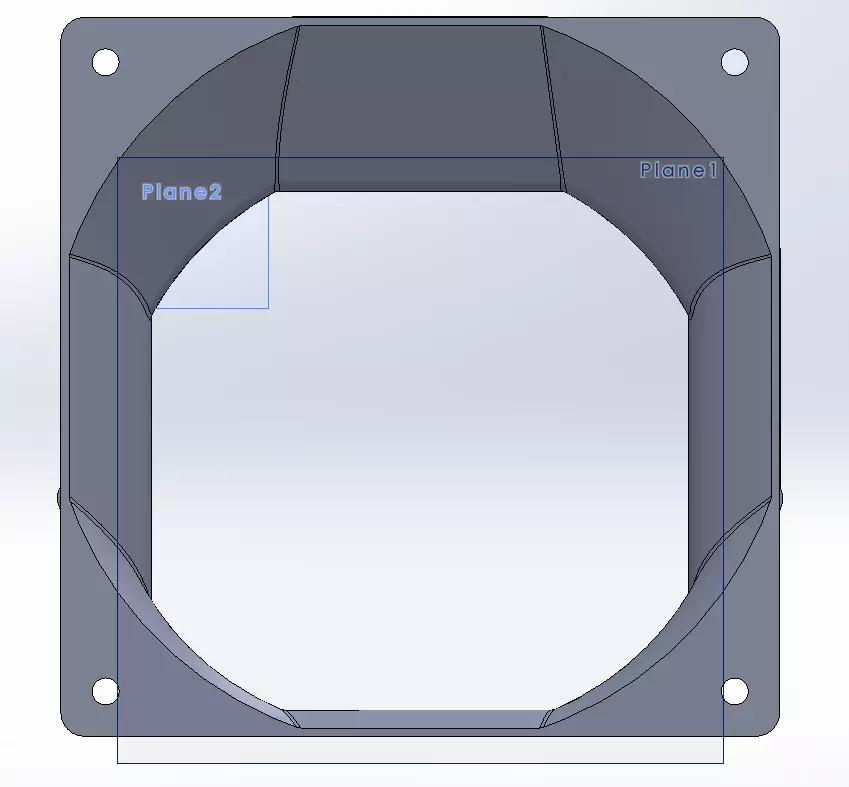

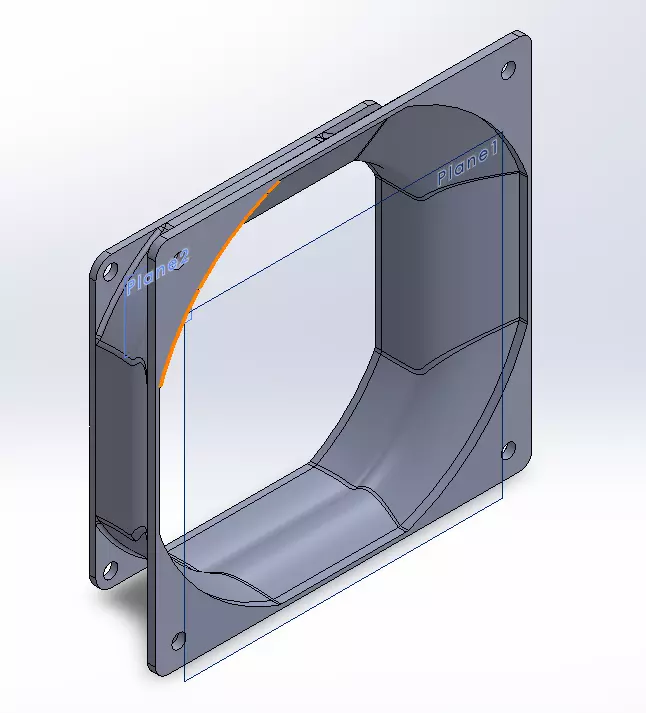

This adapter was designed for Noctua fans in according to the measurements from the actual fans & their model(s). Main difference between this model & other's are:the expansion slots, which include all the air inlet & outlet from 92x92 & 120x120 fan(s)reduced noise from swirling air from inlet / outletcurved edges for smoother transition, better stiffness & less air swirlingdesigned by a mechanical engineer, in accordance with all best engineering practices. Suggested higher temperature resitant 3D printing material advised: ABS, ASA, HIPS, PP, PC or Nylon.

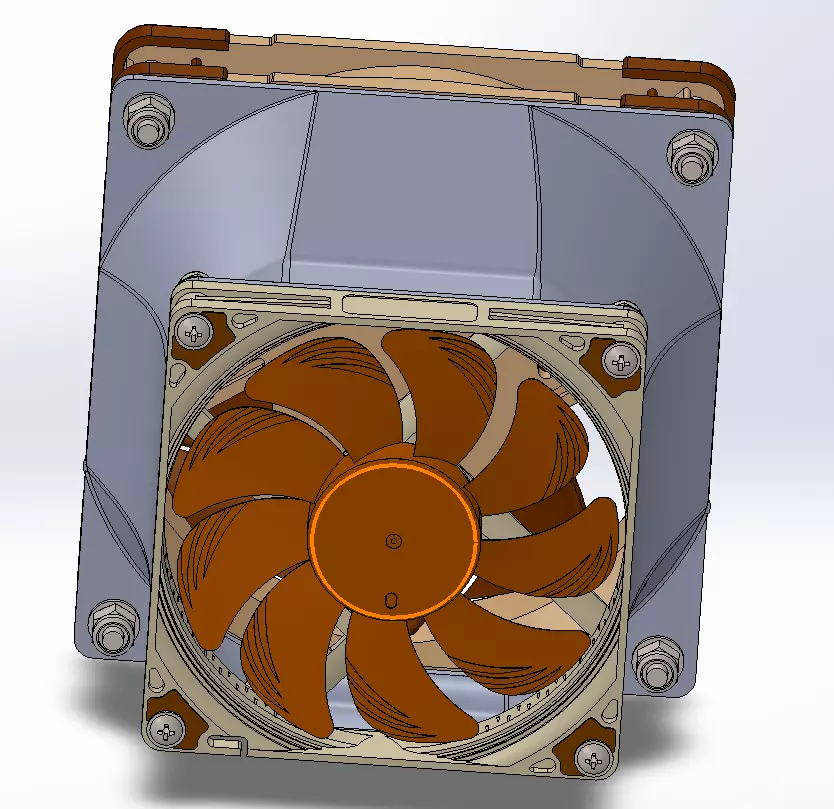

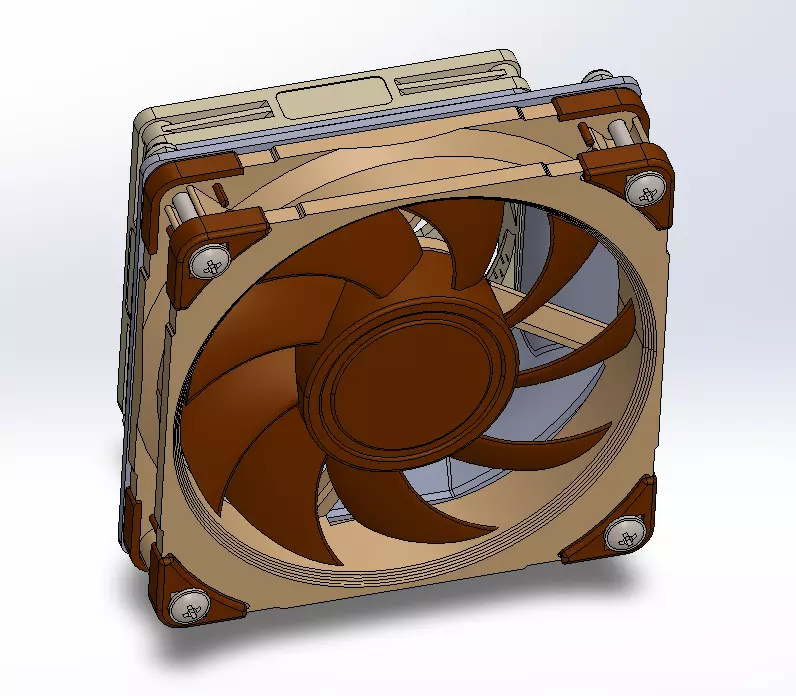

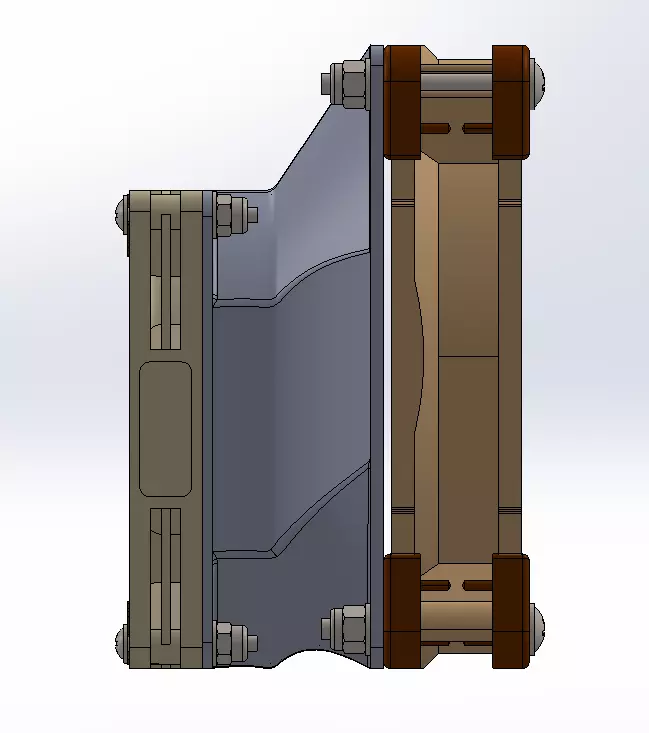

Model is tested & suited on side of 92x92 Noctua fan with: M4x25 screws, nut DIN 967 M4 with washer DIN 125 (tightening parts not included)! Also M5 can be fitted also on N9 & this model.Model is tested & suited on side of 120x120 Noctua fan with: M4x40 screws, nut DIN 967 M4 with washer DIN 125 (tightening parts not included)!Using other tightening sizes at your own risk to fit with part.

Item dimensions: 120x120x35mm.

For any aditional questions &/or suggetion, contact me freely. Other sizes or inclination(s) can be made on request!
