Two full-width drawers in the large footprint — the block for an entire collection.

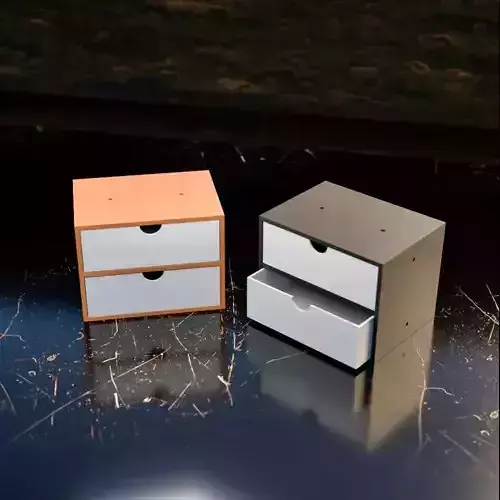

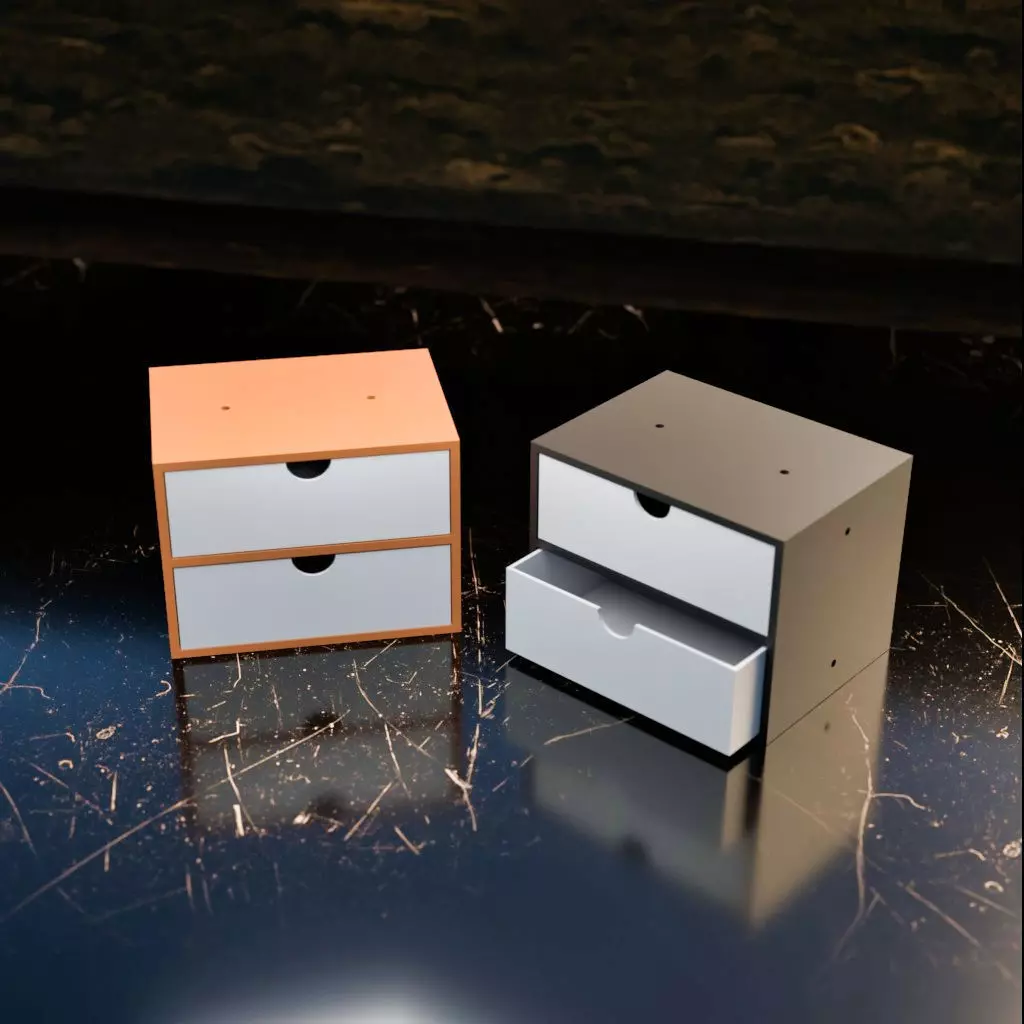

WHAT IT ISTwo drawers 186 mm across the front and 64 mm high, which is the size that takes a whole set of bottles laid down, large jars, or bulky consumables like epoxy putty and glue. Where the medium units split a bench into compartments, this one gives two long drawers for the awkward items.

AT A GLANCEEnclosure: 200 × 150 × 150 mm (W × D × H)Drawers: 2x — 186 × 145 × 64 mm (W × D × H)Module: Large, 200 mm footprintMagnets: 6 mm disc magnets in the side pockets (optional)Printing: no supports required

INCLUDED• Enclosure, printed in one piece• 2 × drawers, 186 × 145 × 64 mm• Window-front drawer bodies and two infill panes (optional build)

BUILT TO COMBINE

Every unit in this range is built on the same two rules: a shared footprint grid, and a shared magnet pattern. Units sit flush with their neighbours and lock there with 6 mm disc magnets seated in the side pockets, so a row stays a row while you pull drawers in and out of it. Drawer blocks, top units, racks and holders all use that same grid, which is what lets a bench grow a unit at a time and still line up.

WINDOW FRONTS

Some drawers in this range are available with a window front: a separate drawer body with an aperture, rather than a cut into the solid front. Each window body takes one infill pane behind its face, cut to that drawer's own window — panes are specific to a drawer size, and come in six patterns: plain, diamond, grid, hex, circle and brick.

On this unit: Two panes, one per window drawer.

PRINT NOTES

Files are modelled full size in millimetres and print without supports on a typical FDM machine. Magnets are optional — the pockets can be left empty, in which case units simply stand beside each other instead of locking. Print at 100%: the magnet pockets and the module depend on it, so scaling is not supported.

LICENCE

The files are for personal use only. You may not resell, share or redistribute the digital files, and you may not sell physical prints made from them. Independent design, no affiliation with any other company.
