LOFTY from Bob the builder 3D print model

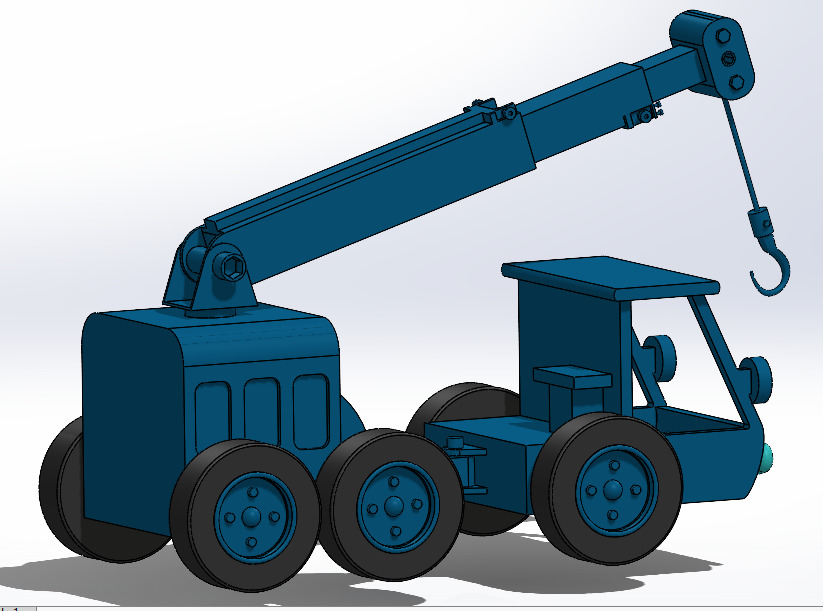

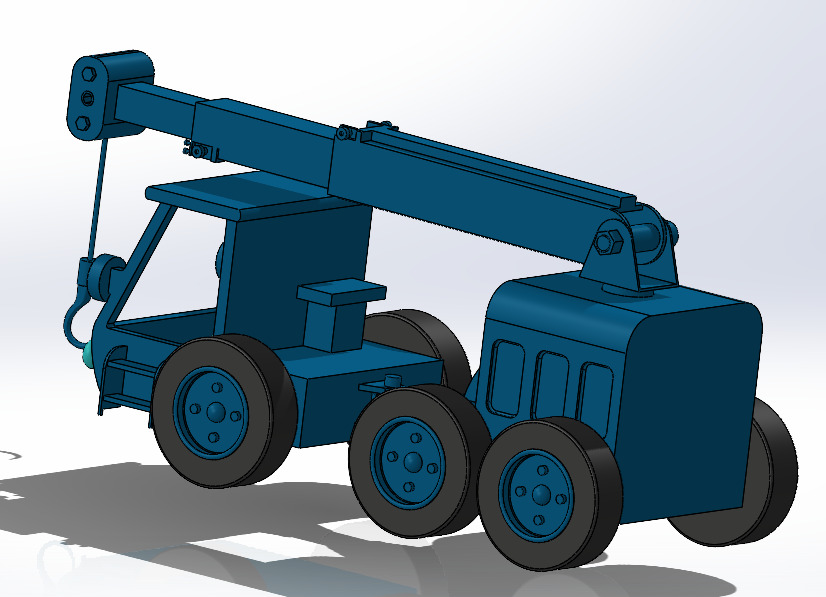

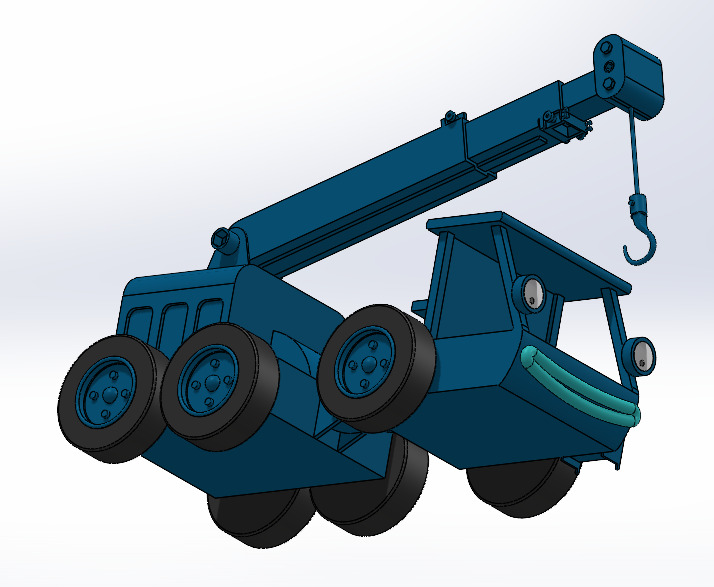

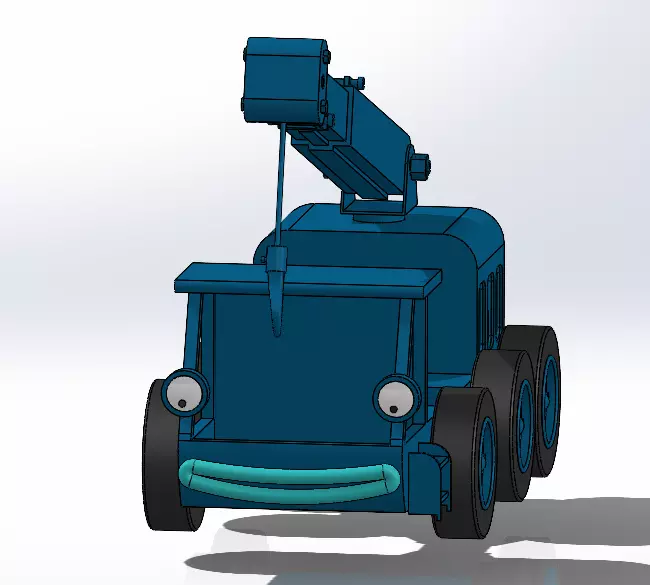

This model is a replica of Lofty from the famous cartoon Bob the Builder.

This model is fully functional and can be printed using single color printer. The crane is extendable and tires are movable.

Dimensions: 416 X 186 X 196 mm

Supports are required. Model is scalable. 4 color filaments are required (Blue, white, sky blue and black).

Use nozzle 0.2 ~ 0.4mmSupports are requiredinfill 15~30%

Print the file lofty crane hook in Blue color X 1unitsPrint the file lofty crane pin bolt in Blue color X 1unitsPrint the file lofty crane pin nut in Blue color X 1unitsPrint the file lofty crane shaft in Blue color X 1unitsPrint the file lofty eyes1 in White color X 2unitsPrint the file lofty eyes2 in Black color X 2unitsPrint the file lofty front in Blue color X 1unitsPrint the file lofty mouth in Skyblue color X 1unitsPrint the file lofty rear in Blue color X 1unitsPrint the file lofty tire in Black color X 6unitsPrint the file lofty trailer pin in Blue color X 1unitsPrint the file lofty trailer pin2 in Blue color X 1unitsPrint the file lofty trailer tongue in Blue color X 1unitsPrint the file lofty axle in Blue color X 6unitsPrint the file lofty crane boom1 in Blue color X 1unitsPrint the file lofty crane boom2 in Blue color X 1unitsPrint the file lofty crane boom3 in Blue color X 1unitsPrint the file lofty crane hook pin in Blue color X 1units

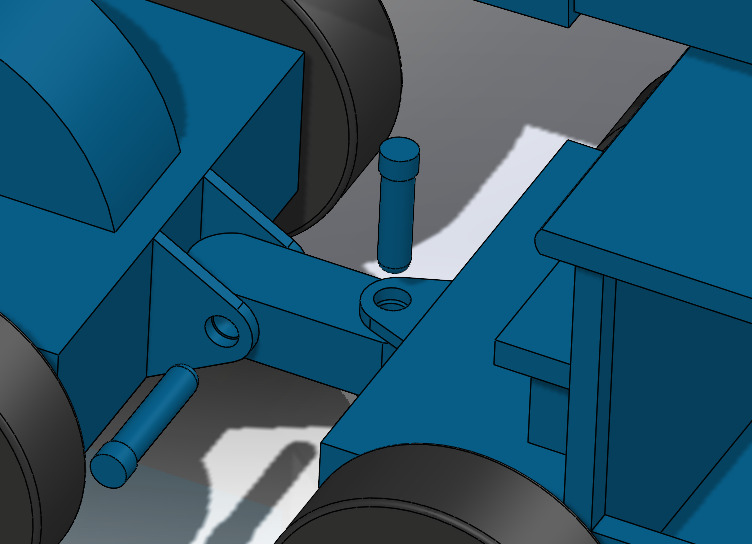

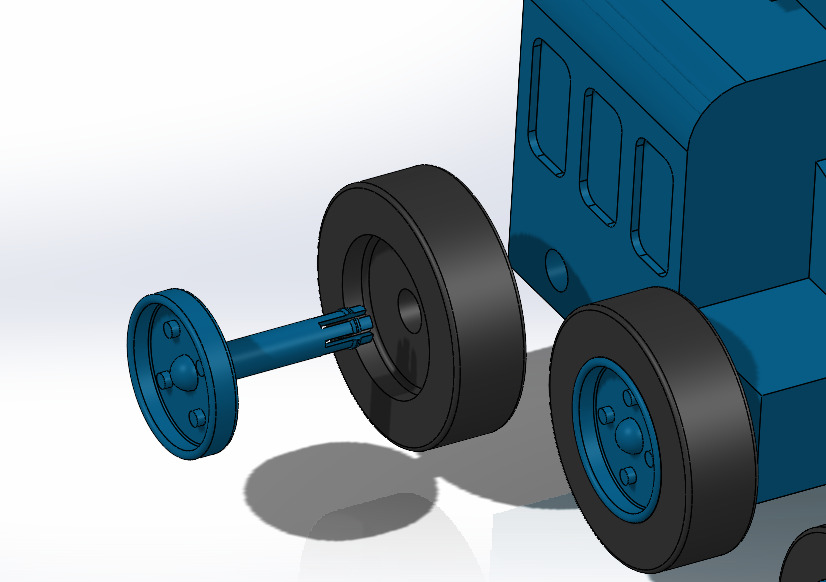

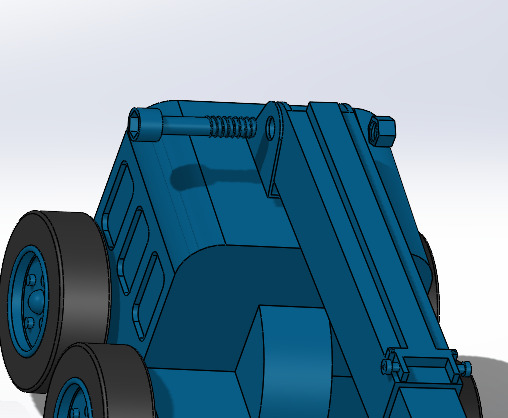

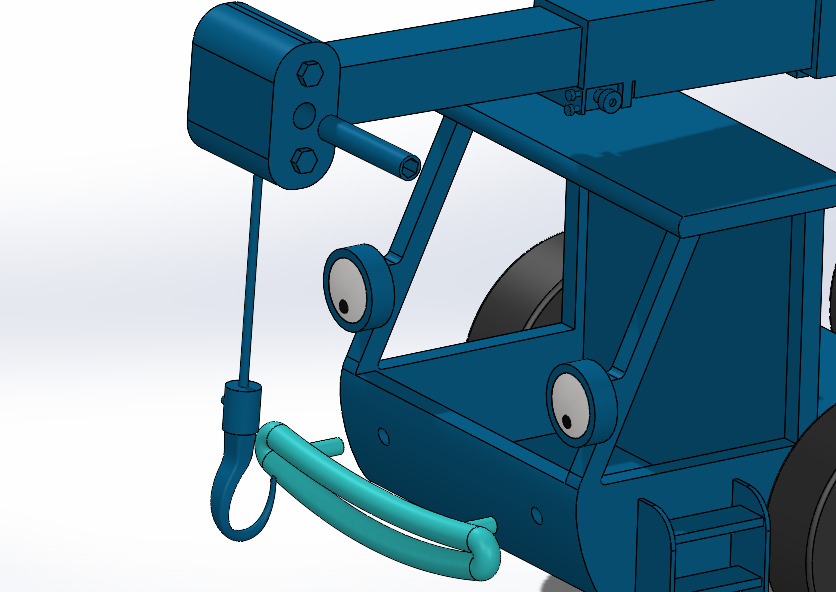

Connect Rear and Front part of the model using Trailer tongue, Trailer pin, Trailer pin2.Put Crane shaft in Rear part and connect Crane boom1 using Crane pin bolt & Crane pin nut.Slide Crane boom2 into Crane boom1 (Add little oil if required) and do the same for Crane boom3.Connect Crane hook to Crane nboom3 using Crane hook pin.Slide tire into axle and then push axle into the holes provided in Rear and Front parts (It will click in twice and then holds).Connect mouth to front part of model.

Push Eyes1 into Eyes2 then place them in the slot.
