Roley from bob the builder 3D print model

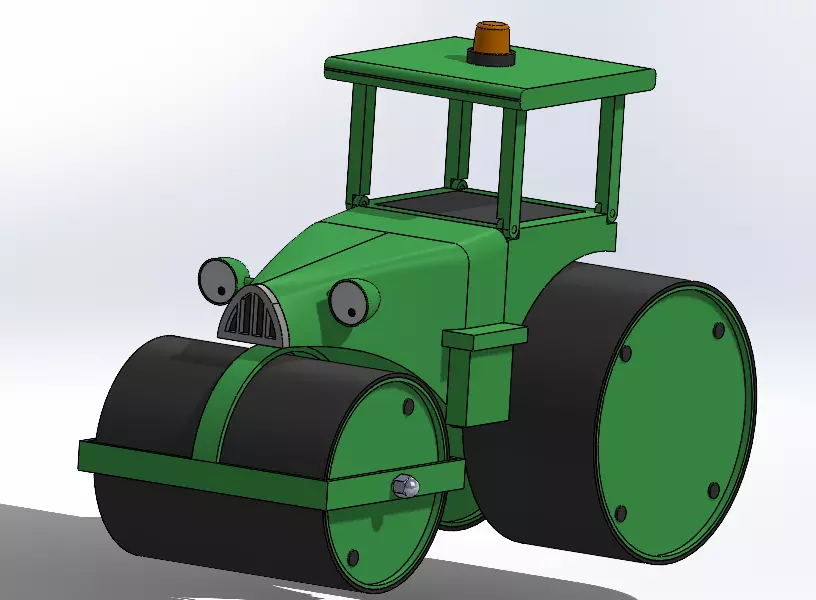

This model is a replica of Roley from the famous cartoon Bob the Builder.

This model is fully functional and can be printed using single color printer. The road roller wheels are movable.

Dimensions: 305X 241 X 186 mm

Supports are required for few parts.Model is scalable.5 color filaments are required (green, white, Orange, silver and black).

3D printing settingsUse 0.2mm nozzle. Layer height 0.1mm.Print speed mediumInfill infill 15~30%. Use resin printer for best results.

Print the file roley wheel screw in Silver/Brass color X 2unitsPrint the file roley body seat in Black color X 1unitsPrint the file roley body in Green color X 1unitsPrint the file roley eyes1 in Green color X 2unitsPrint the file roley eyes2 in White color X 2unitsPrint the file roley eyes3 in Black color X 2unitsPrint the file roley forward wheel rim in Green color X 2unitsPrint the file roley forward wheel in Black color X 1unitsPrint the file roley frame cover in Green color X 1unitsPrint the file roley frame pin1 in Green color X 4unitsPrint the file roley frame pin2 in Green color X 4unitsPrint the file roley frame in Green color X 4unitsPrint the file roley mouth1 in Silver color X 1unitsPrint the file roley mouth2 in Black color X 1unitsPrint the file roley rear pin in Black color X 4unitsPrint the file roley rear wheel rim1 in Green color X 2unitsPrint the file roley rear wheel rim2 in Green color X 2unitsPrint the file roley rear wheel in Black color X 2unitsPrint the file roley siren1 in Black color X 1unitsPrint the file roley siren2 in Orange color X 1unitsPrint the file roley wheel frame in Green color X 1unitsPrint the file roley wheel nut in Silver/Brass color X 2unitsPrint the file roley wheel pin in Black color X 12units

For assemblyPush Rear wheel rim1 into Rear wheel (Match holes). Push Rear wheel rim2 into other side of Rear wheel.Push assembled Rear wheel into Body (It clicks in).Use Frame pin2 to connect Frame. push Siren1 &Siren2 into the Frame.Now connect Frame to body using Frame pin1 (Frame is designed such that it can be rotated front and back).Push Eyes2 & Eyes3 into Eyes1. Then push Eyes1 into Body.Push Wheel frame into Body (Ensure it clicks in). Push Forward wheel rim onto both sides of Forward wheel and then connect it to the Wheel frame using Wheel screw & Wheel nut.Connect Mouth1 & Mouth2 to the Body.
