Mikes Cathedral Lamp

Mikes Cathedral Lamp 3D print model

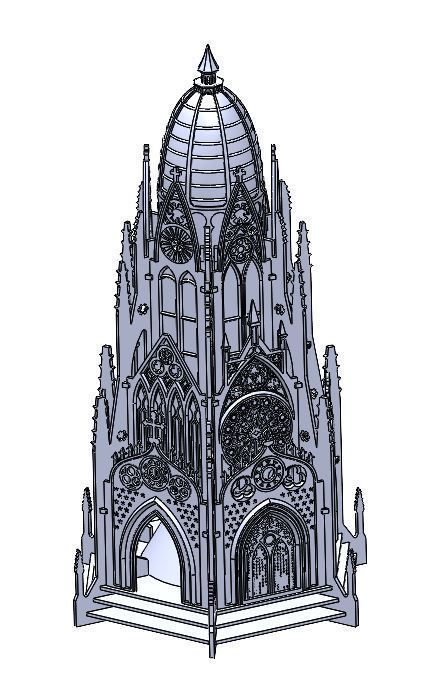

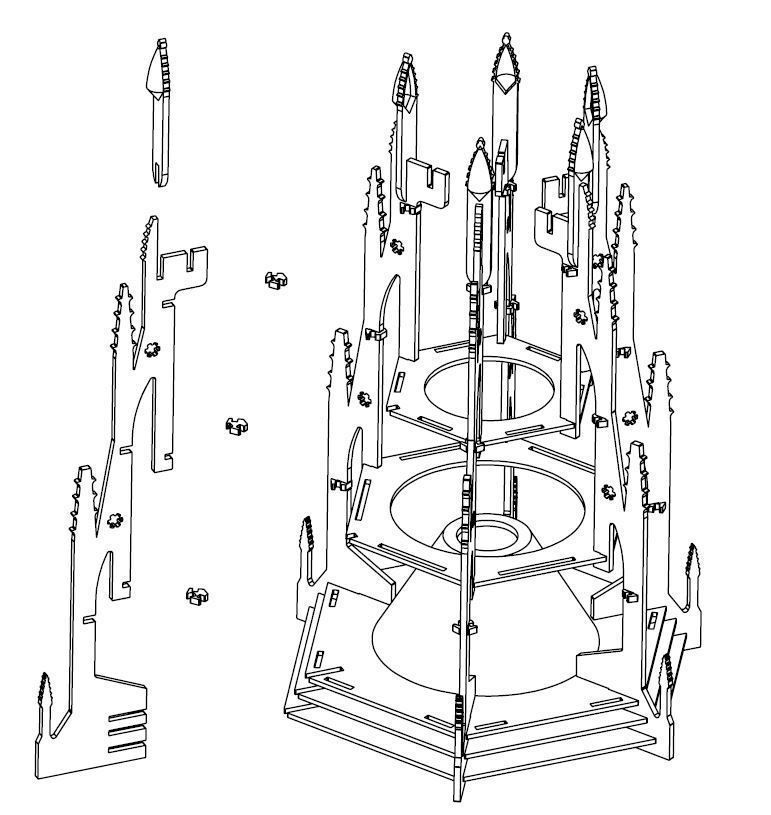

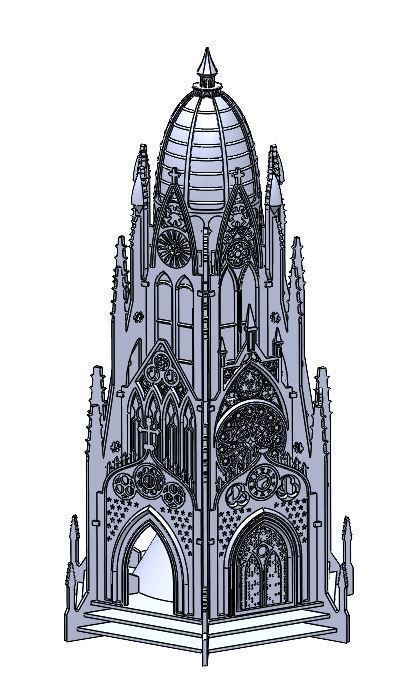

I designed this lamp for my uncle last Christmas. It is made up of several panels which are designed to highlight the beauty of gothic architecture and cathedral-like majesty. It turned out a lot more beautiful in person than I could imagine and so I'm making the design available for you to print your very own.

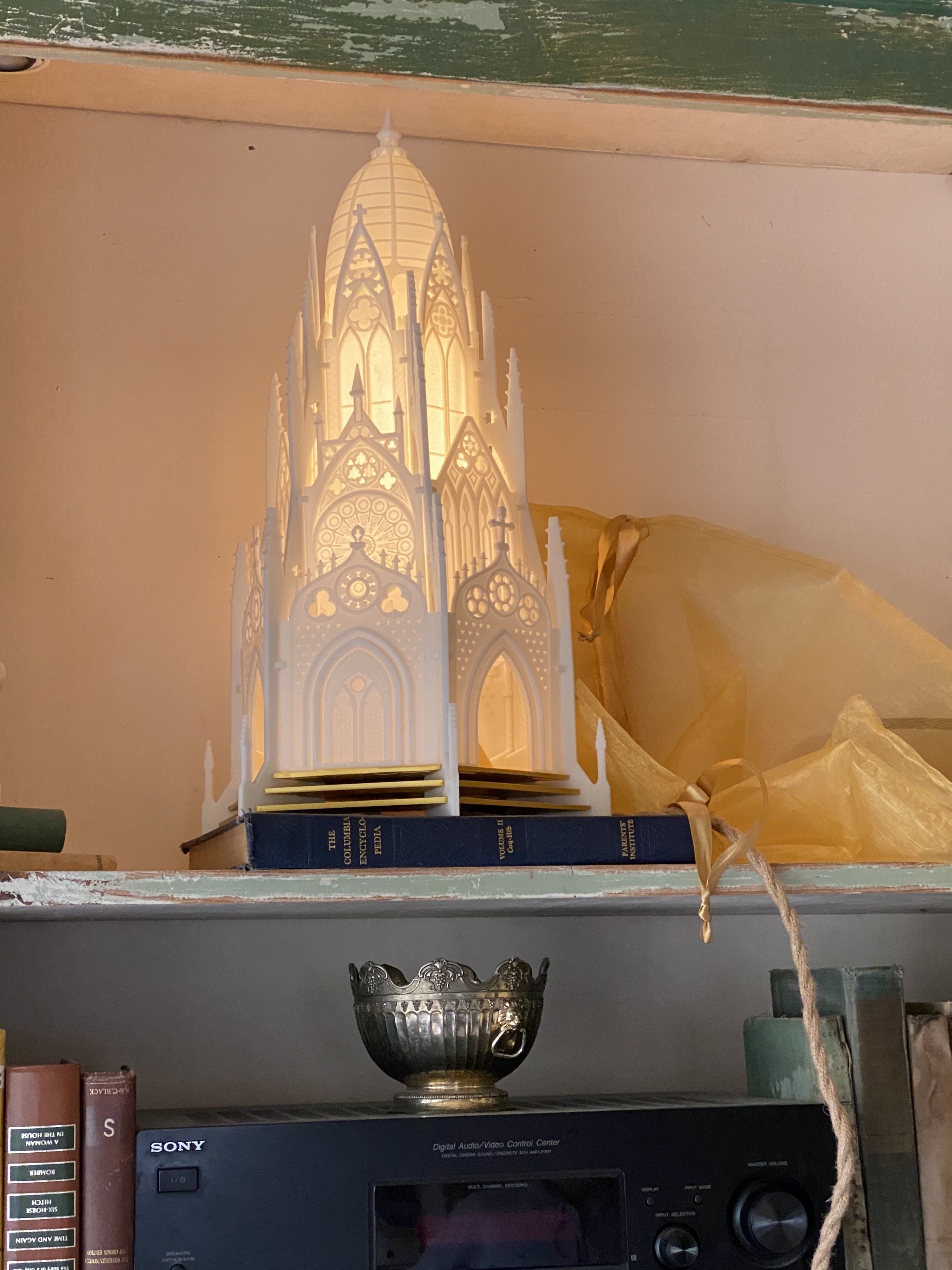

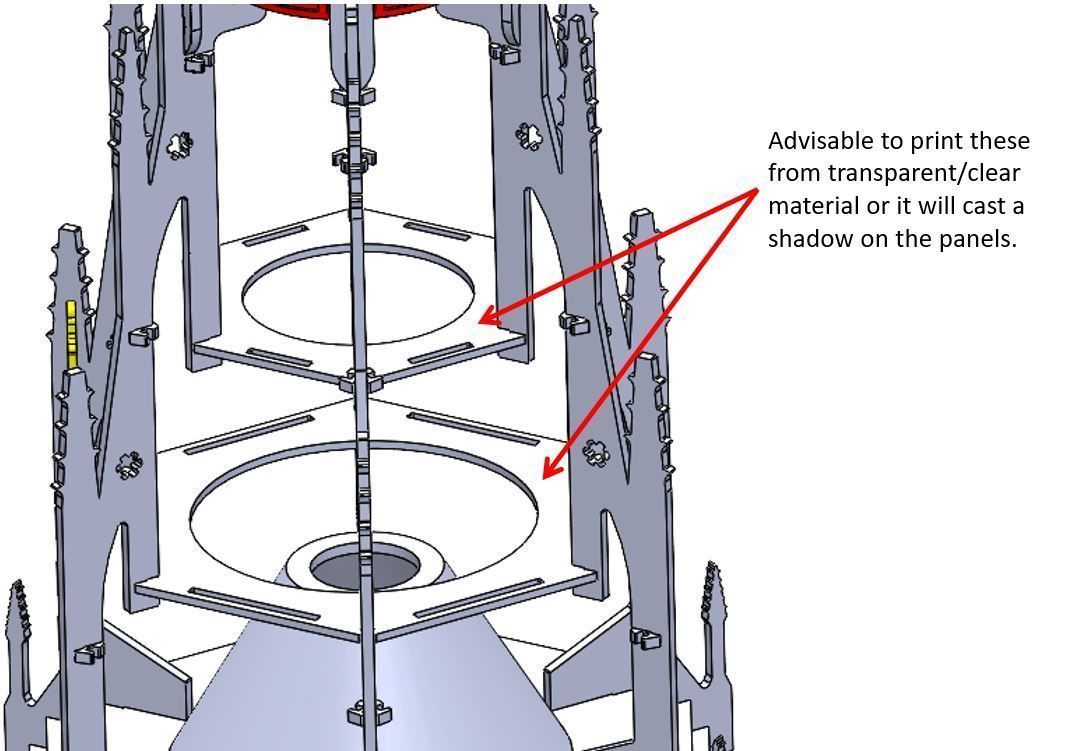

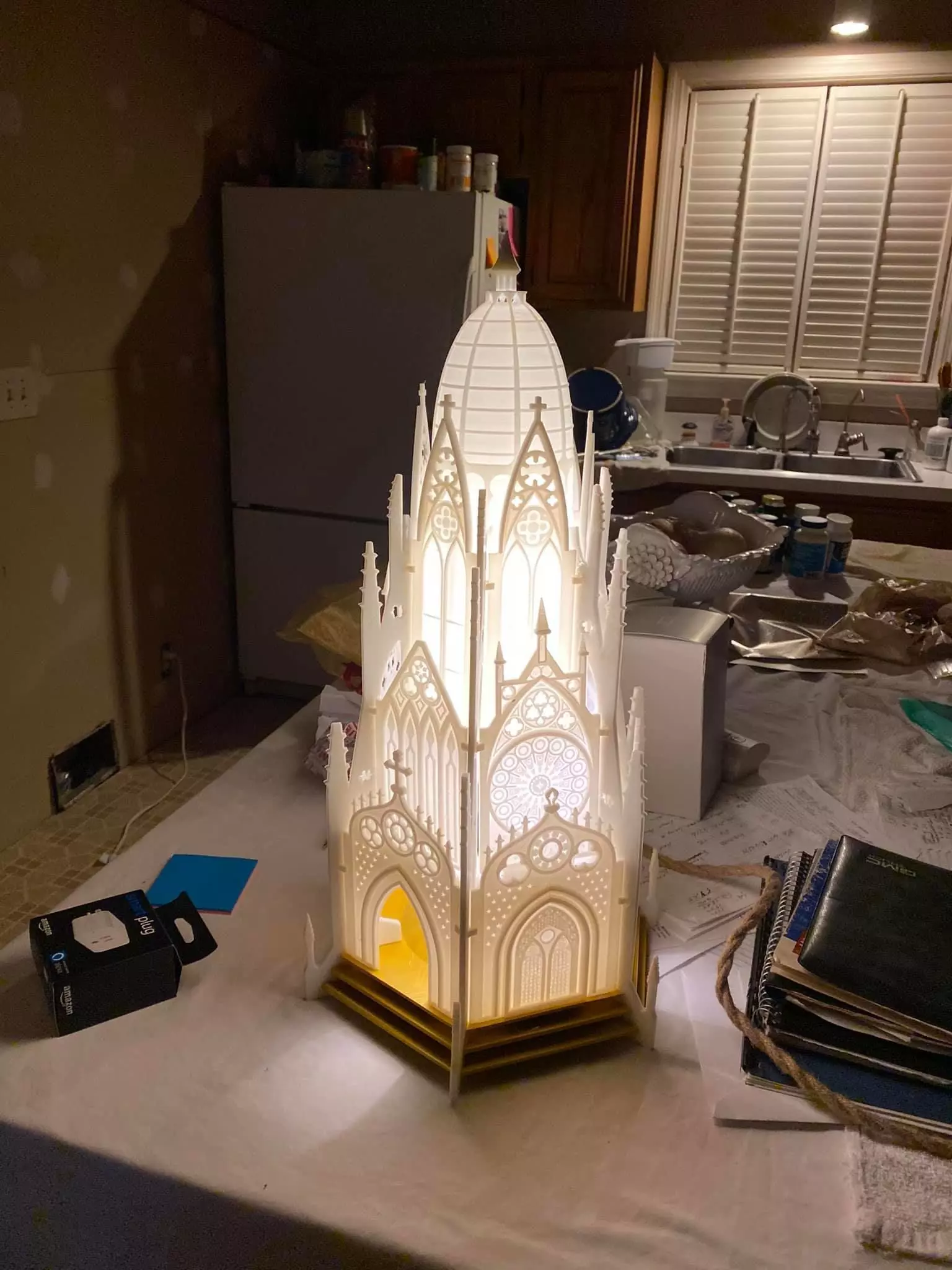

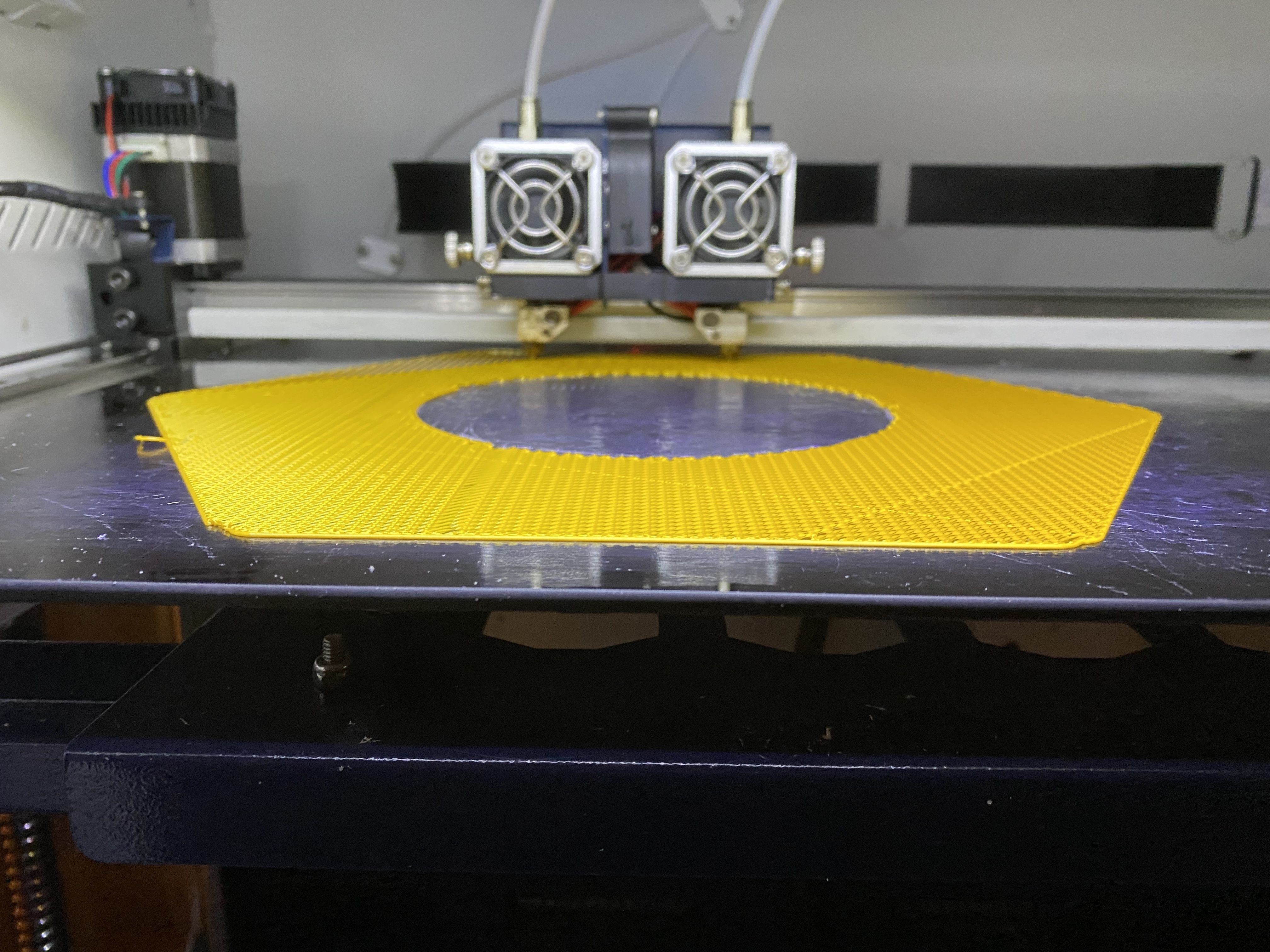

The pictures of the finished product are printed with eSun's PLA+ warm white and a silk gold filament for the base. On the inside there are two floors that are recommended to be clear as any opaque material will likely create a shadow on the lamp.

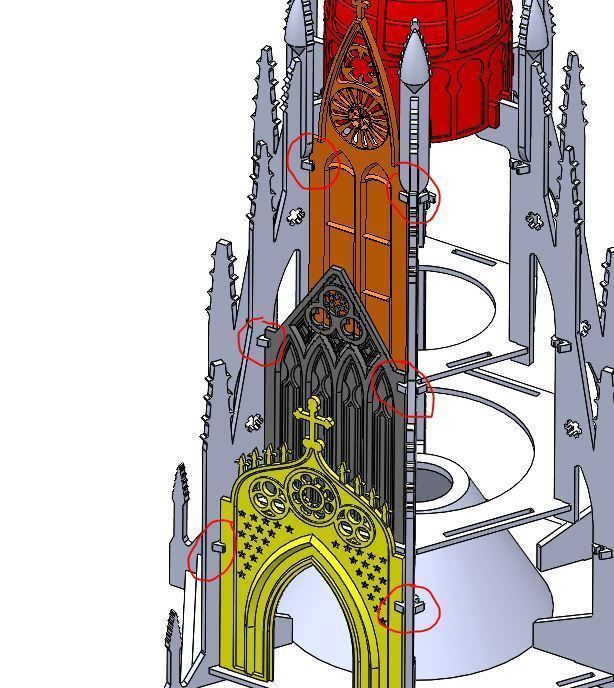

There are alternative panels that can be used if you want a variety of panels like the pictures show, but the Qty of parts on the file name are recommended if you want to cover the layers with the one panel style. but if you want to mix the panels like my photos show you can do 3x for each panel and alternate them in order.

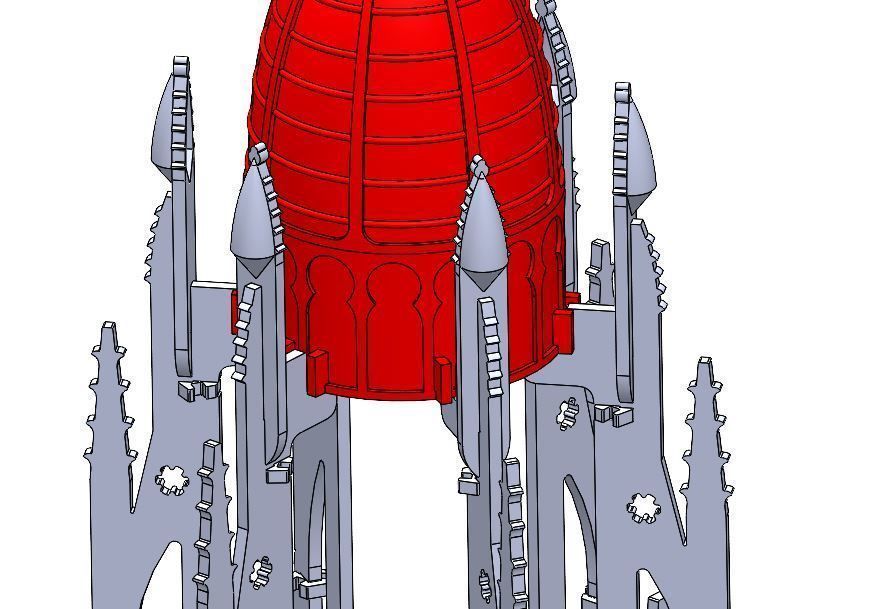

It would probably be best to glue the pieces together except the top dome. The top dome is meant to come off to provide easy access to the bulb in order to change it.

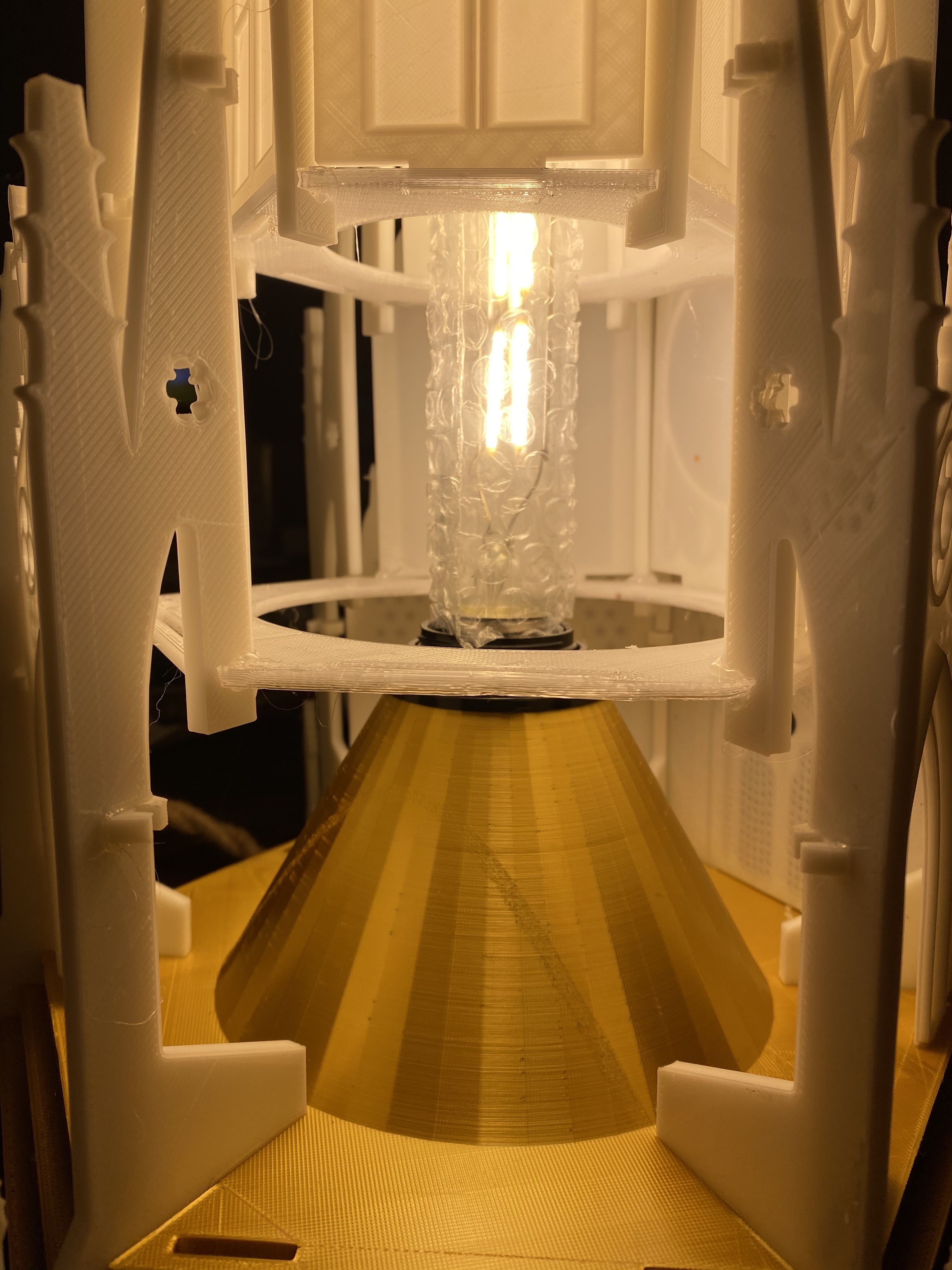

Below are the links for the components that are not printed such as the bulb and the lamp fixture. I cannot say if any other light fixtures will work, but I liked the one linked because it has a dimmer switch. The bulb is a 11.8inch LED Edison bulb, and I strongly recommend using an LED bulb as high temperature bulbs will probably have a negative impact on PLA if that is your chosen material.

https://www.amazon.com/LEOOLS-Vintage-Filament-Dimmable-Equivalent/dp/B07TYTMF16/ref=sr_1_7?crid=3EO9215Z5O3J6&dchild=1&keywords=11%2Binch%2Bled%2Bedison%2Bbulb&qid=1635814532&sprefix=11inch%2Bled%2Bedison%2Bbulb%2Caps%2C62&sr=8-7&th=1

https://www.amazon.com/gp/product/B0893X45FZ/ref=ppx_yo_dt_b_asin_title_o03_s01?ie=UTF8&th=1
