Industrial Pipe System with Flanged Connections 3D print model
Description

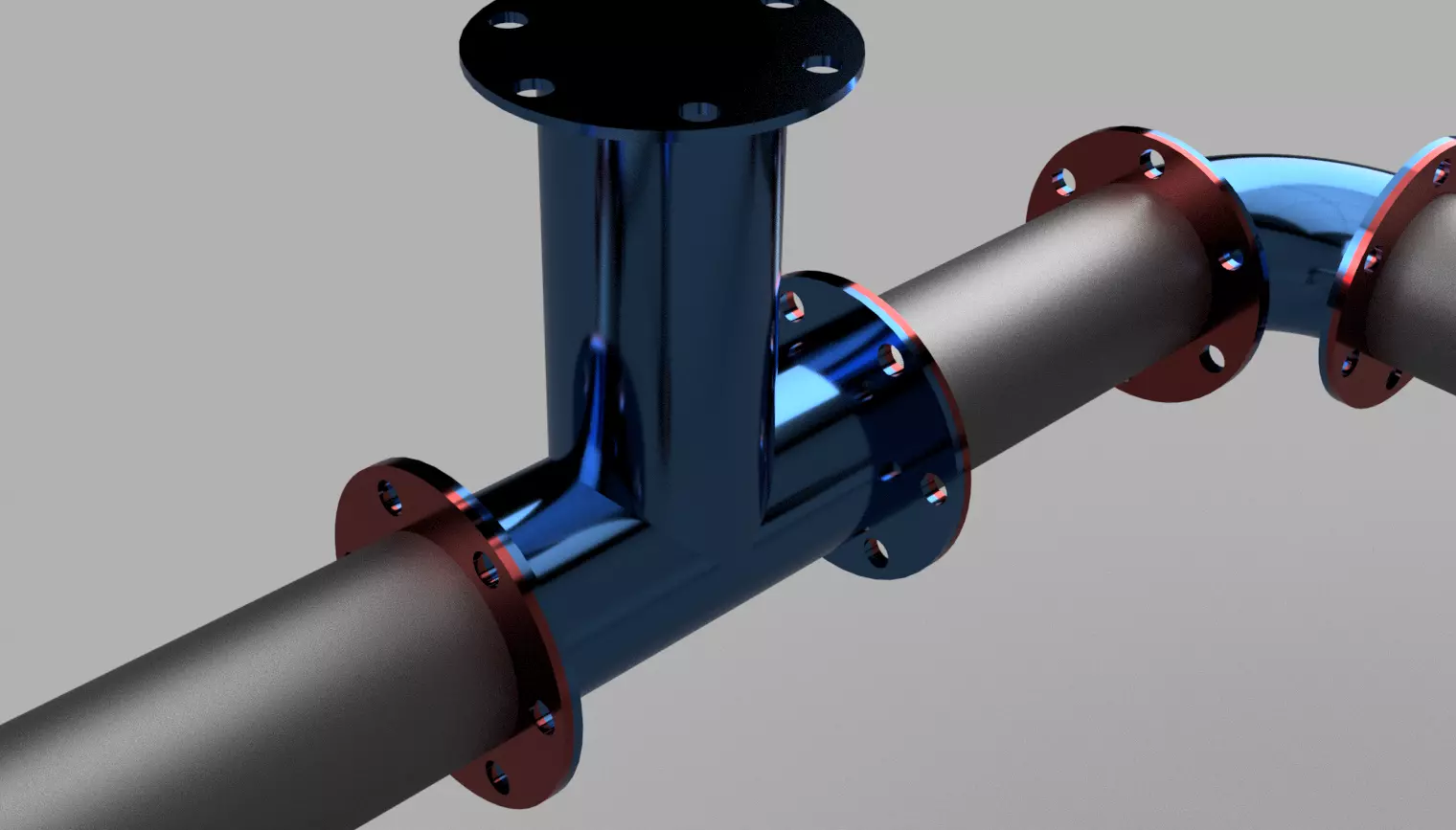

This 3D model showcases an industrial pipe system featuring flanged connections. The setup includes a T-junction to split flow into two directions and an elbow joint for directional change. Designed with a metallic finish, it presents a sleek blue pipe structure complemented by red flanges with bolt holes for secure attachment. This model is ideal for engineering simulations, industrial visualizations, and educational demonstrations related to fluid dynamics and piping systems.
Industrial Pipe System with Flanged Connections
Royalty Free No Ai License
Industrial Pipe System with Flanged Connections
Royalty Free No Ai License
3D Modeling
3D Model formats
Format limitations
- Sketchup (.skp) (2 files)5.53 MB
- 3D Manufacturing File (.3mf) (2 files)6.24 MB
- Autodesk Inventor (.iam, .ipt)994 KB
- Autodesk Fusion 360 (.f3d) (2 files)5.08 MB
- OBJ (.obj, .mtl) (3 files)9.27 MB
- Stereolithography (.stl) (4 files)9.08 MB
- Other 153 KB
- IGES (.ige, .igs, .iges) (2 files)5.27 MB
3D Model details
- Ready for 3D Printing
- Publish date2025-05-15
- Model ID#6128342
