FPV Drone - Topology Optimized Frame (STEP & STL for Hybrid Assembly)

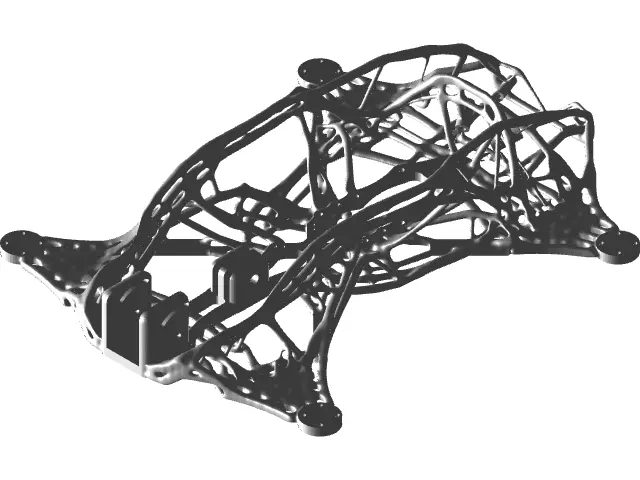

Presenting My Thesis FPV Drone, a project developed during my thesis research, focusing on advanced lightweight design through topology optimization. This model showcases a high-performance FPV drone frame (chassis) meticulously designed for structural efficiency and reduced weight, making it ideal for racing, freestyle, or long-range FPV applications.The core innovation lies in the topology-optimized frame, which drastically minimizes material usage while maintaining structural integrity. This approach results in an organic, lattice-like structure that is both lightweight and incredibly strong for its weight class.

The model is provided as a hybrid assembly to ensure full usability and flexibility:

1. FPV Drone Assembly (STEP format): Contains the full drone assembly, including motors, propellers, camera, electronics (flight controller, VTX), and the mounting points for the frame. This STEP file is a clean solid representation of all standard off-the-shelf components.

2. Topology Optimized Frame (STL format): The unique, generative-designed frame is provided as an STL mesh. This format is ideal for direct additive manufacturing (3D printing) and preserves the intricate, optimized geometry.

Assembly Note: Due to the nature of combining solid (STEP) and mesh (STL) geometries, the frame and the rest of the drone components are provided in separate files. To reassemble the full drone in your CAD software, simply import both files into a common assembly and align them using their respective coordinate systems. They are designed for easy mating in this manner.

Key Features:

1. Topology Optimized Frame: Cutting-edge lightweight design for maximum strength-to-weight ratio.

2. FPV Drone Design: Full assembly of a functional FPV drone, ready for analysis or further customization.

3. Hybrid File Formats: STEP for solid components, STL for the complex frame, catering to different design and manufacturing workflows.

4. Easy Assembly: Designed for precise mating via coordinate systems.

5. Thesis Project Quality: Reflects detailed engineering design and academic rigor.

Potential Applications:

1. Advanced FPV drone design and customization.

2.Structural analysis and simulation studies (FEA) of topology-optimized structures.

1. Research and development in generative design and additive manufacturing (3D printing).
