Bedok-class mine countermeasures vessel

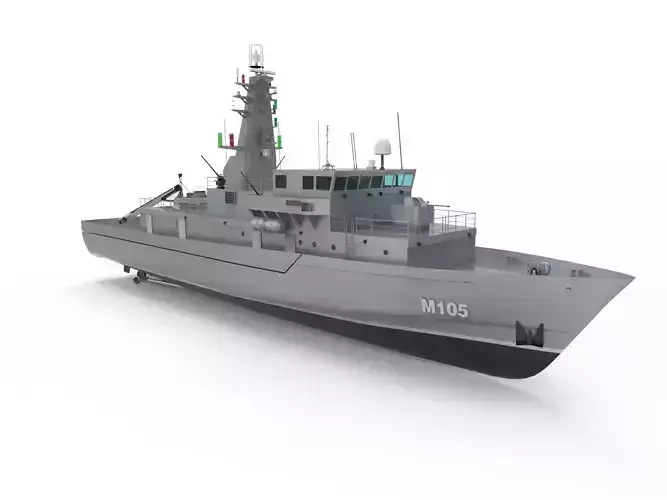

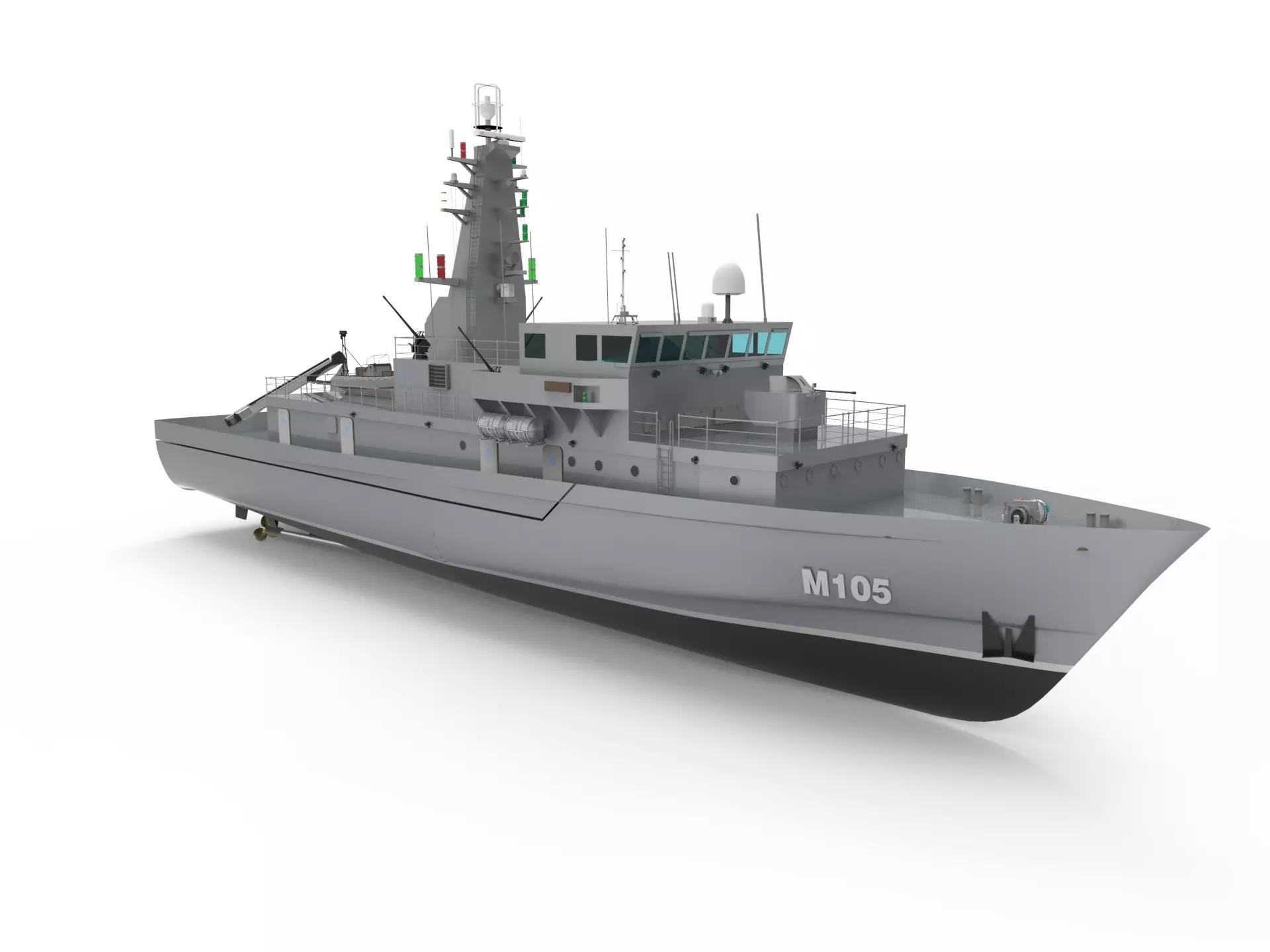

Bedok-class mine countermeasures vessel 3D model

Description

The Bedok class are mine countermeasures vessels of the Republic of Singapore Navy (RSN). They play an important role in the maritime security of Singapore, ensuring that the Singapore Strait and the sea lanes surrounding Singapore remain mine-free and open to international shipping. It is estimated that closure of Singapore's ports would result in direct trade losses amounting to more than US$1.2 billion daily, posing a serious threat to Singapore's economy.[1][2] The four ships form the Sixth Flotilla of the RSN. Type Mine countermeasures vessel

Displacement
Standard: 360 t (350 long tons; 400 short tons) Full load: 380 t (370 long tons; 420 short tons) Length 47.5 m (155 ft 10 in) Beam 9.6 m (31 ft 6 in) Draught 2.3 m (7 ft 7 in) Installed power 4 × Saab-Scania DSI 14 diesel engines, each producing 1,440 bhp (1,070 kW) Propulsion
2 × Voith Schneider Propellers Total output: 5,760 bhp (4,300 kW) Speed 15 kn (28 km/h; 17 mph) Range 2,000 nmi (3,700 km; 2,300 mi) at 12 kn (22 km/h; 14 mph) Complement 33 (5 officers and 28 men) Sensors and processing systems
Navigation radar: Norcontrol DB2000 (I band) Sonar: Thales Underwater Systems TSM-2022 MkIII hull-mounted mine hunting sonar DAPS: SIREHNA DAPS (Dynamic Auto-pilot Positioning System) Thales Underwater Systems towed synthetic aperture sonar Armament
Main gun: 1 × Bofors 40 mm gun (before 2009 refit) 1 × 25mm M242 Bushmaster Mk 38 Mod 2 with stabilised Typhoon weapon sighting system (after 2009 refit) Machine guns: 4 × STK 50MG 12.7 mm (0.50 in) HMG Mine disposal: ECA K-STER expendable mine disposal system

Item rating
1 0
E
Exocet77 2024-01-01 23:30:29 UTC
Recommended
recommended, detail and good design
Bedok-class mine countermeasures vessel
$225.00

Royalty Free License
Bedok-class mine countermeasures vessel
$225.00

Royalty Free License
Response 33% in 48.0h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • 3D Manufacturing File (.3mf)35.2 MB
  • glTF (.gltf, .glb) (2 files)144 MB
  • Stereolithography (.stl)70.2 MB
  • Autodesk FBX (.fbx)60.8 MB
  • KeyShot (.bip, .ksp)103 MB
  • OBJ (.obj, .mtl) (2 files)292 MB
  • USDZ (.usdz)27.7 MB

3D Model details

  • Publish date2023-03-08
  • Model ID#4346054
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
