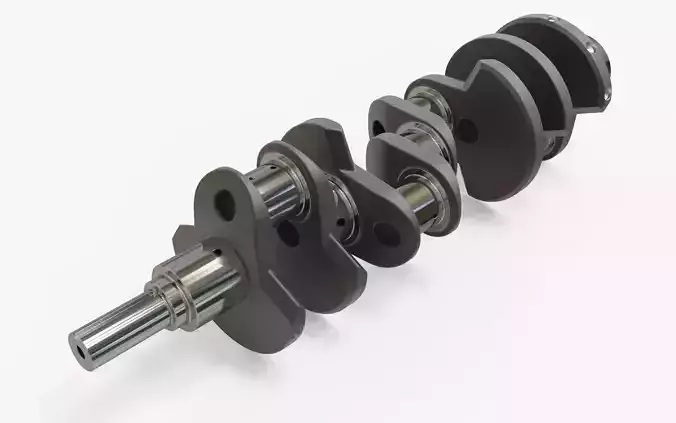

Crankshaft 3D model

3D model. Created on the basis of an accurate and meticulous reproduction of the original object. All components have a level of detail identical to reality. The model was created based on research on high performance engines. The dimensions reflect the real component .

Main features:

• The model, in the native format, is modeled as a body parametric solid in Solidworks 2018.
• Rendering with Keyshot 9.
• Keyshot's scene and environments are included, with all materials applied and ready for rendering.
• Real world scale.
• Model centered at origin.
• Units mm (millimeters).

Model formats included:

• (.sldasm, .sldprt) Solidworks 2018 (Native format)
• (.obj, .mtl) 3D exchange format
• (.fbx) 3D exchange format
• (.ksp) Keyshot 9- (stl) 3D Printing format
• (.igs) 3D exchange format
• (.stp) 3D exchange format
• (.x_t) 3D exchange format
• (.jpg) Image format

All textures applied to the model are contained in the Keyshot package.

The rendered presentation images were created using the model's native format and are included in the package.

The polygonal resolution of the model is optimized for the best visualization of the scene.

Counting polygons OBJ and FBX format, models verified in 3Ds Max 2016 and in Maya 2017:

• OBJ: Faces 71.314 - Vertices 69.048
• FBX: Faces 71.294 - Vertices 38.810

Counting polygons Solidworks 2018 format:

• SLDASM: Faces 71.316 - Vertices 61.962

Counting polygons STL format, model verified in 3Ds Max 2016, in Maya 2017 and in Solidworks 2018 (2 files included):

• 1:1 scale model - Faces 100.106 - Vertices 50.039 - Dimensions: 617x162.34x162.34 mm (millimeters).
• 1:5 scale model - Faces 95.598 - Vertices 47.869 - Dimensions: 123.4x32.468x32.468 mm (millimeters).
