Brake disc TRW MST202

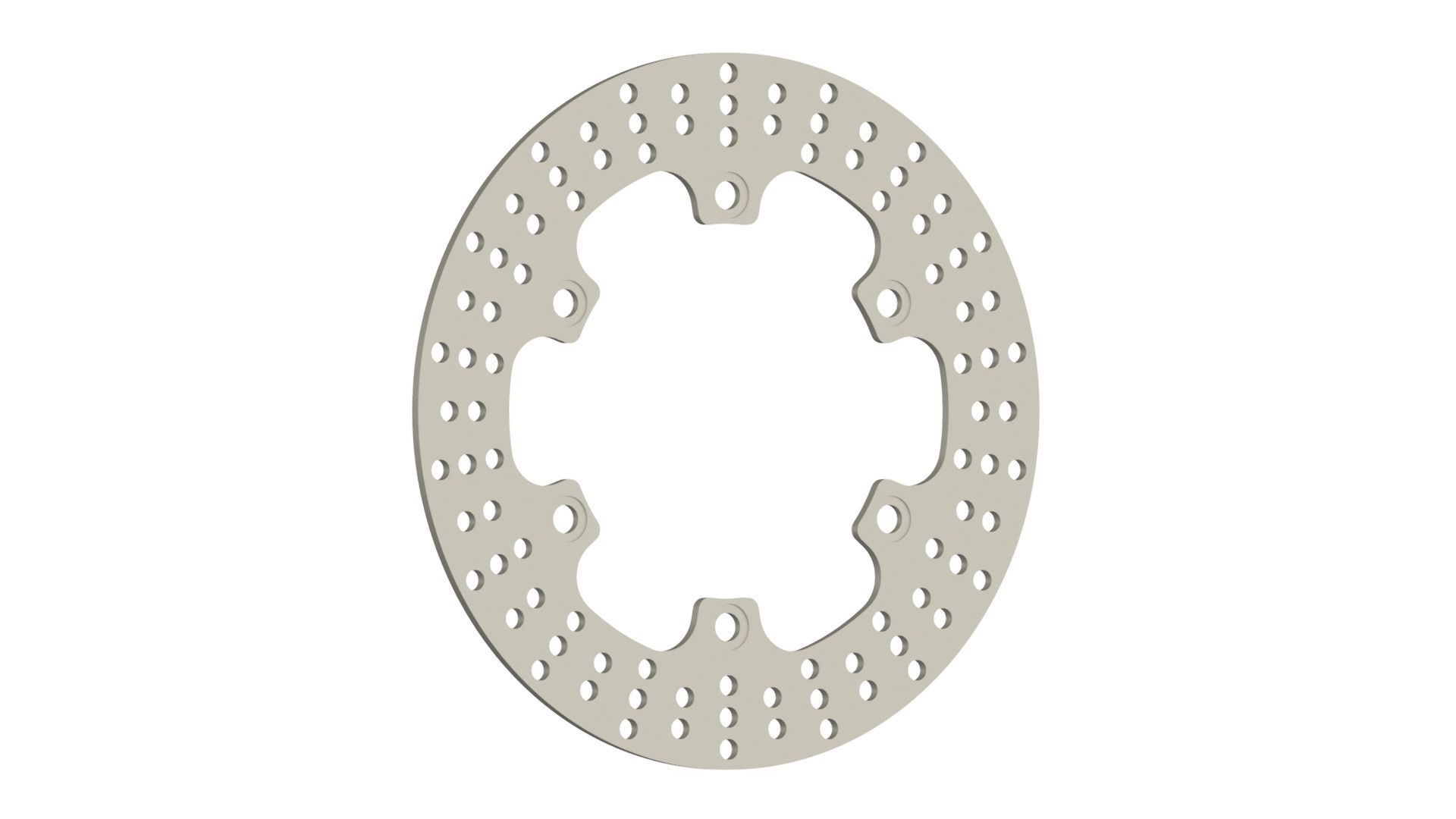

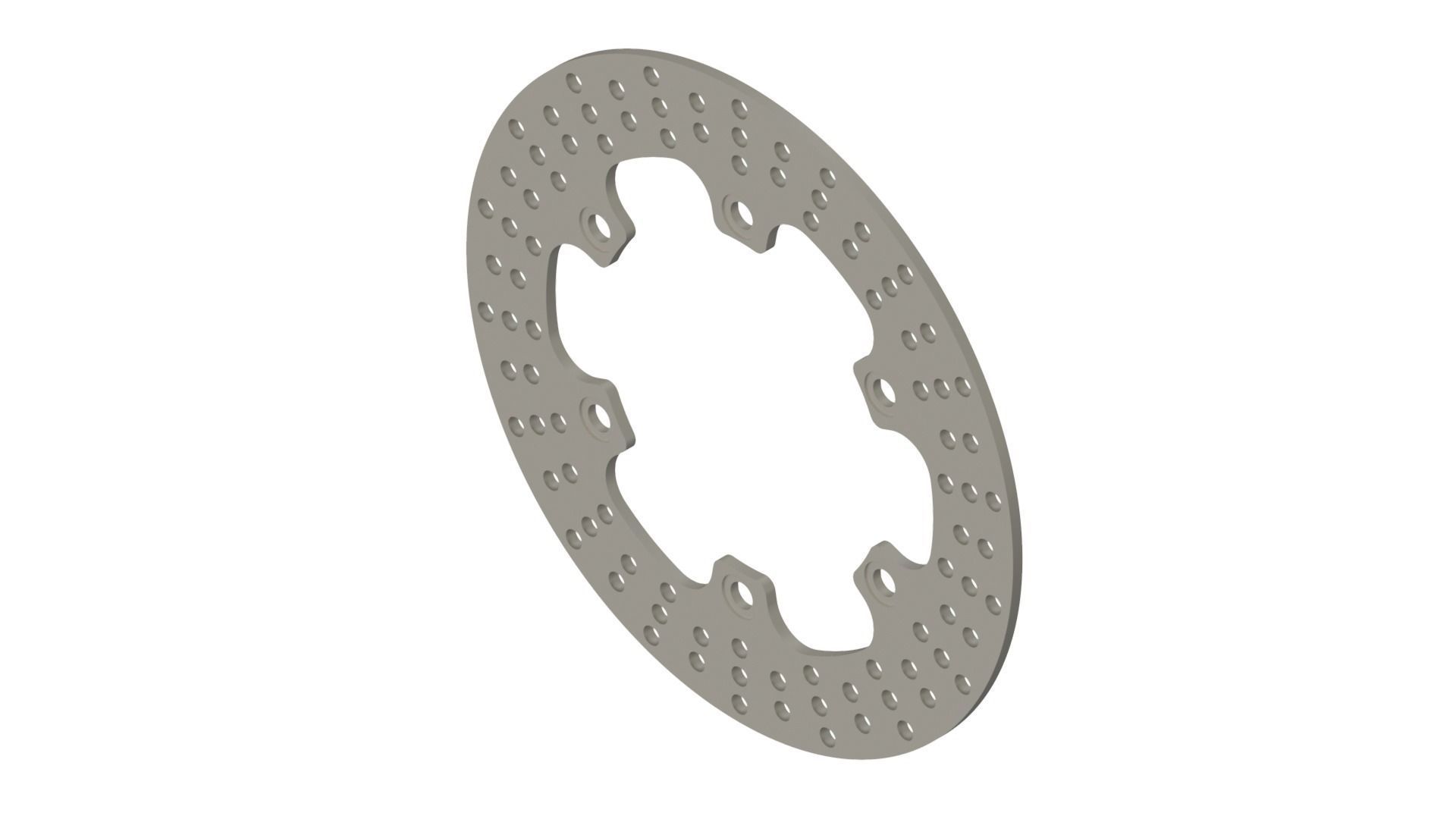

Brake disc TRW MST202 3D model

Description

Brake disc TRW MST202

1998-05 TRW Lucas MST 202 Honda NT 650V Deauville RC47 Rear Brake Disc

All TRW-Lucas motorcycle brake discs are made from premium steel alloy to ensure maximum safety and performance. All brake discs are supplied with a TÜV certificate of conformity and comply with the requirements of the regulations, with the exception of the SP series racing brake discs.

By choosing TRW-Lucas brake discs for motorcycles, you get:

Exceptional quality and unique design. Wide range of brake discs for almost all models. High quality materials, tight tolerance manufacturing, precision ground surface. Correct operation, low vibration levels and improved pad adaptation. Absolute reliability and maximum performance without compromise. High quality hardened surface, increasing service life and maintaining dimensional stability. TÜV certificate of conformity for all brake discs intended for public roads. Compatibility: HONDA CBR 1000 F 1987-1988 HONDA NT 650 V Deauville 1998-2005 HONDA NT 700 V / VA Deauville 2006-2013 HONDA SLR 650 1997-2000 HONDA VT 1100 C2 / Shadow 1995-1998 HONDA VT 1100 C3 / Shadow 1999-2002 HONDA XL 600 V Transalp 1988-1996

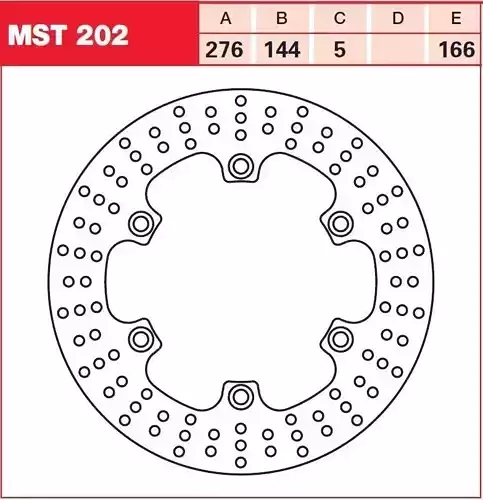

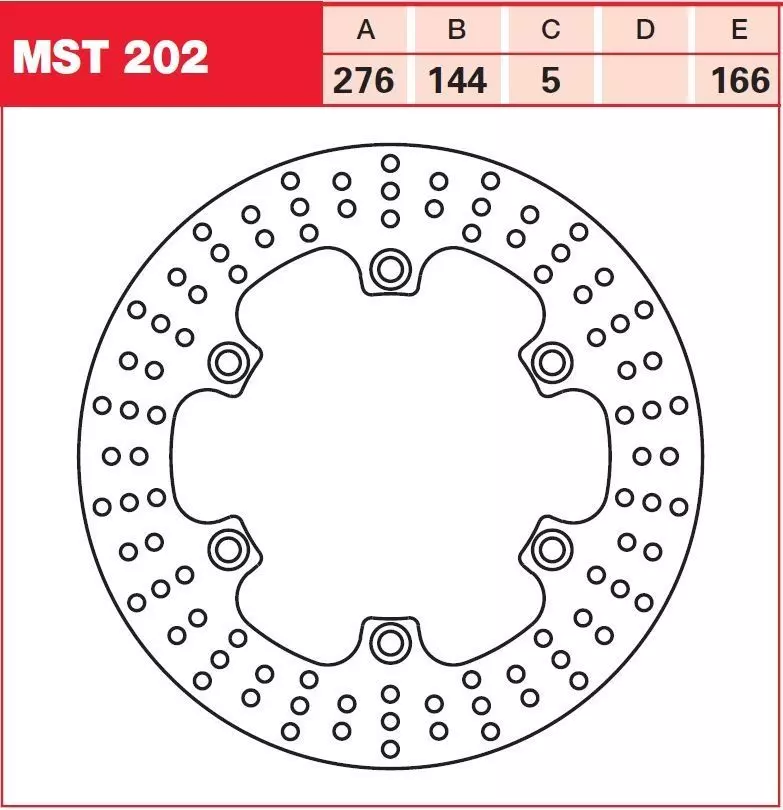

Characteristic: Weight (kg) - 1.035 Inner diameter (mm) - 144 Quantity - 1 Material - Steel Outer diameter - 276 Thickness (mm) - 5

Item rating
0 0
Brake disc TRW MST202
$6.00

Royalty Free License
Brake disc TRW MST202
$6.00

Royalty Free License
Response 40% in 2.0h

3D Model formats

Format limitations
  • Parasolid (.x_t, .x_b)189 KB
  • STEP (.stp)234 KB
  • DXF 2010 (.dxf)270 KB
  • IGES (.ige, .igs, .iges)754 KB
  • AutoCAD 2010 (.dwg)192 KB

3D Model details

  • Publish date2024-01-28
  • Model ID#5056492
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
