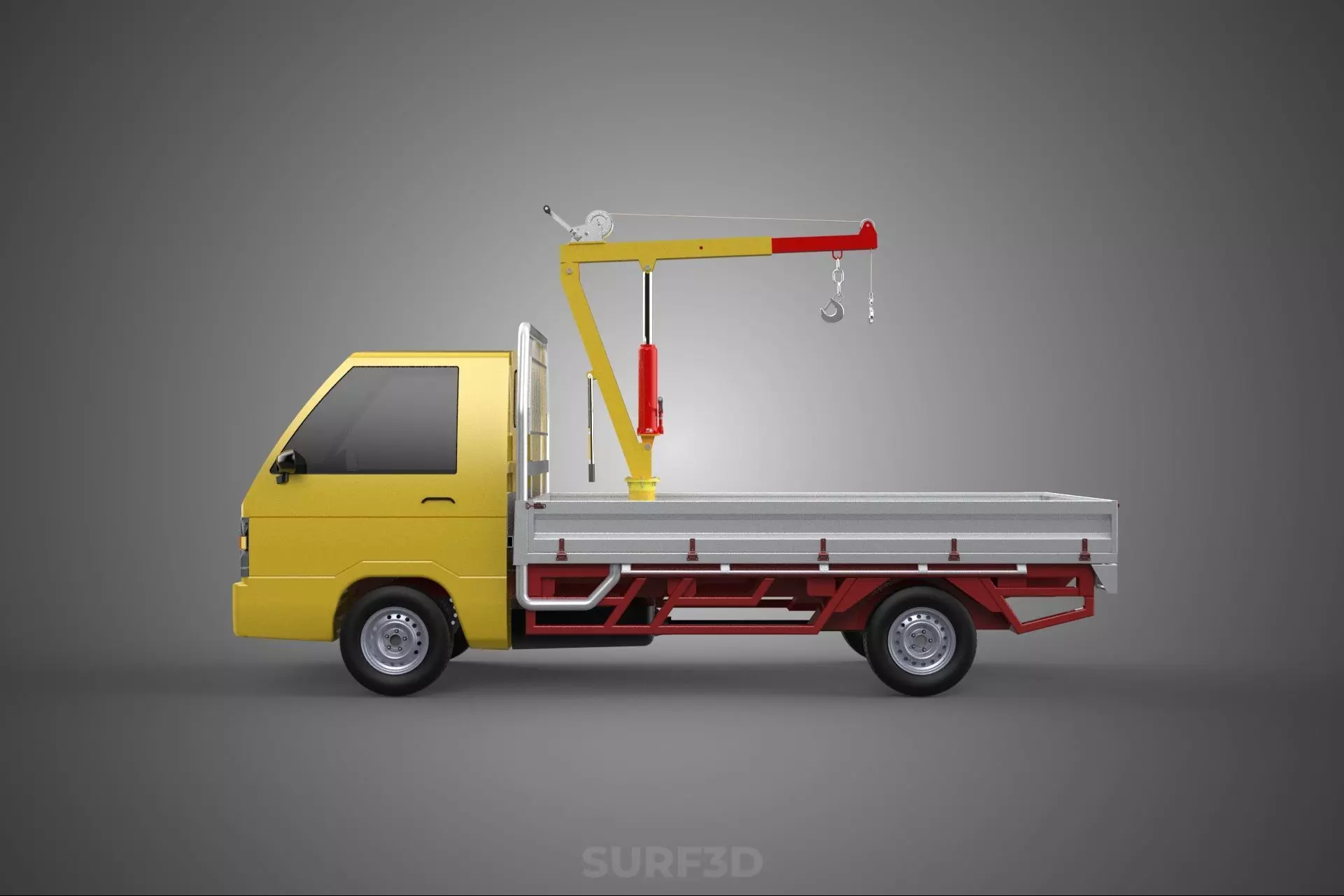

ARM FOLDING HYDRAULIC JIB CRANE MANUAL HAND WINCH TRUCK PICKUP 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Folding Hydraulic Jib Crane with Manual Hand Winch for Truck Pickup Mounting describes a specialized piece of mobile lifting equipment designed for versatile material handling, particularly in environments where portability and self-sufficiency are paramount. This apparatus integrates several key mechanical and operational features to provide a compact, yet effective, lifting solution.

At its core, this system is a jib crane, characterized by a horizontal or luffed boom (the jib or arm) fixed to a vertical mast or column, capable of rotating (slewing) about its axis. The primary function of a jib crane is to lift, lower, and transport loads within a specified arc or radius.

The Arm Folding aspect denotes a crucial design feature wherein the crane's boom or jib can be collapsed or articulated into a more compact configuration when not in use. This capability significantly reduces the crane's footprint, facilitating easier storage, transport, and maneuverability of the host vehicle, especially when navigating confined spaces or complying with road travel dimensions. The folding mechanism often involves hinge points and locking pins, ensuring secure deployment and stowing.

The term Hydraulic indicates that the crane's primary movements, such as the raising/lowering of the jib arm (luffing) and/or its rotation (slewing), are powered by a hydraulic system. This system typically comprises a hydraulic pump (often powered by the truck's electrical system or a small auxiliary engine), a reservoir, control valves, and hydraulic cylinders. Hydraulic power provides smooth, controlled, and powerful movements, allowing for precise positioning of the crane arm and accommodating heavier loads than purely manual systems for these motions.

Distinct from the hydraulic positioning of the jib arm, the Manual Hand Winch specifies the mechanism responsible for the actual vertical lifting and lowering of the load. This winch is operated by human effort, typically through a hand crank that turns a drum via a gear reduction system. A steel cable or rope winds onto this drum, with a hook at its end for attaching the load. The manual nature of the winch makes it independent of external power for the lifting operation itself, providing a reliable solution in remote areas or where electrical power is unavailable or undesired for the final lift. It also offers precise, controlled lowering, critical for delicate positioning.

Finally, Truck Pickup signifies that the entire crane assembly is designed for secure mounting onto the bed or chassis of a pickup truck. This integration transforms a standard pickup into a highly mobile service or utility vehicle equipped with significant lifting capabilities. The mounting typically involves a robust base plate that bolts directly to the truck's frame, ensuring stability during operation. This vehicular integration provides unparalleled mobility, allowing the crane to be rapidly deployed to various job sites, often in rugged or off-road conditions.

In operation, the operator first deploys the folding arm, often using hydraulic power for ease and precision. Once the arm is extended and positioned over the load, the manual hand winch is used to attach to and lift the item. After the load is moved, it is lowered, unhooked, and the jib arm can be folded and secured for transit.

This combination of features results in a versatile tool widely used in construction, agriculture, utility services, vehicle recovery, field maintenance, and various material handling tasks where moderate loads need to be lifted and moved with flexibility and without reliance on external power grids for the direct lift. Its advantages include self-sufficiency, portability, compact storage, and controlled operation, albeit with the limitation of requiring manual effort for the final load lift and having lower maximum capacities compared to fully powered crane systems.
