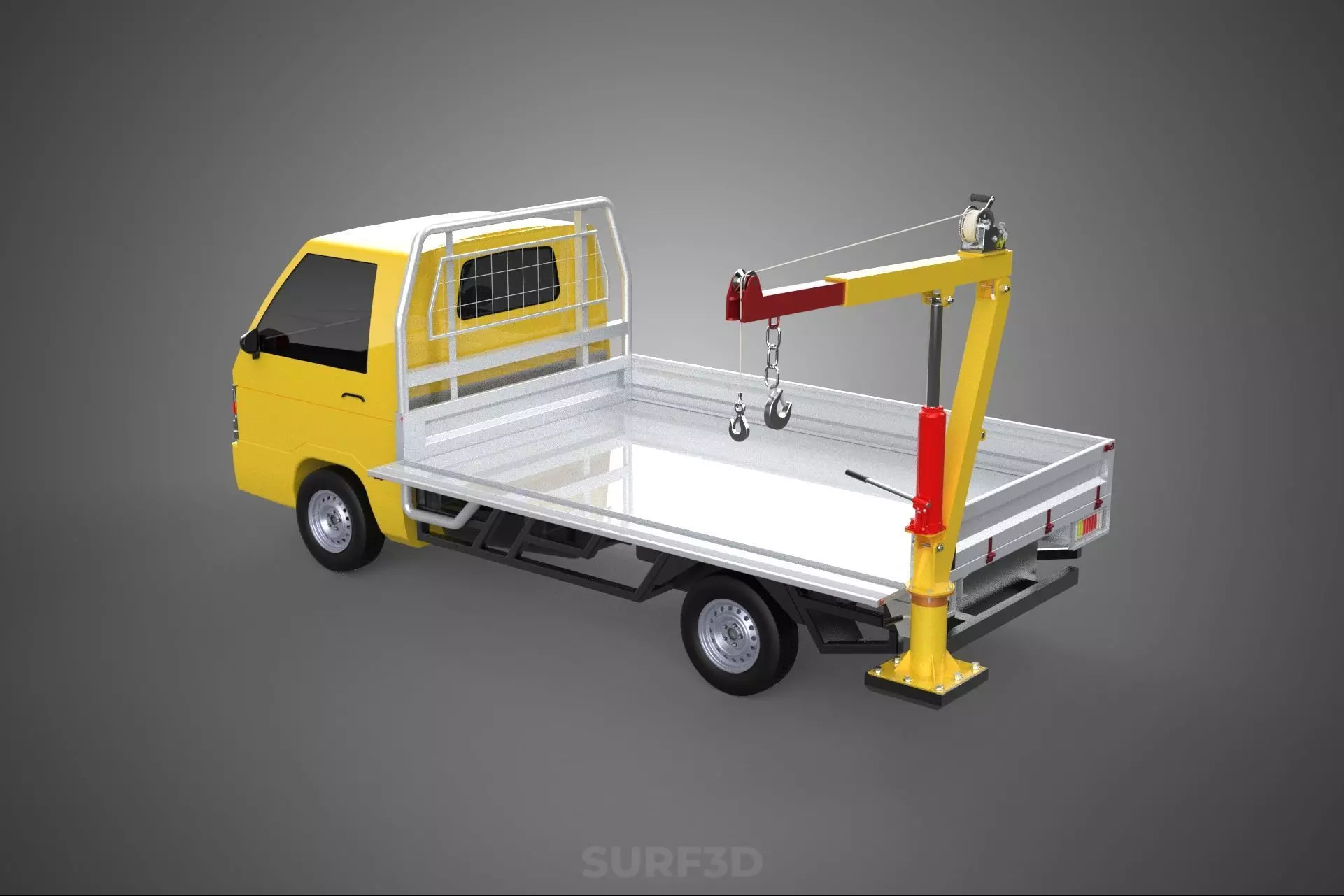

DROP GATE BED SIDE DOOR JIB CRANE LIFT HOIST WINCH TRUCK PICKUP 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A DROP GATE BED SIDE DOOR JIB CRANE LIFT HOIST WINCH TRUCK PICKUP describes a specialized utility vehicle, integrating a conventional pickup truck chassis with an articulated material handling system designed for efficient loading, unloading, and transport of heavy or bulky items. This configuration enhances the vehicle's versatility, particularly in field service, construction, landscaping, and logistics applications where standalone lifting equipment may be impractical or unavailable.

At its core, the system utilizes a TRUCK PICKUP as the mobile base. This typically refers to a light-duty or medium-duty commercial vehicle known for its open cargo bed, robust chassis, and off-road capabilities, providing both mobility and the power source for the integrated lifting apparatus.

The DROP GATE BED component refers to the cargo area's design. The drop gate is the vehicle's tailgate, designed to fold down horizontally or be completely removed. This feature facilitates easier loading and unloading, provides an extended work surface, or allows for the transport of items longer than the bed itself. The term BED emphasizes the primary cargo area where materials are stored and transported. The SIDE DOOR aspect, in the context of a pickup bed, typically refers to enhanced accessibility from the sides, potentially through removable side rails, low-profile bed walls, or specialized utility body compartments that offer lateral access to tools and equipment. This ensures the jib crane can effectively position loads into and retrieve them from various points within the bed.

The integral material handling system is comprised of a JIB CRANE LIFT HOIST WINCH.

• A JIB CRANE is a type of crane with a horizontal member (the jib or boom) that supports a movable hoist. In this vehicle application, it is typically mounted at one corner of the pickup bed, often behind the cab or at the rear. This mounting allows the crane to slew (rotate horizontally) over a specified arc, providing outreach to lift items from the ground, from a trailer, or from the surrounding area directly onto the pickup bed.

• The LIFT HOIST WINCH constitutes the actual lifting mechanism. A HOIST is specifically engineered for vertical lifting, employing a drum or lift wheel to wind a chain or wire rope. A WINCH is a mechanical device that pulls in or lets out (winds out) a wire rope or cable, primarily for horizontal pulling, but often adapted for lifting smaller loads or assisting the hoist. The combination LIFT HOIST WINCH signifies a versatile lifting and pulling unit, commonly powered electrically (from the truck's battery system or an auxiliary power unit) or hydraulically (via the truck's power take-off, or PTO). This mechanism is attached to the end of the jib, enabling the operator to raise, lower, and position loads with precision.

  The operational synergy of these components allows for the independent handling of heavy equipment, tools, raw materials, or finished products without requiring external machinery. Operators can lift items from ground level or other elevated surfaces, swing them over the pickup bed, and carefully lower them into position. This significantly reduces manual labor, mitigates the risk of injuries, and increases overall operational efficiency, especially in remote or space-constrained environments. Key considerations for such systems include lifting capacity, crane reach and slew angles, vehicle stability (often requiring deployable outriggers), and compliance with safety and load rating standards.

  KEYWORDS: Truck, Pickup, Jib crane, Hoist, Winch, Lift, Drop gate, Cargo bed, Material handling, Utility vehicle, Mobile crane, Field service, Construction equipment, Loading, Unloading, Vehicle modification, Hydraulic system, Electric hoist, Tailgate, Service truck, Compact crane, Heavy lifting, Work truck, Logistics, Transport, Industrial, Special purpose vehicle, Equipment transport, On-site lifting, Manual labor reduction
