Mallard steam train 3D model

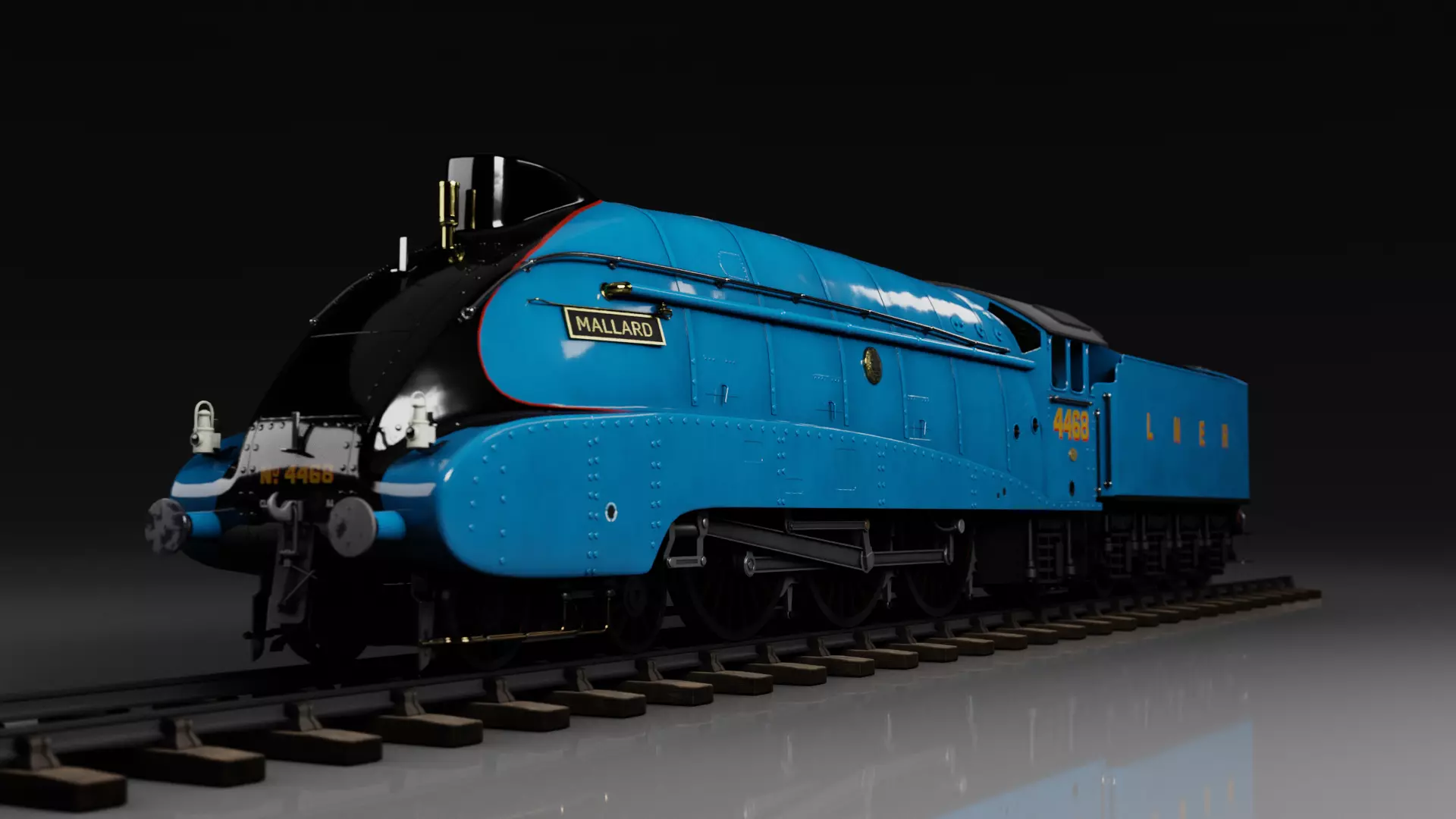

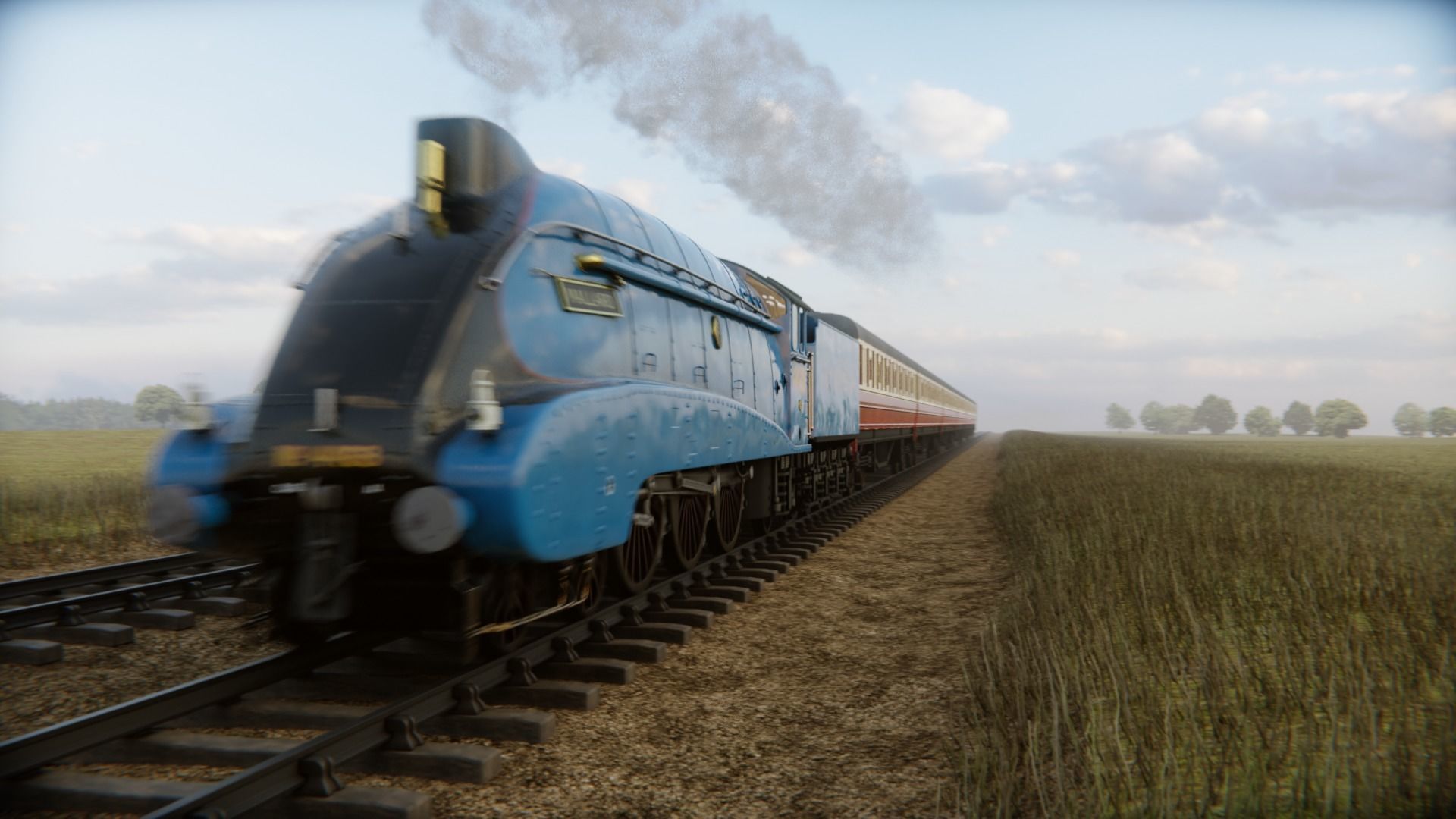

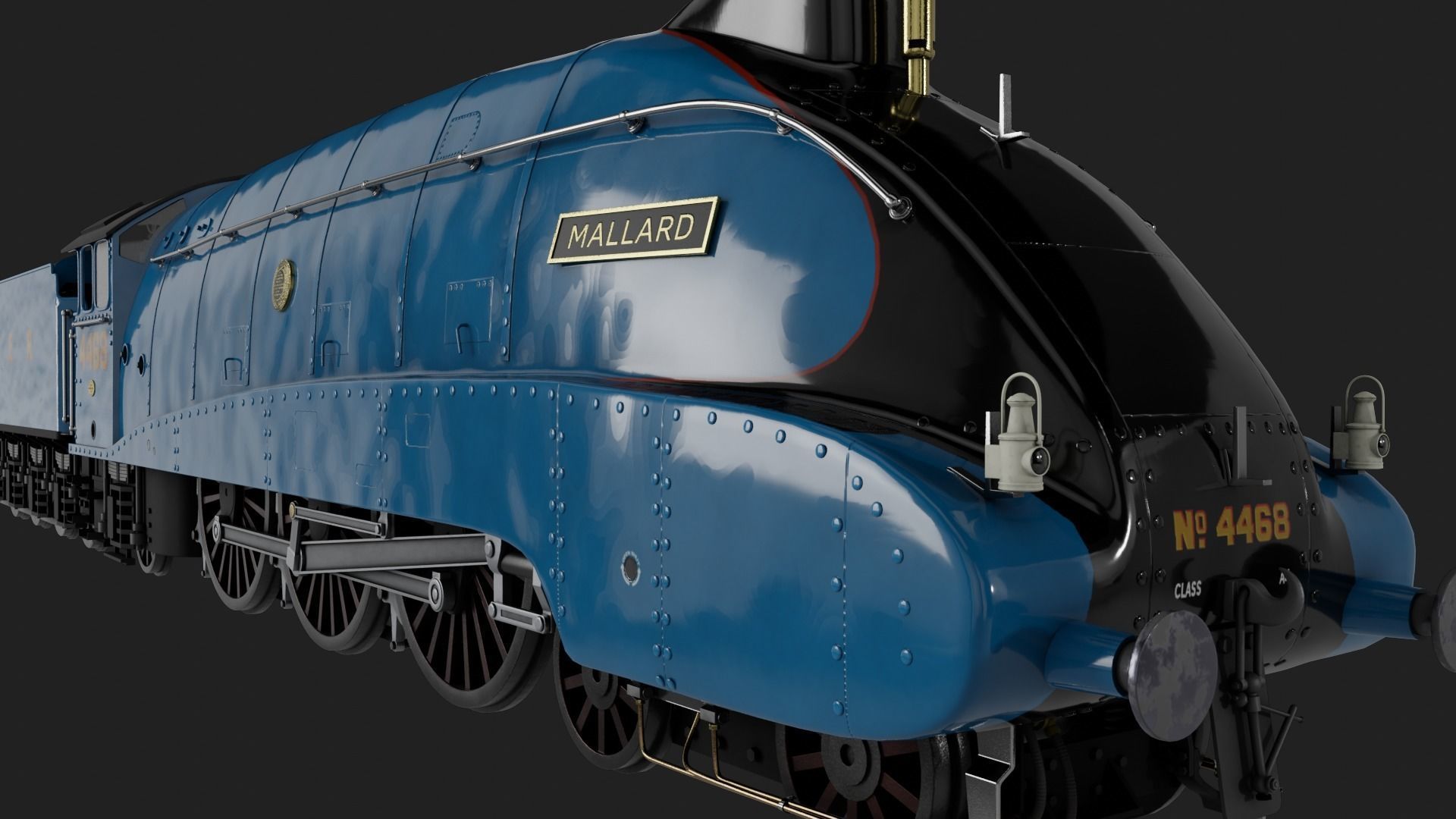

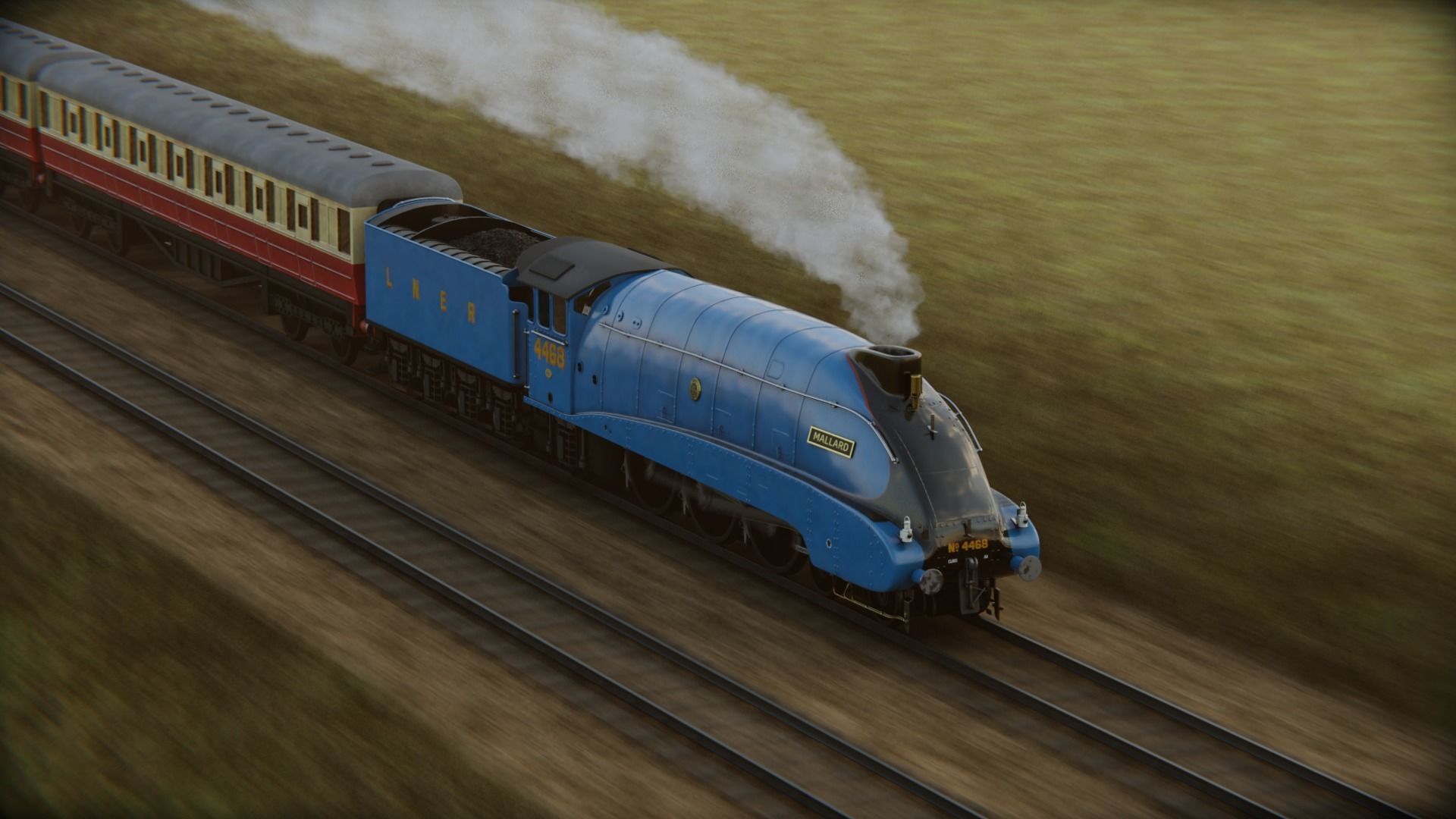

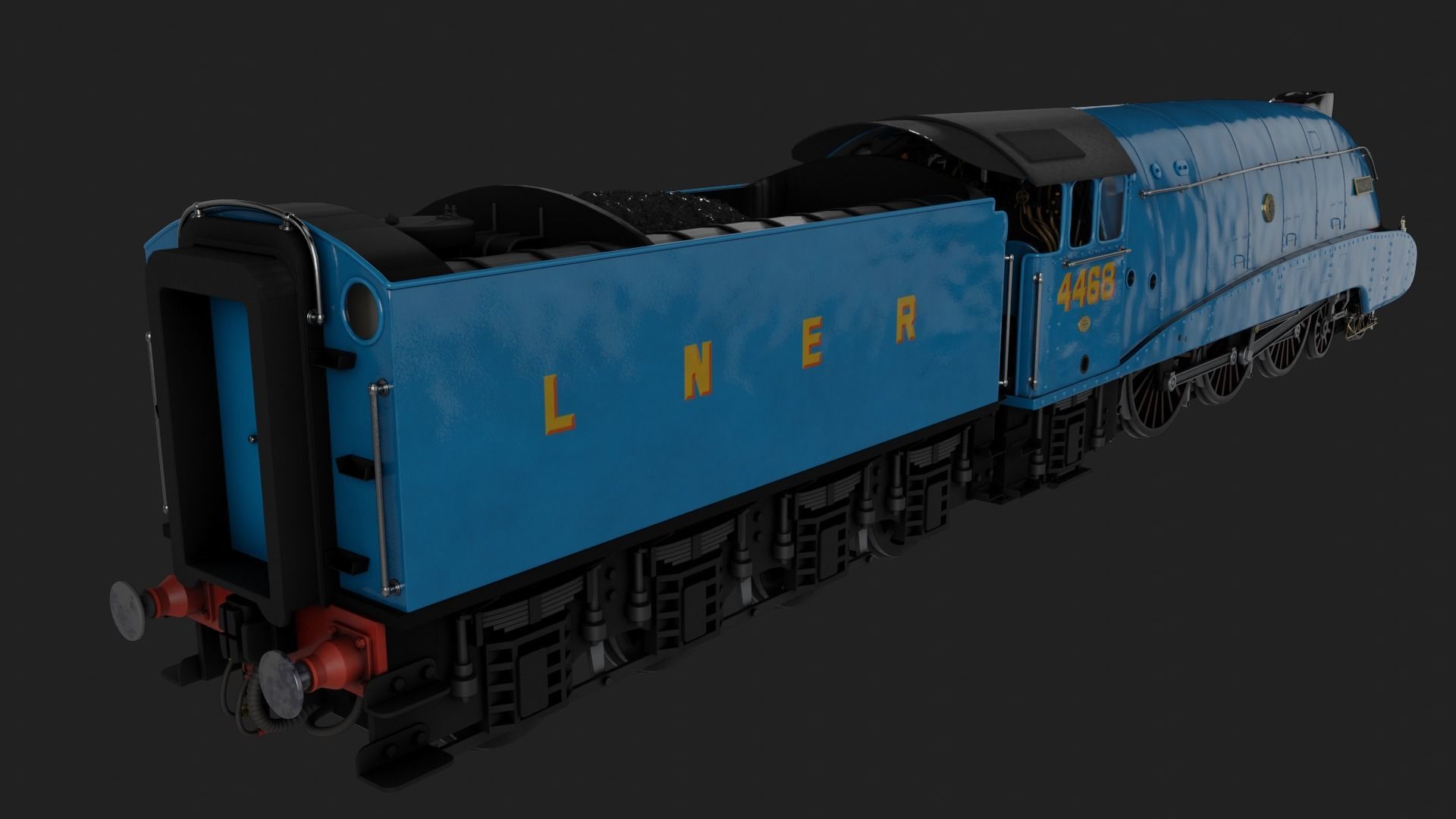

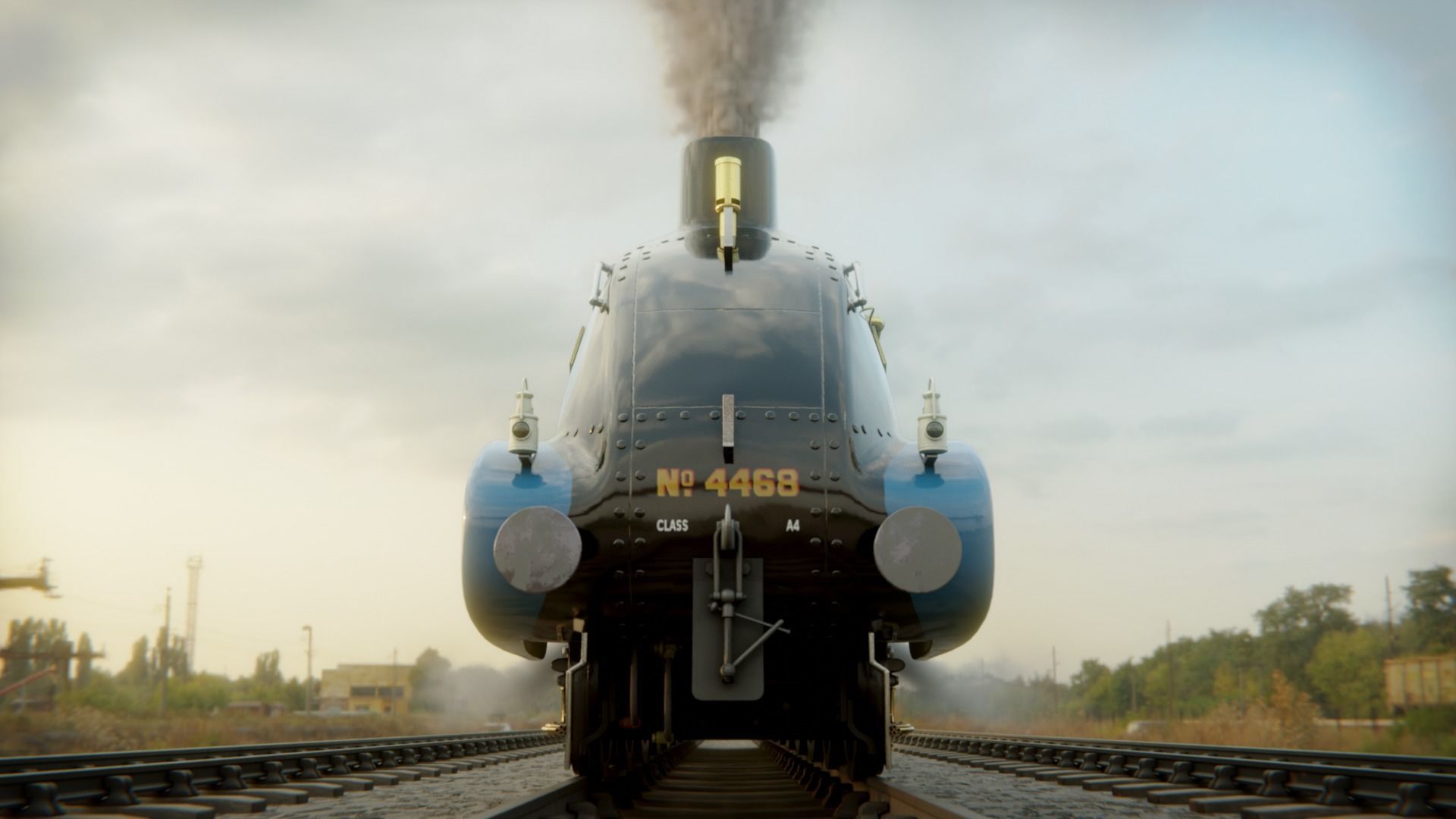

Highly detailed model of the classic 'Mallard' steam train.

Geometry and Rigging

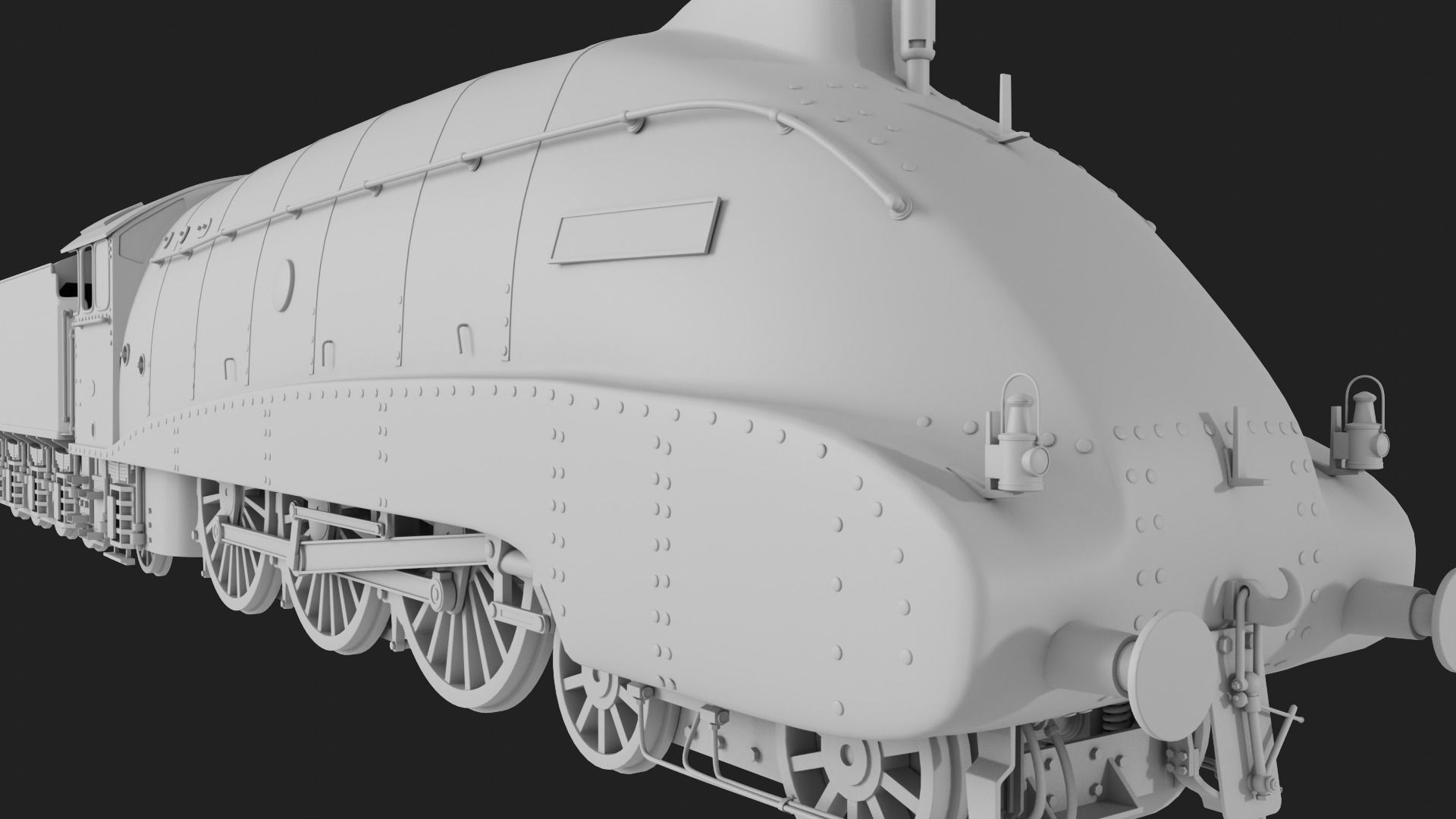

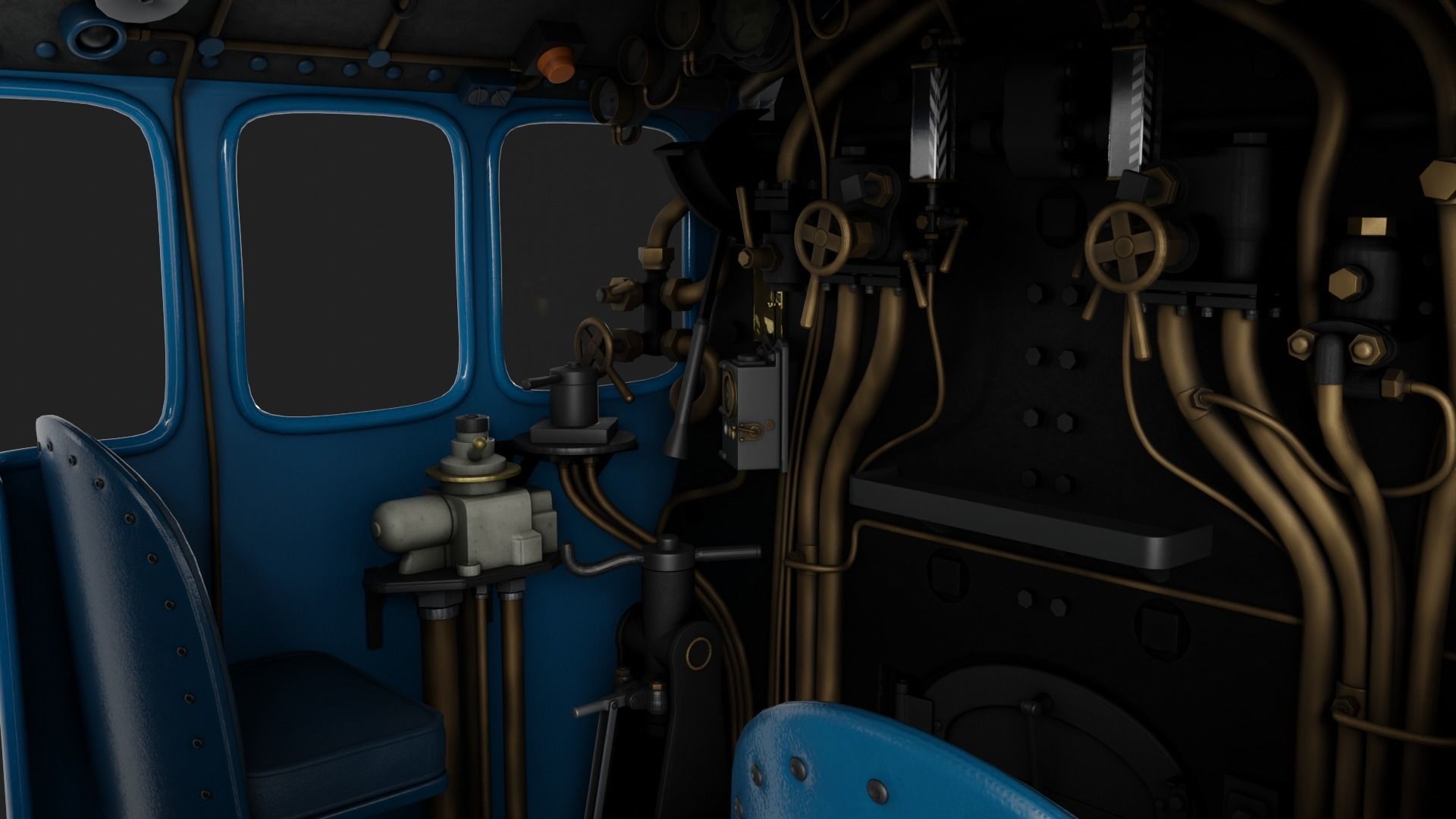

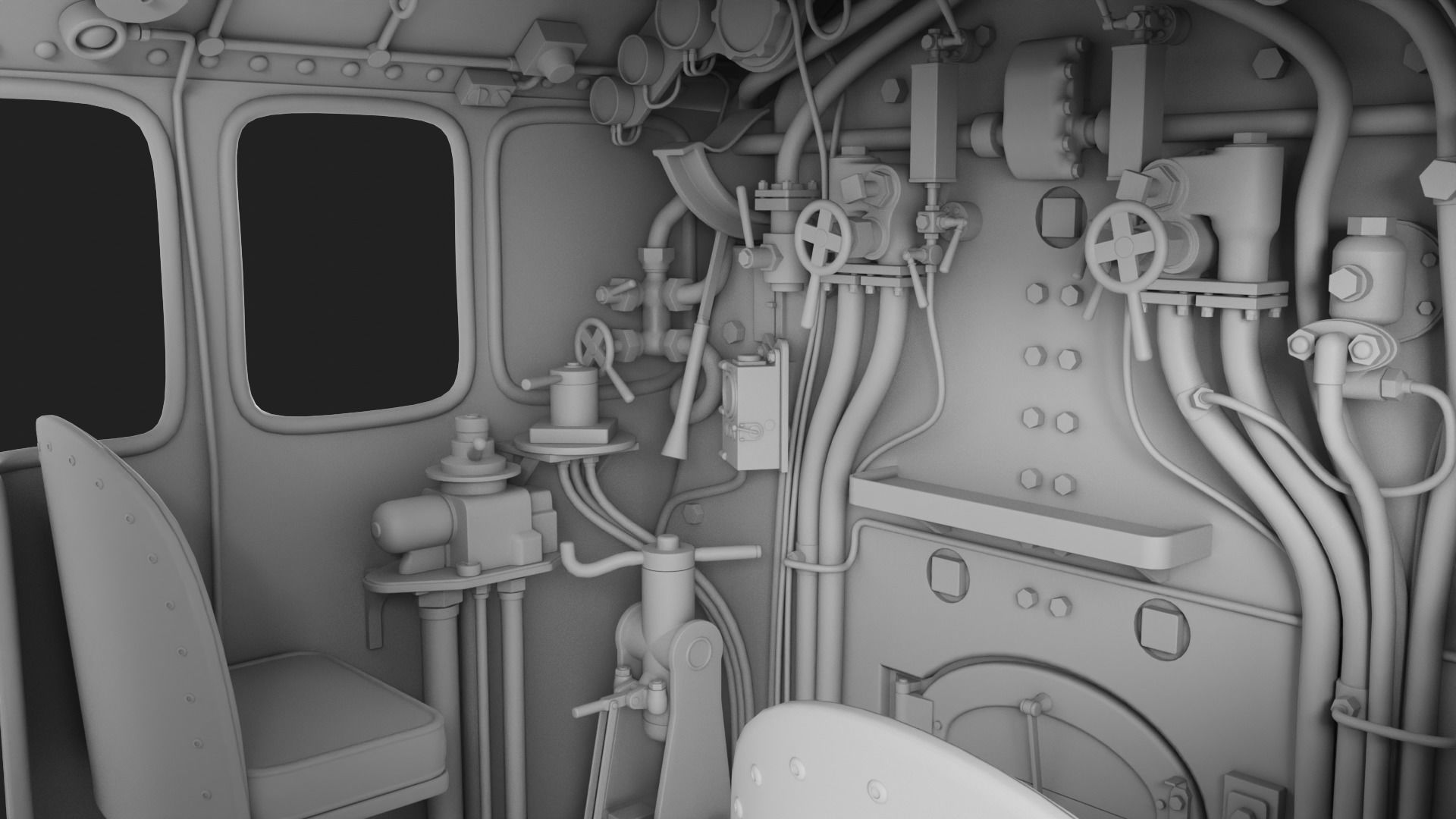

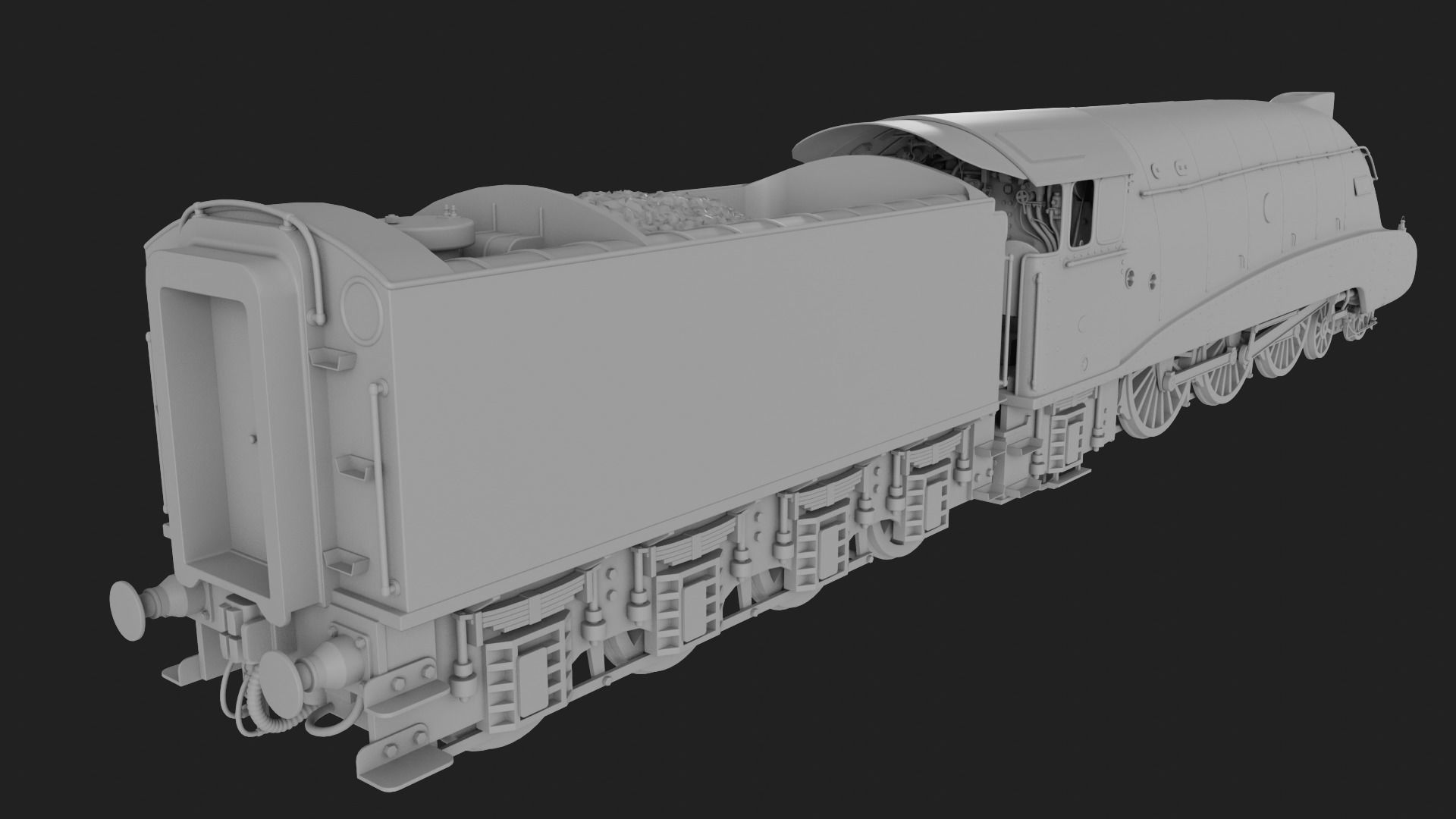

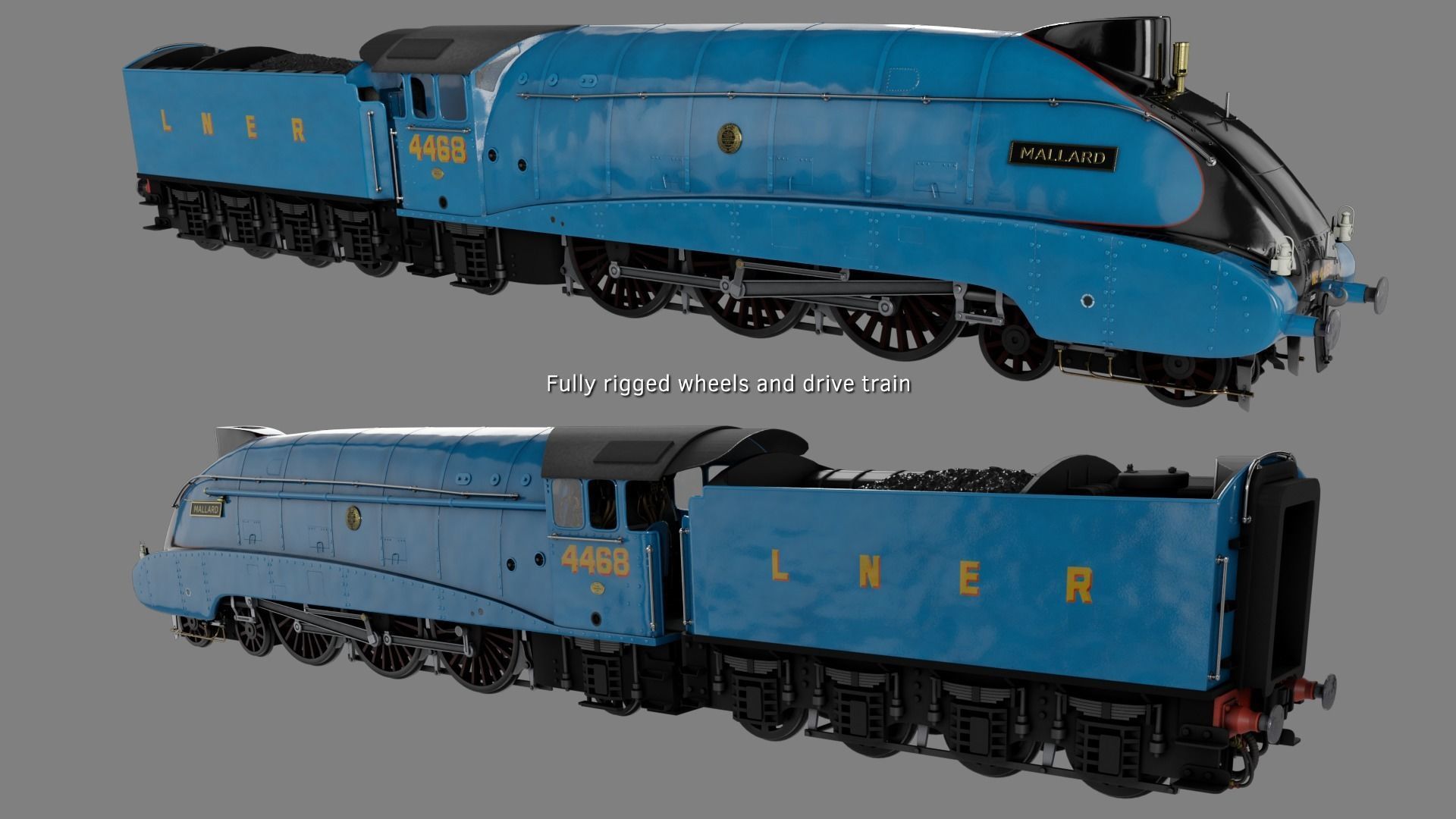

This is a high-poly model (396,422 vertices, 388,873 faces) featuring both the main engine and the tender, and including a highly detailed cabin interior. The wheels and drive-train are fully rigged with an armature that animates all the pistons and drive rods simply by rotating a single wheel pair (the rear-most of the large wheels), additional contraints are also included that will automatically rotate all the wheels appropriately simply by moving the 'Engine' bone on the Y axis relative to the 'Root' bone of the armature.

Note: the rigging and armature is only available in the native Blender format.

Materials and Rigging

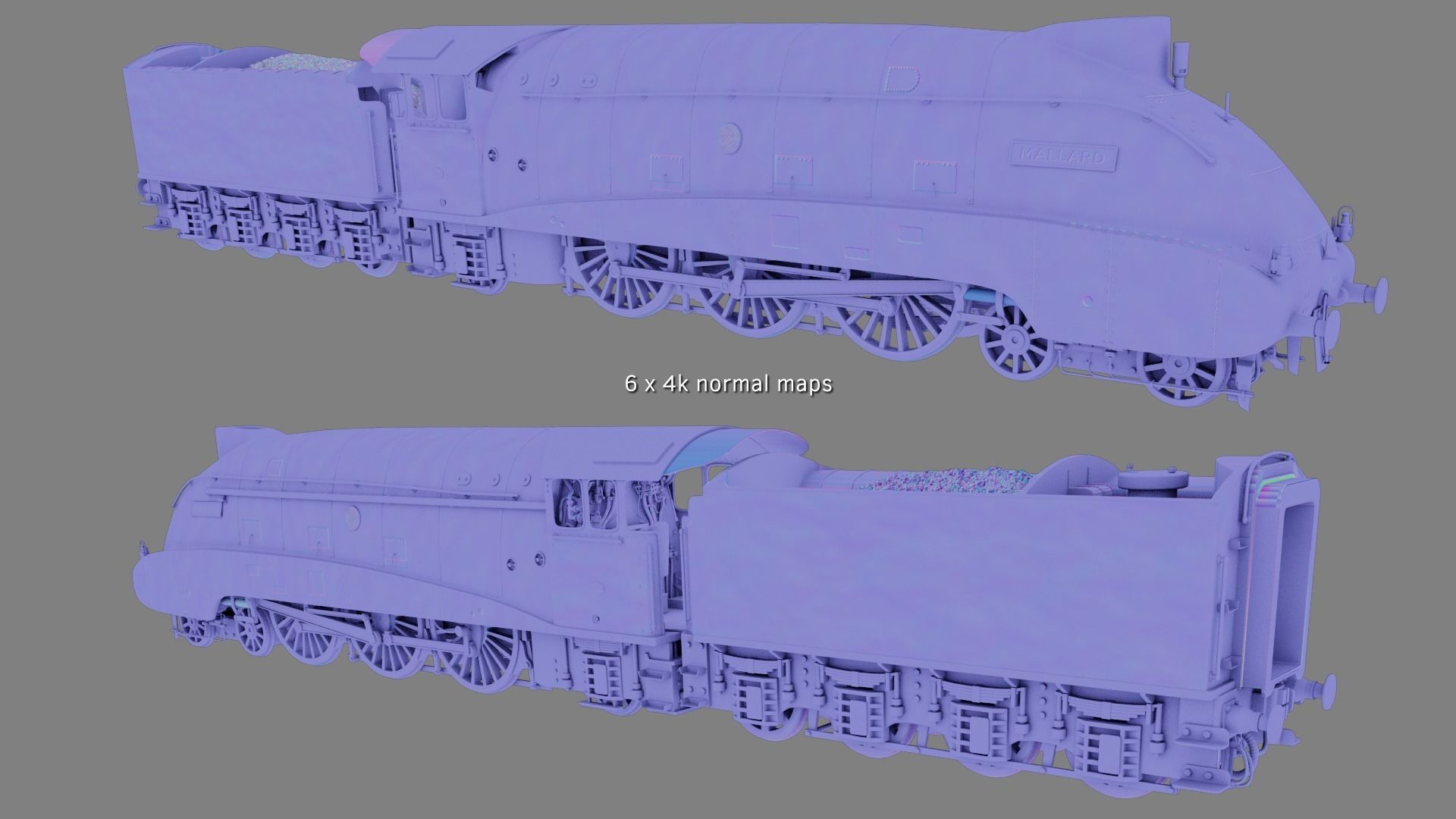

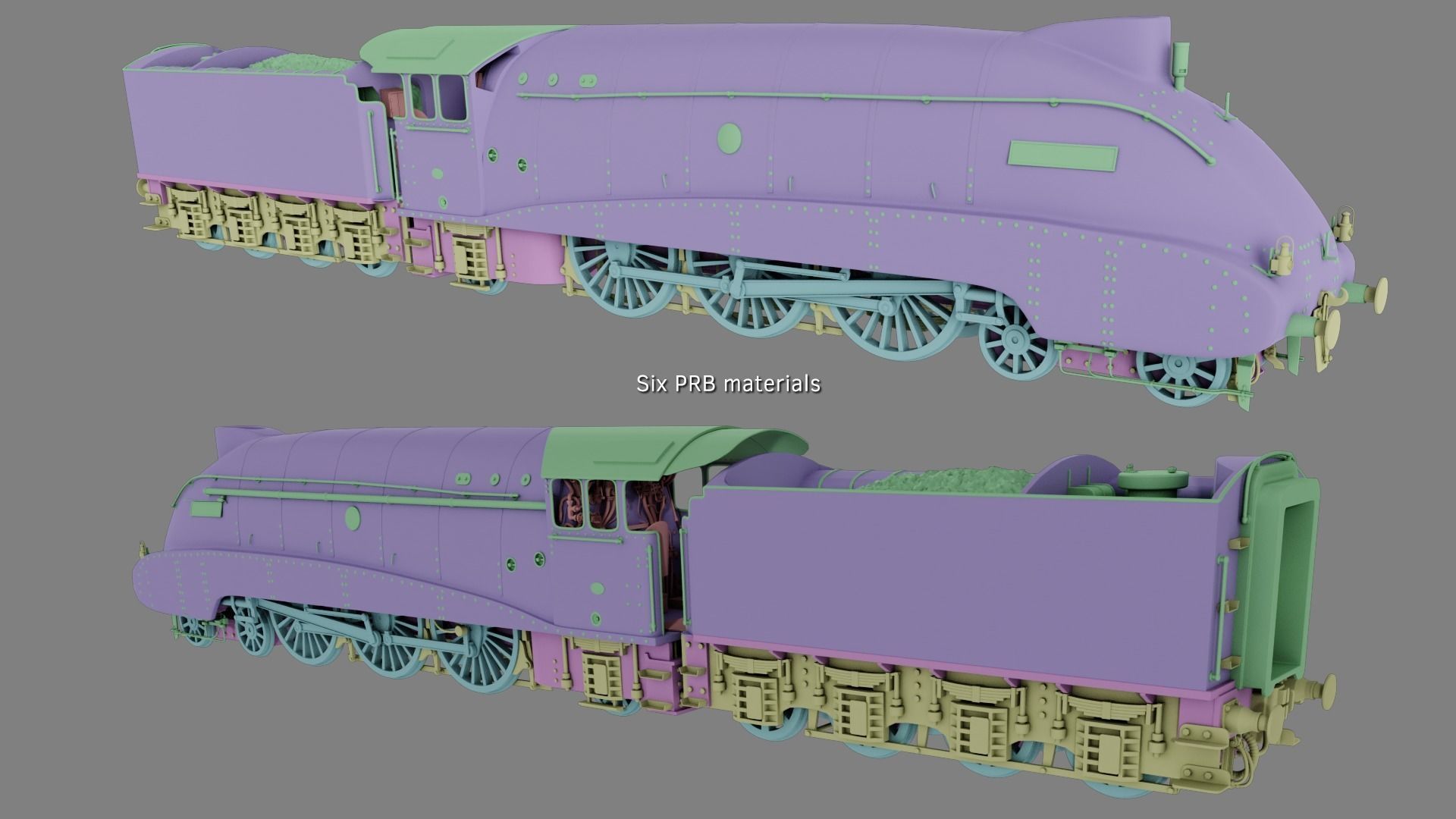

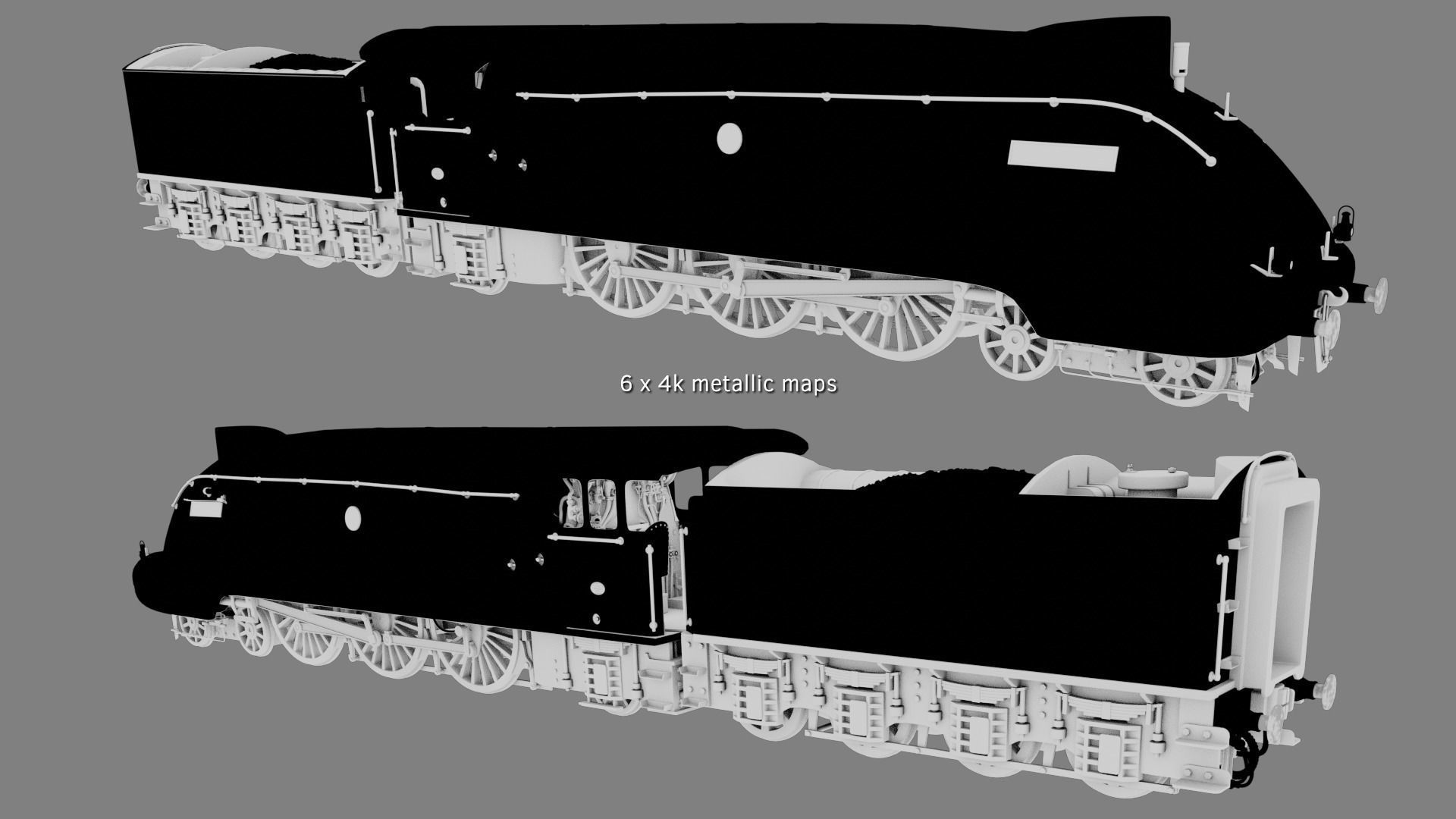

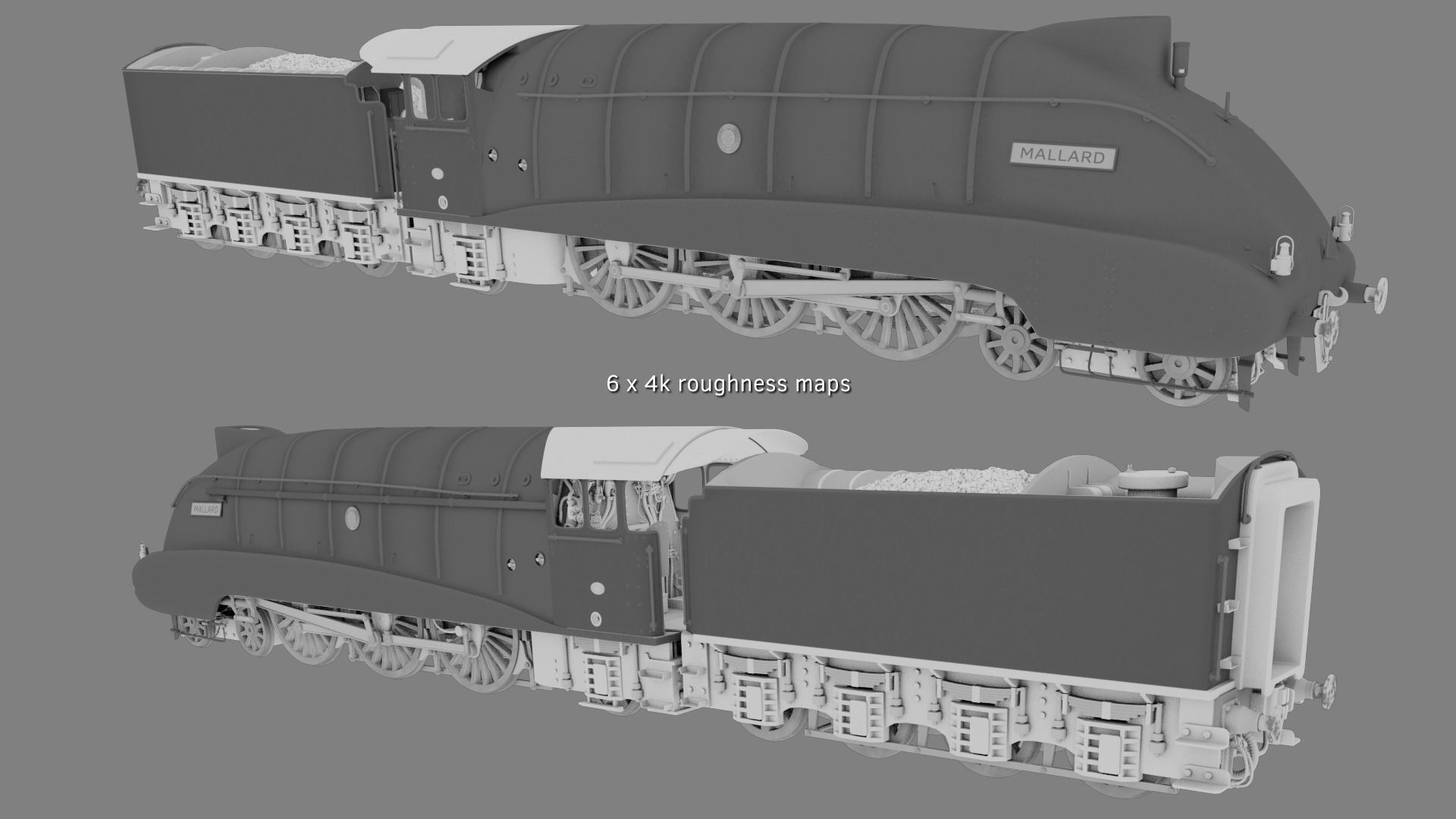

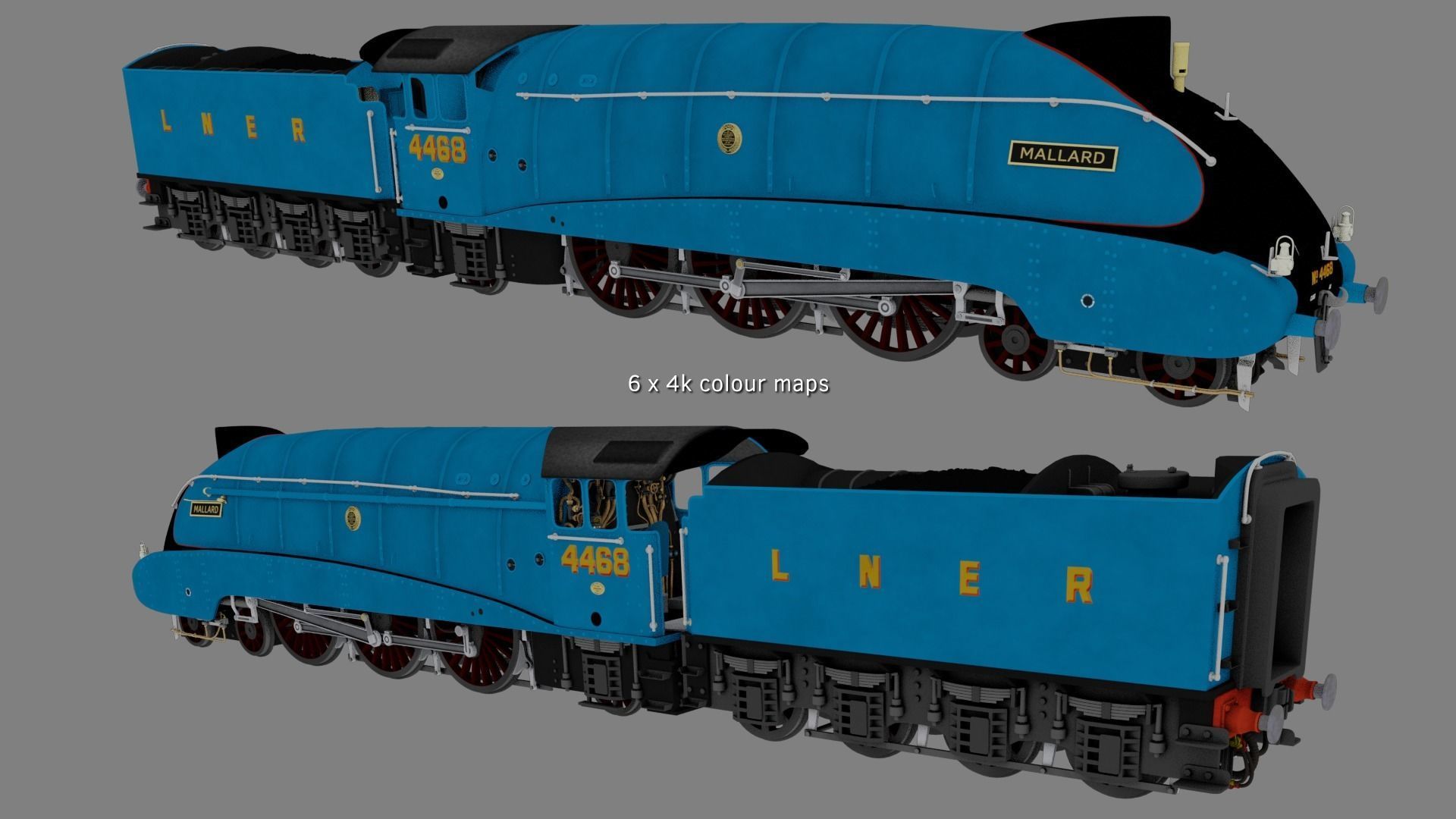

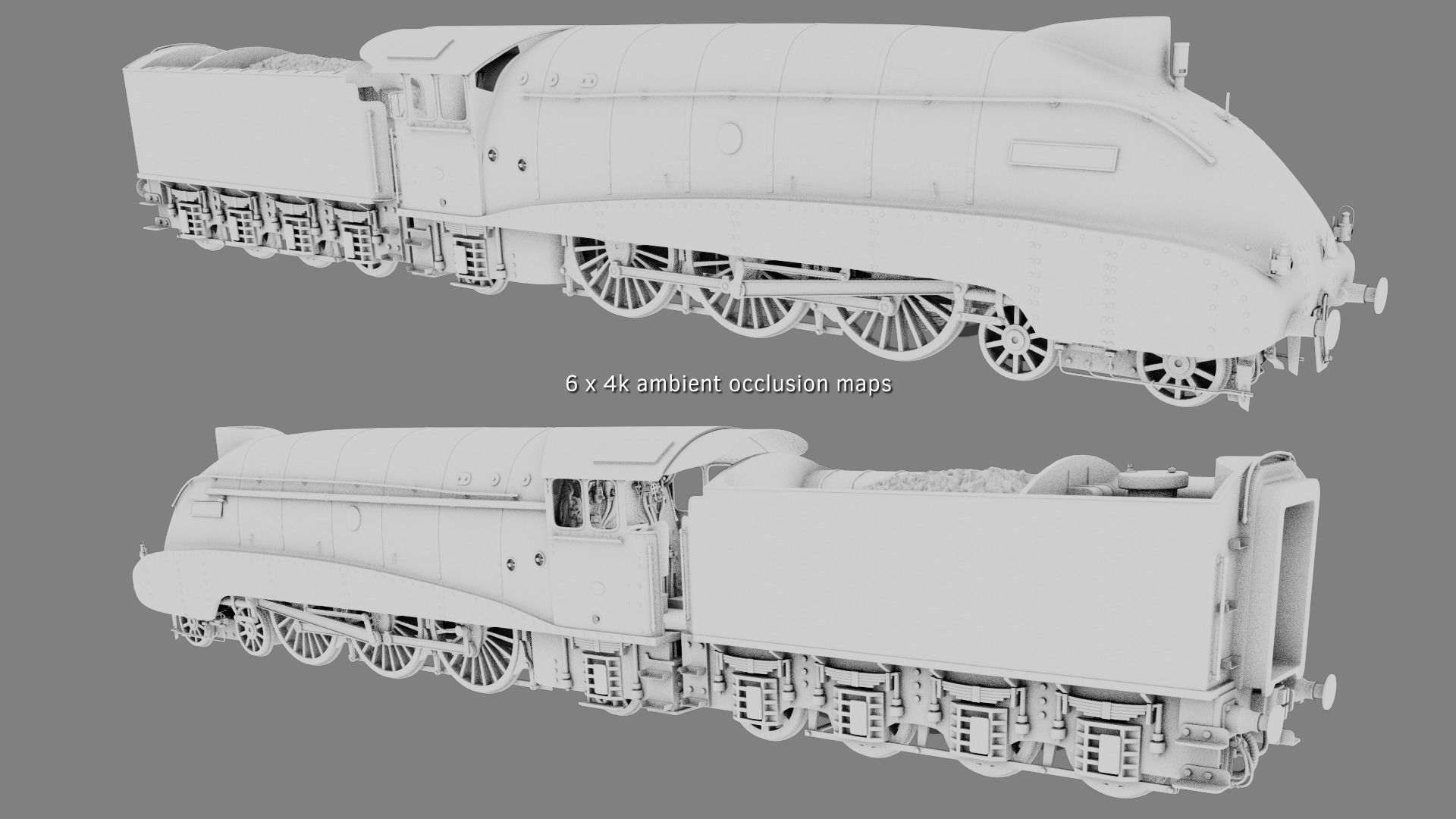

The model is fully unwrapped with non-overlapping UVs. It uses six PBR materials (and an additional simple glass material for the windows, the lamp lenses and the instument faces), each material comes with five 4k texture maps - base colour, ambient occlusion, metallic, roughness and normal. The materials were designed in Cycles but as PRB materials should work fine in any render engine that supports the metallic PBR workflow.

Note: the textures may not correct properly when importing the .obj format, however the texture maps are logically named along with the materials they are associated with and the meshes they should be applied to.
