Car Exhaust Catalytic Converter 3D model

Detailed 3D model of a vehicle's exhaust emission system catalytic converter, catalyser.

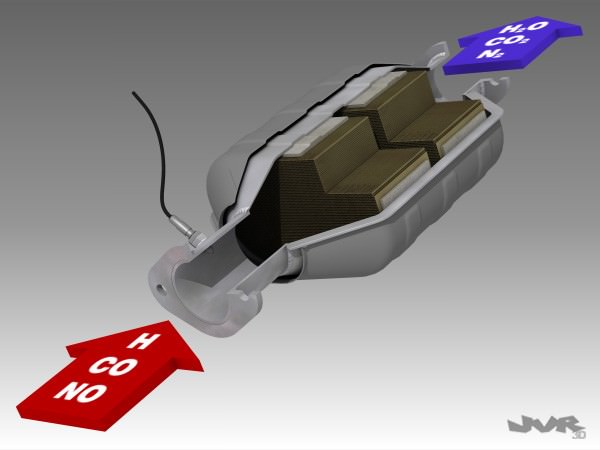

Three way catalytic converter in three different configurations:

- Closed

- Cutaway

- Exploded.

Red and blue arrows with chemical text are included.

PDF file with instructions is included.


Notes:

- 3DS format need to reasign texture files path.

- 3DS, OBJ and FBX have no reflexion at materials. Information included in PDF file for setup

*All prices are exclusive of VAT.
$27.30
License:
Author:jvr3Djvr3D
Designer response: 100% in 1.8h
Available formats
  • Autodesk FBX 200611 (.fbx) 6.66 MB
  • PDF(.pdf) (4 files) -
  • 3ds Max 9 (.max) 5.15 MB
  • OBJ - (.obj) 2.65 MB
  • Alias/WaveFront Material (.mtl) 2.65 MB
  • 3D Studio - (.3ds) 2.87 MB
  • Stereolithography (.stl) (Contact for availability) -
More details
  • Publish date2011-12-04
  • Model ID#1498
  • Animated No
  • Rigged No
  • VR / AR / Low-poly No
  • PBR No
  • Geometry Polygon mesh
  • Polygons 42,000
  • Vertices 22,500
  • Textures Yes
  • Materials Yes
  • UV Mapping No
  • Unwrapped UVs Unknown
  • Plugins used No
