DESCRIPTION

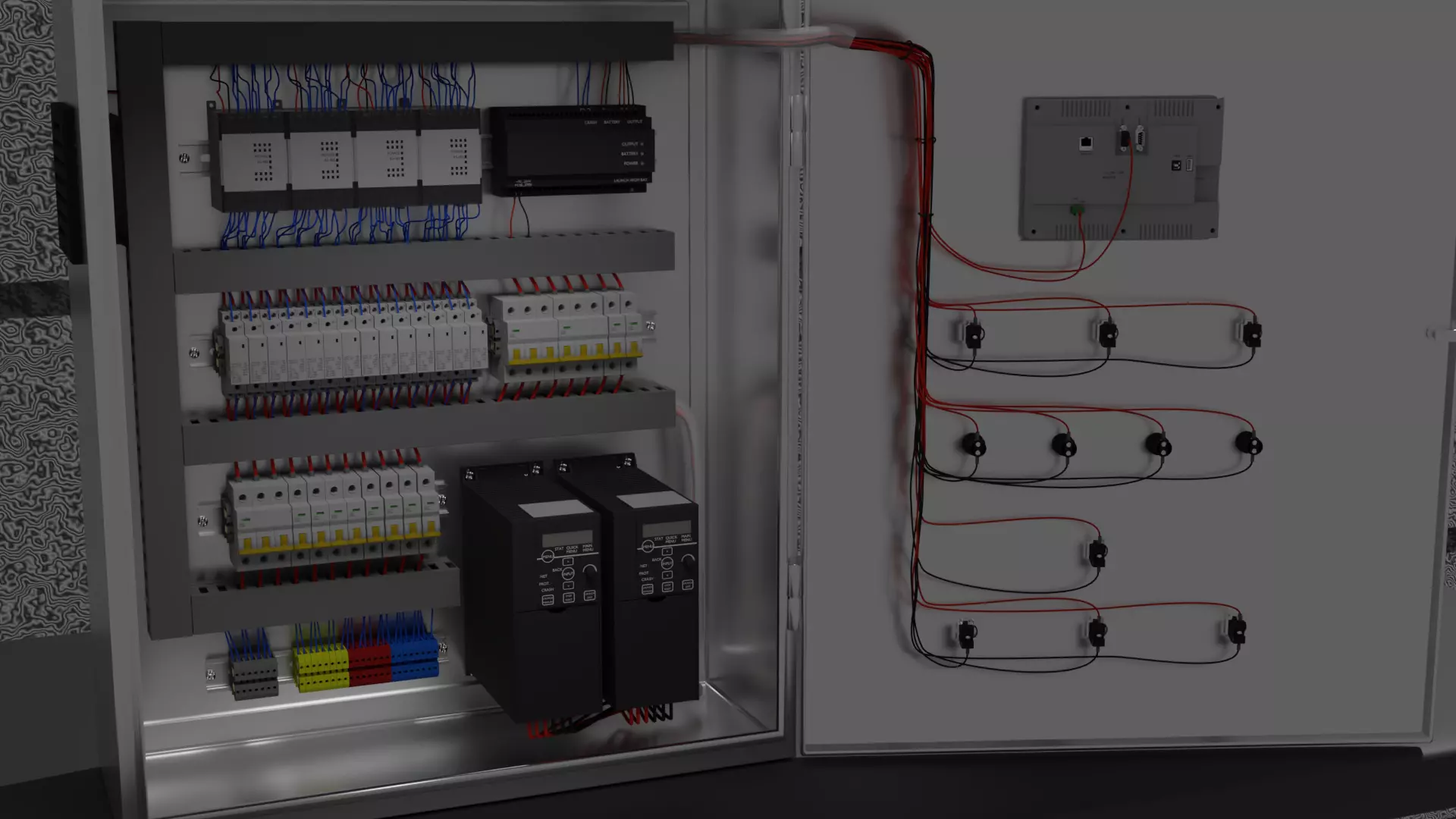

This highly detailed 3D model set is ideal for industrial visualization, factory floor design, simulation training and technical documentation. All key elements of a turnkey control cabinet are included:

Main cabinet enclosure

  • Metal construction
  • Engineered doors with hinges, seals and handles

PLC controller

  • Modular architecture, DIN rail side mounts
  • Pinout and LED indicators

Motor starters

  • Contactors, motor starters and thermal relays
  • Insulated terminal blocks with insulated housings

Protection devices

  • Circuit breakers RCDs, fuses
  • DIN rail plug-in and modular types

HMI panel

  • Touch screen with frame and socket
  • Cable glands and mounting plate
    • Relays and add-on modules
  • Electromagnetic and solid-state relays
  • I/O extension module

Specifications:

  • Formats: FBX, BLEND
  • Polygonality: high level of detail
  • Scale: 1:1, units in millimeters

*Benefits of the kit: *

  • Ready to integrate into any project - from renderings to virtual simulators
  • All components are grouped and named according to industry standards
  • Can be edited and customized to fit your application
  • Complete cabinet model allows you to quickly assemble racks of any size

Add this kit to your 3D element library to speed up your automation and industrial line visualization projects!
