High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

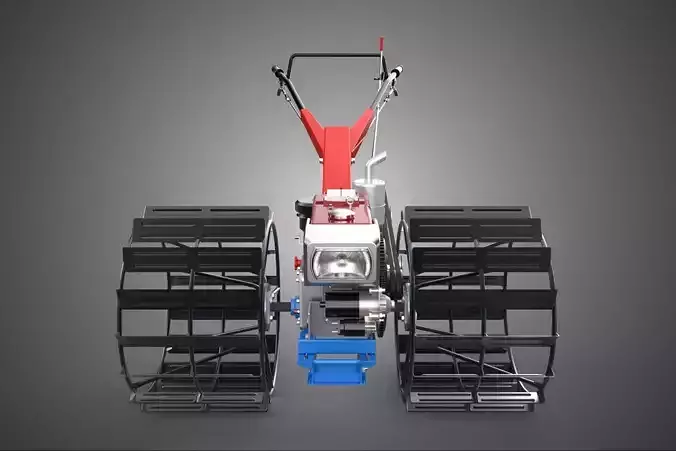

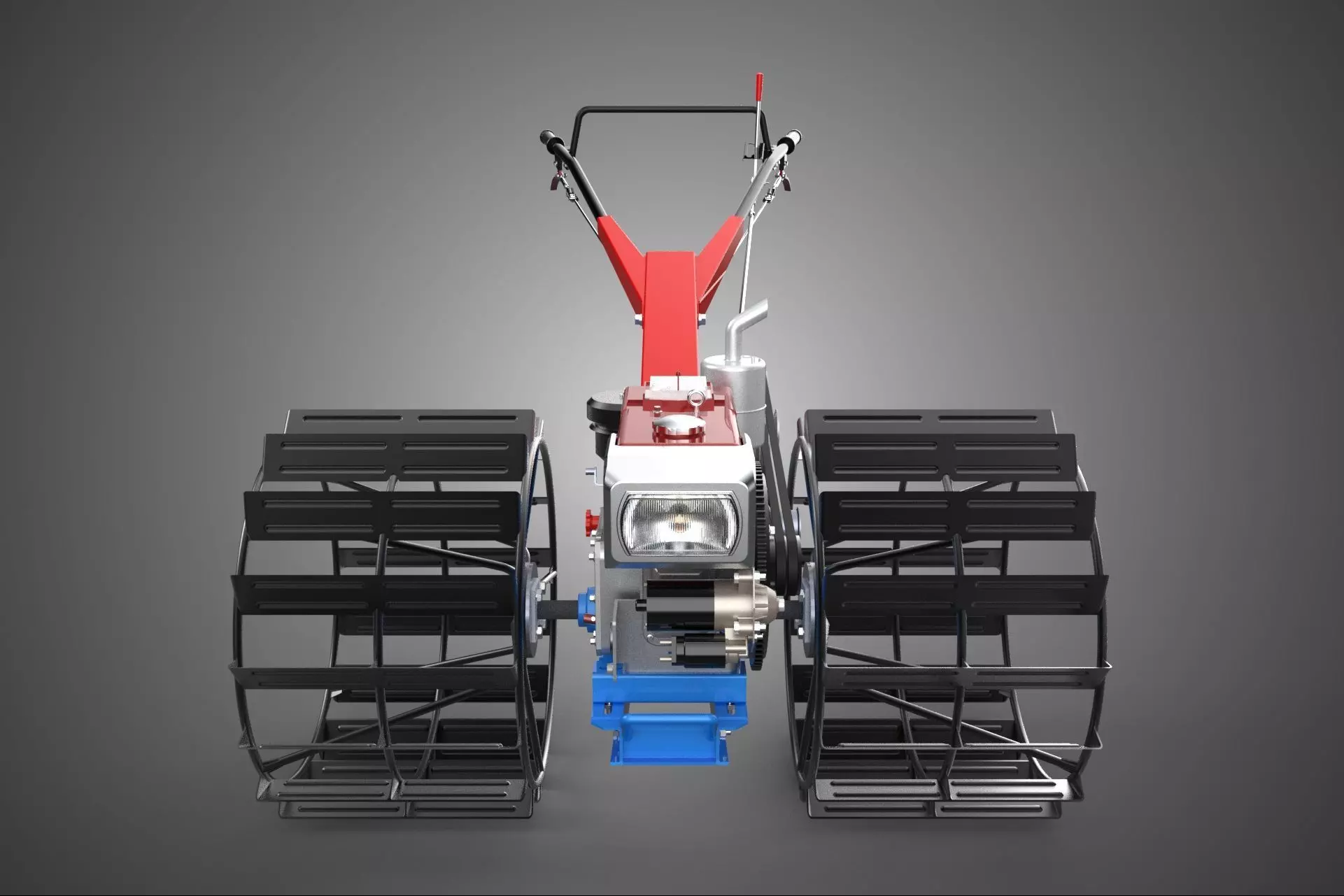

A Walk Behind Tractor Double Tread Long Wide Track Cage Wheel Tire refers to a highly specialized traction mechanism designed for single-axle, pedestrian-controlled power tillers and small agricultural tractors operating in challenging soil conditions, predominantly wet rice paddies (paddy fields), marshland, or extremely loose, unstable terrain. Although termed tire for functional purposes, the assembly is constructed entirely of metal, forming a skeletal, open wheel structure optimized for aggressive grip and maximum flotation.

The primary component is the Cage Wheel, characterized by its open, lattice-like construction. Unlike pneumatic tires, which rely on air pressure and rubber treads, the cage wheel employs steel spokes, central hubs, and external rings fitted with protruding steel lugs or grousers (cleats). This open design is critical for self-cleaning, preventing the accumulation of mud and debris which would otherwise reduce traction and increase operational weight.

The specific designation Double Tread Long Wide Track details the engineering modifications implemented to enhance performance beyond standard cage wheels:

The term Long Wide Track describes the significantly increased dimensions of the wheel assembly relative to the tractor's power and typical application size.

• Wide Track: Maximizes the width of the ground contact surface, distributing the machine's weight over a larger lateral area. This substantially lowers the ground pressure (load per unit area), improving flotation and preventing the tractor from sinking deeply into saturated or soft soils.

• Long Track: Refers to an extended radial diameter or, more commonly, the design of the grousers to create a longer effective contact patch with the ground, mirroring the principle of a continuous track system. This extension improves the angle of attack and departure, enhancing stability and climbing ability in deeply rutted or sloped fields.

  #### 2. Double Tread Configuration

  The Double Tread feature denotes a sophisticated arrangement of the grousers or cleats, often configured in concentric circles or staggered rows.

• Staggered Grousers: Rather than a single line of continuous cleats, the wheel incorporates two (or more) sets of traction elements offset radially or circumferentially. This configuration ensures that multiple gripping points are always engaged with the soil, leading to smoother power delivery and significantly higher resistance to wheel slip (skid).

• Improved Shear Resistance: The double-tread pattern effectively increases the shear strength the wheel can apply to the soil interface, maximizing pulling force (drawbar pull) necessary for deep tillage operations such as plowing or rotary harrowing in wet paddies.

  ### Operational Advantages

  These specialized wheels are essential for agriculture where the soil exhibits low bearing capacity. Their primary advantages include:


• Superior Flotation: Minimizes the depth of ruts created, reducing the effort required to pull implements and lessening disruption to the soil structure underneath the operational layer (the hardpan).

• Aggressive Traction: The sharp, metallic grousers penetrate the soft mud and provide maximum grip where pneumatic tires would simply spin.

• Self-Cleaning Capacity: The open metal framework prevents excessive mud buildup, maintaining consistent performance and preventing unnecessary weight gain.

• Reduced Soil Compaction: By distributing the load widely, these mechanisms avoid the extreme point loading that leads to dense compaction, a common issue with narrow rubber tires.

  The Walk Behind Tractor Double Tread Long Wide Track Cage Wheel Tire represents a crucial adaptation of agricultural engineering, transforming small, walking tractors into effective and reliable implements for highly saturated and difficult farming environments.
