High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

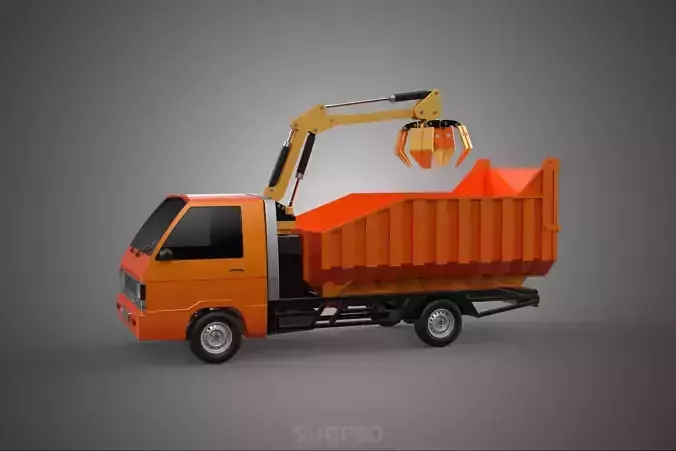

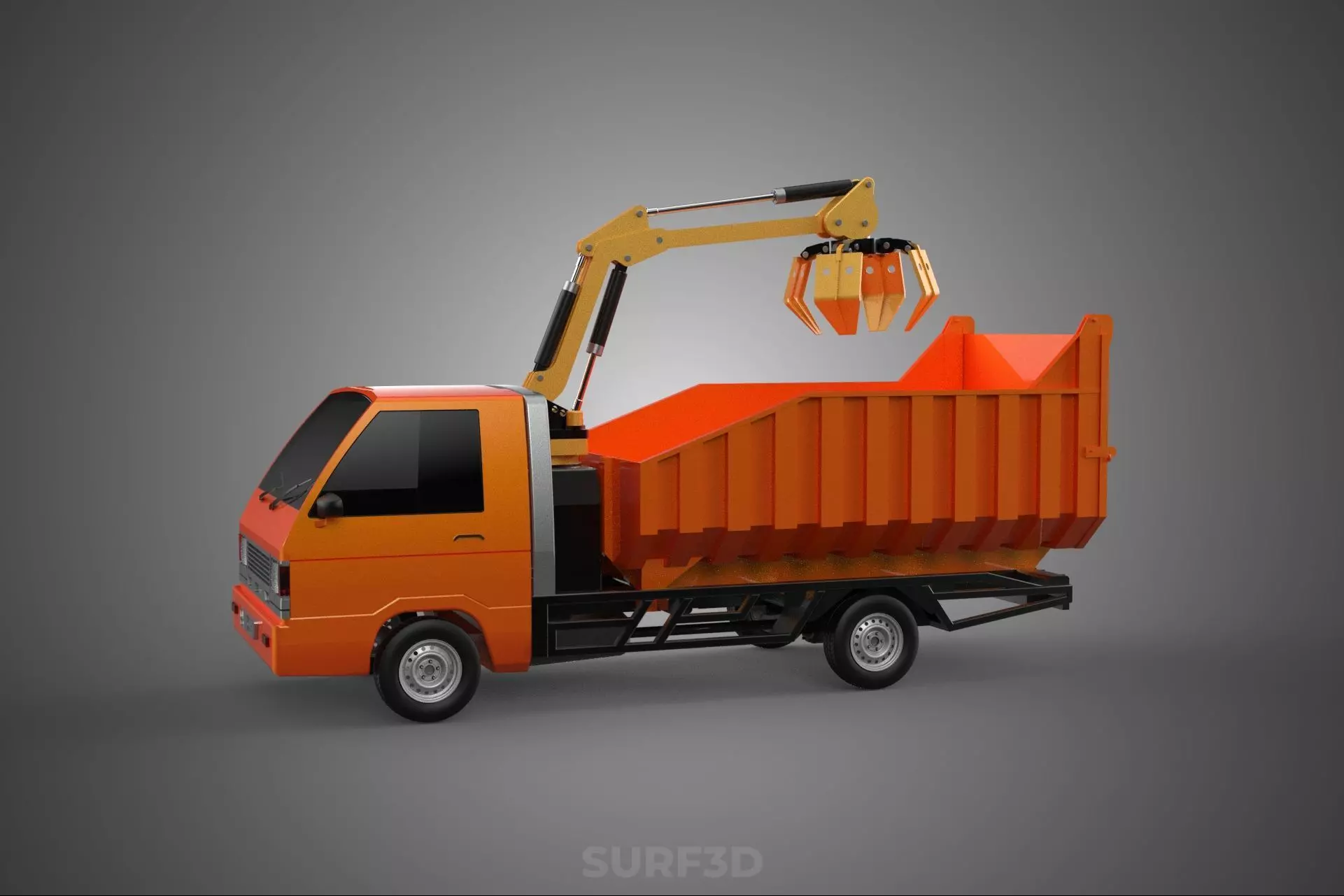

A Dump Truck Grapple System is a specialized heavy vehicle configuration combining the bulk material transport capability of a standard dump truck with an integrated hydraulic crane fitted with a grapple or grabber attachment. This design provides a self-loading capacity, enabling the vehicle to autonomously collect, lift, and deposit various bulk materials into its own dump body for subsequent transport.
The core components of a dump truck grapple system include:
1. Dump Truck Chassis: The base vehicle provides the mobility and the means to carry the loaded material. It features a robust frame and an engine capable of handling heavy payloads. The dump body itself is typically hinged at the rear and equipped with hydraulic rams to lift the front, allowing material to be discharged by gravity.
2. Hydraulic Crane/Boom: An articulated or telescopic hydraulic crane is typically mounted behind the truck cab or sometimes at the rear. This crane provides the reach, lift capacity, and maneuverability required to access and handle materials from various positions around the vehicle. It is controlled by an operator, often via a seat or control panel located near the crane base, or sometimes remotely.
3. Grapple/Grabber Attachment: Fitted at the end of the crane's arm, the grapple is a hydraulically operated end effector designed for grasping and holding bulk, irregularly shaped, or loose materials. Various types of grapples exist, including:
* Scrap Grapples: Often multi-tined claws suitable for handling metal scrap, vehicles, and demolition debris.
* Refuse/Trash Grapples: Designed to handle bulky waste, garbage, and other municipal or industrial refuse.
* Log Grapples: While the title emphasizes scrap/garbage, similar systems on dump trucks can use grapples for timber.
The primary function of this system is efficient material handling, particularly in situations where materials are scattered or require sorting before loading. Common applications include:
* Scrap Metal Yards: Used for collecting, sorting, and loading scrap metal, including dismantling and loading derelict vehicles (cars).
* Waste Management: Employed at transfer stations, landfills, or for curbside collection of bulky waste and refuse.
* Demolition Sites: Used for clearing and loading construction and demolition debris.
* Disaster Cleanup: Facilitating the removal of rubble, damaged vehicles, and scattered materials after natural disasters or accidents.
The key advantage of a dump truck grapple system is its self-sufficiency. It eliminates the need for a separate loading machine (like a front loader or excavator) to fill the truck, streamlining operations and reducing equipment costs on certain job sites. The operator can control both the vehicle's movement and the loading process.
In summary, the dump truck grapple system is a versatile piece of heavy equipment specifically configured for the self-loading and transport of bulk materials such as scrap metal (including vehicles), garbage, and demolition debris, utilizing an integrated hydraulic crane and grapple attachment.
