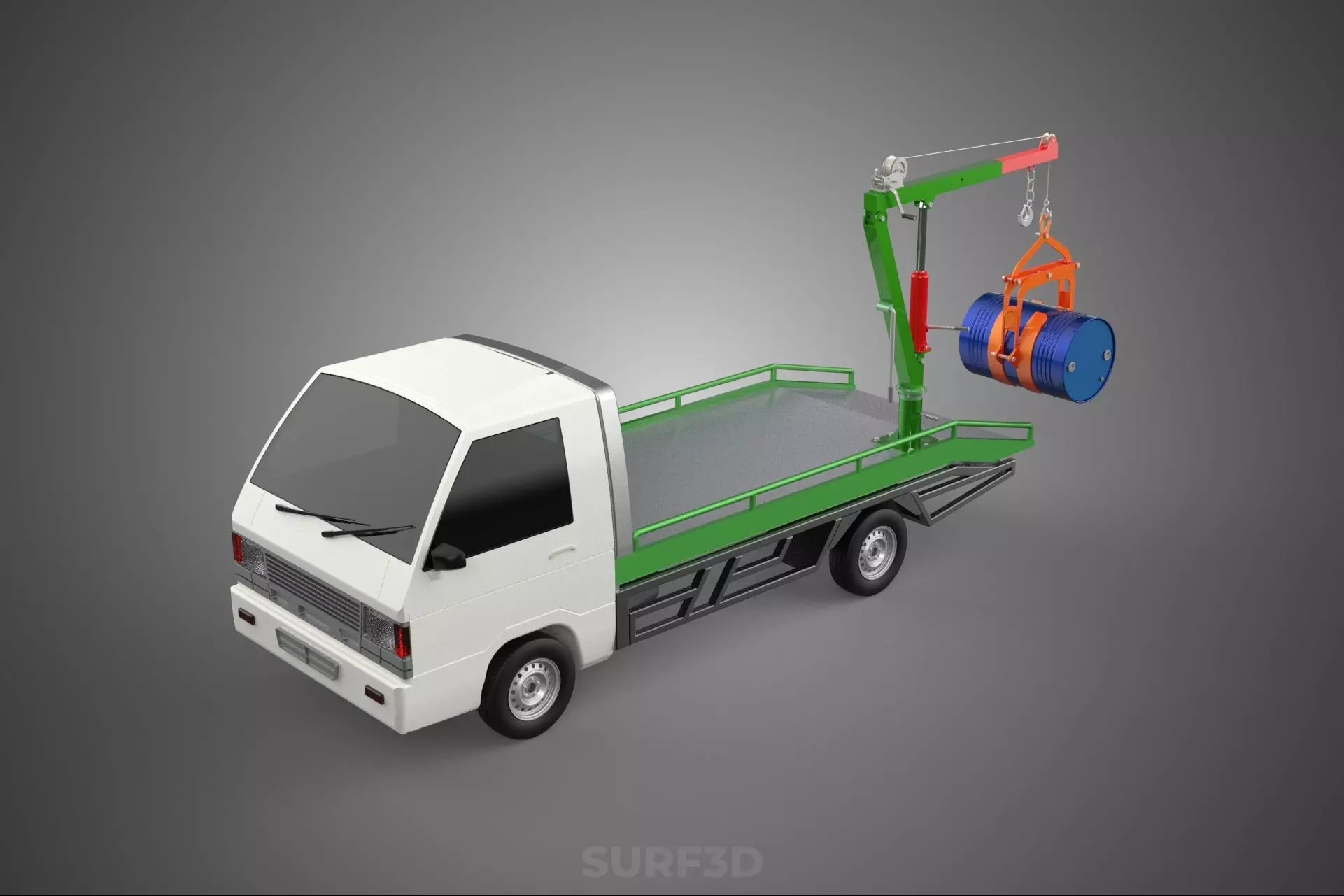

FLATBED TRUCK PICKUP CRANE LIFTING WINCH HOIST JIB DRUM BARREL 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Flatbed Truck Pickup with Crane Winch Hoist Jib to Lift the Drum Barrel refers to a highly specialized and integrated utility vehicle designed for the efficient, safe, and mobile handling of cylindrical containers, most commonly industrial drums or barrels. This system combines the inherent mobility and accessibility of a light to medium-duty flatbed truck chassis with a purpose-built lifting apparatus, specifically engineered for the manipulation of heavy, often liquid-filled, receptacles.

Components and Design:

1. Base Vehicle (Flatbed Truck Pickup): The foundation is typically a commercial-grade pickup truck chassis that has been converted or manufactured with a robust, open, and flat cargo bed. This flatbed design provides a stable platform for the mounted crane system, ample space for the transport of lifted items (such as the drums themselves), and ease of access for loading and unloading. The chassis is engineered to accommodate the additional weight and operational stresses imposed by the lifting equipment and its maximum load capacity.

2. Lifting Apparatus (Jib Crane System): This is the core functional component responsible for material elevation and movement.

3. Jib Arm: A fixed, articulating, or telescoping boom that extends horizontally or at a slight angle from a central mast. The jib is designed to provide reach over obstacles and allow for precise positioning of the lifting hook. It often incorporates a slewing (rotational) mechanism, enabling the arm to pivot horizontally, thereby covering a significant operational radius around the truck.

4. Winch/Hoist Mechanism: Integrated within the jib arm or mounted at its base, this system consists of a powerful motor (commonly hydraulic or electric) driving a drum around which a high-strength wire rope or cable is wound. The cable terminates in a robust hook, which is often paired with specialized drum-lifting attachments (e.g., drum grabs, chimes, or sling systems) to ensure secure engagement with the barrel.

5. Power System: The most prevalent power source for such crane systems is hydraulic, drawing power from the truck's engine via a Power Take-Off (PTO) unit. For lighter applications, independent auxiliary power units (APUs) or direct electrical power from the vehicle's battery system may be utilized.

6. Stabilization System: Crucially, to counteract the overturning moment generated during lifting operations, the vehicle is equipped with deployable outriggers or stabilizer legs. These extend outwards and downwards from the chassis, distributing the load over a wider area and significantly enhancing the truck's stability, preventing tipping.

   Operational Principle:

   The operational sequence typically involves positioning the vehicle adjacent to the drum requiring transport. If necessary, the outriggers are extended and firmly set. The operator then manipulates the jib arm, using hydraulic controls (often via a wired or wireless remote control for enhanced safety and visibility), to position the lifting hook directly above the drum. The winch lowers the hook, the drum is securely attached, and it is then carefully lifted clear of its resting place. The jib can subsequently be slewed to transfer the drum onto the flatbed, into another container, or onto an elevated platform. Lowering is a controlled reversal of the lifting process.

   Applications:

   Vehicles of this configuration are indispensable across a broad spectrum of industrial, environmental, and logistical sectors, including:


7. Industrial Facilities: For the internal movement of chemicals, lubricants, solvents, or waste products within manufacturing plants, warehouses, or processing sites.

8. Hazardous Waste Management: Facilitating the safe and controlled handling, loading, and unloading of sealed drums containing hazardous or volatile substances, thereby minimizing direct human exposure.

9. Environmental Remediation: Essential for deploying and retrieving containment drums, sampling equipment, or waste during spill response and clean-up operations in diverse terrains.

10. Logistics and Distribution: Used for loading and unloading drums from transport vehicles, storage racks, or onto pallets in distribution centers or at client sites.

11. Field Operations: Valuable for on-site fluid transfers, waste collection, or equipment deployment in remote or challenging locations where dedicated forklifts or larger cranes are impractical.

    Advantages:

    This specialized vehicle offers significant advantages, including enhanced safety by mitigating manual handling risks and exposure to potentially harmful materials, increased operational efficiency in material transfer, and the ability to operate in confined or remote spaces where larger, less mobile lifting equipment cannot access. Its inherent mobility allows it to serve multiple locations within a single work site or across geographically dispersed areas.

    Safety Considerations:

    Operation necessitates trained personnel, strict adherence to specified load limits and operational procedures, proper deployment and securing of stabilization systems, and routine maintenance checks of all lifting components to prevent mechanical failures and ensure a safe working environment.
