TRUCK PICKUP REAR GATE TAILGATE FOLDING CRANE HAND CRANK WINCH 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

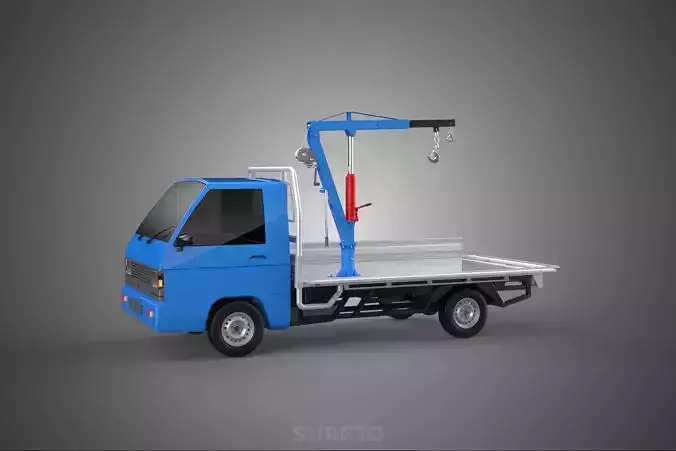

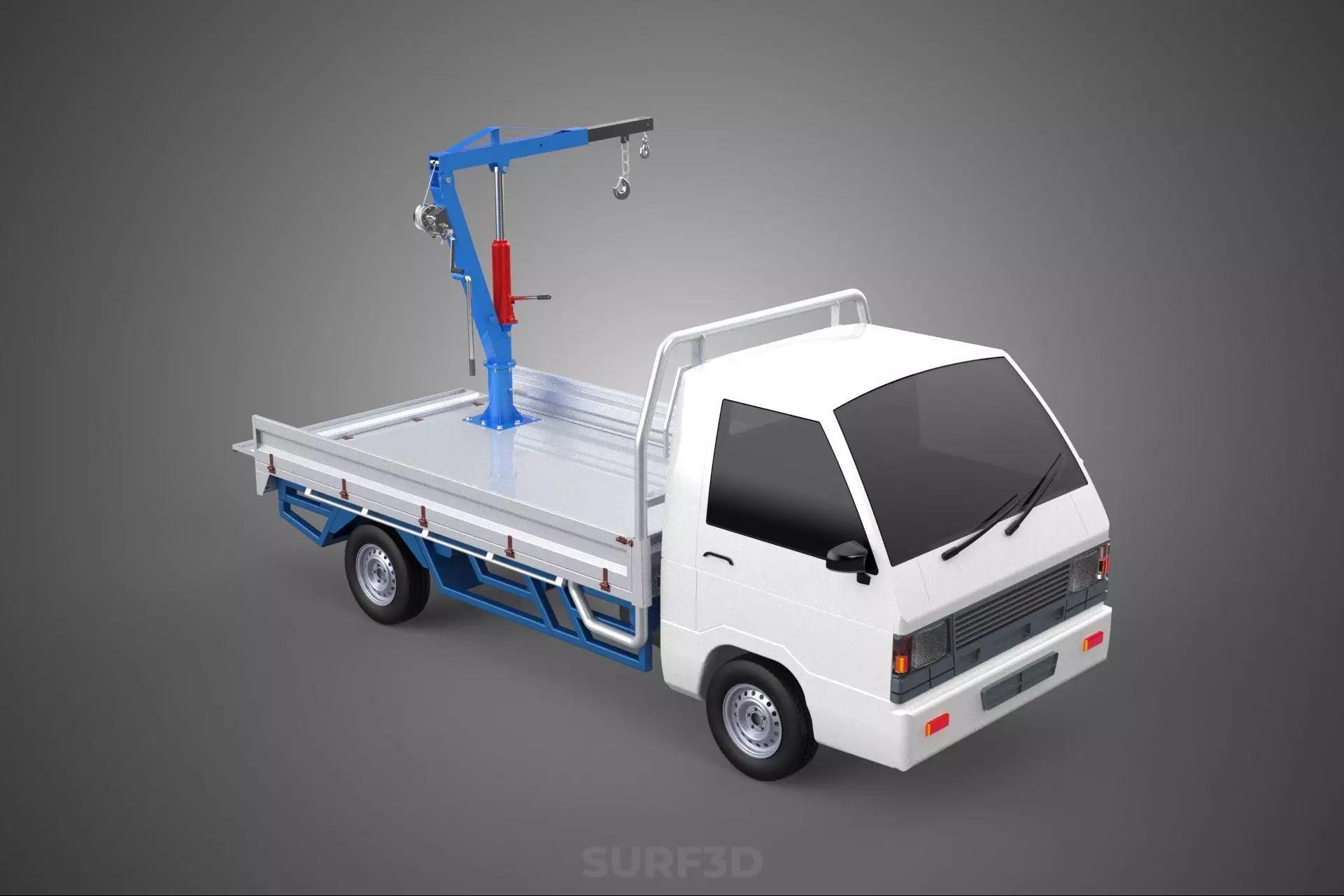

TRUCK PICKUP WITH REAR GATE TAILGATE FOLDING CRANE HAND CRANK WINCH

A TRUCK PICKUP WITH REAR GATE TAILGATE FOLDING CRANE HAND CRANK WINCH designates a specialized utility vehicle configuration designed for the manual loading and unloading of heavy or cumbersome objects into and out of the cargo bed of a light-duty truck. This integrated system combines the inherent cargo capacity of a standard pickup truck with a compact, manually operated lifting device, providing a cost-effective and self-sufficient solution for various material handling tasks without requiring external power sources or dedicated lifting machinery.

Components and Design:

1. Pickup Truck (Base Vehicle): The fundamental component is a standard pickup truck, typically a light-duty or mid-size model. These vehicles are characterized by an open cargo bed at the rear, separated from the passenger cab, and equipped with a hinged rear gate (tailgate) that lowers for easier access. Their robust chassis and accessible cargo area provide a stable and practical platform for auxiliary equipment such as the crane system.


2. Folding Crane (Boom Lift): This constitutes the primary lifting mechanism.

3. Design and Structure: The crane typically comprises a vertical mast or post and a horizontal or angled boom (often referred to as a jib) from which a hook or lifting attachment is suspended. The folding characteristic is a critical design feature, allowing the boom to be collapsed, retracted, or articulated into a more compact, stowed position when not in active use. This design minimizes the crane's footprint, enhances vehicle aesthetics, reduces aerodynamic drag during transit, and ensures the vehicle can be safely driven and parked without the crane obstructing rear visibility or exceeding legal vehicle dimensions.

4. Mounting and Placement: Folding cranes for pickup trucks are generally mounted within the truck bed, frequently near the tailgate for optimal leverage and access to the cargo area. Common mounting points include the bed rail, directly to the reinforced bed floor, or via a receiver hitch adapter. The mounting structure is specifically engineered to withstand the significant rotational forces and lifting loads imposed by the crane during operation.

5. Operational Movement: When deployed, the boom is extended and positioned over the object intended for lifting. The crane's base often incorporates a swivel or pivot mechanism, enabling the boom to rotate through a specified arc, which facilitates the precise placement of loads into the truck bed or onto the ground adjacent to the vehicle.


6. Hand Crank Winch (Manual Hoist): This component is responsible for providing the mechanical power required for the lifting and lowering operations.

7. Mechanism: A hand crank winch operates through a system of gears, a rotating drum, and a manually operated crank handle. As the handle is turned, the internal gearing system translates the rotational input into significant mechanical advantage, thereby winding a durable steel cable or synthetic rope onto the drum. The cable then typically passes over a series of pulleys at the distal end of the crane boom, terminating in a robust lifting hook.

8. Functionality: Rotating the crank in one direction progressively raises the attached load, while rotating it in the opposite direction (often controlled by an integrated braking mechanism or a pawl system) safely lowers the load. The inherent mechanical advantage provided by the gear reduction allows a single operator to lift substantial weights that would otherwise be impossible through manual strength alone.

9. Advantages: The principal benefit of a hand crank winch is its complete independence from external power sources (e.g., the vehicle's electrical system, hydraulic pumps). This autonomy renders it highly reliable in remote locations, off-grid scenarios, or situations where conventional power is unavailable. Furthermore, its construction is typically simpler and more robust, resulting in lower manufacturing costs and reduced maintenance requirements compared to electric or hydraulic alternatives.

10. Limitations: Manual winches inherently operate at a slower speed and necessitate significant physical effort from the user, particularly when handling heavier loads or performing frequent lifts. Their practical lifting capacity is also constrained by human strength, the design limits of the crane structure, and the stability of the host vehicle.

    Integration and Operational Procedure:

    The integrated system operates by first positioning the pickup truck in close proximity to the object to be transported. The folding crane is then deployed from its stowed position by extending the boom. The boom is manually maneuvered into a stable position directly over the object, and the winch cable is lowered. The lifting hook is securely attached to the load. The operator then utilizes the hand crank to steadily and carefully lift the item. Once the load is clear of the ground, the crane's boom is cautiously rotated to swing the load over the truck bed. The winch is subsequently reversed to safely lower the item into the cargo area. The reverse sequence is followed for unloading.

    Applications:

    This type of equipped pickup truck is widely utilized by individuals, small businesses, and various enterprises across numerous sectors, including:

11. Construction: Lifting and positioning tools, small generators, specific equipment, or building materials.

12. Landscaping and Horticulture: Facilitating the movement of heavy plants, boulders, bags of soil, or decorative garden features.

13. Agriculture: Assisting in the loading of feed sacks, small machinery components, or harvested produce.

14. Field Service and Maintenance: Handling heavy components for on-site repairs, installations, or utility work.

15. Recreational Use: Providing assistance for lifting ATVs, generators, or heavy gear for camping and other outdoor activities.
