HYDRAULIC JACK CRANE HAND CRANK WINCH HOOK TOWING TRUCK PICKUP 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

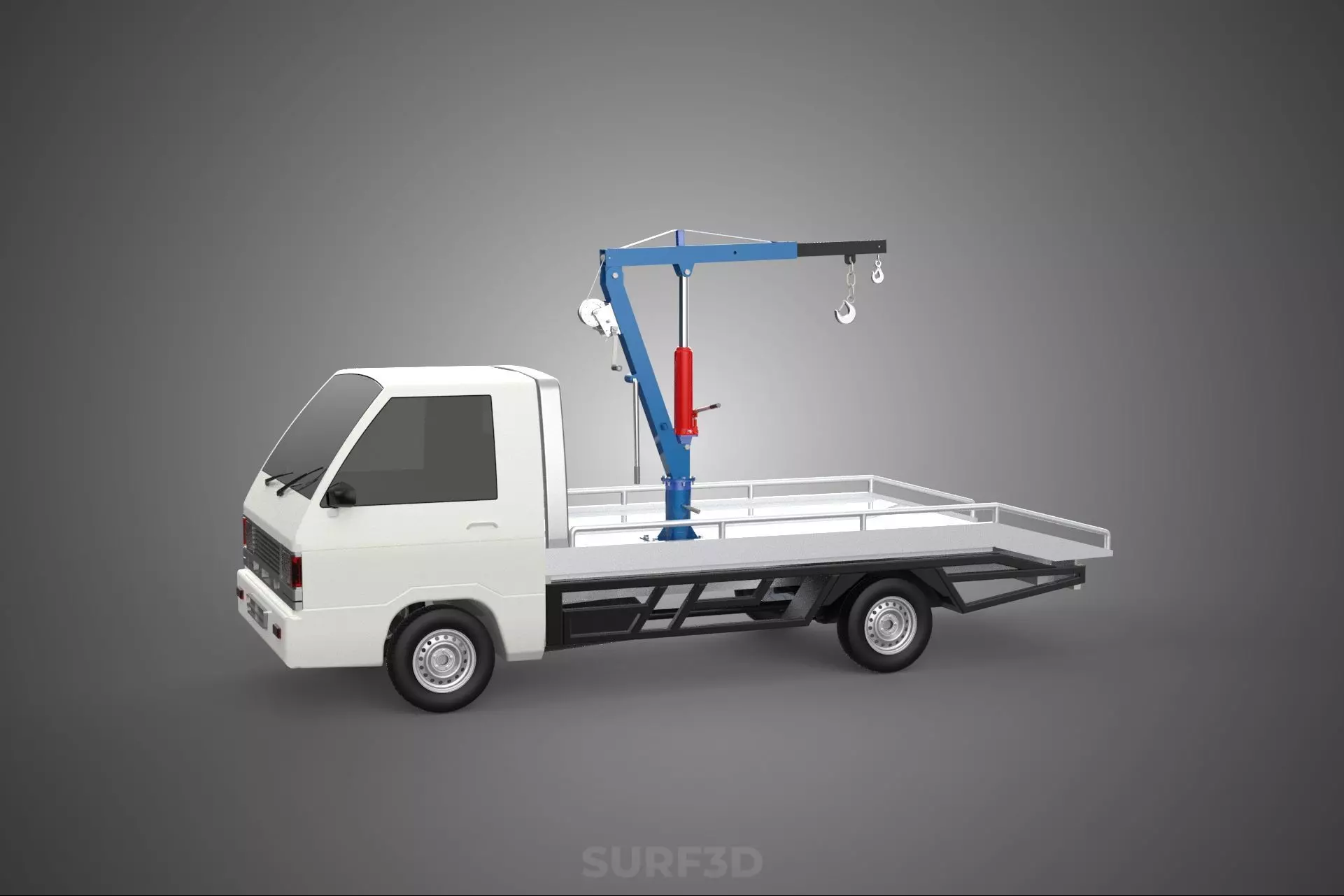

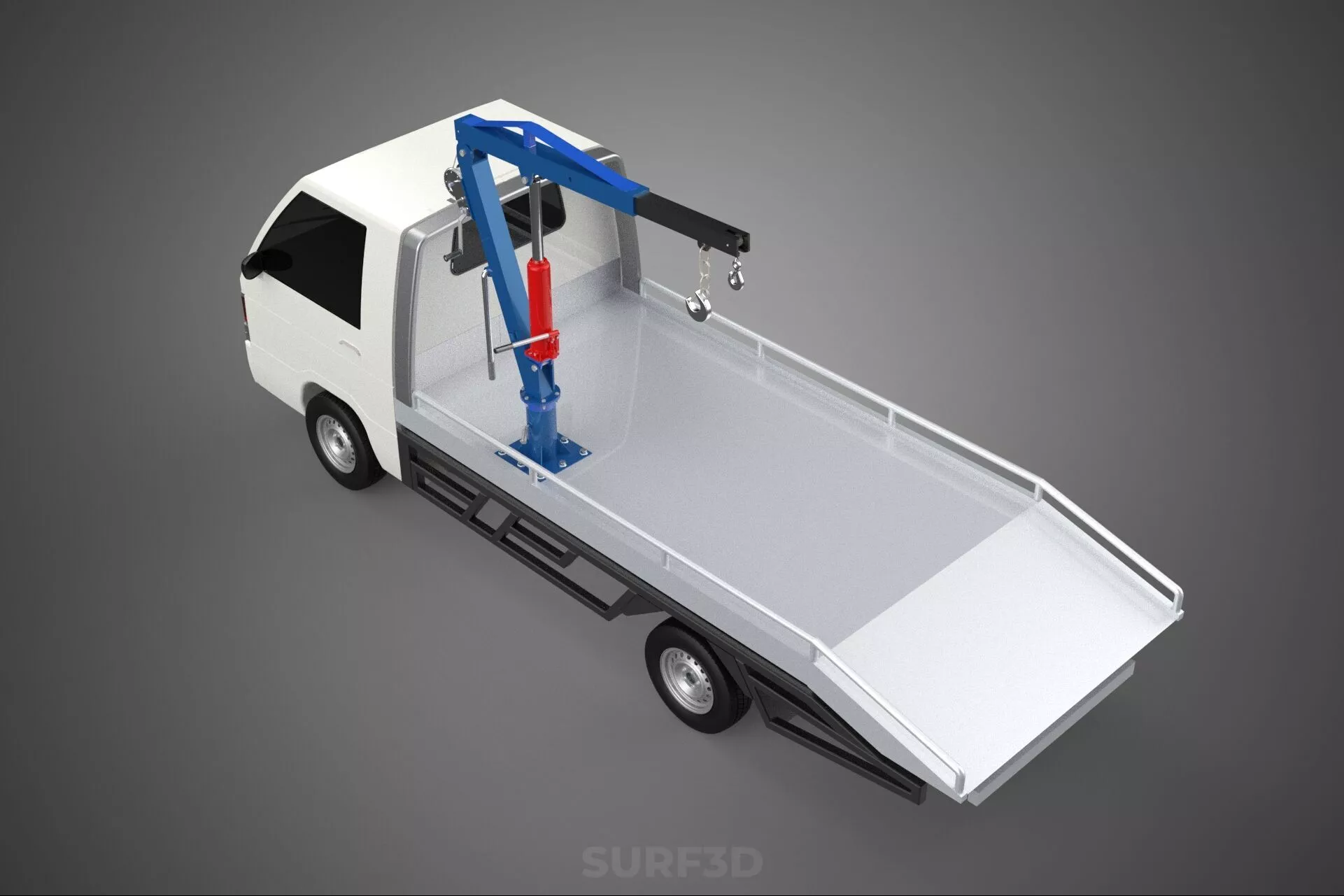

A Hydraulic Jack Crane with Hand Crank Winch Hook Attached on Towing Truck Pickup designates a highly specialized, multi-functional mobile apparatus designed for lifting, lowering, and pulling operations. This system integrates a hydraulically actuated boom crane, typically powered by a manual hydraulic jack, with a supplementary manual hand-cranked winch, all securely mounted onto the chassis or bed of a pickup truck that is specifically configured for towing. It serves as a versatile and self-sufficient unit for moderate load handling in diverse environments, prioritizing maneuverability and operational independence.

Component Breakdown and Functionality:

1. Hydraulic Jack Crane Mechanism: This constitutes the primary lifting component. It typically comprises a robust steel frame forming a boom (which may be fixed, telescopic, or articulating), pivotally mounted on a reinforced base plate. The lifting force is generated by a hydraulic cylinder, which is actuated by a manual hand-pump integrated into a hydraulic jack. The manual pumping action pressurizes hydraulic fluid, extending the cylinder and thereby raising the crane boom. This design allows for vertical lifting and, in some configurations, limited horizontal reach or slewing capabilities. These cranes are designed for specific point loads, and their maximum lifting capacity is critically dependent on the structural integrity of the crane itself and, more importantly, the stability of the host vehicle.


2. Hand Crank Winch Hook: Integrated with or adjacent to the crane boom, a manual winch system provides supplementary lifting, pulling, and precise positioning capabilities. This system consists of a robust drum around which a steel cable or high-strength synthetic rope is spooled. The drum is operated by a hand crank, which allows the operator to manually wind the cable in or out. A durable hook is attached to the end of the cable, enabling attachment to loads. While slower than powered winches, its manual operation offers exceptional fine control for delicate operations, precise load alignment, or as a reliable alternative when electrical or hydraulic power sources are unavailable.


3. Towing Truck Pickup Integration: The entire lifting and winching system is securely affixed to the frame or a reinforced bed of a pickup truck. This host vehicle typically undergoes modifications to enhance its towing capabilities, such as the installation of a heavy-duty hitch receiver, a trailer brake controller, and often upgraded suspension components to manage the additional weight and dynamic forces. The pickup truck serves as the mobile platform, providing inherent stability, transportation for the crane, and the ability to tow other vehicles or equipment. Proper mounting and, crucially, the deployment of outriggers or stabilizers, are essential during lifting operations to prevent vehicle tipping, especially when handling heavy or off-center loads.

   Operational Principles:
   Operation involves strategically positioning the pickup truck near the load. The hydraulic jack is then manually pumped to extend the hydraulic cylinder, raising the crane boom and lifting the attached load. Lowering is achieved by carefully releasing pressure from the hydraulic system. For tasks requiring precise adjustments, horizontal pulling, or light lifting, the hand crank winch is utilized, allowing the operator to manually spool the cable in or out with fine control. Adherence to safety protocols, including respecting load capacities, ensuring proper load securement, and implementing vehicle stabilization measures (e.g., engaging the parking brake, deploying outriggers), is paramount during all operational phases.

   Applications:
   This integrated system is widely employed in scenarios demanding a versatile, mobile, and moderately capable lifting solution. Common applications include:

4. Vehicle Recovery and Maintenance: Facilitating the lifting of heavy components (e.g., engine blocks, transmissions) during field repairs of disabled vehicles, or light vehicle recovery from precarious positions.

5. Material Handling: Efficiently loading and unloading heavy equipment, machinery, or supplies onto or off the truck bed, particularly in locations lacking fixed lifting infrastructure.

6. Small-Scale Construction and Agricultural Tasks: Assisting in the positioning of structural elements, lifting fencing materials, or moving implements in remote or undeveloped areas.

7. Utility and Service Work: Aiding technicians with the installation or removal of heavy equipment in telecommunications, power, or maintenance industries.

8. Off-Road and Remote Operations: Its self-contained and power-independent (for manual functions) nature makes it ideal for remote sites where external power sources or heavy machinery are impractical.

   Advantages and Limitations:
   Advantages include significant mobility and versatility, combining transportation, towing, and lifting capabilities in a single, relatively compact unit. It offers a cost-effective alternative to larger, dedicated mobile cranes and provides operational independence through its manual hydraulic jack and hand crank winch, making it reliable in various conditions. The hand winch specifically allows for very precise load positioning.
   Limitations include a restricted load capacity, which is dictated by the crane's structural limits, the hydraulic system, and critically, the stability of the host pickup truck; exceeding these limits can lead to severe accidents. Both the hydraulic jack and hand winch require manual effort, potentially leading to operator fatigue. The system also typically offers more limited reach and lifting height compared to larger, specialized cranes. Furthermore, strict adherence to load charts, proper outrigger deployment, secure load rigging, and awareness of the vehicle's center of gravity shifts are crucial safety considerations.

   Nomenclature:
   This configuration may also be referred to colloquially or informally as a pickup truck crane, utility crane truck, davit crane truck (if specifically a davit design), or a shop crane mounted on truck.

   Conclusion:
   The Hydraulic Jack Crane with Hand Crank Winch Hook Attached on Towing Truck Pickup represents a practical and efficient solution for light to medium-duty lifting and recovery operations. Its integrated design leverages the inherent mobility of a pickup truck with the functional utility of a crane and winch, establishing it as an indispensable tool across various service, construction, and recovery sectors where portability, adaptability, and self-sufficiency are paramount.

   KEYWORDS: Hydraulic Jack Crane, Hand Crank Winch, Towing Truck, Pickup Truck, Mobile Crane, Vehicle Mounted Crane, Recovery Vehicle, Utility Truck, Lifting Equipment, Material Handling, Field Service, Manual Hydraulic, Boom Crane, Winch Hook, Load Handling, On-site Operations, Portable Crane, Davit Crane, Light Duty Crane, Self-contained System, Outriggers, Vehicle Stability, Mechanical Advantage, Towing Operations, Equipment Loading, Automotive Repair, Small Construction, Versatile Lifting, Manual Operation, Mobile Workstation
