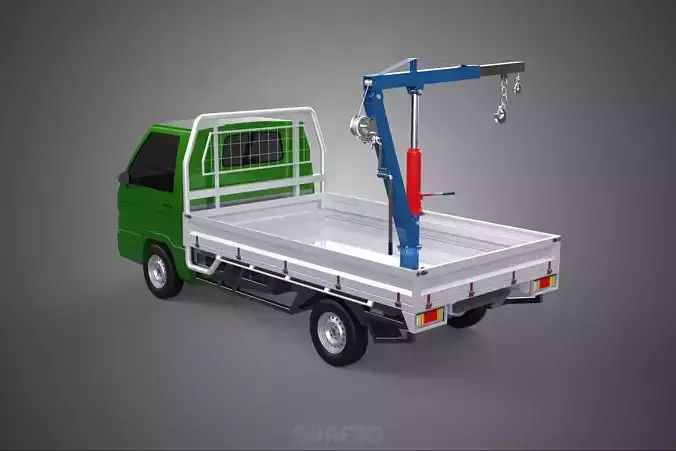

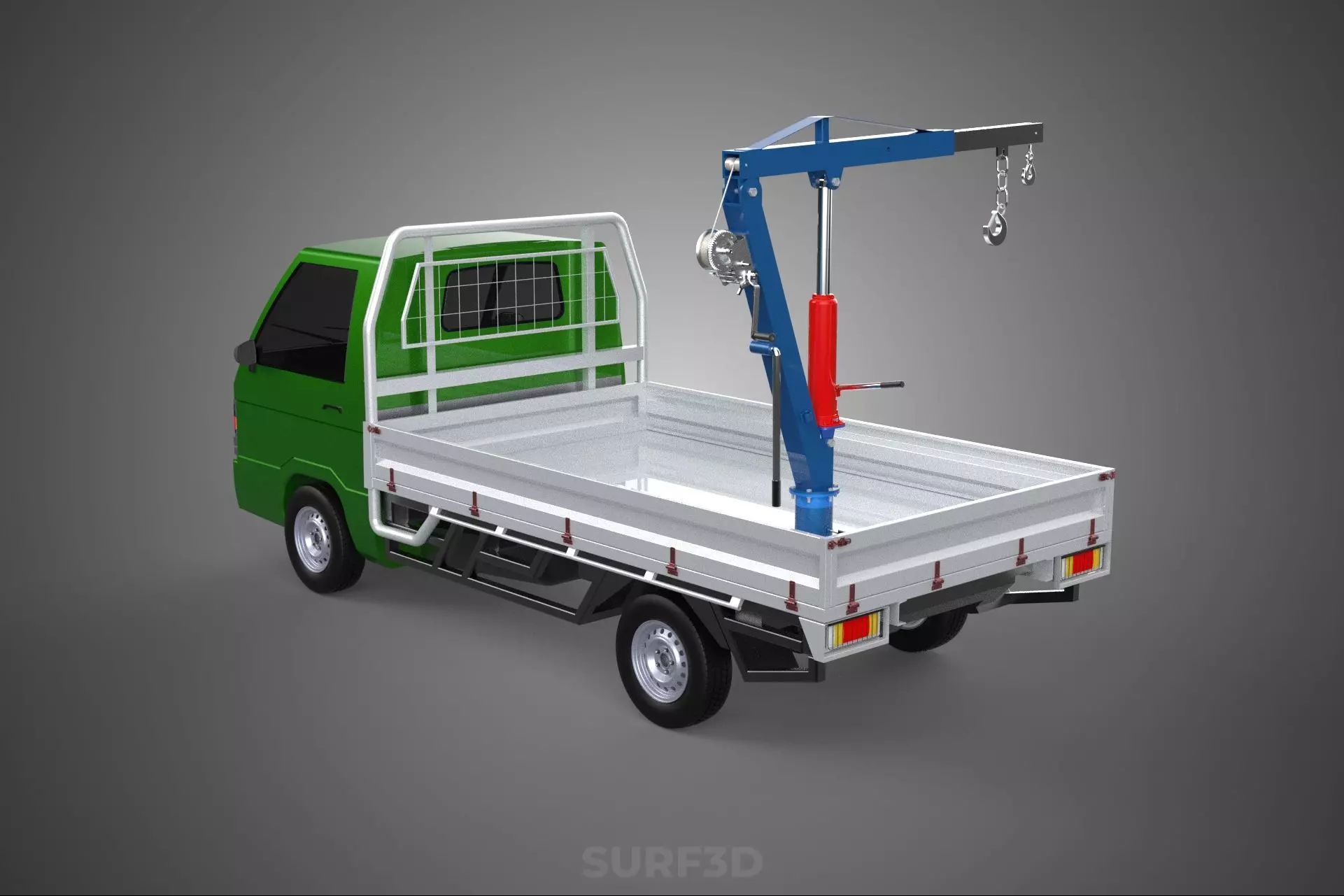

COMPACT SMALL MINI PICKUP TRUCK WINCH HOIST HYDRAULIC CRANE JIB 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Compact Small Mini Pickup Truck with Winch Hoist Hydraulic Crane Jib Attached defines a highly specialized utility vehicle designed to combine the transport capabilities of a light-duty truck with the lifting functionality of a small crane system. This configuration is engineered for agility and access in environments where larger, conventional crane trucks are impractical or unable to operate.

Vehicle Base (Compact Small Mini Pickup Truck):
The foundational element is a compact, small, or mini pickup truck chassis. These vehicles are characterized by their reduced overall dimensions, lower curb weight, and typically smaller engine displacements compared to full-sized counterparts. Their design prioritizes maneuverability, fuel efficiency, and accessibility in confined spaces such as densely populated urban areas, narrow construction sites, off-road trails, or industrial facilities. Common examples may include derivatives of Japanese Kei trucks, various sub-compact utility vehicles (UTVs) adapted for road use, or specialized light-duty commercial vehicles with open cargo beds. The inherent modest payload capacity of these trucks necessitates careful engineering to accommodate the additional weight and dynamic stresses imposed by the integrated crane system.

Lifting System (Winch Hoist Hydraulic Crane Jib):
The attached lifting apparatus comprises several integrated components, primarily functioning via hydraulic power:

• Hydraulic Crane: This forms the core of the lifting mechanism. It operates through a hydraulic system where pressurized fluid, typically driven by a pump (often powered by the truck's engine via a Power Take-Off (PTO) unit or an auxiliary power unit), actuates hydraulic cylinders. These cylinders control the precise and powerful movements of the crane, enabling lifting, lowering, and slewing (rotation).

• Jib: The jib is the boom or arm of the crane, responsible for providing reach and height. Jibs can be fixed-length, telescopic (extending to increase reach), or articulating (folding and extending via multiple pivot points, offering greater flexibility for maneuvering loads around obstacles).

• Winch Hoist: Integrated either at the tip of the jib or as the primary lifting component, a winch hoist utilizes a drum to wind or unwind a high-strength cable (wire rope) for raising or lowering loads. In this context, it functions as the hoisting mechanism, providing vertical lift under the precise control of the hydraulic system. The hoist itself can be hydraulically or electrically driven, though hydraulic is common for synergy with the main crane.

  Integration and Functionality:
  The crane system is meticulously integrated onto the truck's chassis, often necessitating substantial reinforcement of the frame and suspension to manage the static and dynamic loads generated during lifting operations. Typical mounting points include the rear chassis, a dedicated flatbed conversion, or directly behind the cabin. Power for the hydraulic system is commonly derived from the truck's engine via a Power Take-Off (PTO) unit, or in some configurations, from a self-contained auxiliary power unit. For critical operational stability, especially when lifting off-center loads or extending the jib to its full reach, the vehicle is invariably equipped with hydraulic outriggers or stabilizers. These deployable legs extend outwards and downwards, creating a significantly wider and more stable base to counteract overturning moments.

  This specialized vehicle merges the utility of a light-duty transport truck with the functionality of a compact crane, providing a versatile solution for light to medium-duty lifting, loading, and precise positioning tasks.

  Applications:
  The Compact Small Mini Pickup Truck with Winch Hoist Hydraulic Crane Jib Attached finds utility across diverse sectors:

• Utility Services: Essential for electrical, telecommunications, or water utility crews needing to lift equipment, poles, or access overhead infrastructure in residential areas or challenging terrains.

• Construction: Facilitates small-scale construction projects, material handling on job sites with limited access, or for placing smaller structural components.

• Landscaping and Arboriculture: Used for lifting trees, large rocks, or maneuvering heavy landscaping materials.

• Roadside Assistance and Recovery: Assists with vehicle recovery in challenging terrains or confined urban spaces.

• Municipal Services: Ideal for tasks requiring light lifting in urban parks, pedestrian zones, or narrow alleyways.

• Logistics and Warehousing: Moving goods within facilities that have restricted maneuverability.

• Agriculture: For tasks such as lifting feed, equipment, or produce on farms.

  Advantages:

• Maneuverability: Its compact size allows unparalleled access to tight spaces, urban environments, and off-road locations inaccessible to larger crane trucks.

• Cost-Effectiveness: Generally entails lower acquisition costs, operating expenses, and fuel consumption compared to heavy-duty crane vehicles.

• Versatility: Combines transport and precise lifting capabilities within a single, adaptable unit.

• Reduced Footprint: Requires less space for both operation and parking, optimizing utility in constrained areas.

  Limitations and Safety Considerations:

• Limited Lifting Capacity: The inherent design of the base vehicle, its chassis strength, and its Gross Vehicle Weight Rating (GVWR) fundamentally restrict the crane's maximum lifting capacity. Operating beyond these limits constitutes a severe safety hazard.

• Stability: The effective and correct deployment of hydraulic outriggers is paramount. Dynamic forces, particularly during slewing (rotating the crane) or rapid load movements, can critically compromise stability if not properly managed or if the outriggers are not fully engaged.
