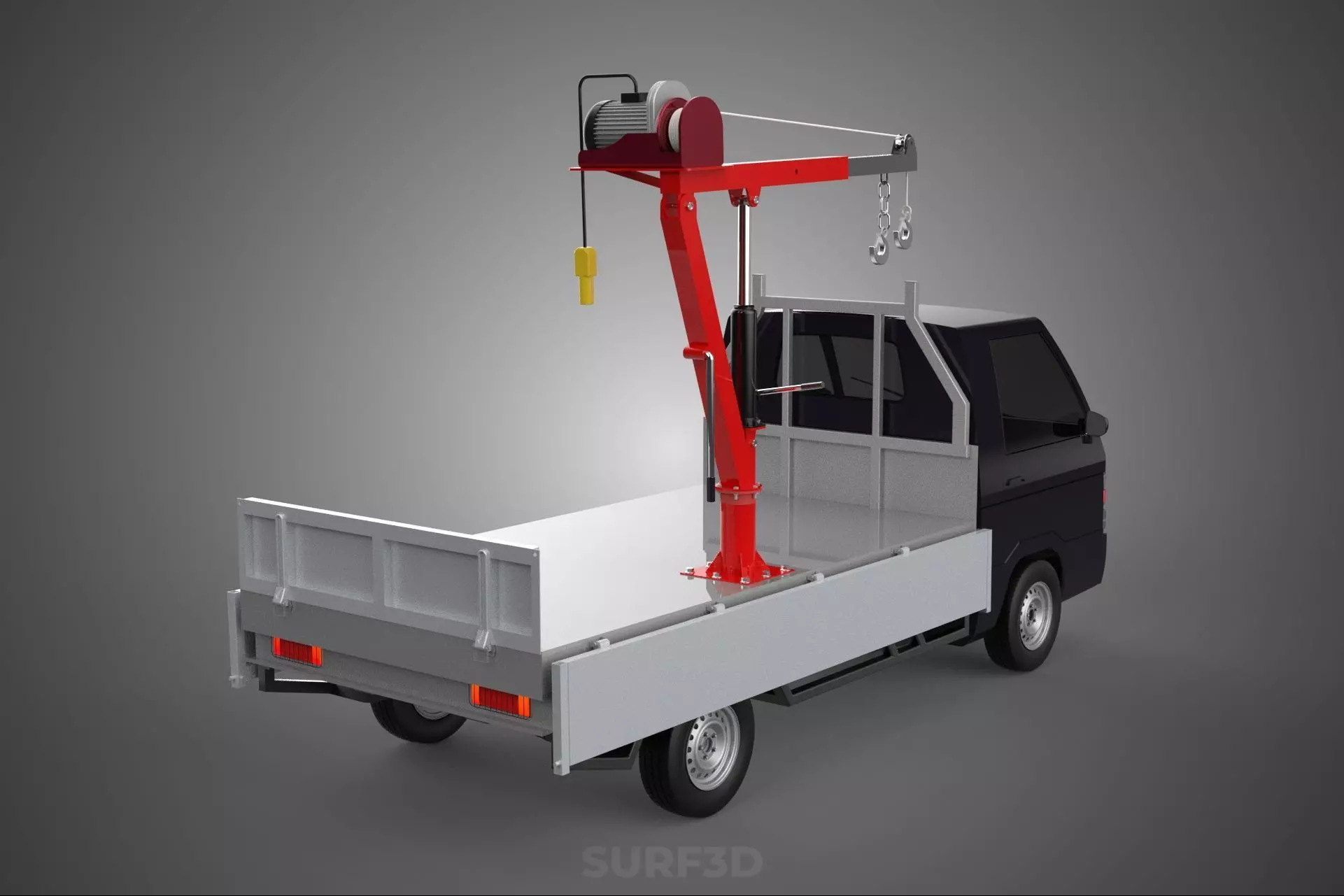

DROPSIDE JIB CRANE LIFT HOIST WINCH MOTOR BED GATE PICKUP TRUCK 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Dropside Jib Crane Lift Hoist Winch Motor Bed Gate Pickup Truck describes a highly specialized utility vehicle, integrating several functional components onto a standard pickup truck chassis to enhance its capabilities in material handling, lifting, and pulling. This configuration transforms a conventional transport vehicle into a versatile mobile workstation, particularly suited for construction, maintenance, logistics, and field service operations where independent loading, unloading, and positioning of heavy or bulky items are required.

The core components and their functionalities are as follows:

1. Pickup Truck: The foundational element, providing mobility and an open cargo bed. These are typically light to medium-duty trucks, chosen for their maneuverability and established chassis strength, which can be further reinforced for the added equipment.


2. Dropside Bed / Bed Gate: This refers to the design of the truck's cargo area. A dropside bed is characterized by its hinged side and/or rear panels (often called gates) that can be folded down or entirely removed. This design significantly improves accessibility for loading and unloading cargo from the sides, rather than solely from the rear. It also accommodates wider or irregularly shaped loads that might otherwise exceed the standard bed dimensions, allowing for easier forklift access or crane placement of items. The term bed gate specifically highlights these functional, movable panels.


3. Jib Crane: A type of crane mounted directly onto the truck's frame or bed, often positioned immediately behind the cab or at the rear. A jib crane consists of a horizontal member (jib or boom) that extends outwards, allowing for precise lifting, lowering, and slewing (horizontal rotation) of loads within a defined radius around the truck. These cranes vary in complexity, from manually operated, small capacity units to hydraulically or electrically powered, articulating, or telescopic booms capable of lifting substantial weights. They are essential for independently hoisting items onto or off the truck bed, or positioning them at a worksite.


4. Lift Hoist: An integral part of the jib crane system, the hoist is the mechanism responsible for the vertical movement of loads. It typically consists of a drum around which a wire rope or chain is wound, connected to a hook or other lifting attachment. The hoist, driven by a dedicated motor, provides the mechanical advantage necessary for raising and lowering items in a controlled manner.


5. Winch: While often integrated with a hoist for vertical lifting, a winch can also be a separate component. Primarily, a winch is designed for pulling heavy loads horizontally, recovering stuck vehicles, or securing cargo, often employing a higher pulling capacity over a longer distance than a typical lift hoist. It comprises a drum that winds or unwinds a cable or rope, driven by a motor. Both the hoist and winch are critical for efficient material handling and secure load management.


6. Motor: The power source for the hoist, winch, and the crane's various movements (lifting, slewing, extending). Common power sources include the truck's 12-volt or 24-volt electrical system (for lighter-duty electric hoists/winches), a dedicated hydraulic power unit (which may be driven by the truck's power take-off (PTO) or an auxiliary engine), or a combination thereof. Hydraulic systems are typically preferred for heavier lifting capacities due to their inherent power, precise control, and durability.

   Operational Integration and Applications:
   The synergy of these components transforms a standard pickup truck into a highly functional mobile workstation. The dropside bed simplifies cargo access, while the jib crane and associated hoist/winch provide the necessary mechanical power to manage heavy equipment, construction materials, utility poles, landscaping elements, or maintenance parts. To ensure stability during crane operation, outriggers or stabilizers are frequently deployed to prevent tipping and distribute the load. This specialized vehicle configuration is extensively utilized in industries such as civil engineering, general construction, landscaping, telecommunications, power line maintenance, roadside assistance, and any field service requiring autonomous loading, unloading, and precise placement of materials or machinery in diverse or remote locations.

   Benefits and Considerations:
   Key benefits of such a customized vehicle include enhanced operational efficiency, reduced reliance on external lifting equipment, improved worker safety by minimizing strenuous manual lifting, and the ability to operate independently in various environments. Critical considerations for deployment involve strict adherence to load capacity limits for both the crane and the truck's overall Gross Vehicle Weight Rating (GVWR), ensuring comprehensive training for operators on safe operation and load securement, and consistent maintenance of all mechanical, hydraulic, and electrical systems.

   KEYWORDS: Pickup truck, Dropside bed, Jib crane, Lift hoist, Winch, Material handling, Utility vehicle, Service truck, Crane truck, Mobile crane, Hydraulic system, Electric motor, Cargo management, Heavy lifting, Load transport, Construction equipment, Roadside assistance, Field service, Logistics, Outriggers, Gross Vehicle Weight Rating (GVWR), Power Take-Off (PTO), Articulating boom, Telescopic boom, Vehicle modification, Custom truck, Industrial equipment, Work truck, Equipment transport, Load securement
