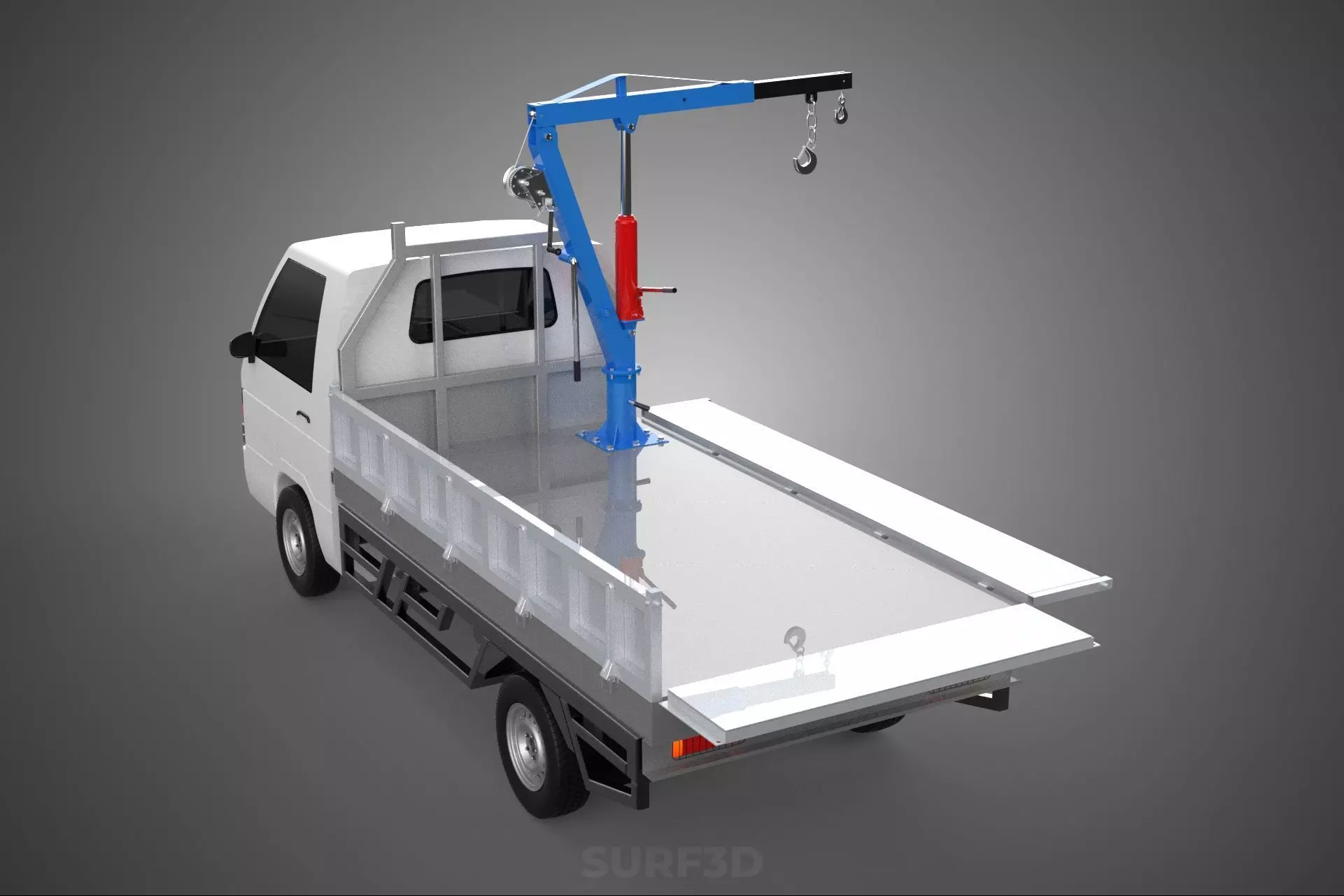

A Dropside Folding Jib Crane Hoist Hand Crank Winch Truck Pickup denotes a specialized, manually operated lifting apparatus designed for attachment to the bed or chassis of a pickup truck, particularly those with dropside functionality. This integrated system combines several distinct mechanical and structural components to facilitate the efficient loading, unloading, and positioning of moderately heavy objects.

Nomenclature Breakdown:

• Dropside: This prefix indicates the crane's suitability for, or enhanced utility with, pickup trucks or flatbed vehicles equipped with dropsides – hinged side panels that can be lowered or removed. This feature allows for unimpeded side access to the truck bed, optimizing the crane's operational envelope and simplifying the loading of wide or cumbersome items from the side.

• Folding Jib Crane: At its core, the device functions as a jib crane. A jib refers to the horizontal or angled boom that extends from a vertical mast, supporting a hoist from which a load is suspended. The folding aspect signifies a crucial design feature: the jib arm, or the entire crane assembly, can be collapsed or articulated into a compact configuration. This mechanism is vital for reducing the crane's footprint when not in use, enabling easier storage, road transport (by keeping it within the vehicle's dimensions), and improved rear visibility.

• Hoist: This term refers to the lifting mechanism itself, typically comprising a drum, rope or chain, and a hook or other lifting attachment. In this context, the hoist is integrated into the jib crane system, providing the vertical movement necessary to raise or lower loads.

• Hand Crank Winch: The power source for the hoist is specified as a hand crank winch. A winch is a mechanical device that winds a rope or cable, and hand crank denotes manual operation via a rotatable handle. This design choice eliminates the need for external power sources (such as electrical or hydraulic systems), making the crane self-sufficient, cost-effective, and suitable for remote locations or applications where power access is limited. The winch typically incorporates a gearing system to multiply the manual force, allowing for the lifting of significant loads with manageable effort.

• Truck Pickup: This final component specifies the intended mounting platform. The crane is engineered to be securely mounted onto the bed, chassis, or a reinforced frame element of a standard pickup truck. This portability transforms a conventional pickup into a versatile mobile lifting platform.

  Design and Construction:
  The typical construction involves robust materials such as high-strength steel or structural aluminum, ensuring durability and load-bearing capacity. The system generally consists of:

• Base Plate/Mounting System: A sturdy base designed for secure bolt-down attachment to the truck bed or frame, distributing the load effectively.

• Vertical Mast: A stout column rising from the base, providing the main support for the jib.

• Rotating Jib/Boom: The extendable or fixed-length arm that pivots horizontally around the mast, offering a wide range of motion. The folding mechanism usually involves a hinge point on the jib itself or at its connection to the mast.

• Winch and Hoist Assembly: Mounted on the jib arm or mast, this incorporates the hand crank, gears, drum, wire rope, and a safety hook. Many units include a braking mechanism to safely hold loads at a desired height.

  Operational Principles:
  Operation is straightforward: the crane is unfolded and locked into its operational position. The hand crank winch is then manually turned to raise or lower the load via the hoist. The jib can be rotated (often 360 degrees, depending on the model and mounting) to position the load precisely within the truck bed or alongside it, particularly benefiting from dropside access for direct side loading.

  Key Features and Advantages:

• Portability: Transforms a standard pickup truck into a mobile lifting solution.

• Independence from Power: Manual operation negates the need for electrical or hydraulic systems, ideal for remote or off-grid use.

• Compact Storage: The folding design allows for minimal space occupancy when not in use, preserving cargo space and maintaining vehicle maneuverability.

• Cost-Effectiveness: Generally less expensive to purchase and maintain compared to powered hydraulic or electric cranes.

• Versatility: Useful across various sectors for tasks involving moderate lifting, such as loading tools, equipment, engines, agricultural produce, or construction materials.

• Dropside Compatibility: Enhances ease of loading and unloading from the side of the vehicle, particularly for wider objects.

  Limitations:
  While advantageous for specific applications, the manual nature of the hoist limits its lifting capacity and speed compared to powered alternatives. Operator effort is required, and continuous heavy lifting can lead to fatigue.

  Applications:
  This type of crane finds widespread use in:

• Agriculture: Loading feed, equipment, or produce.

• Construction: Moving tools, small machinery, and building materials.

• Workshops/Garages: Lifting engines, transmissions, or other heavy components.

• Utility Services: Assisting with equipment placement.

• Personal Use: Landscaping, DIY projects, and general material handling where a forklift or larger crane is impractical.

  In summary, the Dropside Folding Jib Crane Hoist Hand Crank Winch Truck Pickup is a pragmatic, manually operated lifting solution, offering portability, self-sufficiency, and efficient load handling for pickup truck owners, particularly those who benefit from side access to their vehicle's cargo area.
