robot hand - bionic hand prosthesis prototype 3D print model

Description

These files are the Fusion 360 source files of this project.

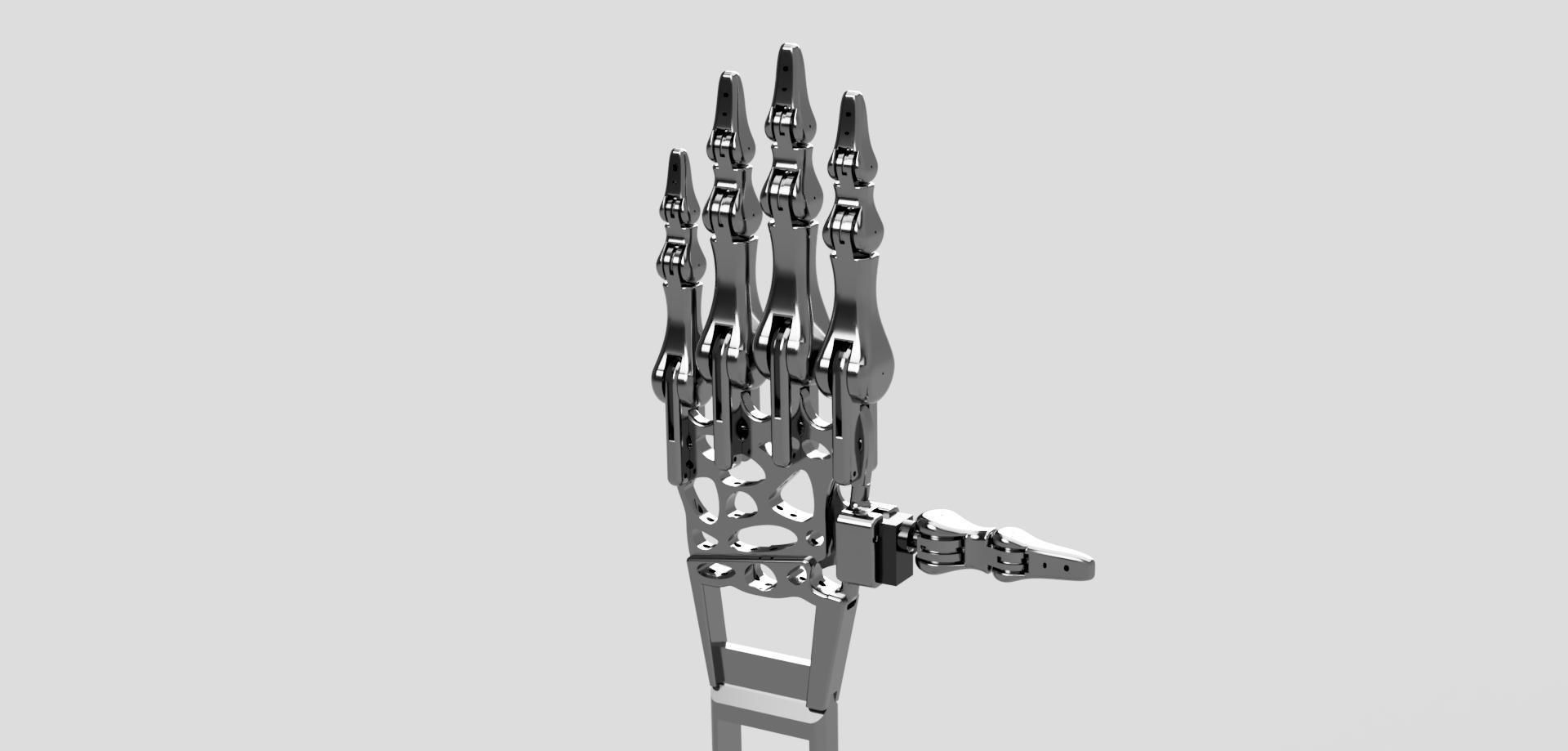

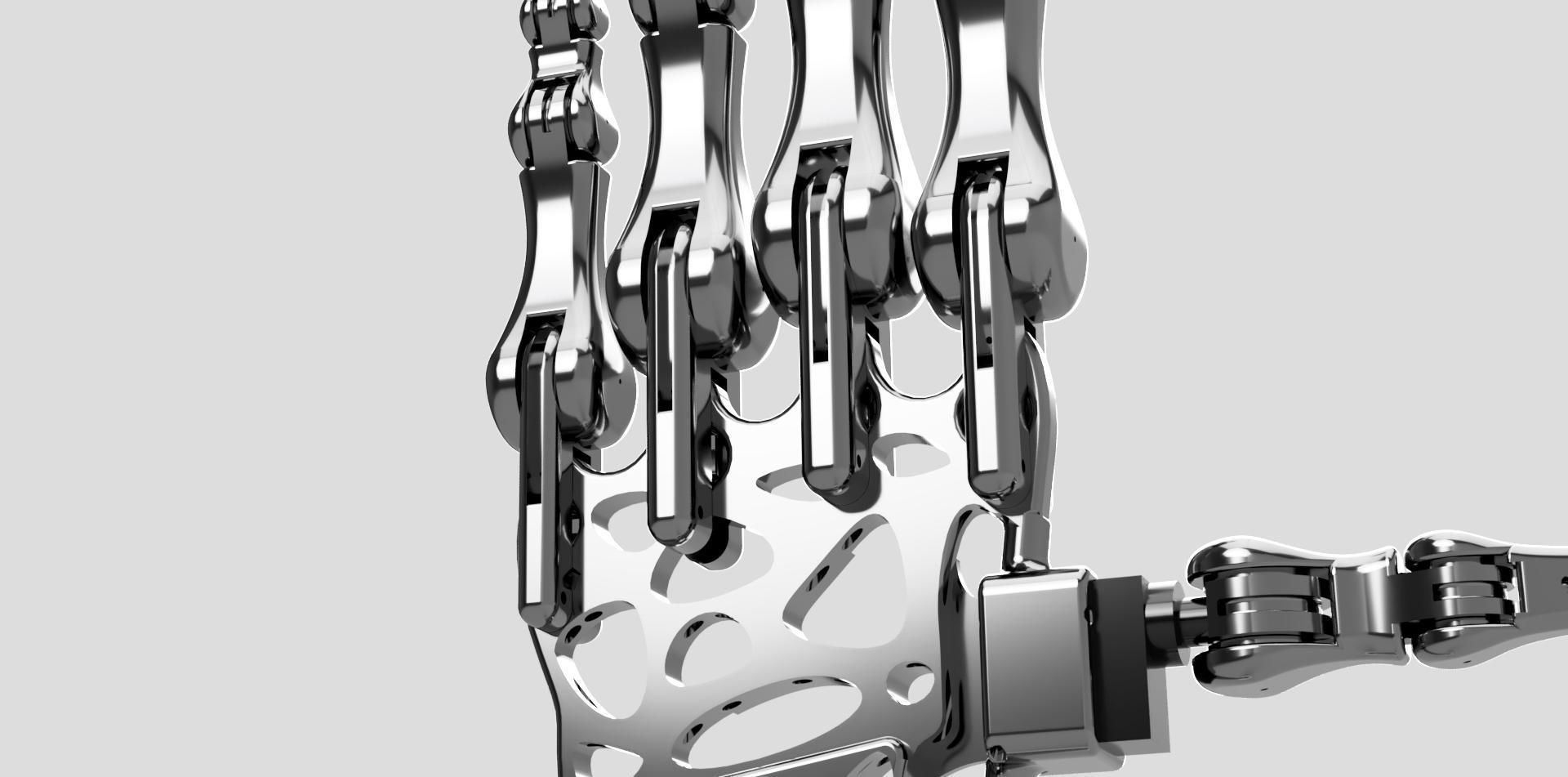

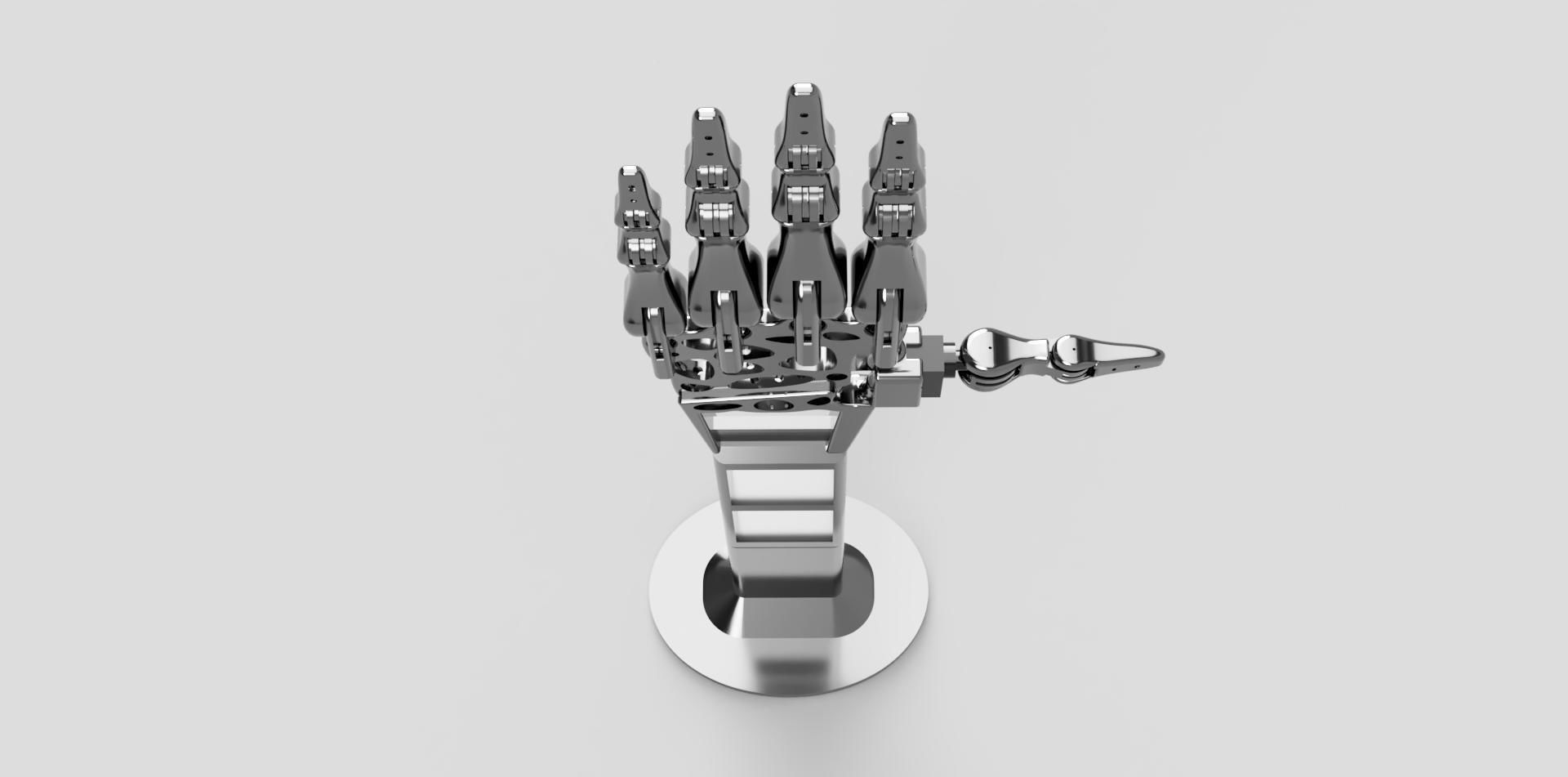

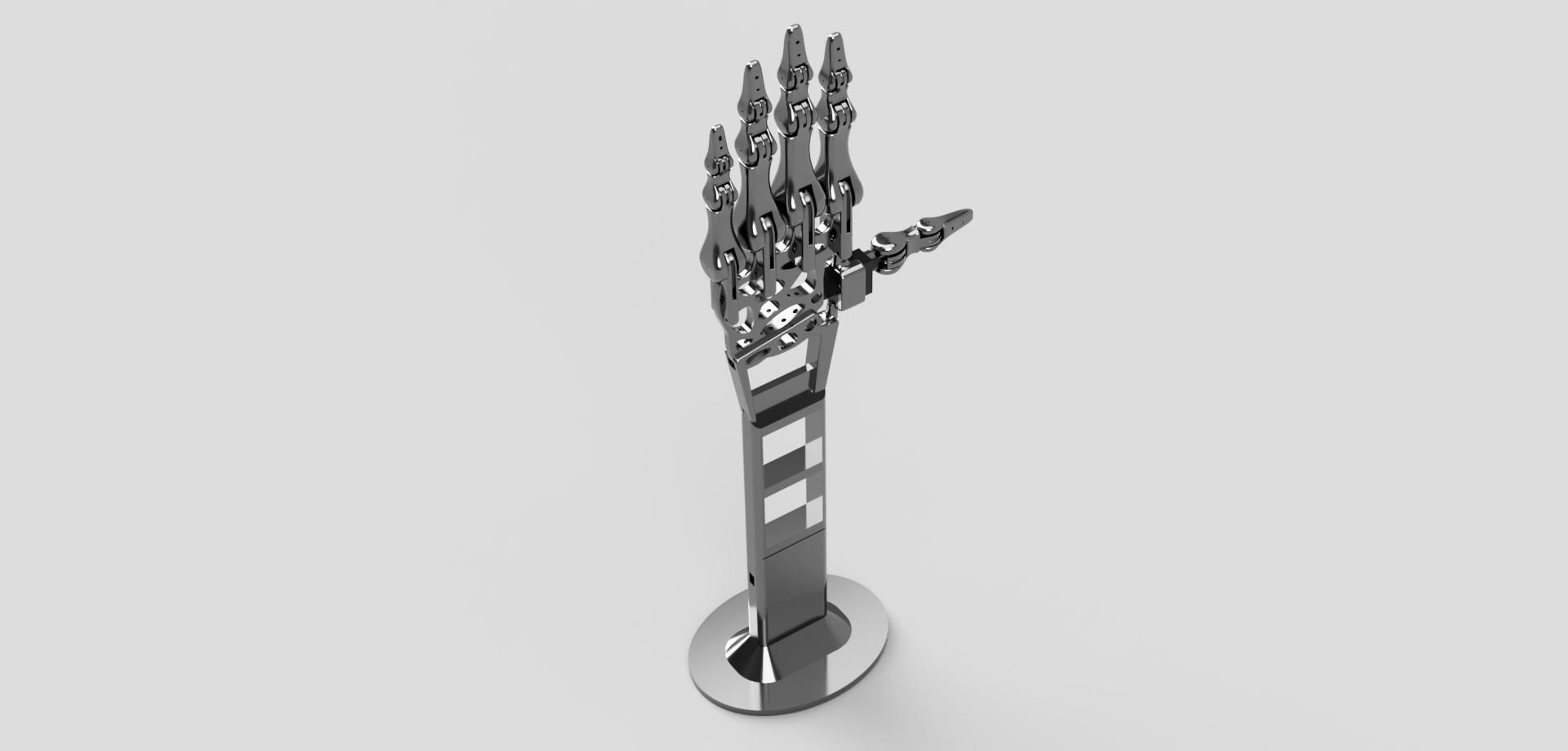

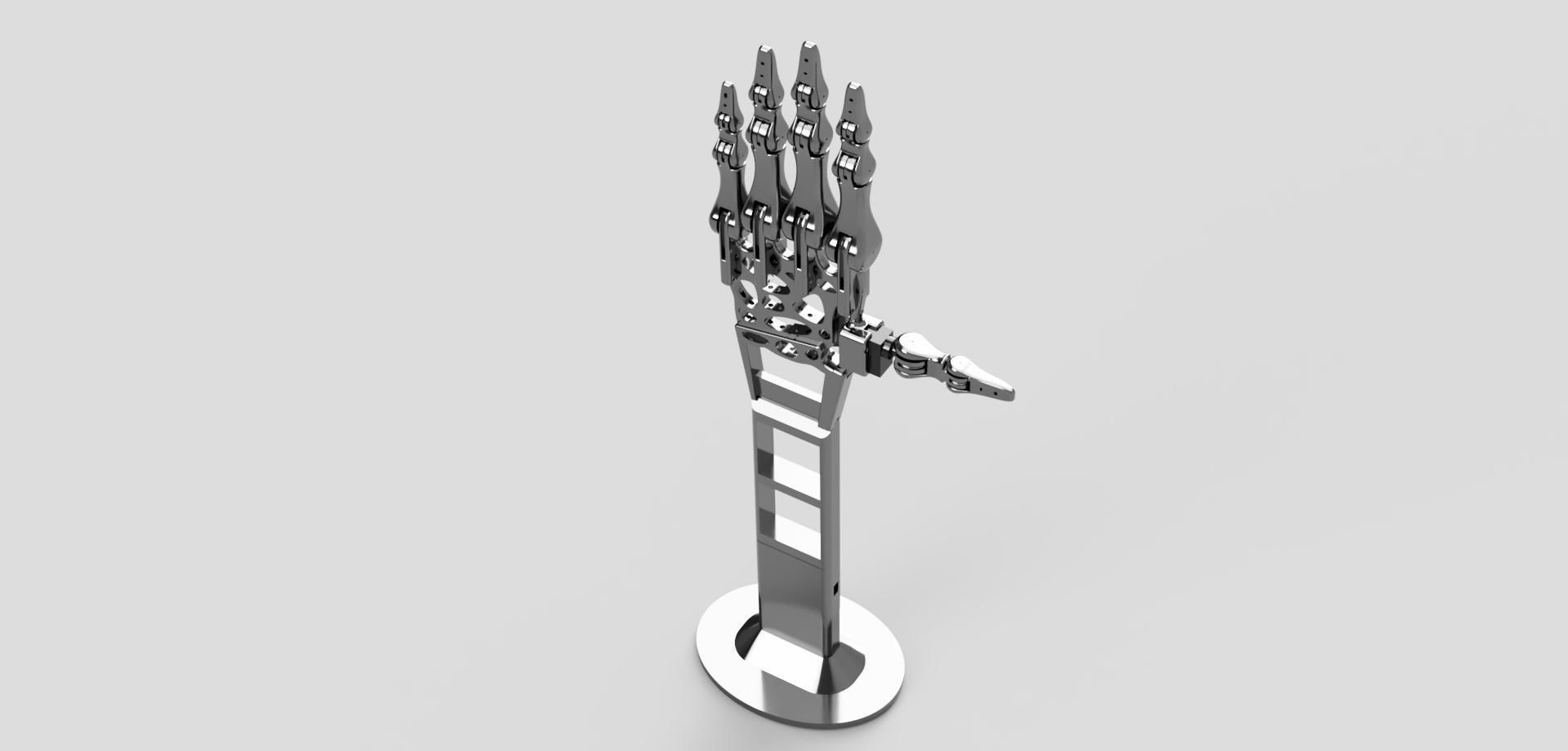

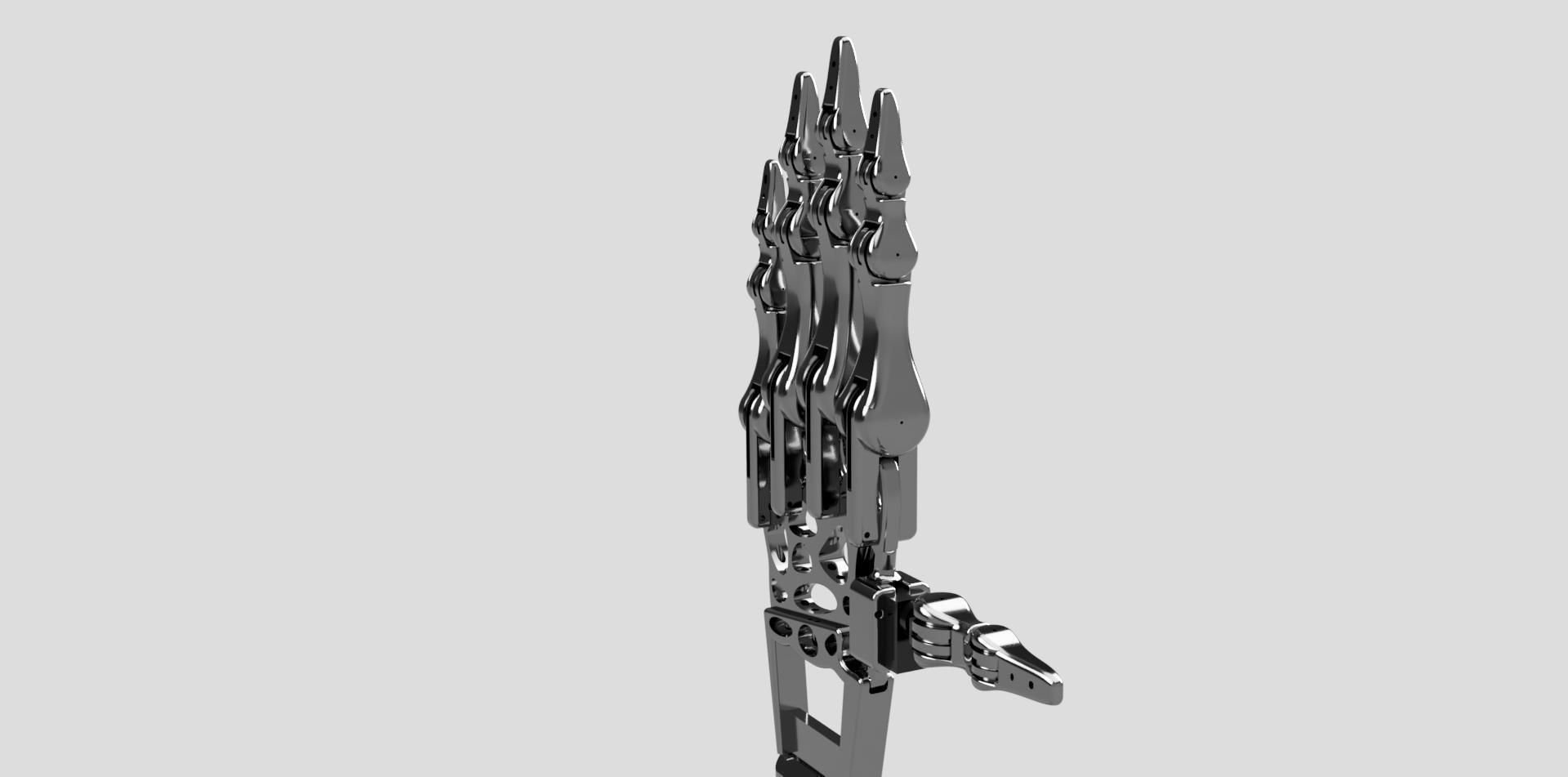

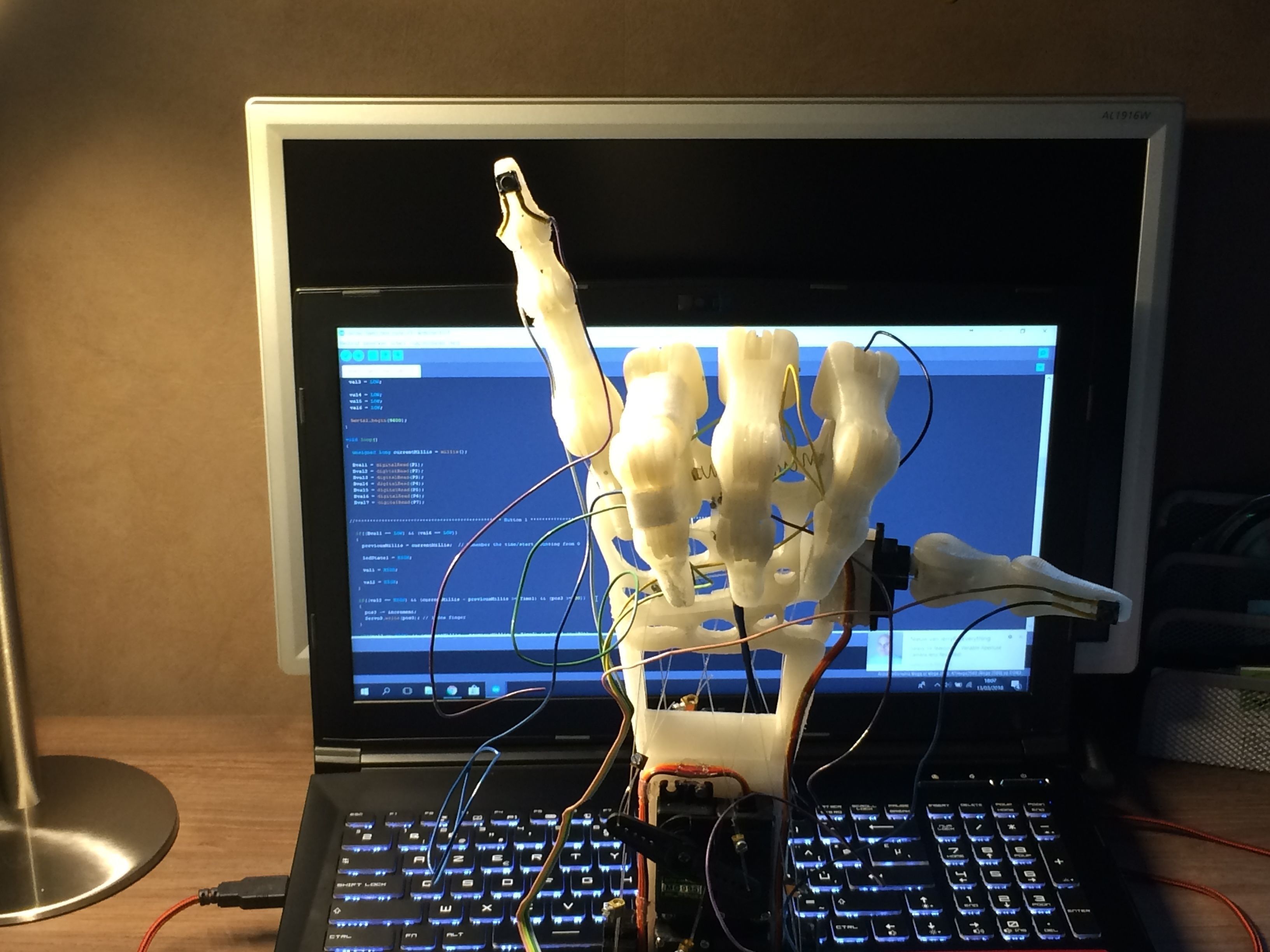

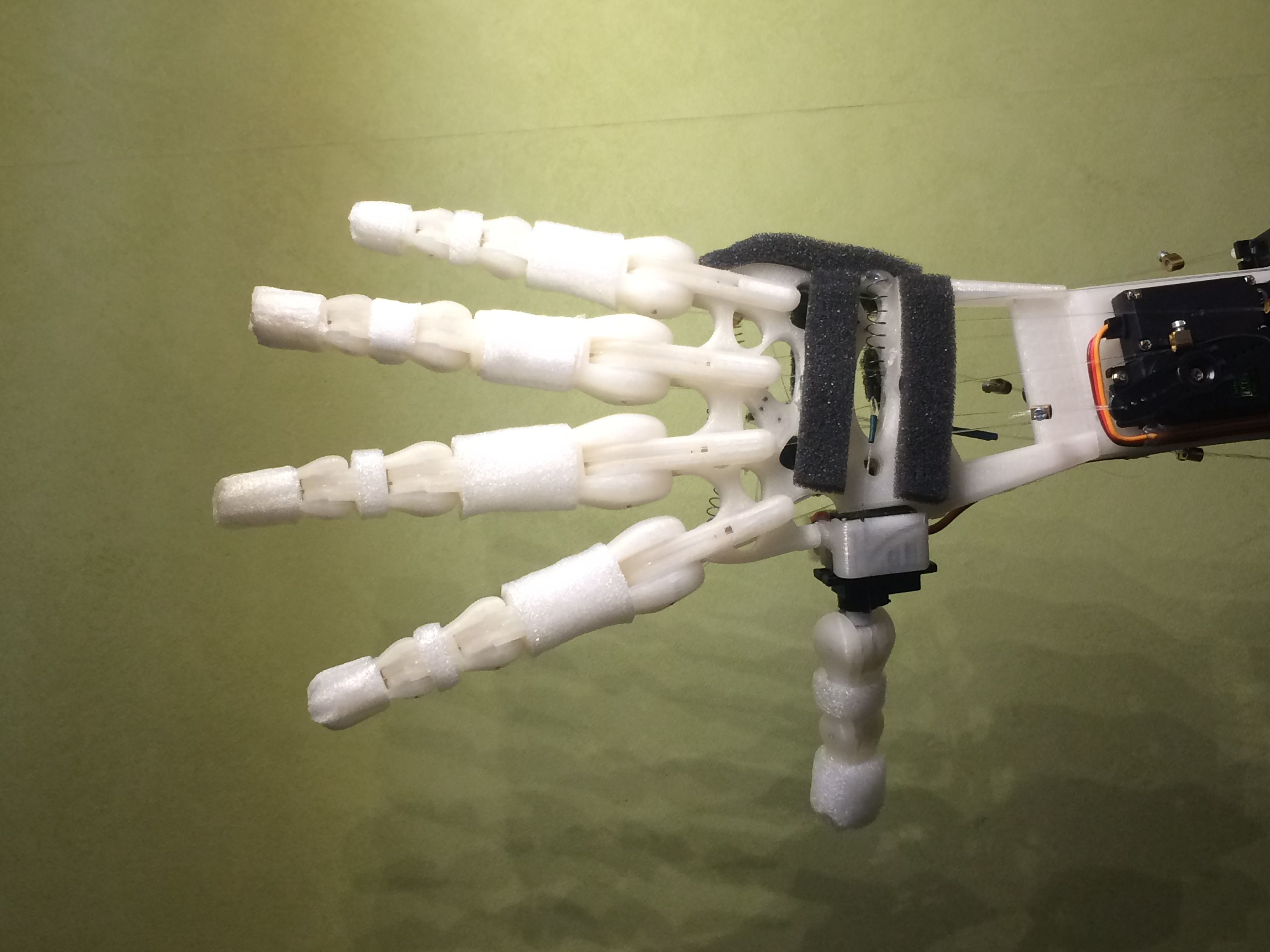

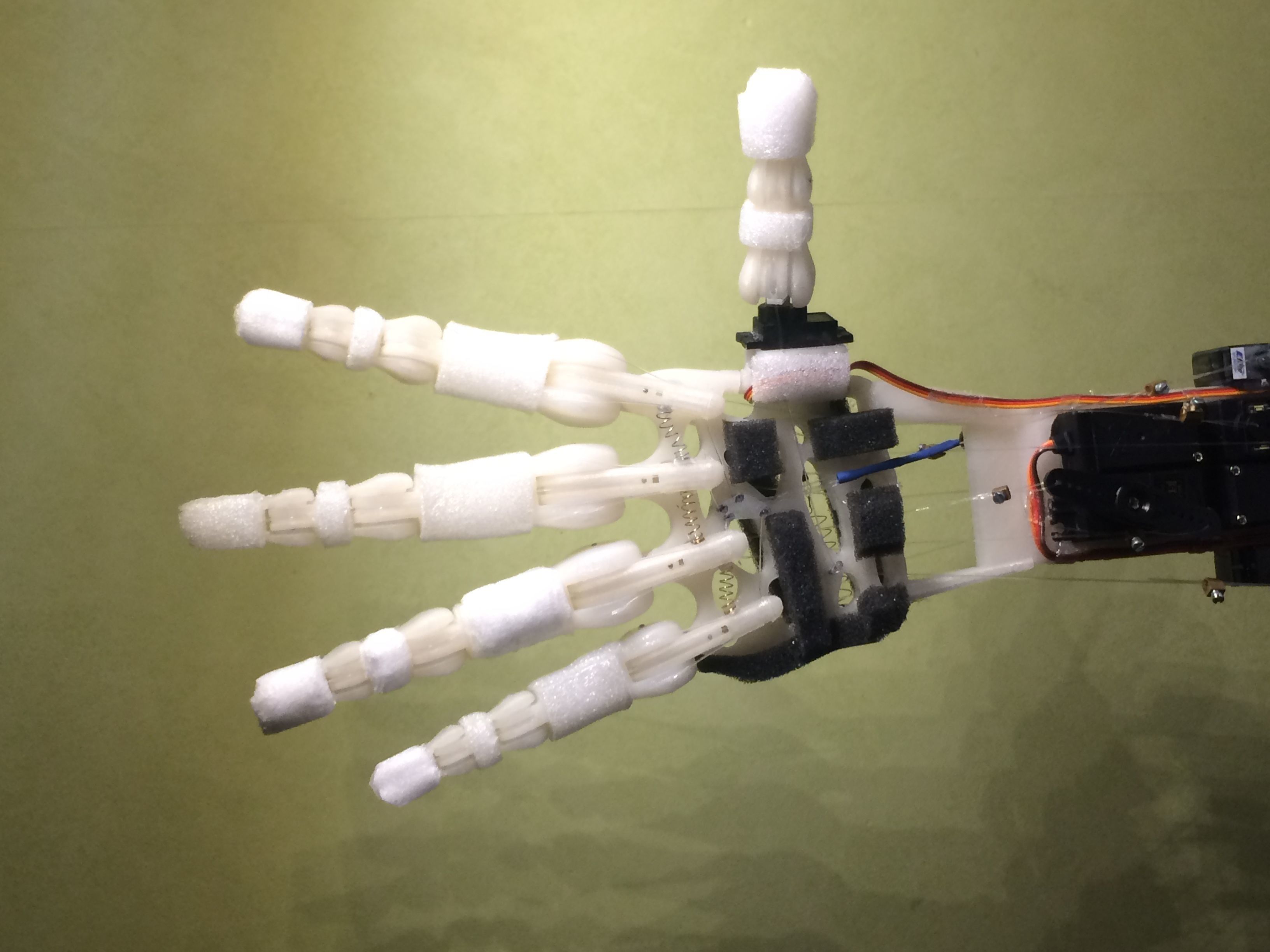

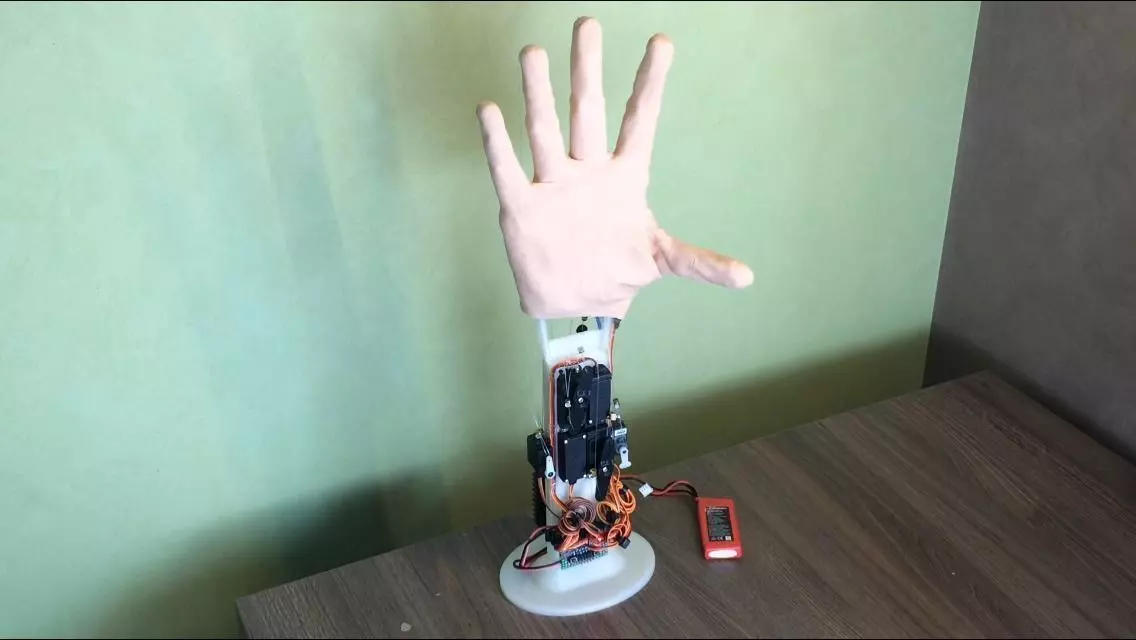

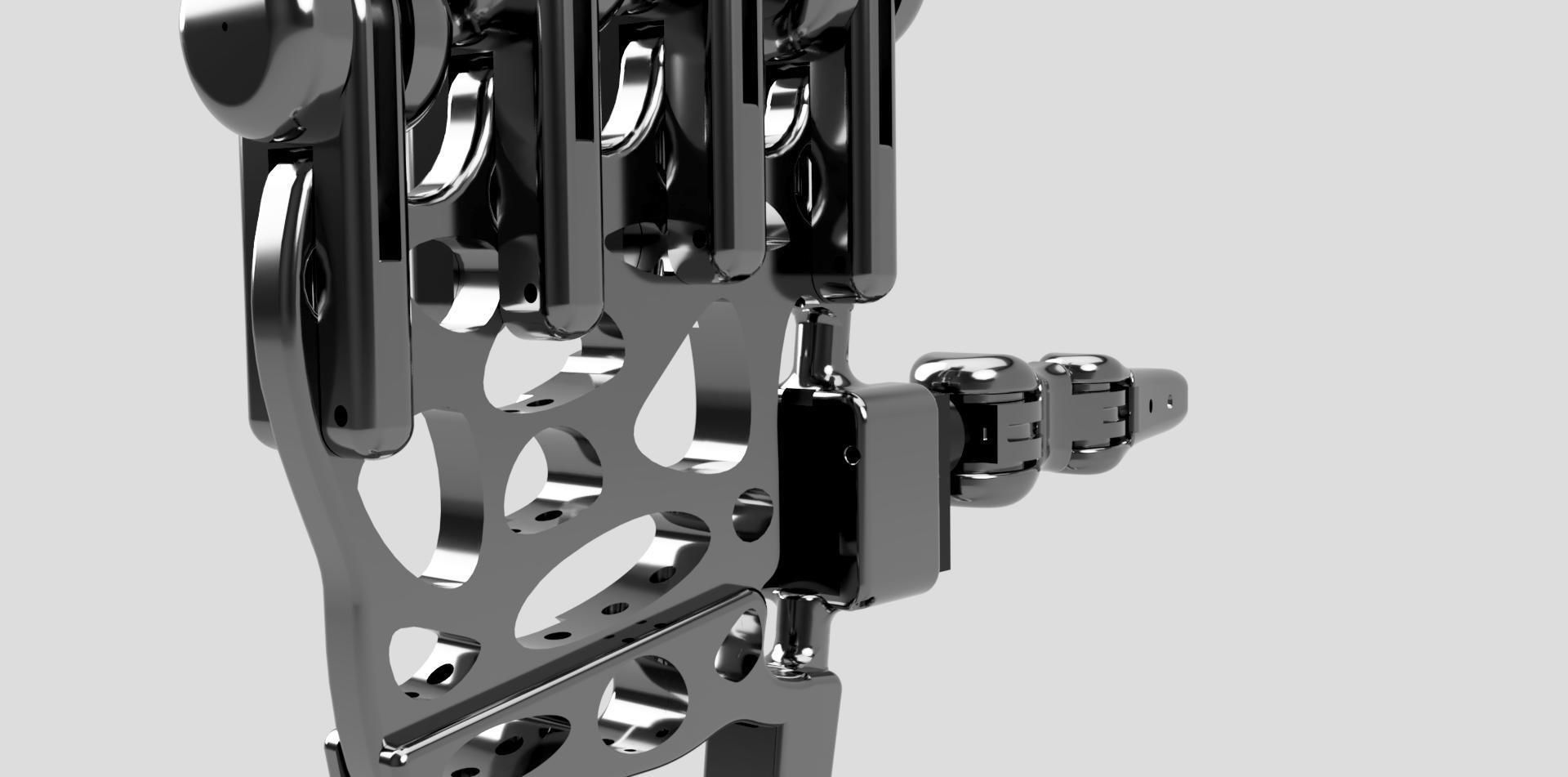

This bionic hand is controlled by an arduino nano V3. It uses 4 15kg servo's to move the index, middel, ring and little finger and 3 9g servo's to rotate the thumb and pull the tumb and the fingers open. This bionic hand it's structure is modelled after my hand so I could make a gel10 mold that would fit snug around it. The fingers are modelled in a way so they represent human bones as close as possible while remaining their functionality. This model is fully 3D printable.

Write comment
bribro12
bribro12
bribro12 2020-09-10 09:20:27 UTC
Thank you Rossettidesign!
bribro12
bribro12
bribro12 2020-09-15 20:59:53 UTC

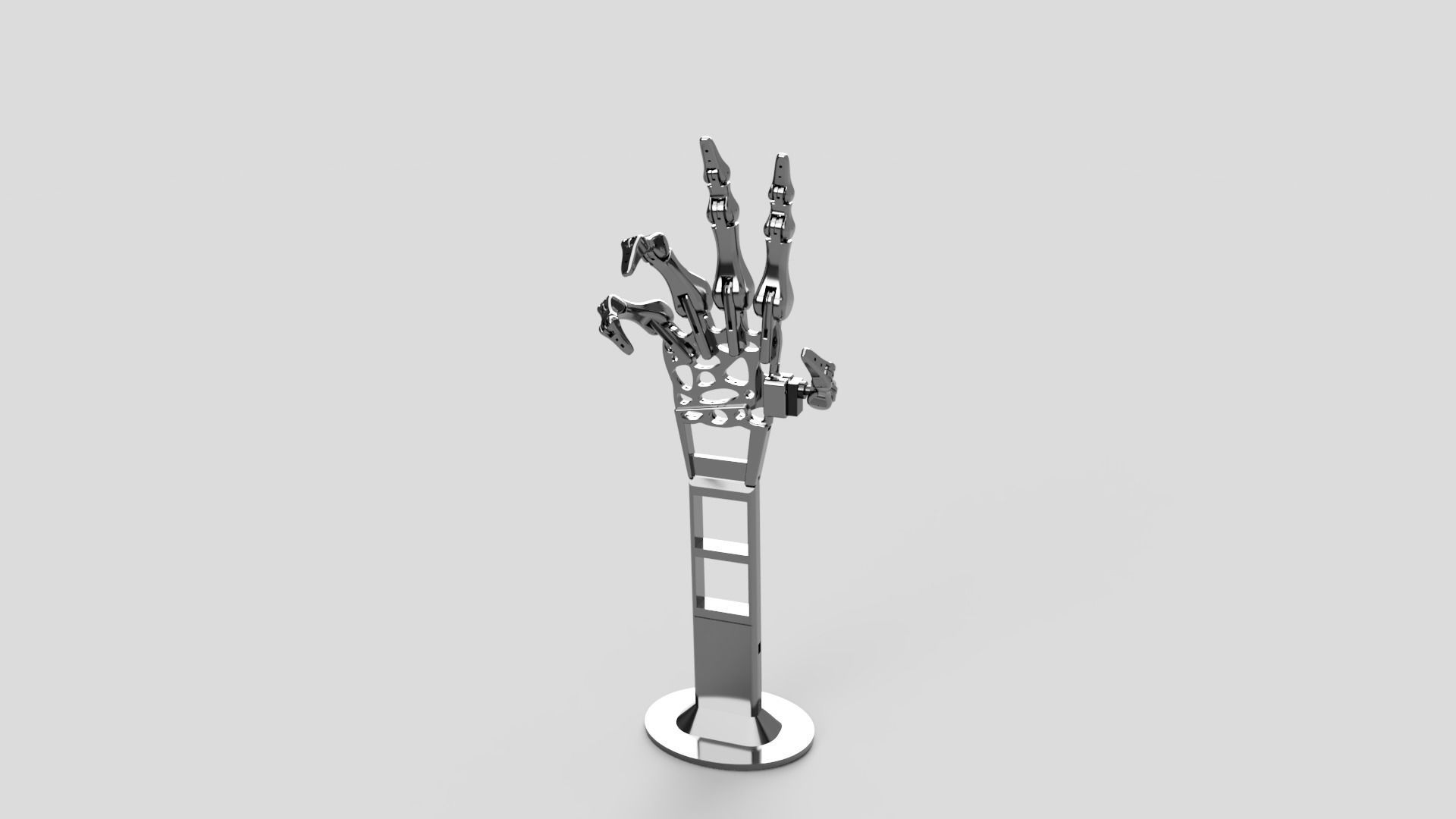

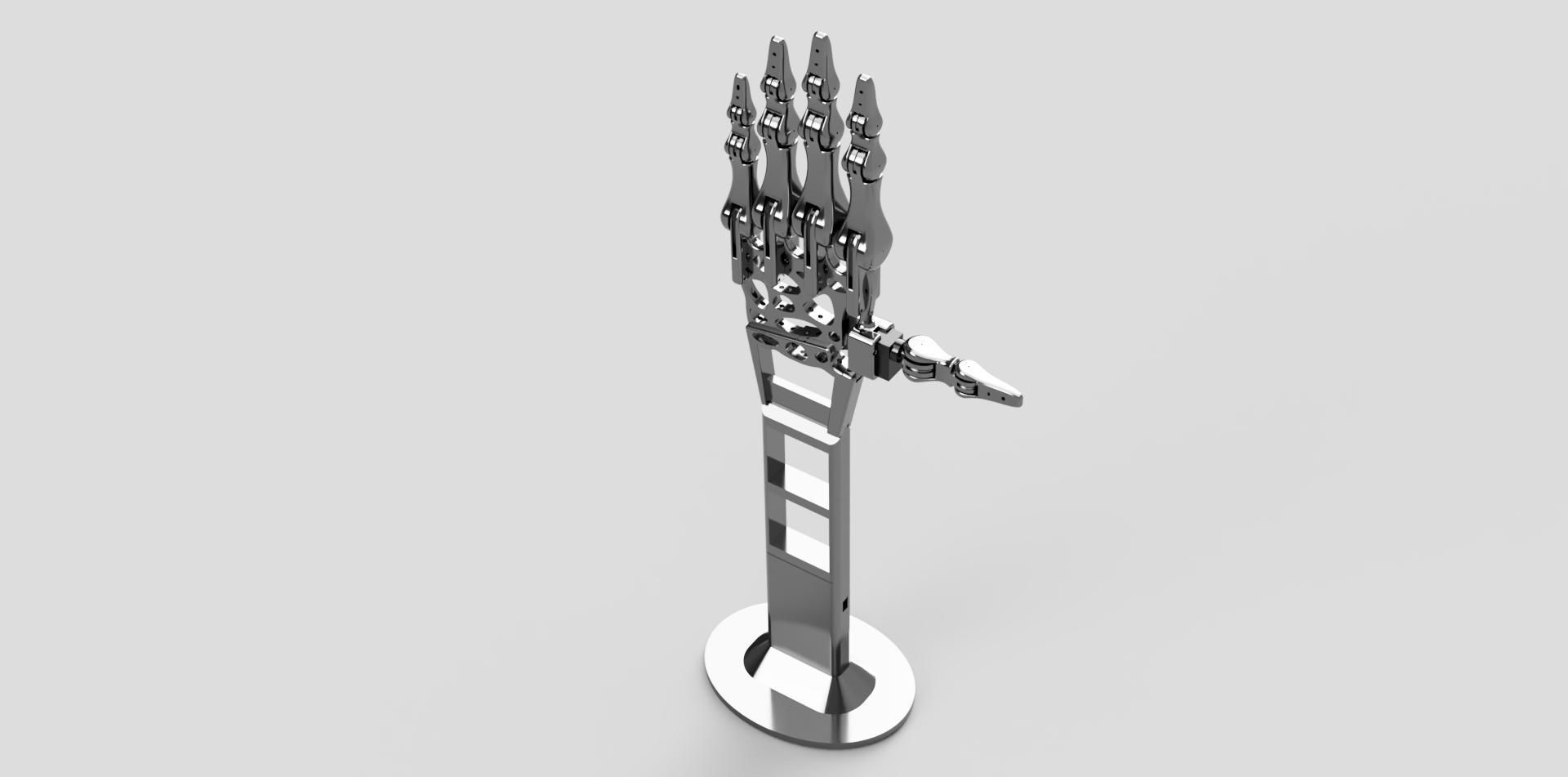

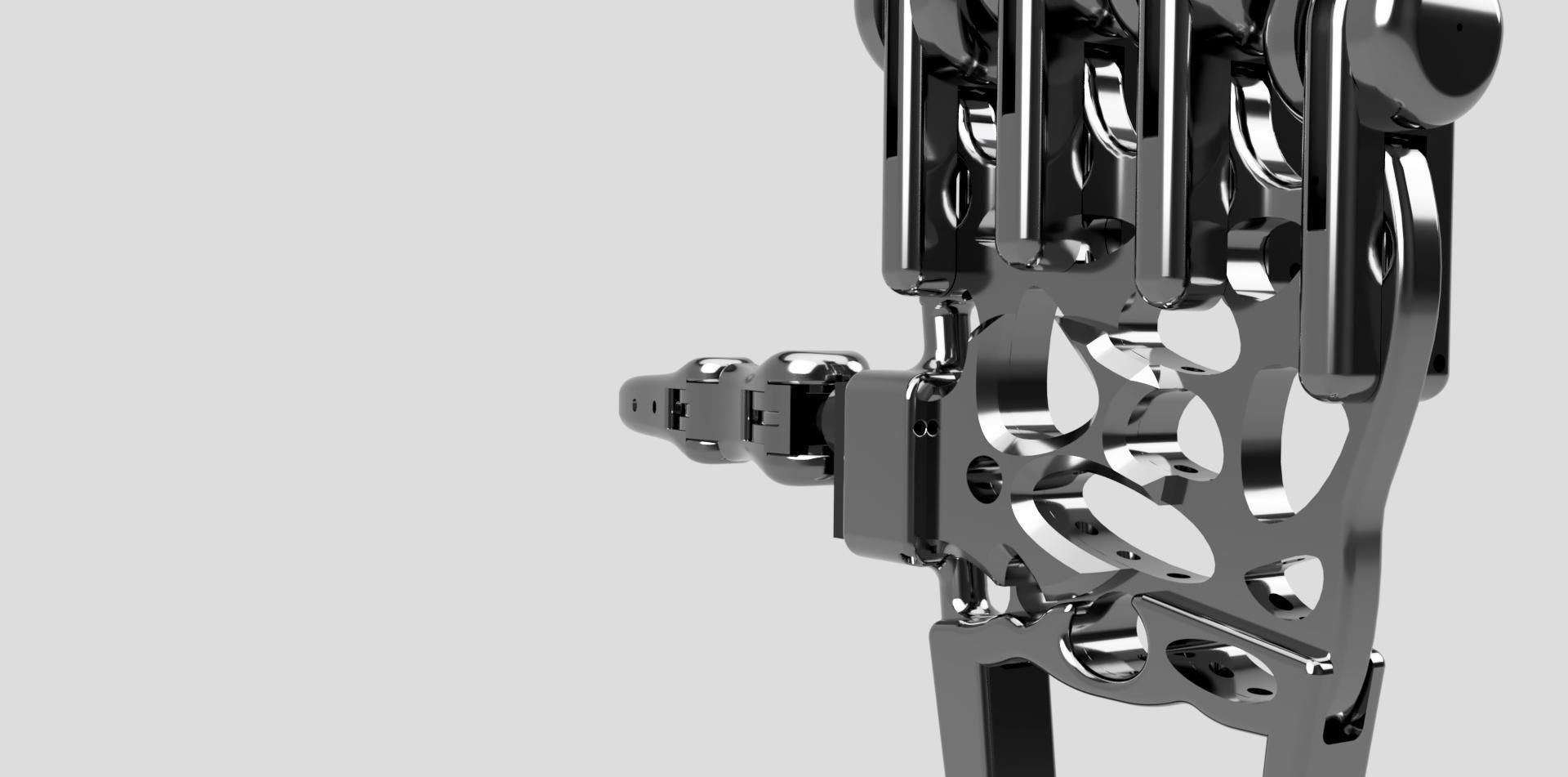

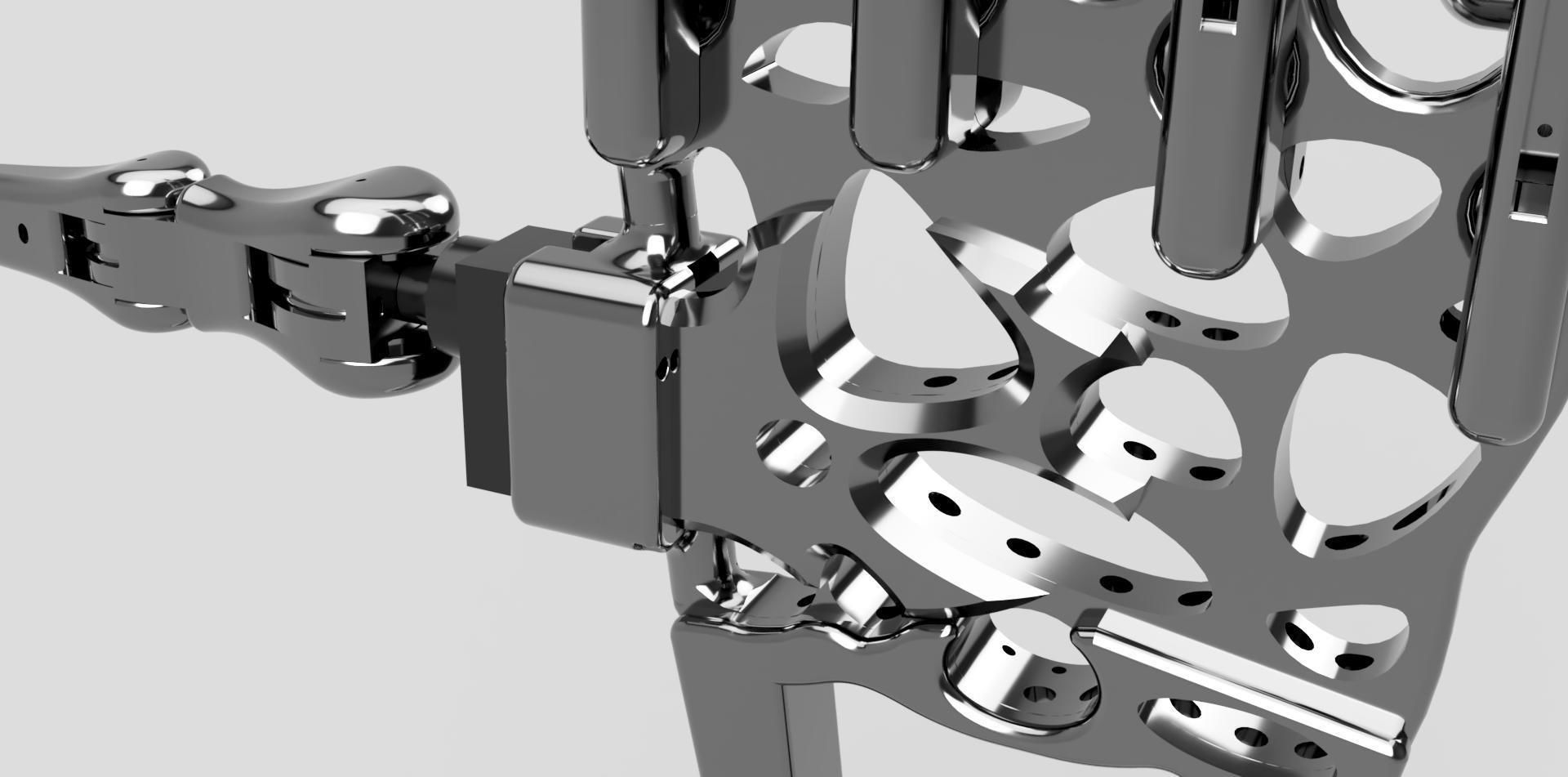

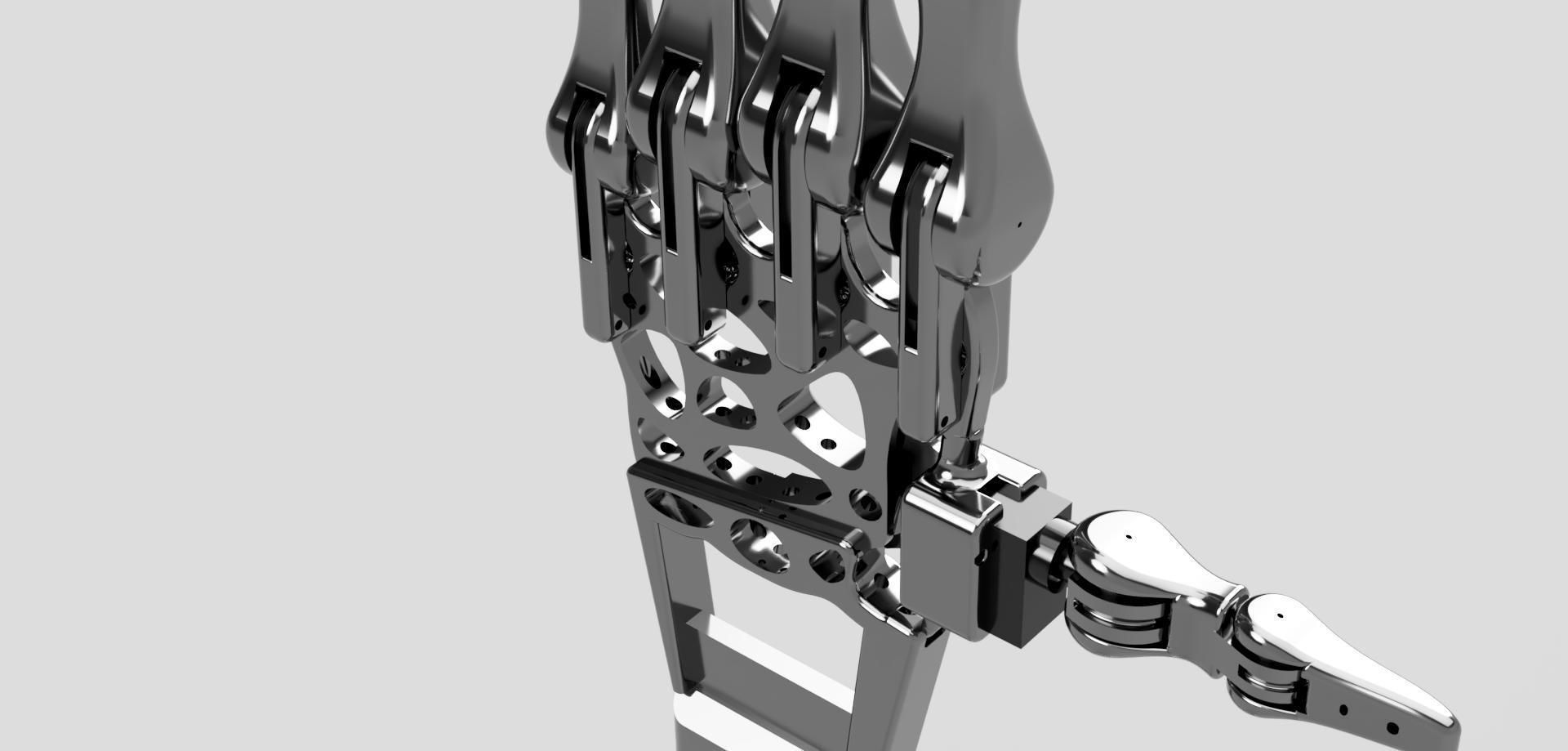

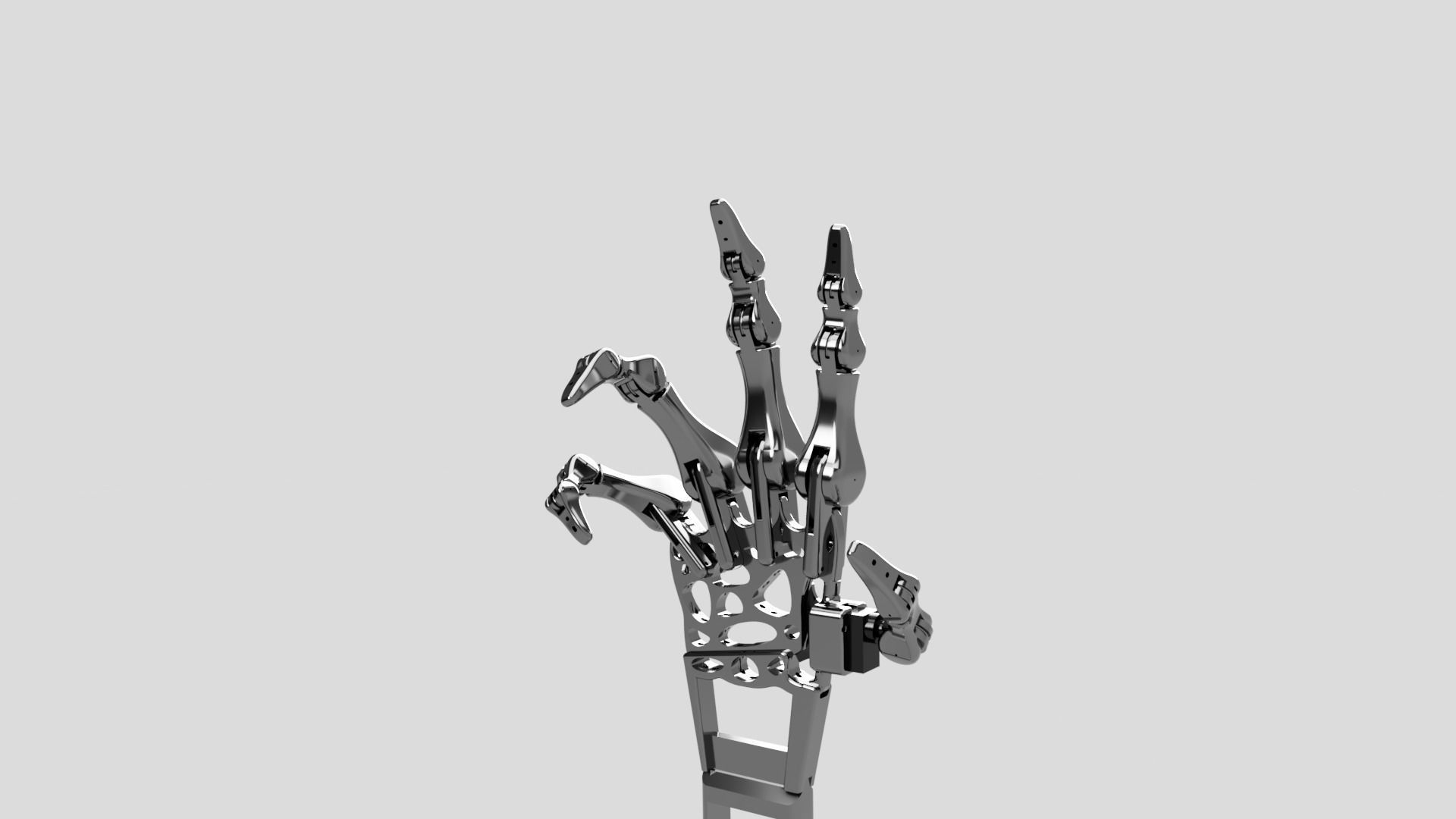

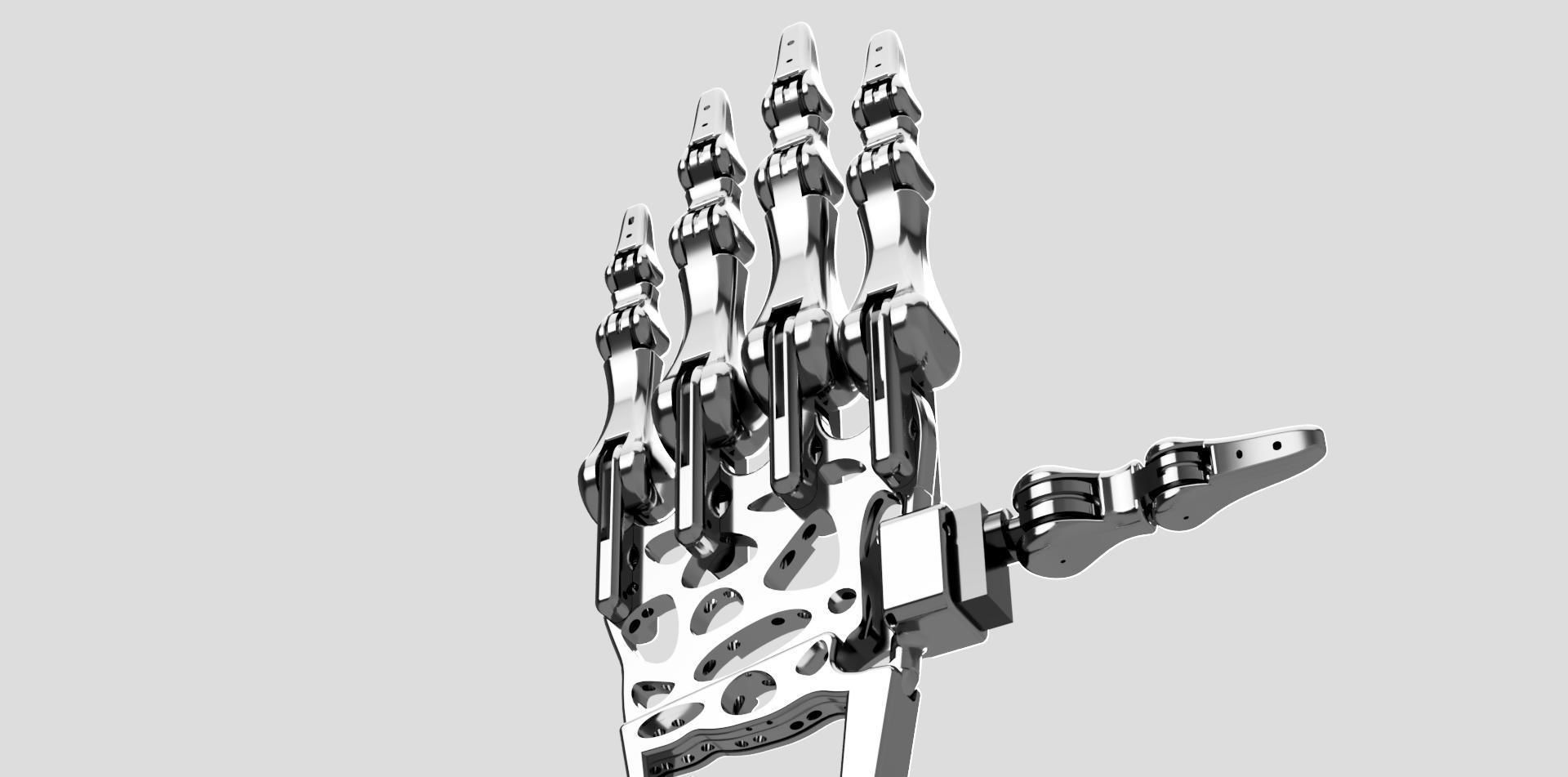

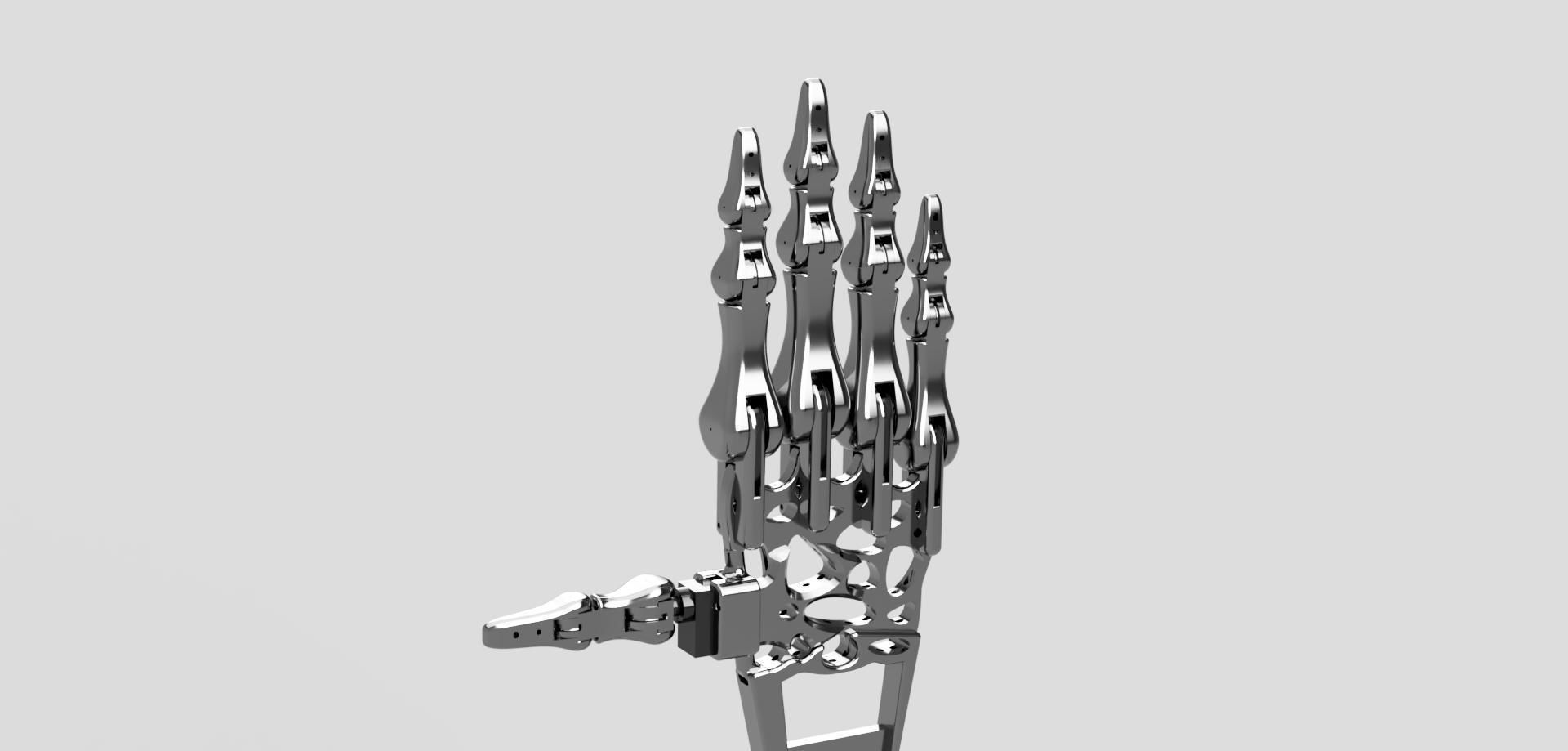

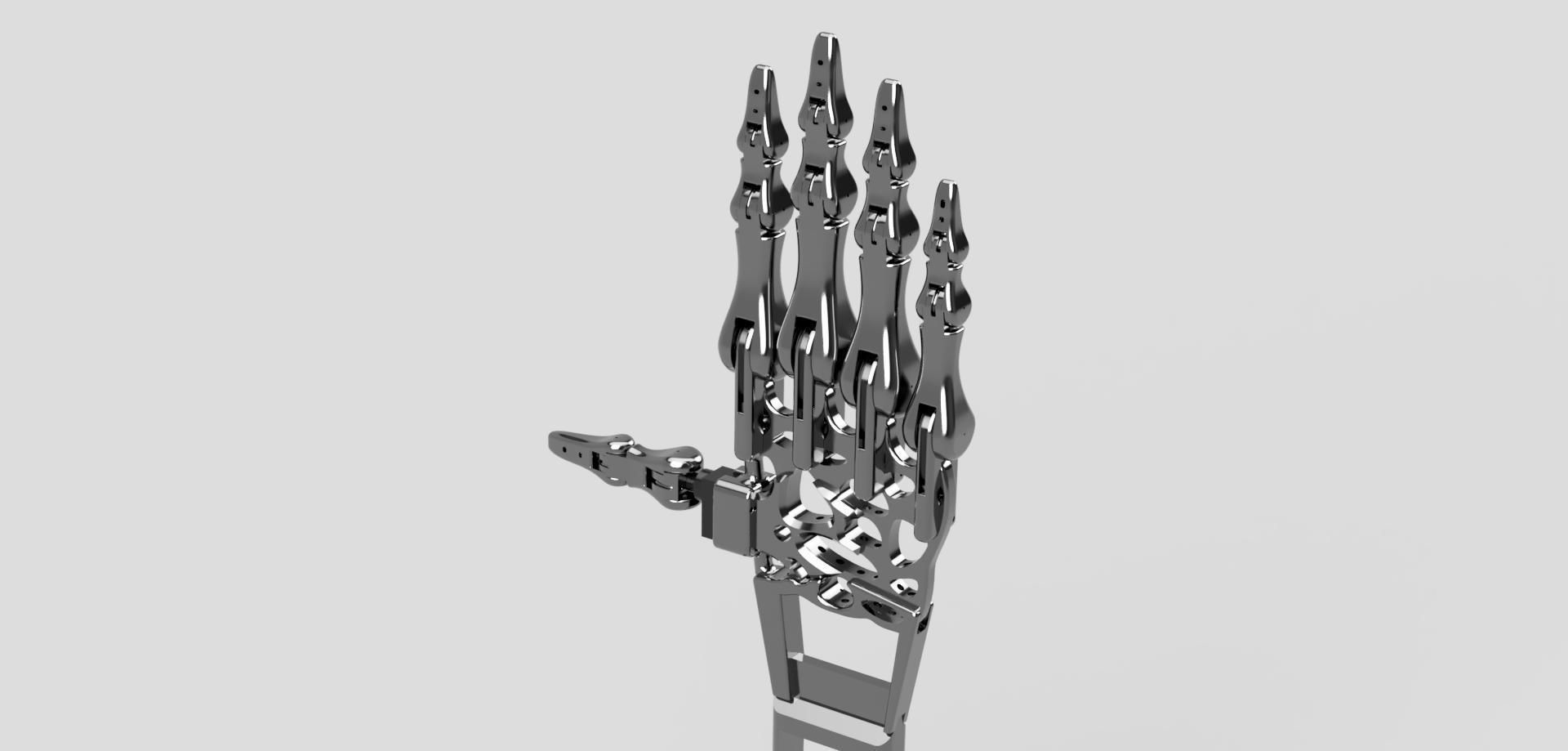

I added a few extra renders to showcase the possible movements of the bionic hand
Item rating
1 0
robot hand - bionic hand prosthesis prototype
$5.99

Royalty Free License
robot hand - bionic hand prosthesis prototype
$5.99

Royalty Free License
Bbribro12
bribro12
(15 reviews)
Response 82% in 0.3h
3D Modeling
3D Print Modeling

3D Model formats

Format limitations
Native
  • Autodesk Fusion 360 (.f3d)9.29 MB
Exchange
  • Autodesk FBX (.fbx)8.72 MB
  • AutoCAD (.dwg)12.1 MB
  • OBJ (.obj, .mtl)18.8 MB
  • IGES (.ige, .igs, .iges)20.7 MB
  • STEP (.stp)17.7 MB
  • Stereolithography (.stl) (31 files)351 MB
  • Sketchup (.skp)24.4 MB
  • DXF (.dxf)40.6 MB
  • Autodesk Inventor (.iam, .ipt)26.8 MB

3D Model details

  • Publish date2018-12-06
  • Model ID#1842248
  • Ready for 3D Printing
