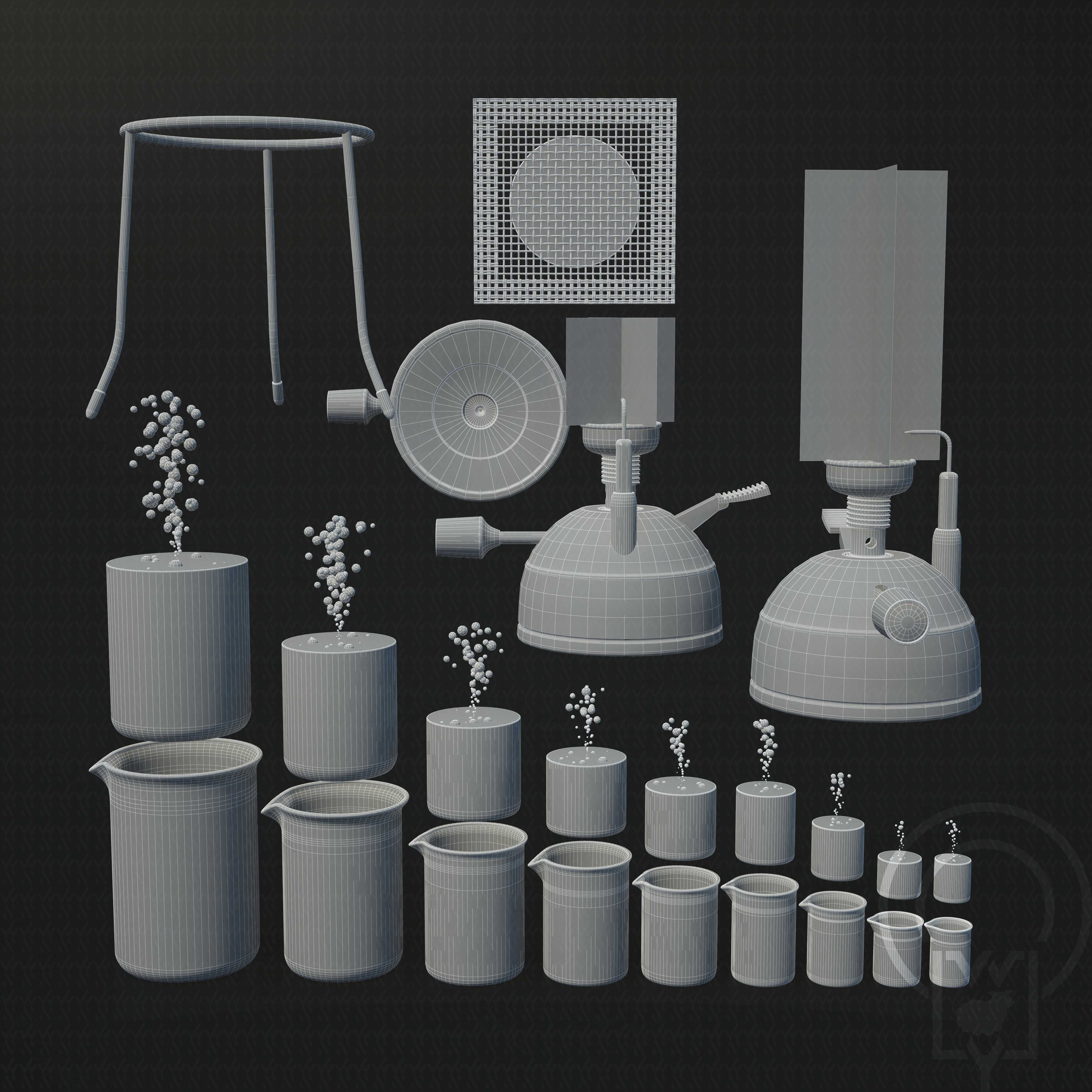

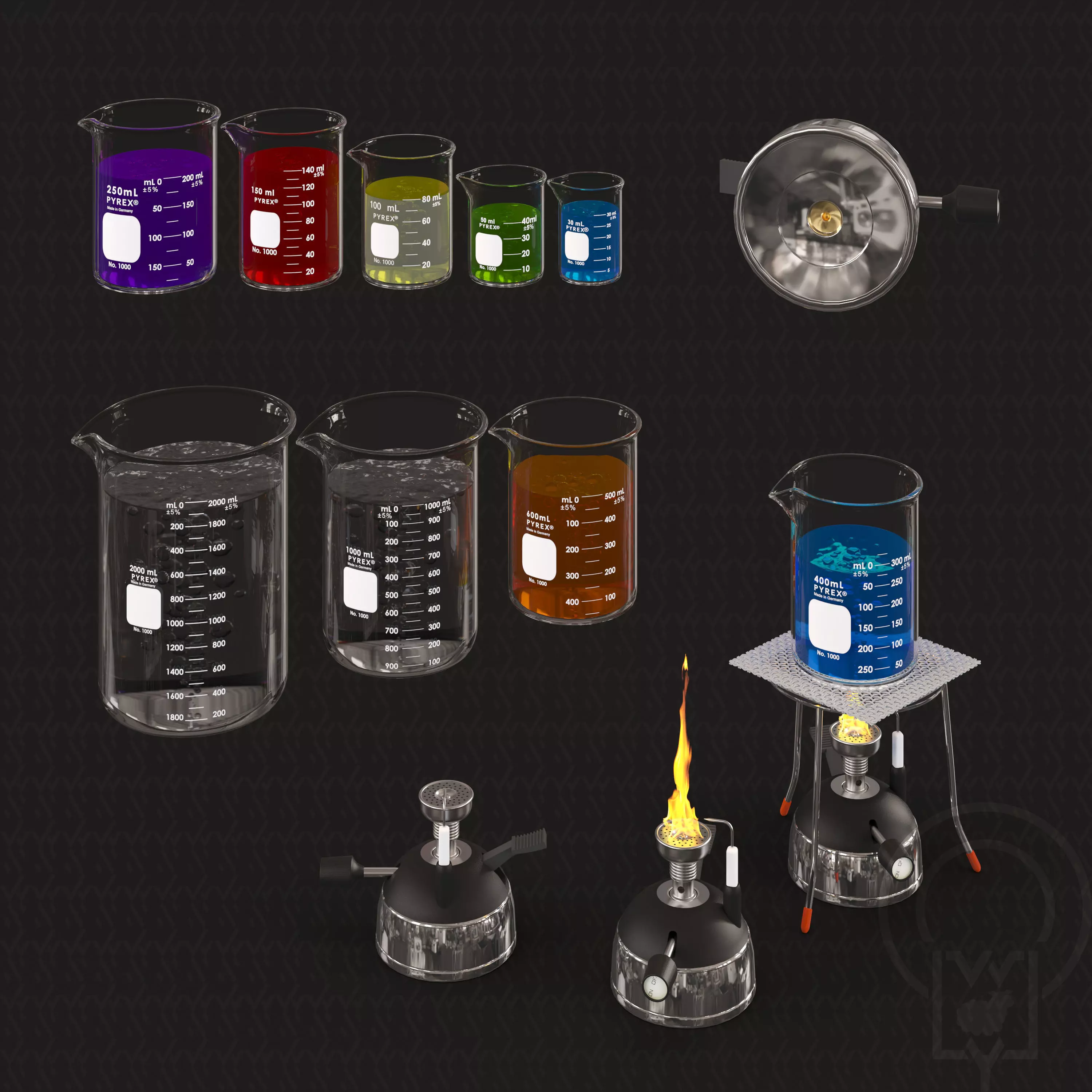

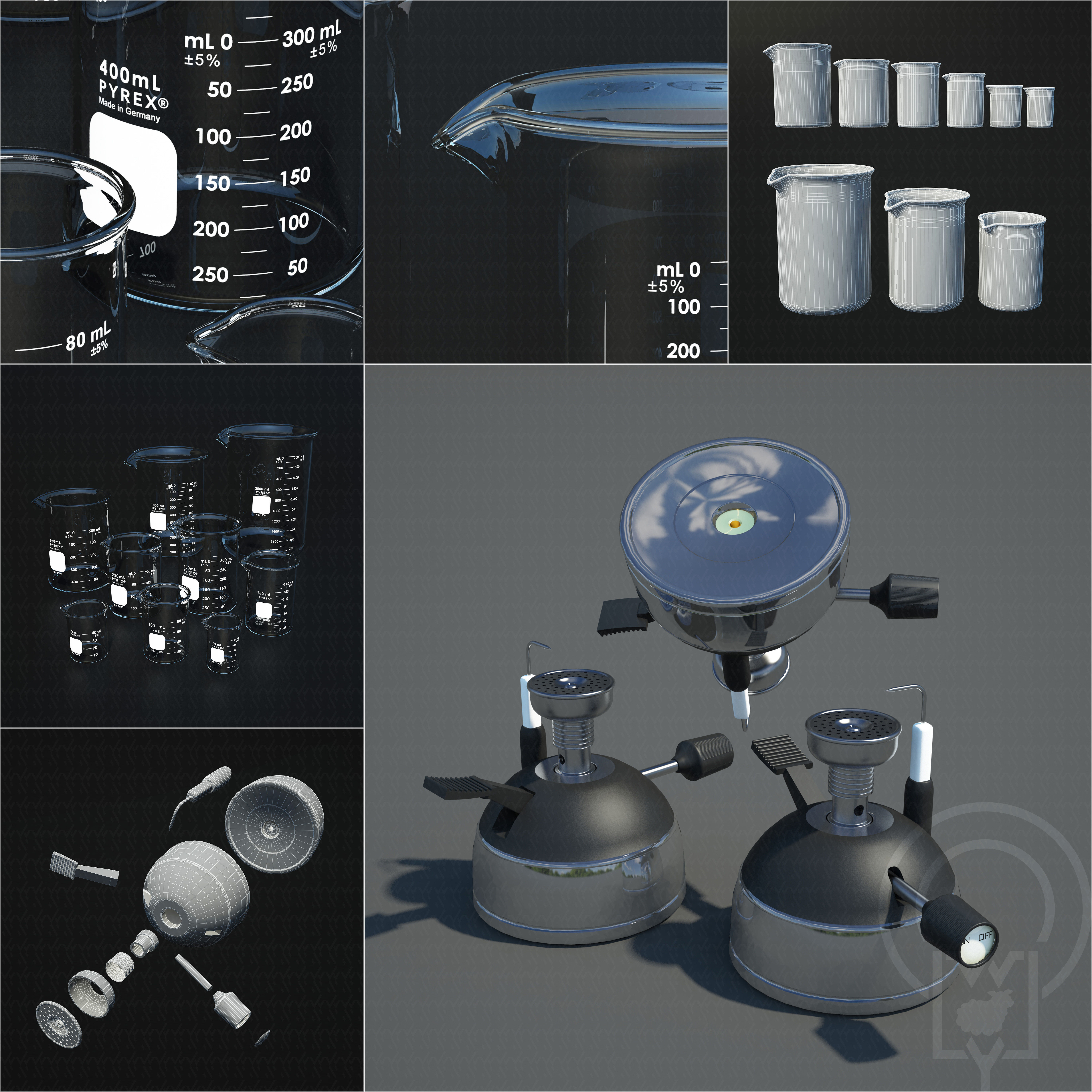

Portable Micro Lab Burner Tripod Beaker Chemistry set 3D model

DIMENSIONS (mm)

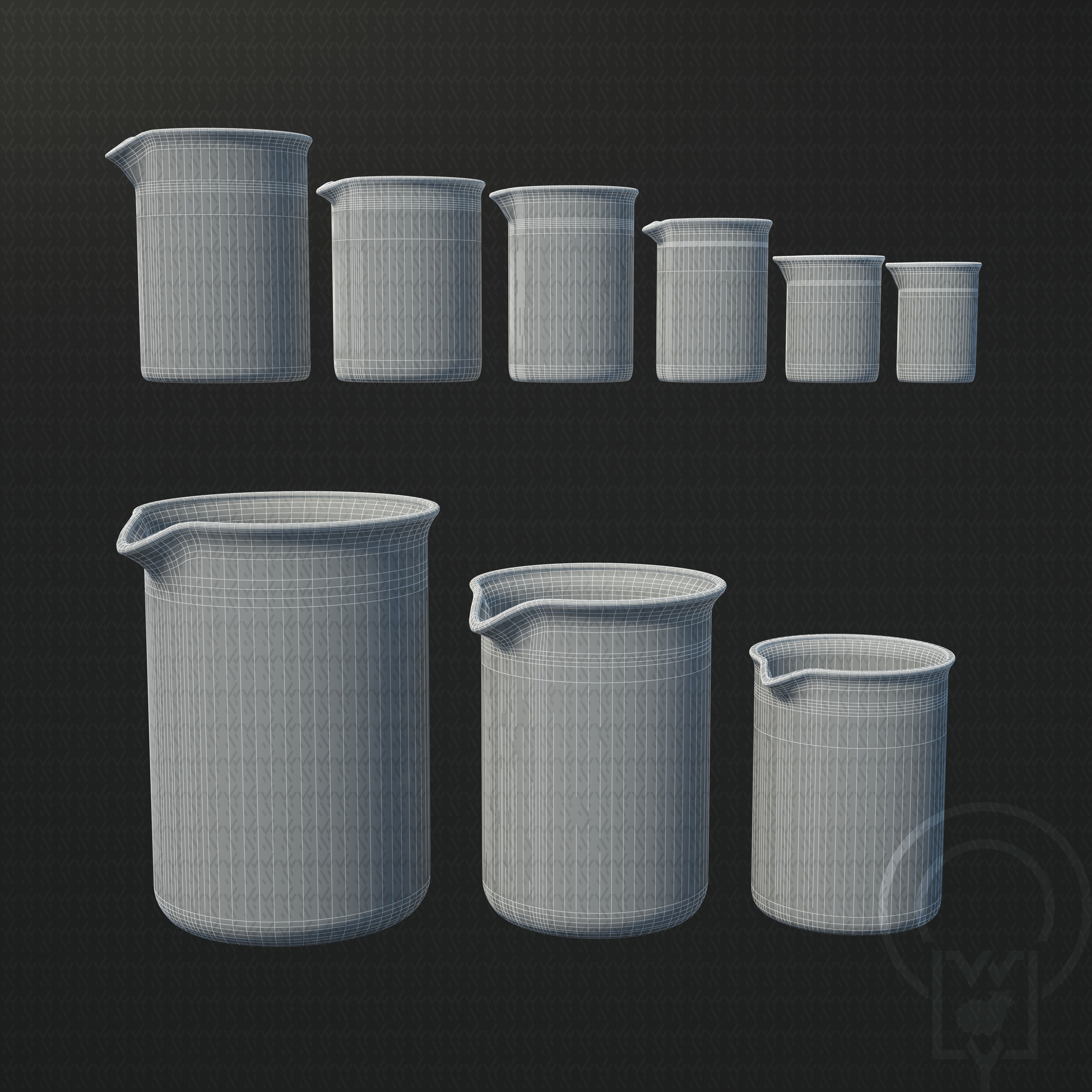

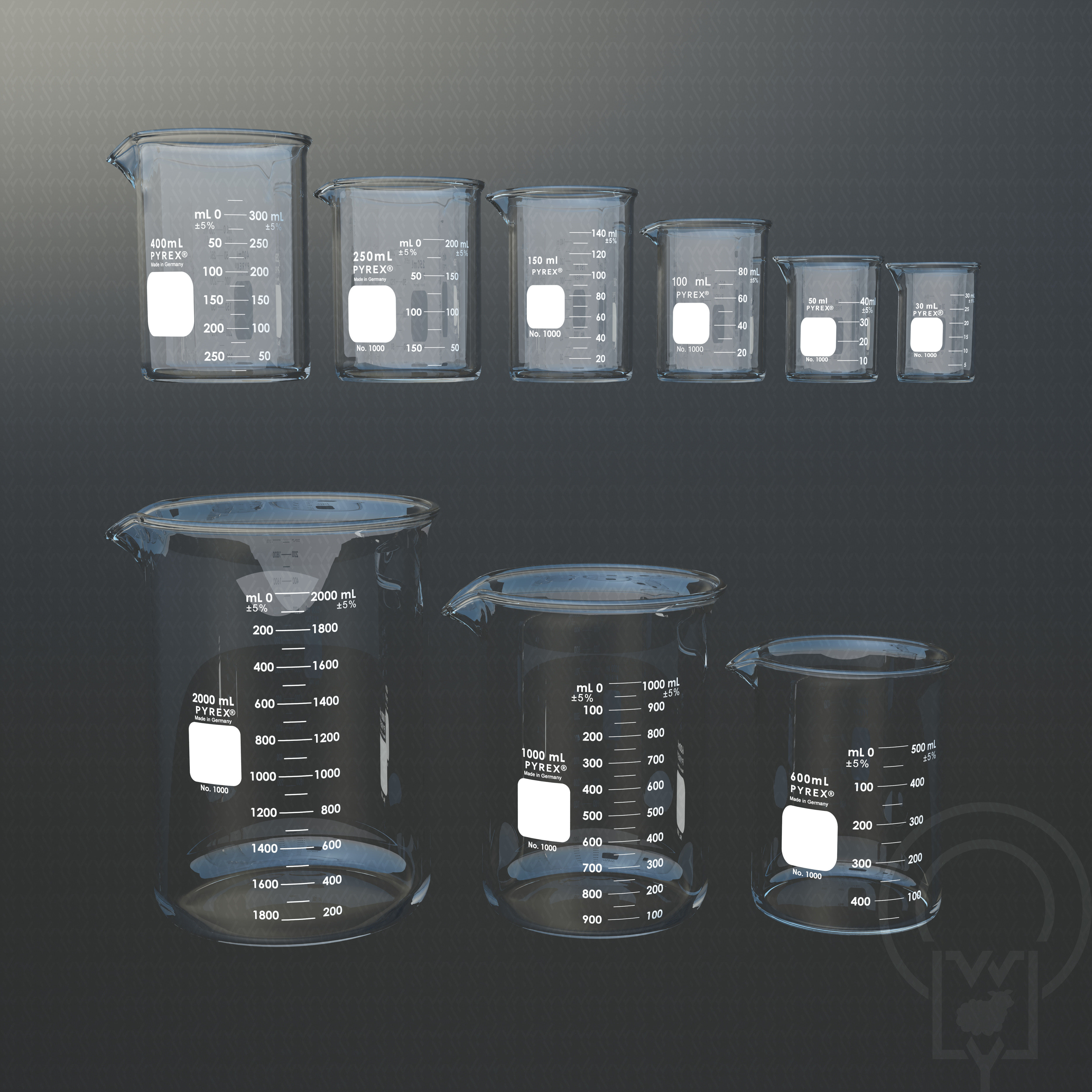

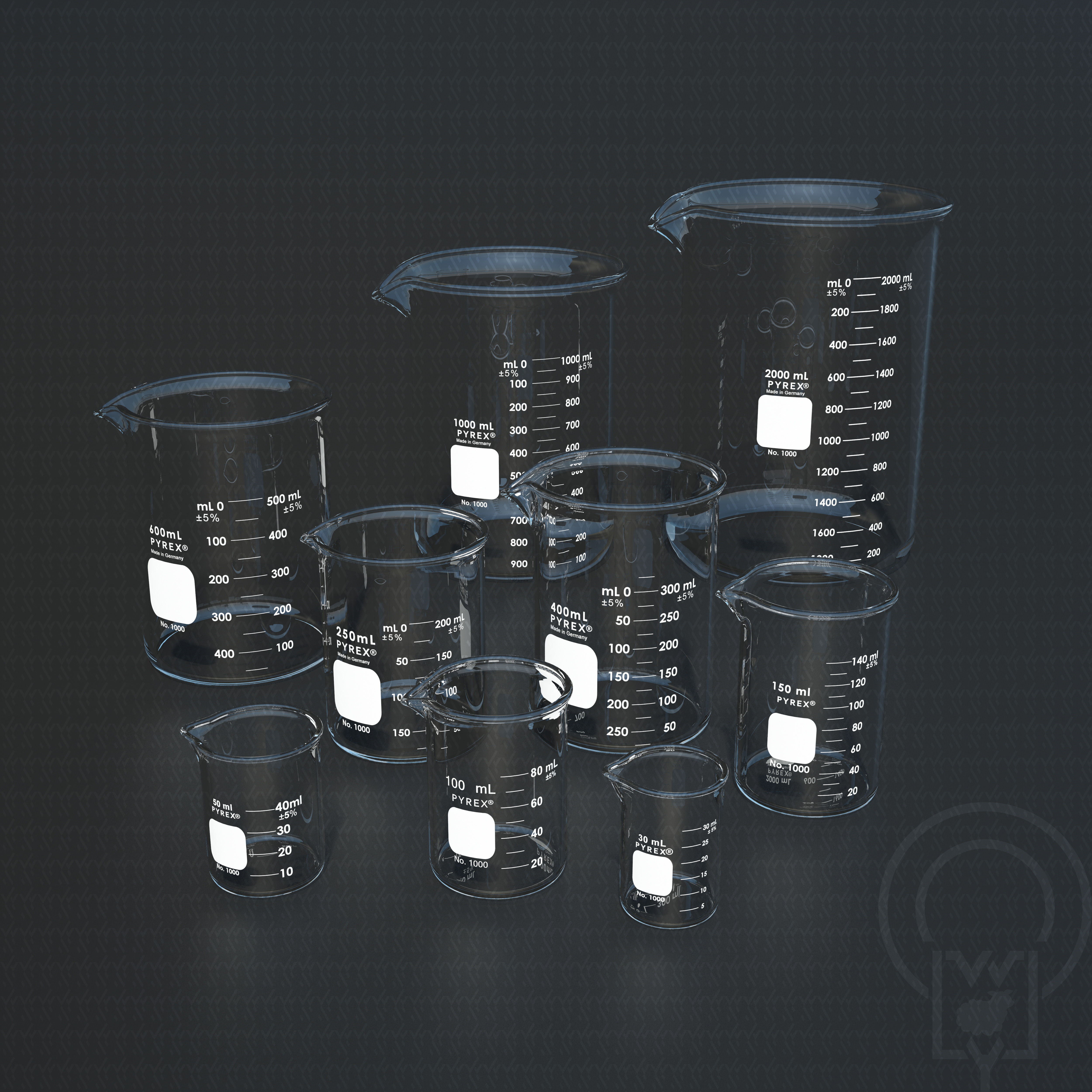

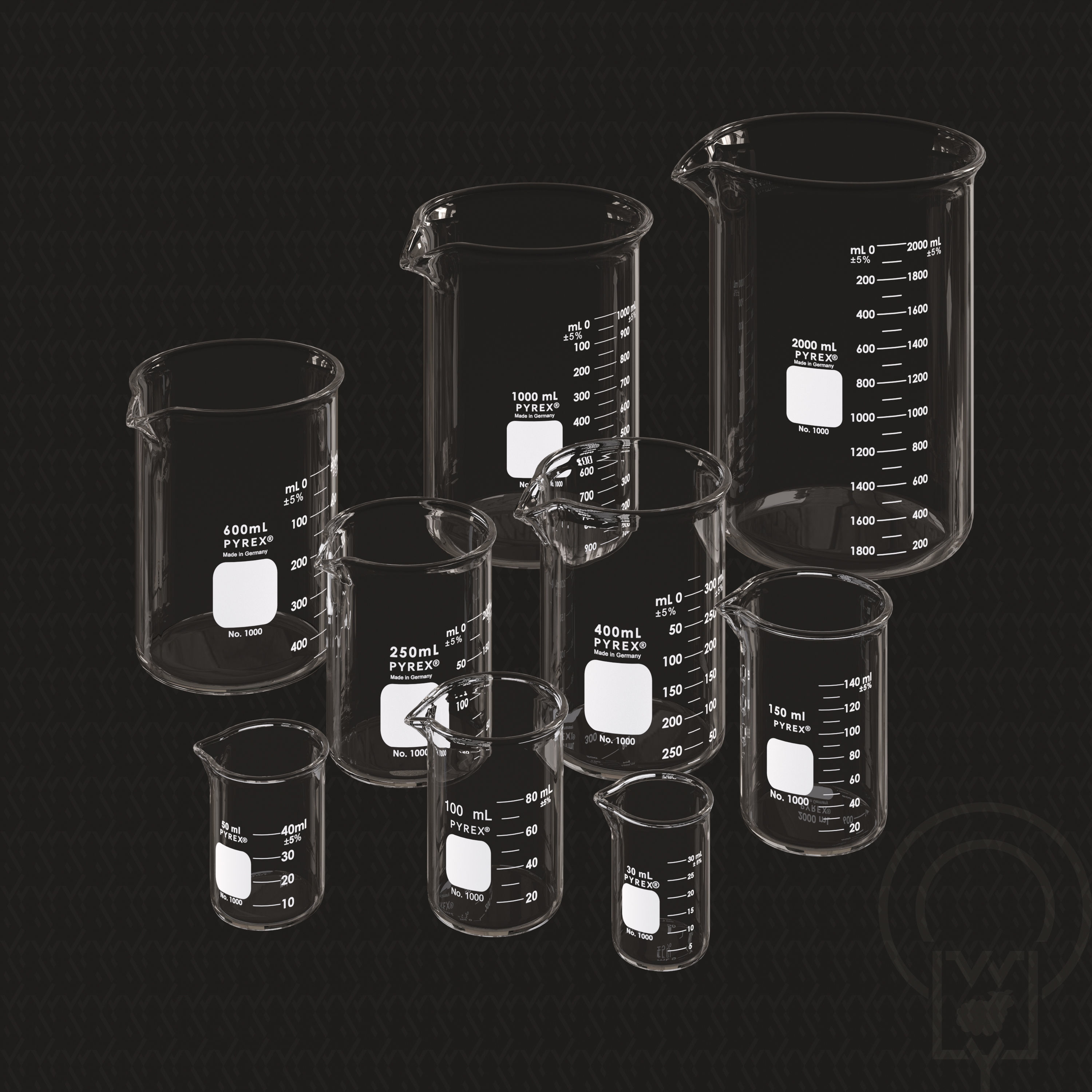

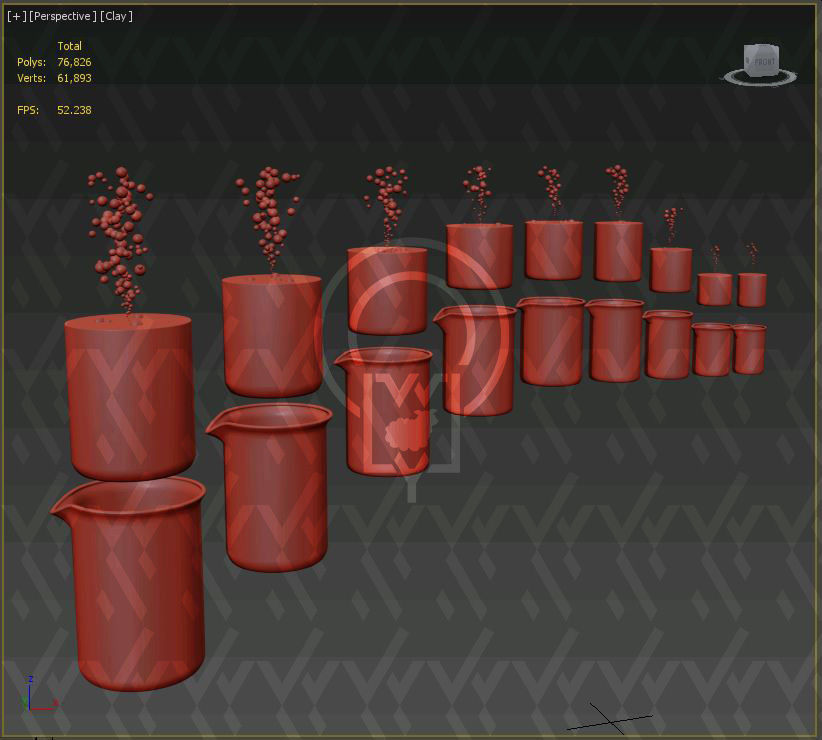

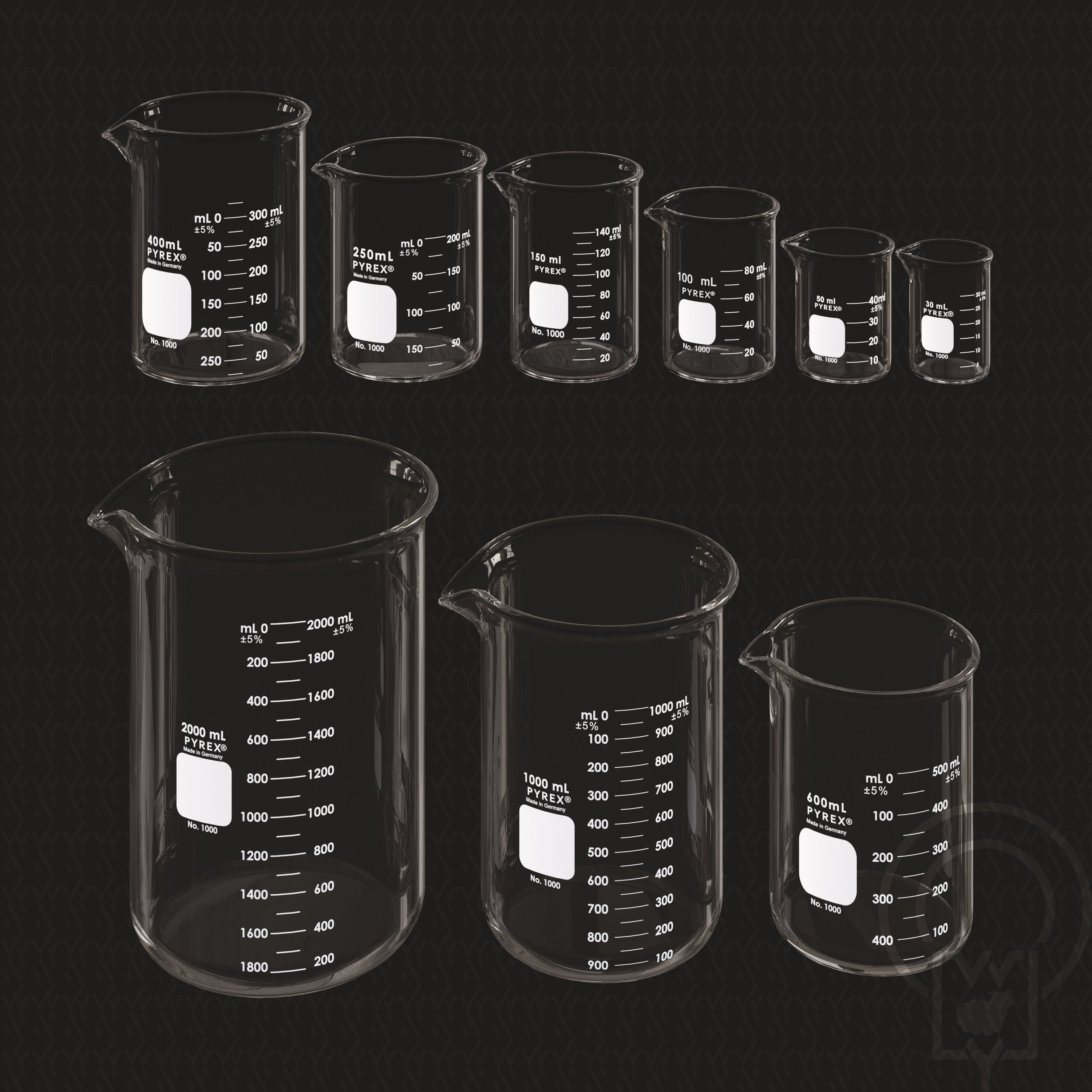

BEAKERS (mm) • Low-form / Griffin form

• 30 mL: Ø35 x H53 • 5mL increment
• 50 mL: Ø42 x H56 • 10mL increment
• 100 mL: Ø50 x H72 • 10mL increment
• _____
• 150 mL: Ø57 x H86 • 10mL increment
• 250 mL: Ø68 x H90 • 25mL increment
• 400 mL: Ø77 x H110 • 25mL increment
• _____
• 600 mL: Ø90 x H124 • 50mL increment
• 1000 mL: Ø108 x H158 • 50mL increment
• 2000 mL: Ø131 x H193 • 100mL increment

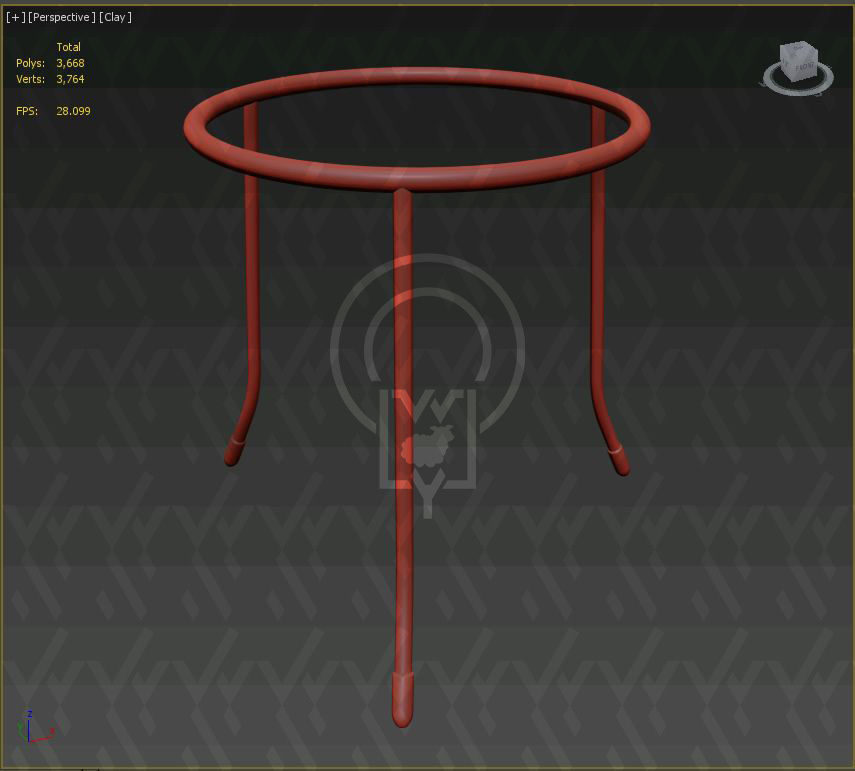

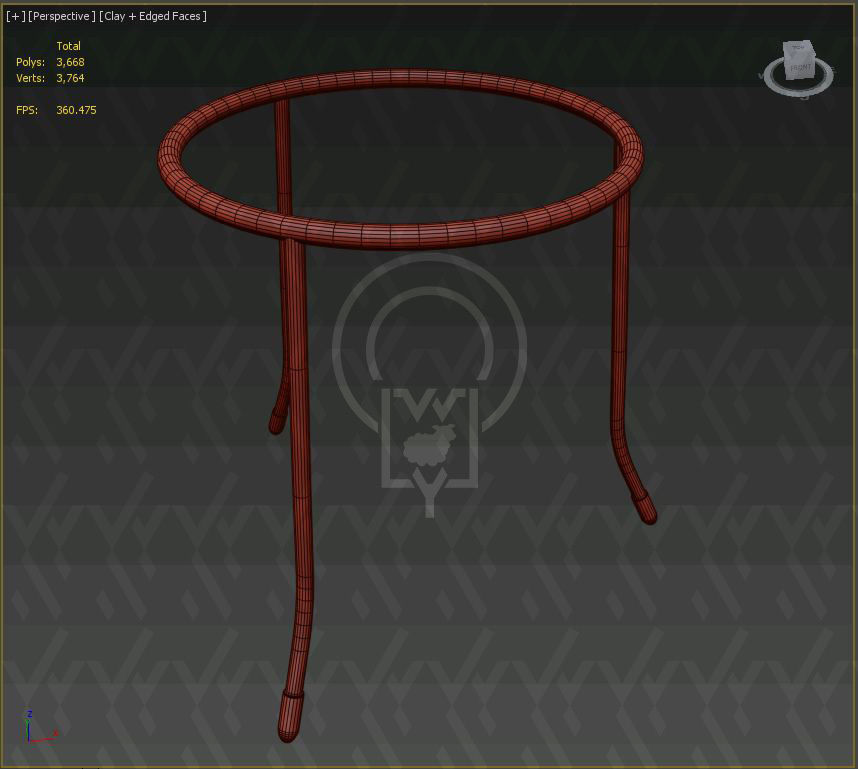

TRIPOD (mm) • for portable burner

• Ø110 x H125

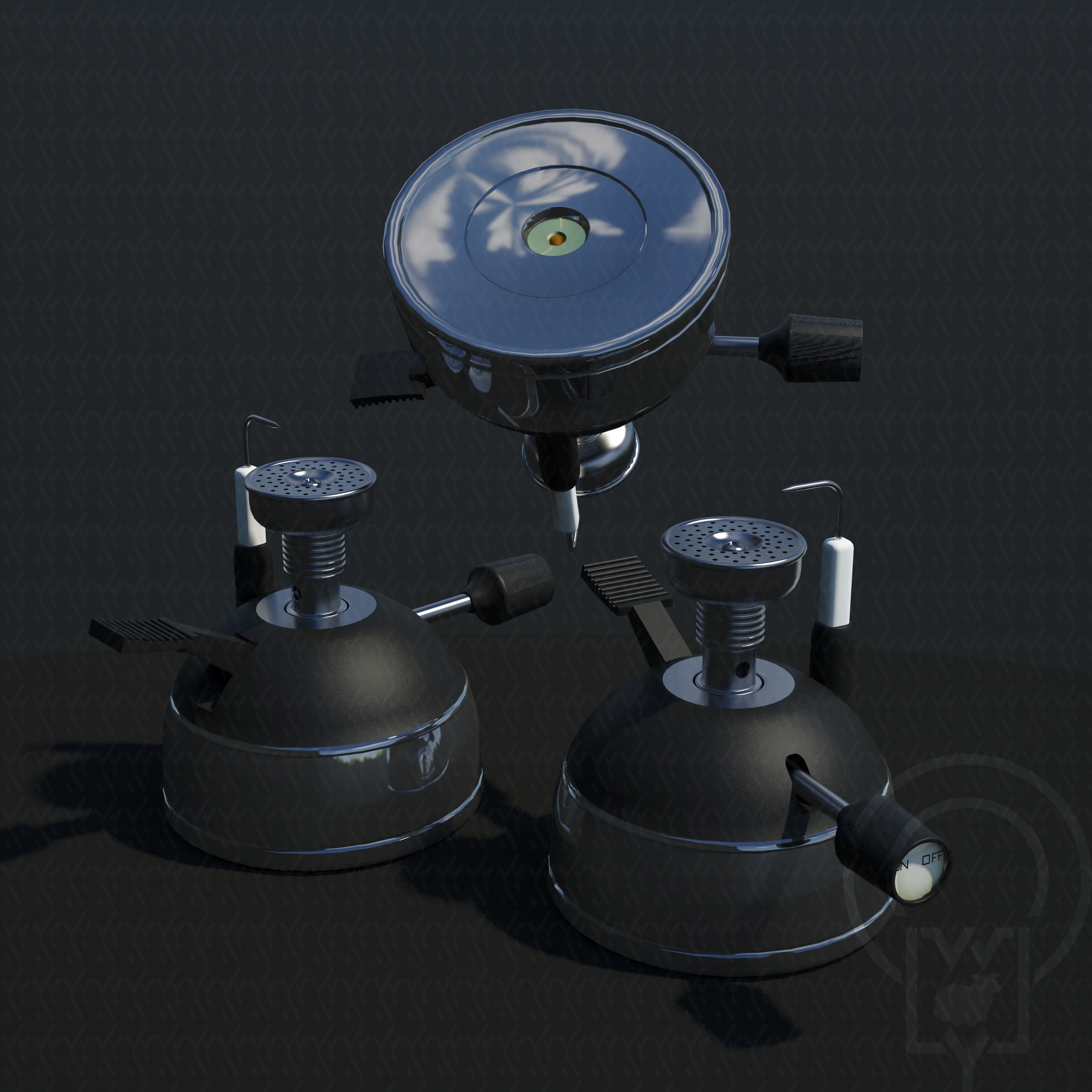

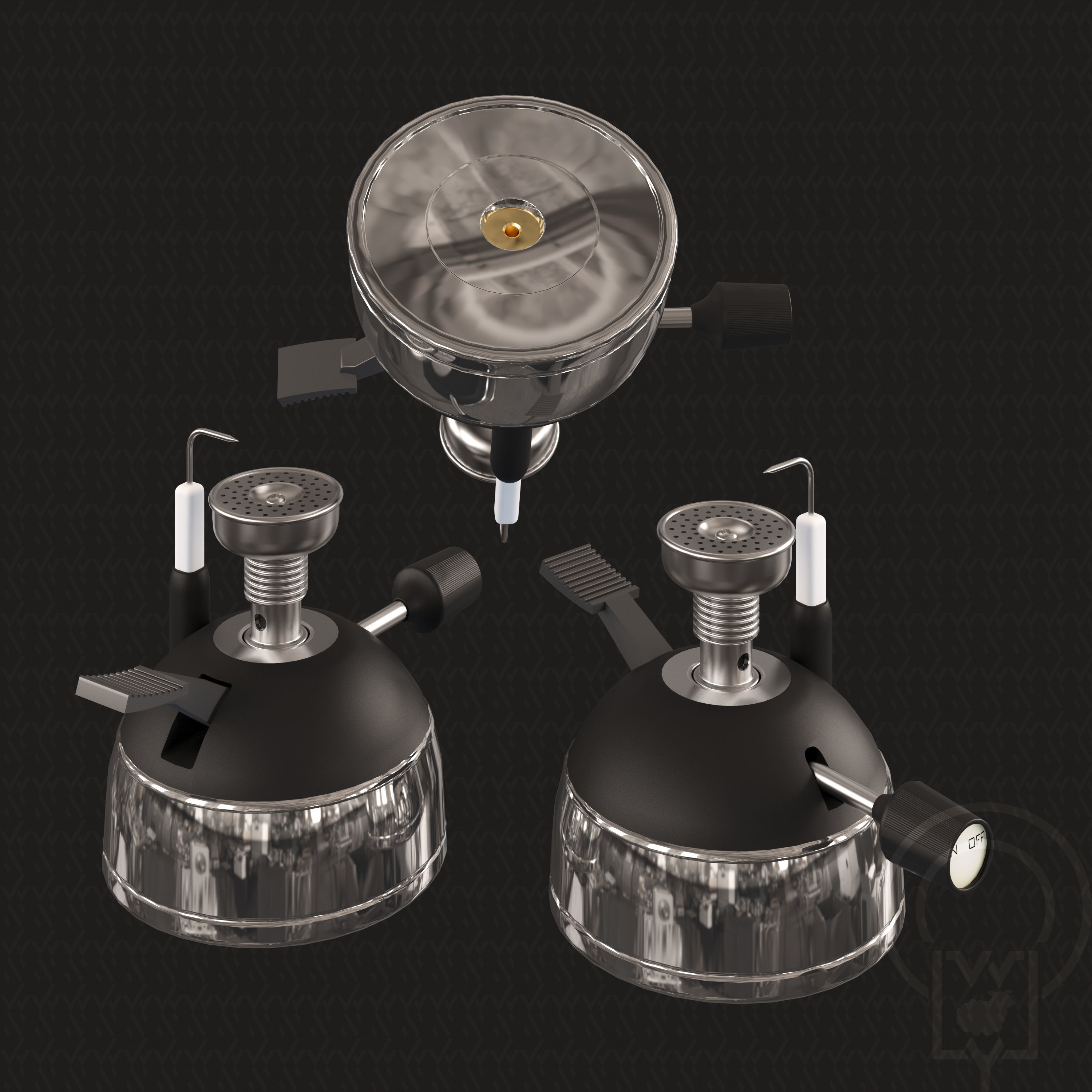

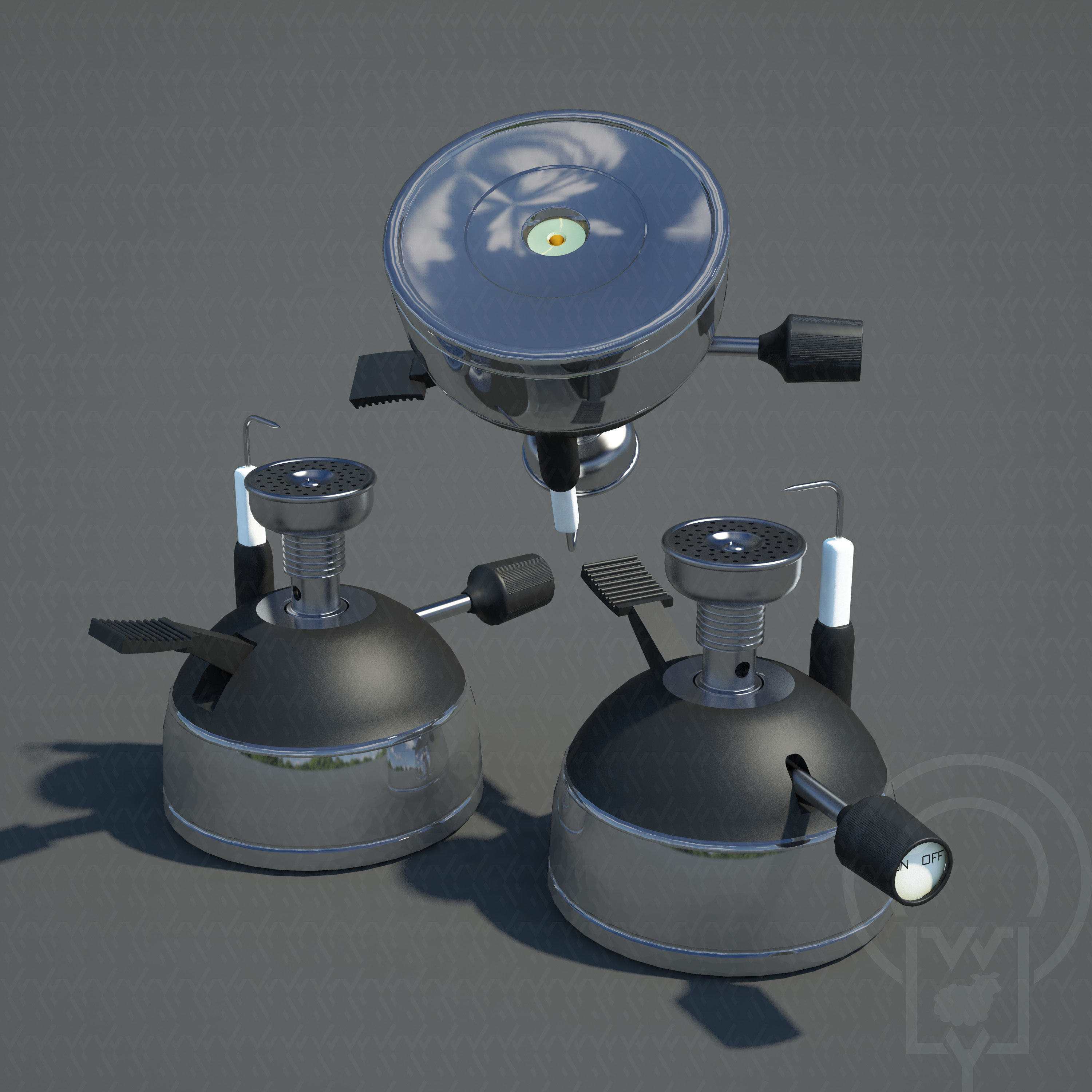

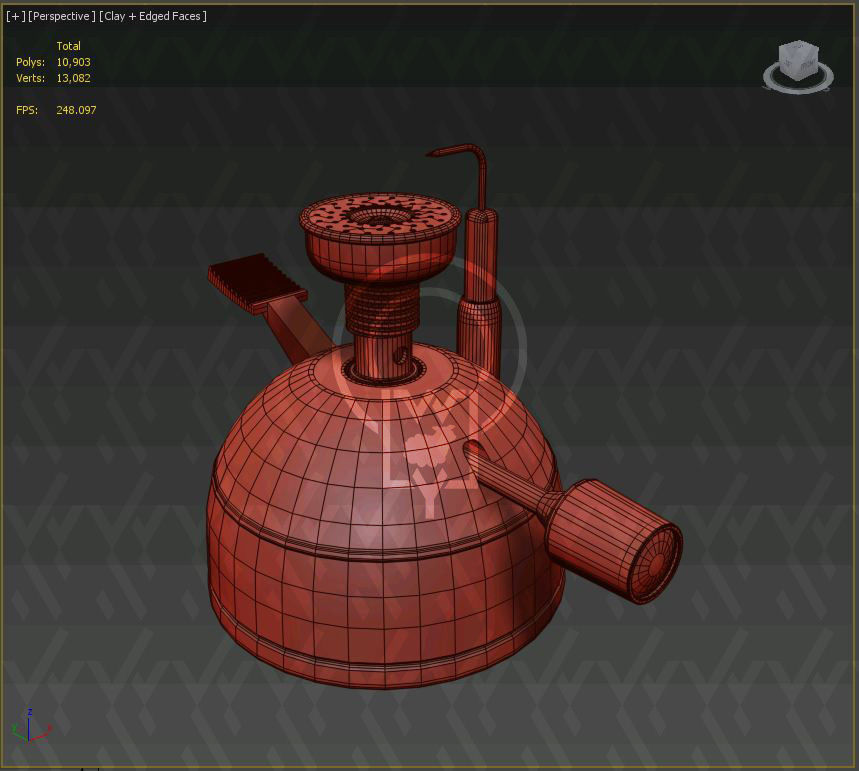

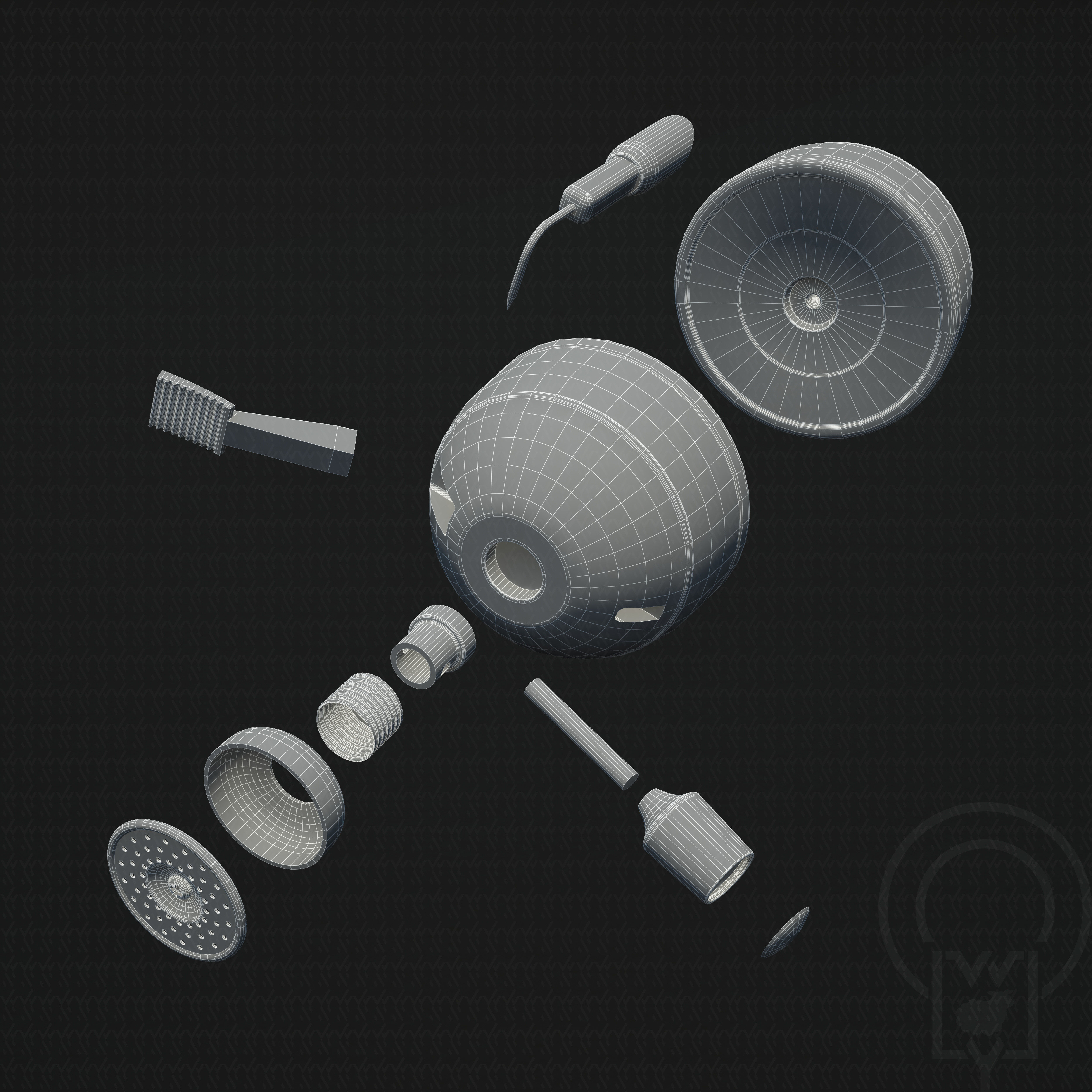

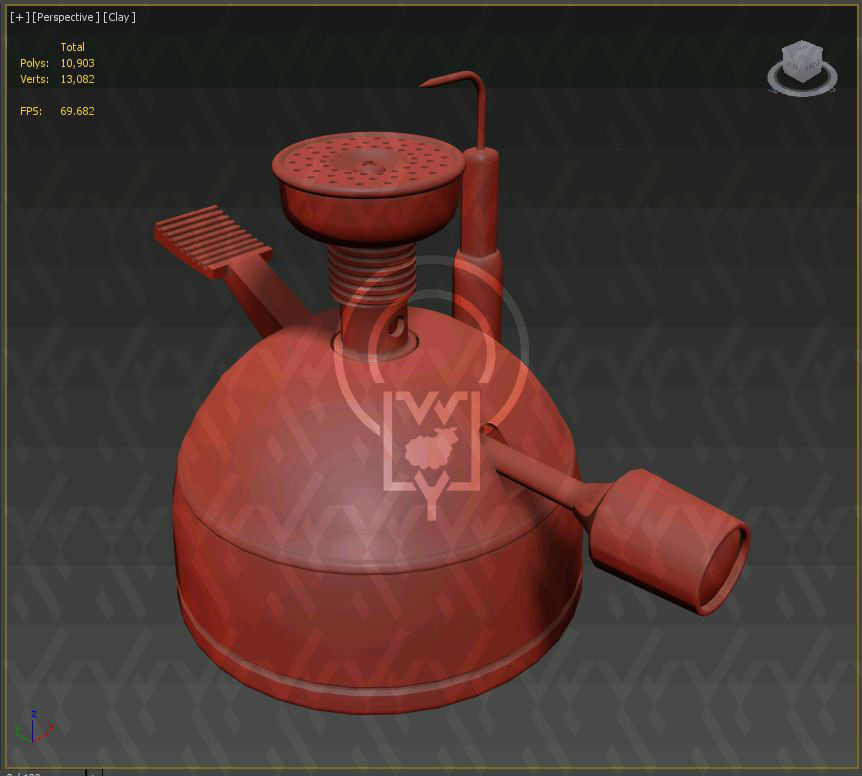

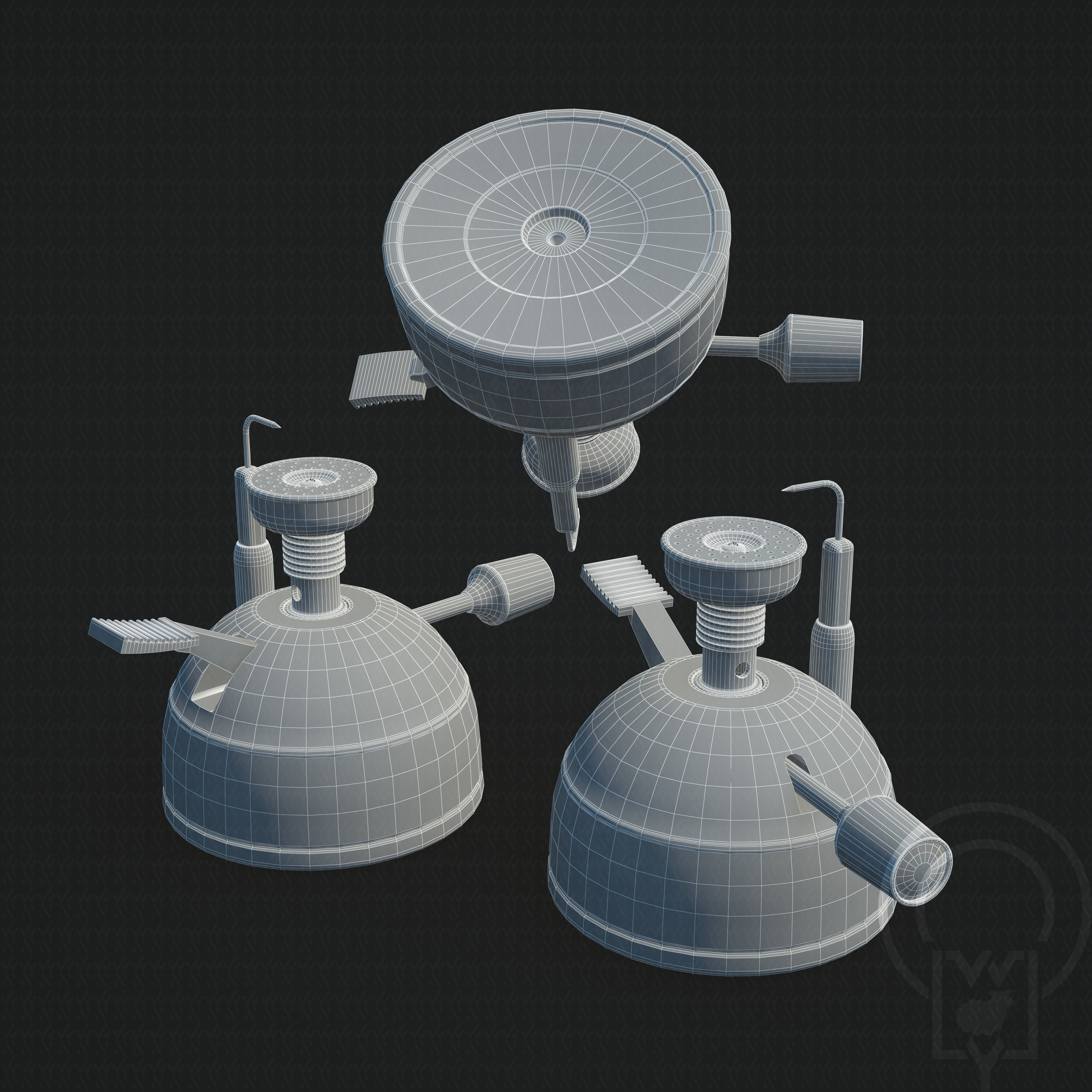

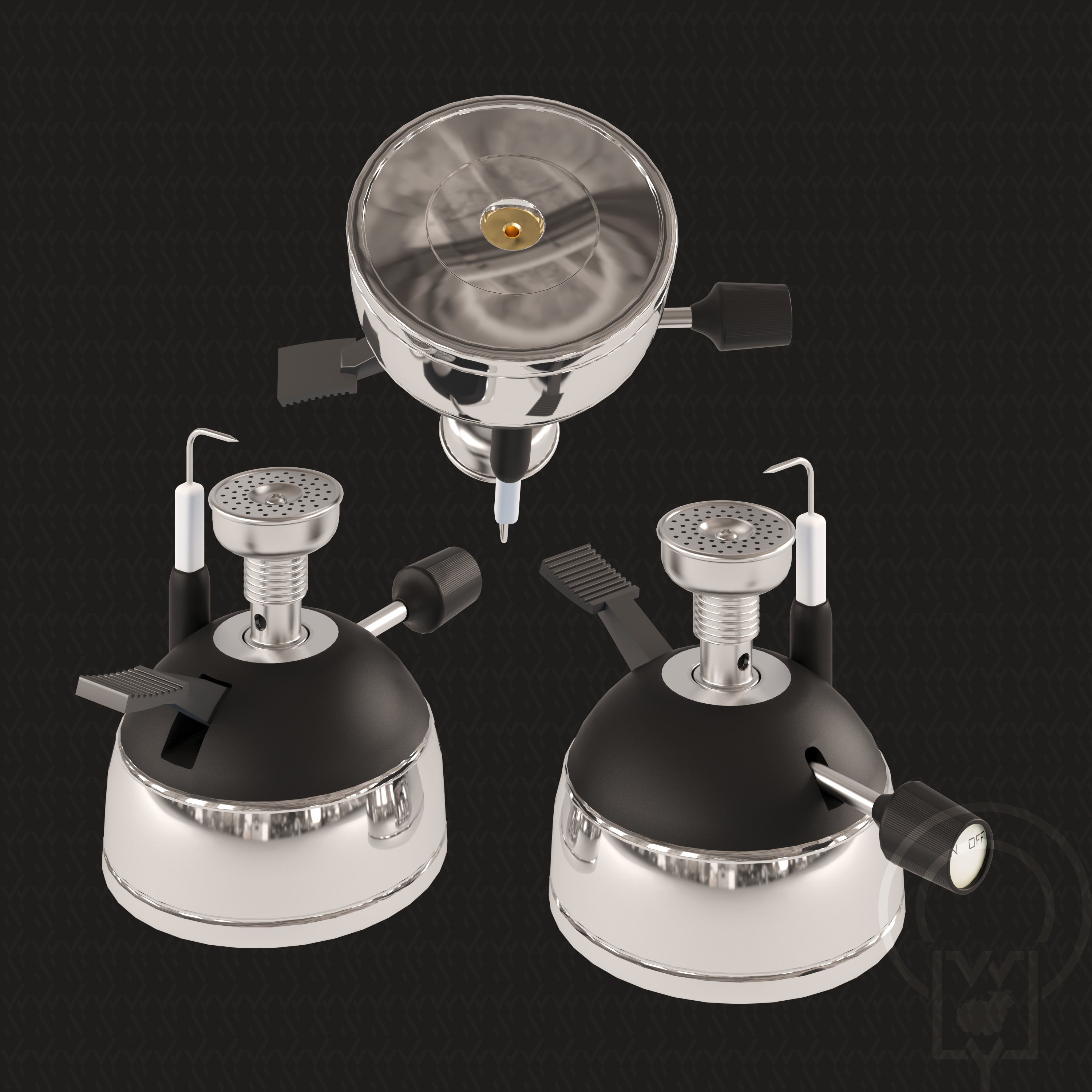

BURNER (mm) • portable

• L125 x W80 x H75

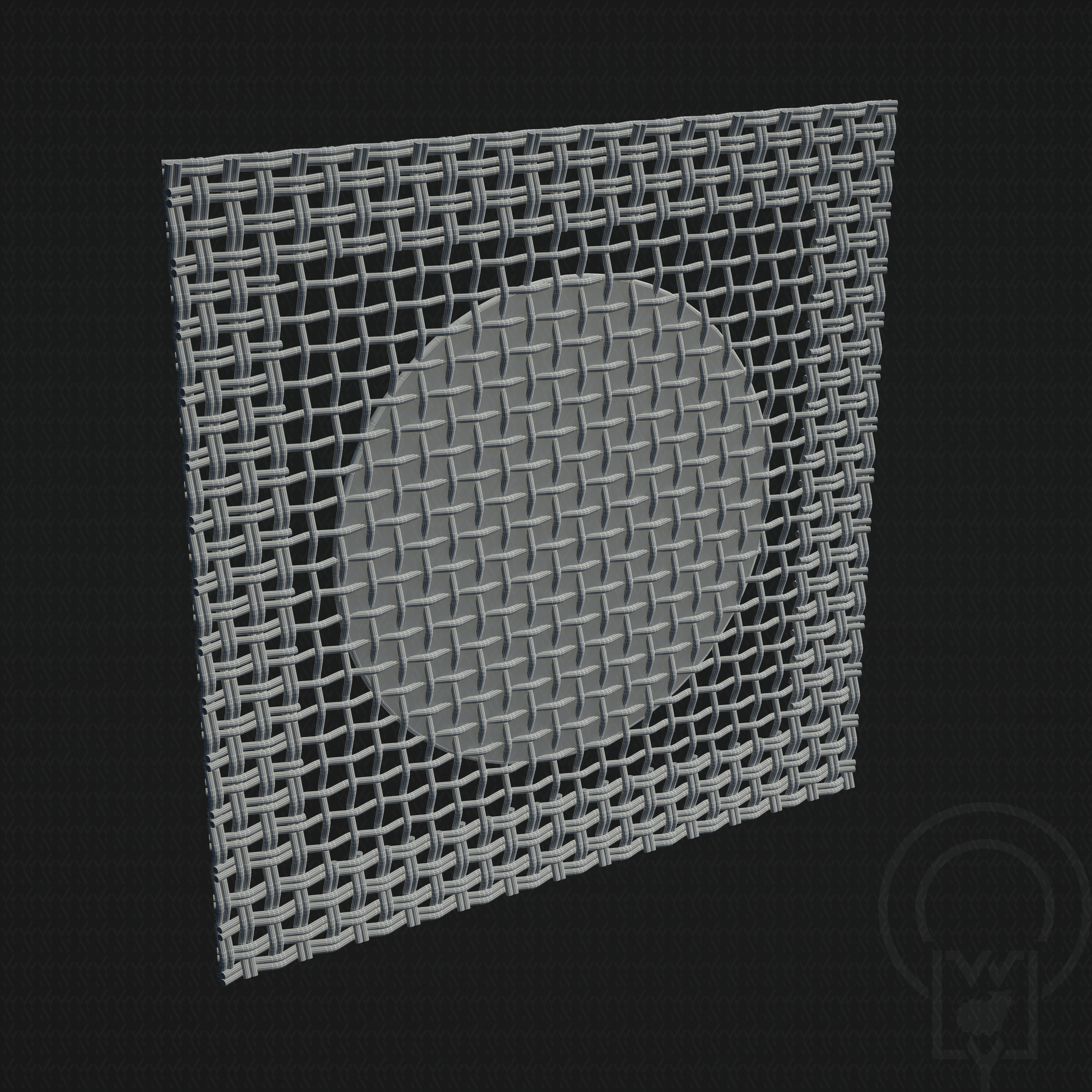

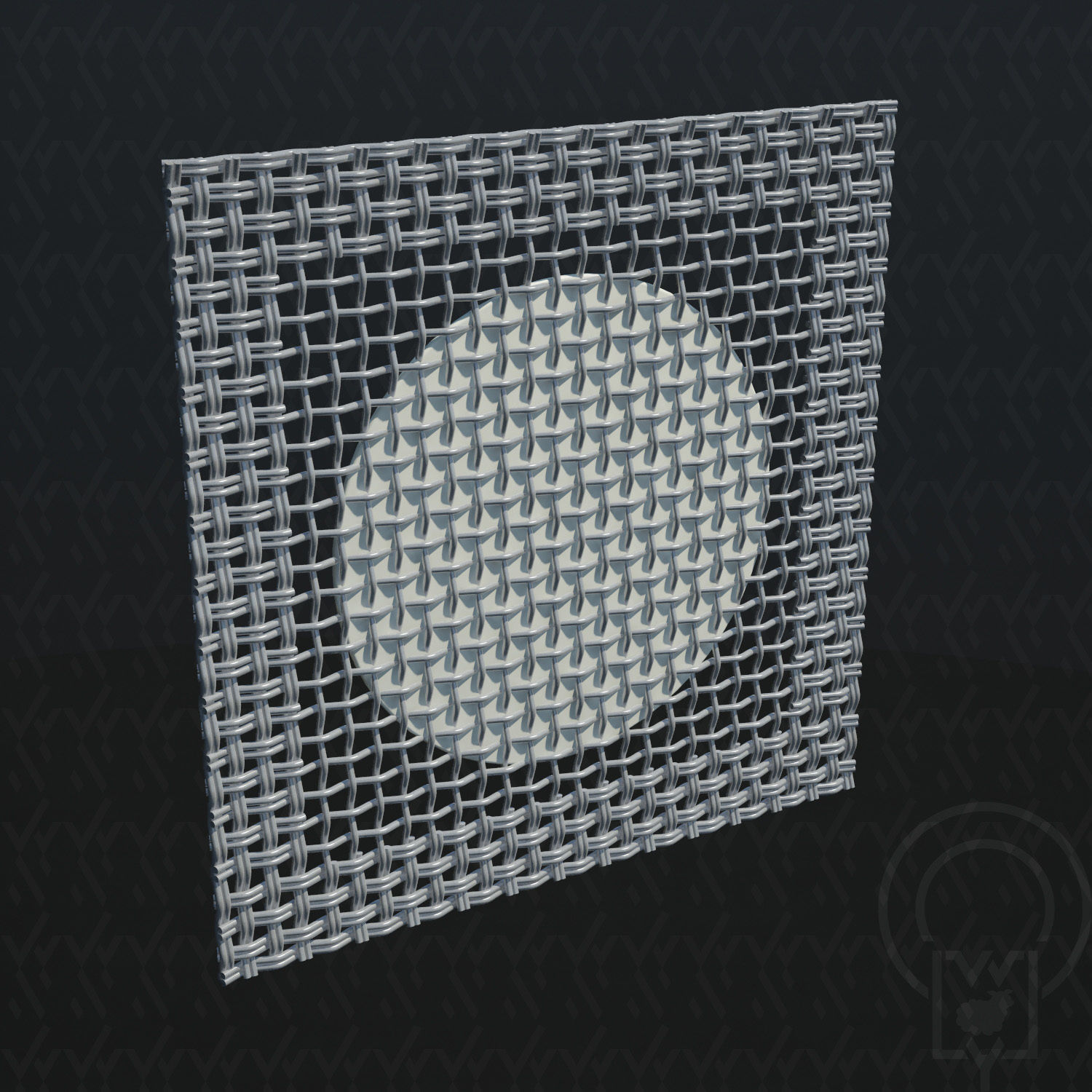

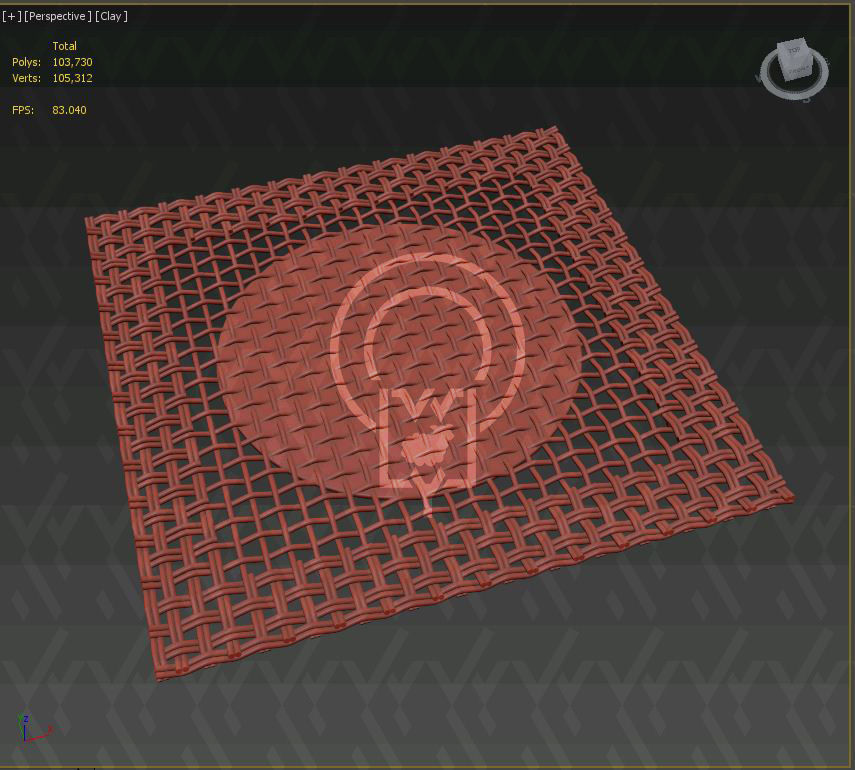

WIRE GAUZE (mm) • portable

• L100 x W100

FILE SIZE

• Material Library + Maps: 3.3 MB •
• Max file: 12 MB (uncompressed) • 2011, 2014 •

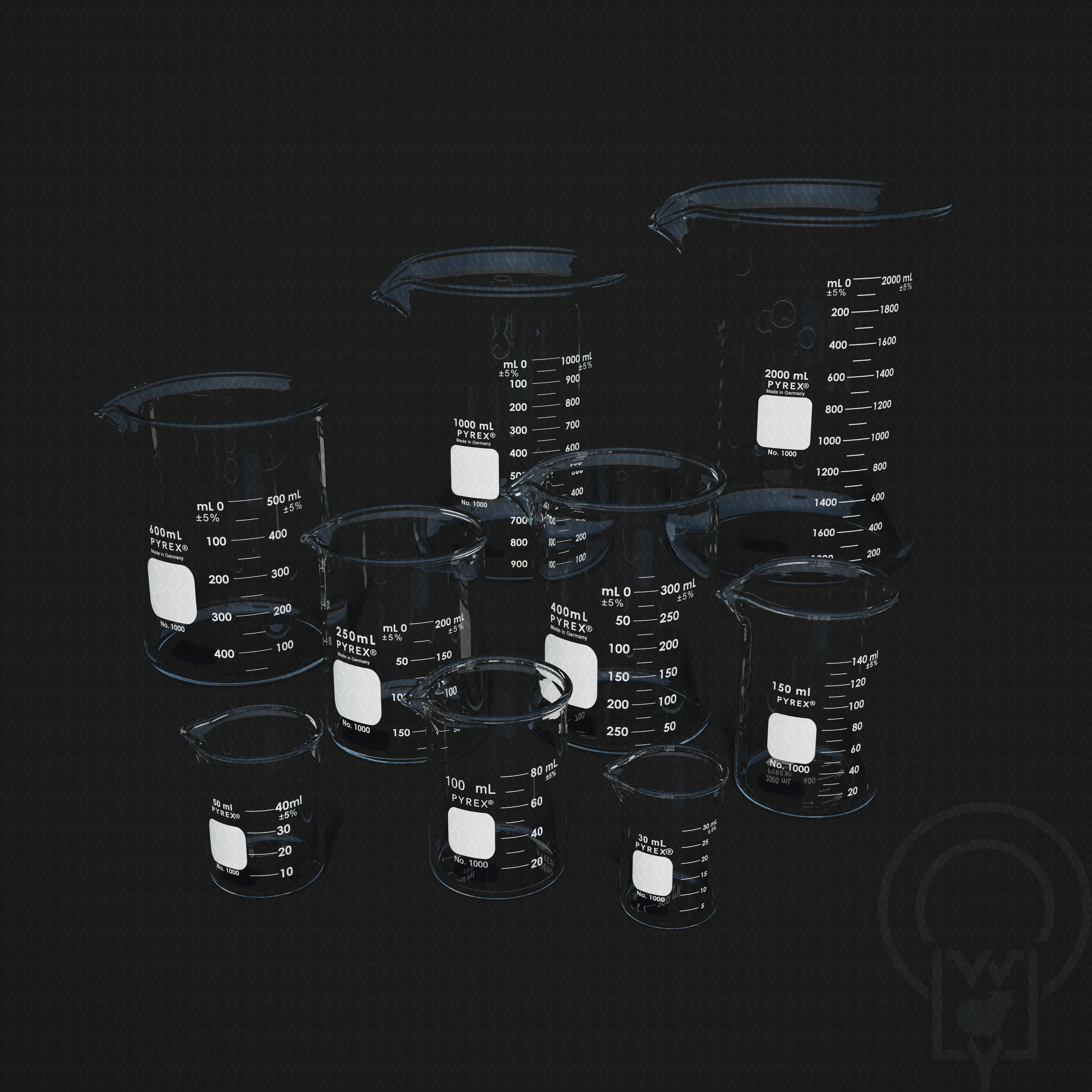

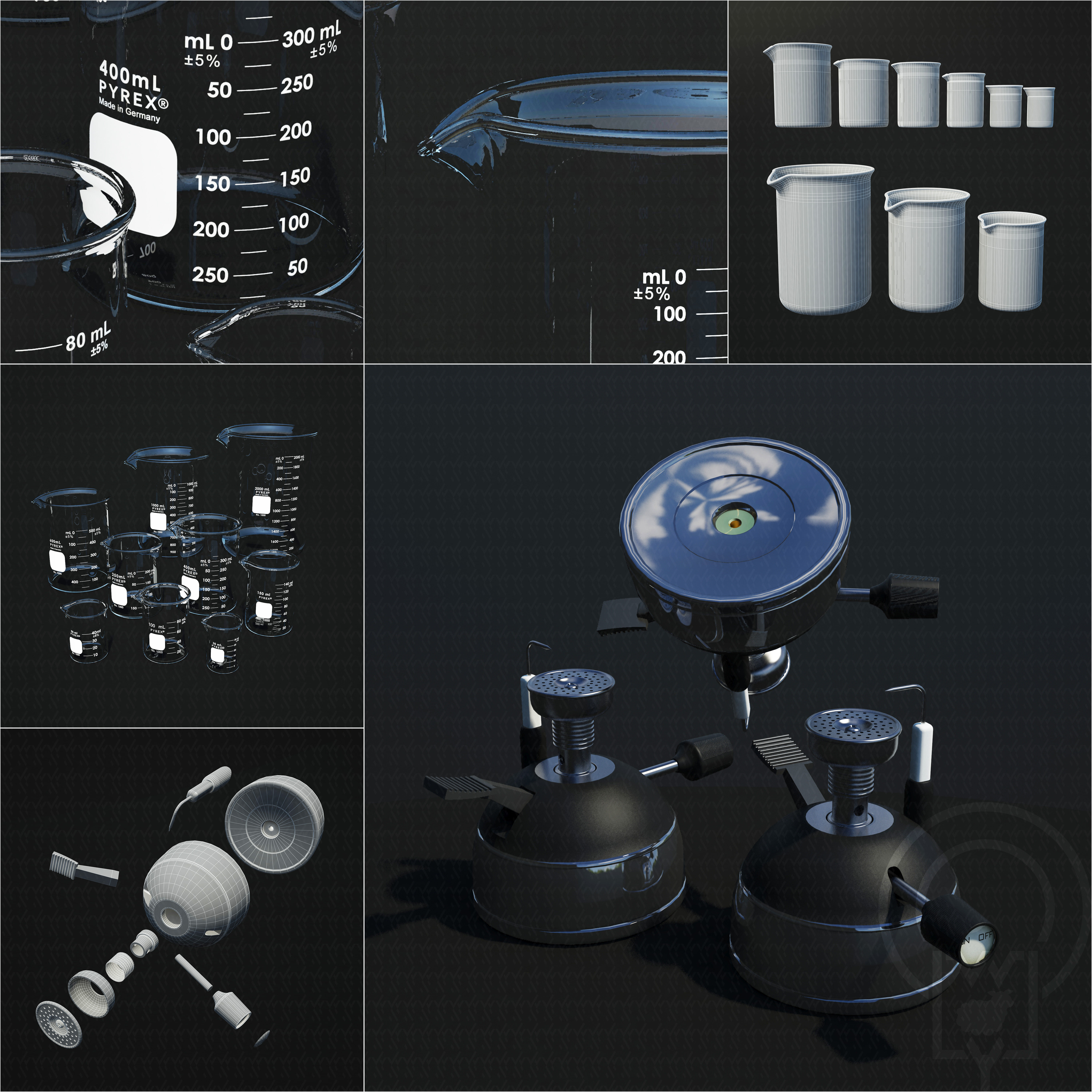

PYREX lab glassware, markings are spaced accurately (limited to Euclidean Geometry) in photoshop after using formulae for volume; mL = cc, cm³, therefore using the height for respective volumetric values as spacer distances between marking lines.

REFERENCE PRODUCT LINKS HERE:

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-30-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-50-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-100-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-150-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-250-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-400-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-600-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-1000-ml/

https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-2000-ml/

https://www.homesciencetools.com/product/tripod-burner-stand-5-inch/

https://www.homesciencetools.com/product/portable-micro-lab-burner/

NOTE: Candle's flame is 2D, made with 2 planes intersecting each other. Does NOT have Vray light object.

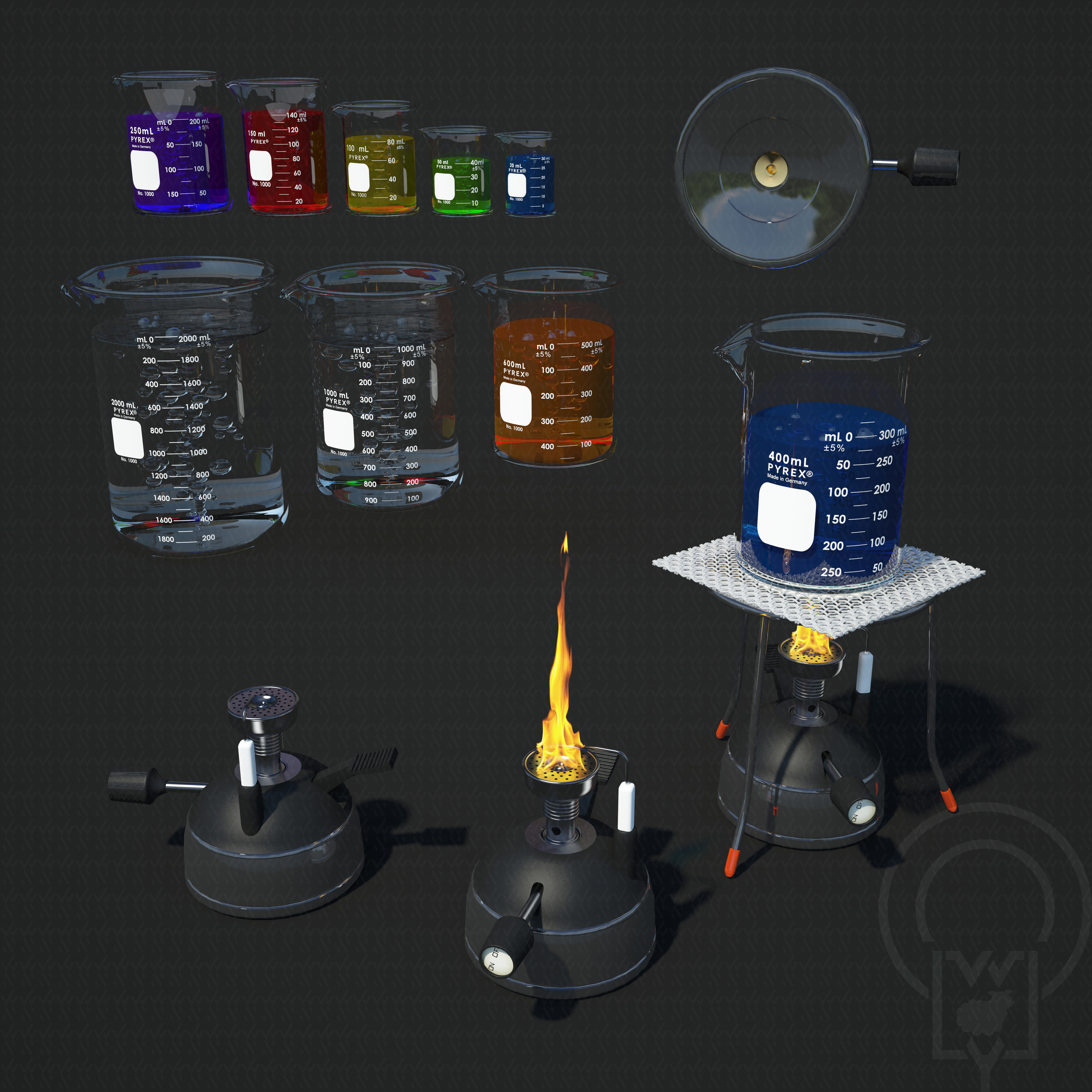

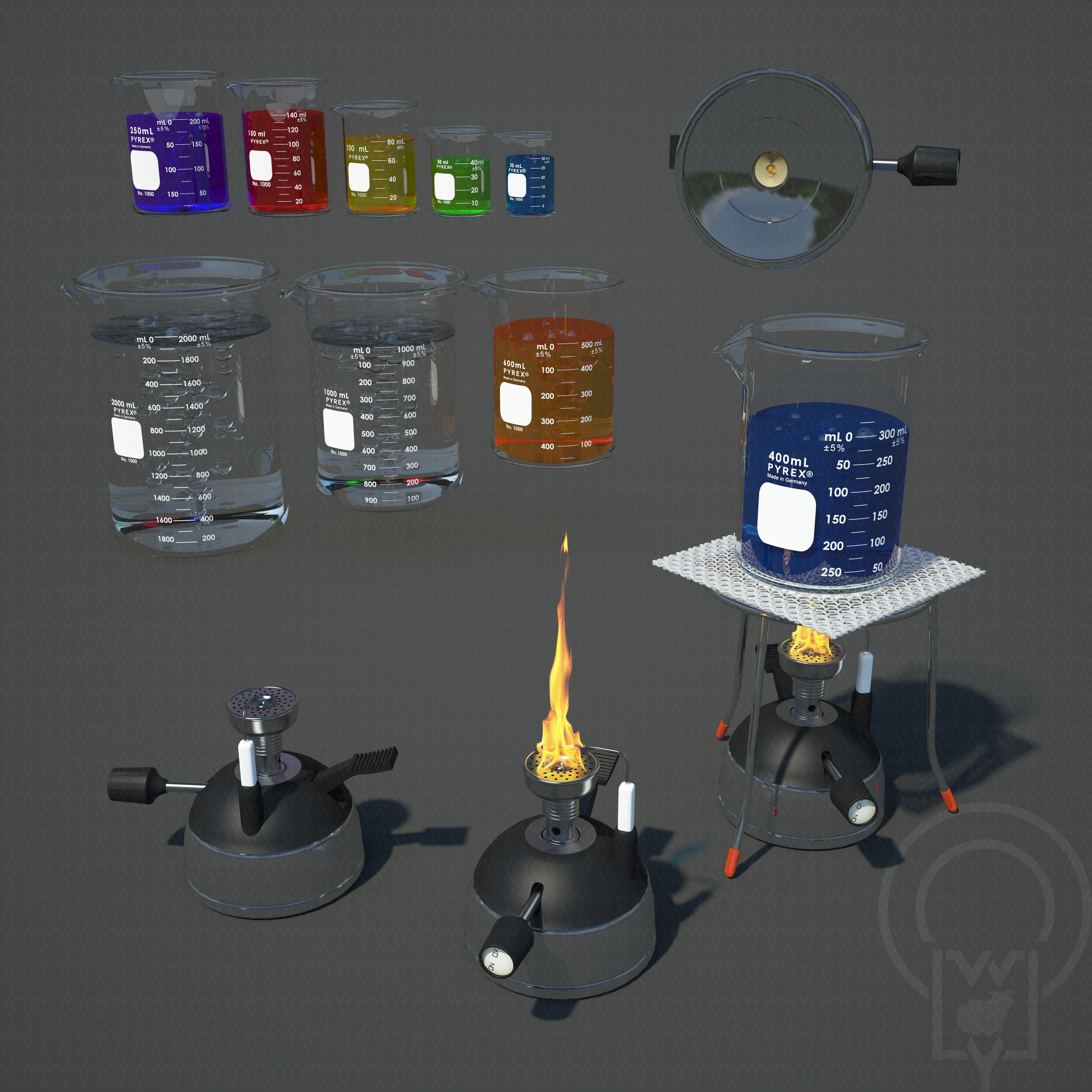

RENDERINGS

• Previews are rendered in 3DsMAX 2016, 2014 with V-Ray 3.20.02.
• Please note that the studio scenes, light, cameras, and environment settings are not included.

Check profile for discount code. If you like this product, please rate it. Thank you!
