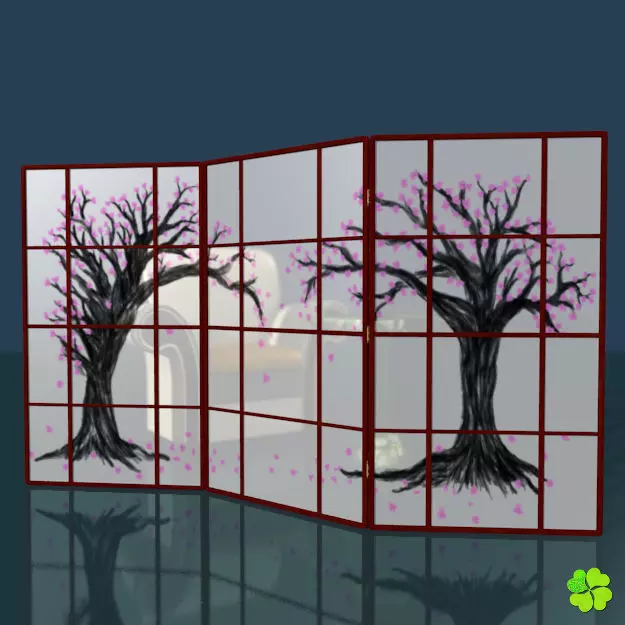

• Model of Japanese-style folding screen 3-panel, decorated with hand-painted cherry.
• With rig and animation included.

• Armchair and table available as separate products

• Units of file: centimeters.

• Size in centimeters (folded): 85.52 (X axis), 6.74 (Y axis), 145 (Z axis).

• Real world scale. (1,1,1).

• Focused on the origin.

TOPOLOGY

• An object with 9 manifold meshes: 3 for panels including hinges, and 6 for the axes of the hinges.
• 100% quads (13,528 quads).
• 13,366 vertices and 27,056 edges.
• Subdividible topology.
• Clean edge flow.
• No isolated vertices.
• No coincident vertices.
• No coincident/coplanar faces.
• No faces intersected.
• No faces distorted more than 45 degrees.
• No loss geometry.
• No poles with more than 5 edges.

RIG

• Armature with 3 bones.
• All moves are made locally.
• The bones are replaced by shapes, with forms and color guidance.
• The form indicates the action arrow to move, rotate and circle, and to square to scale. They can be combined in the same bone.
• The color indicates the local axis on which the action is performed: red for the X axis, green for the Y axis, and blue for the Z axis can also be combined in the same bone.
• The actions and its range of allowable values are controlled by constraint on each bone.
• Auxiliary objects for shapes are hidden in another layer.
• With rig and animation included.

UVMAP AND TEXTURES

• Normal outward.
• UV without overlapping.
• Optional texture available in additional file (for fbx file).
• Three textures of 4096x4096 pixels.

Image textures included:

• folding_screen_diffuse.png
• folding_screen_bump.png
• folding_screen_normal.png (OPTIONAL)

PREVIEWS

• Render with the Blender internal engine without post production.
• The images of the mesh in orthographic view.

The FBX file is exported from Blender and may need some adjustment (textures, constraints).
