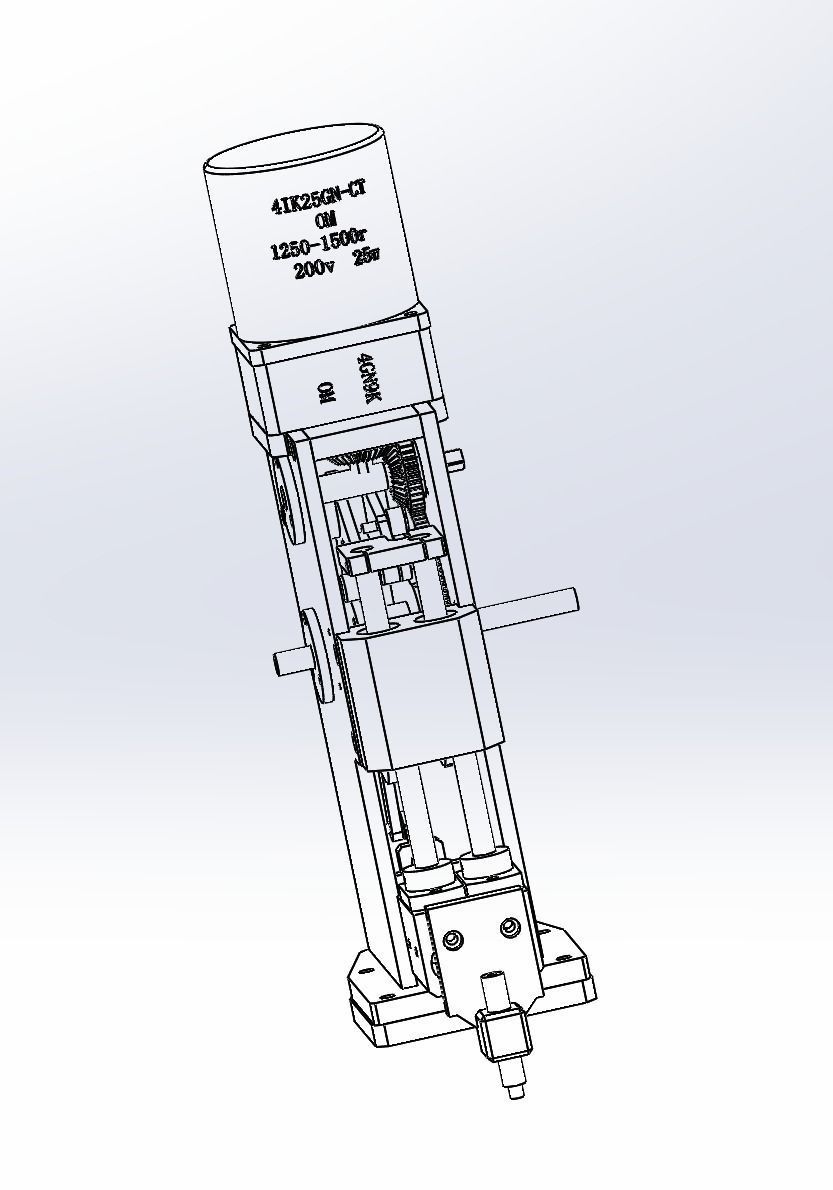

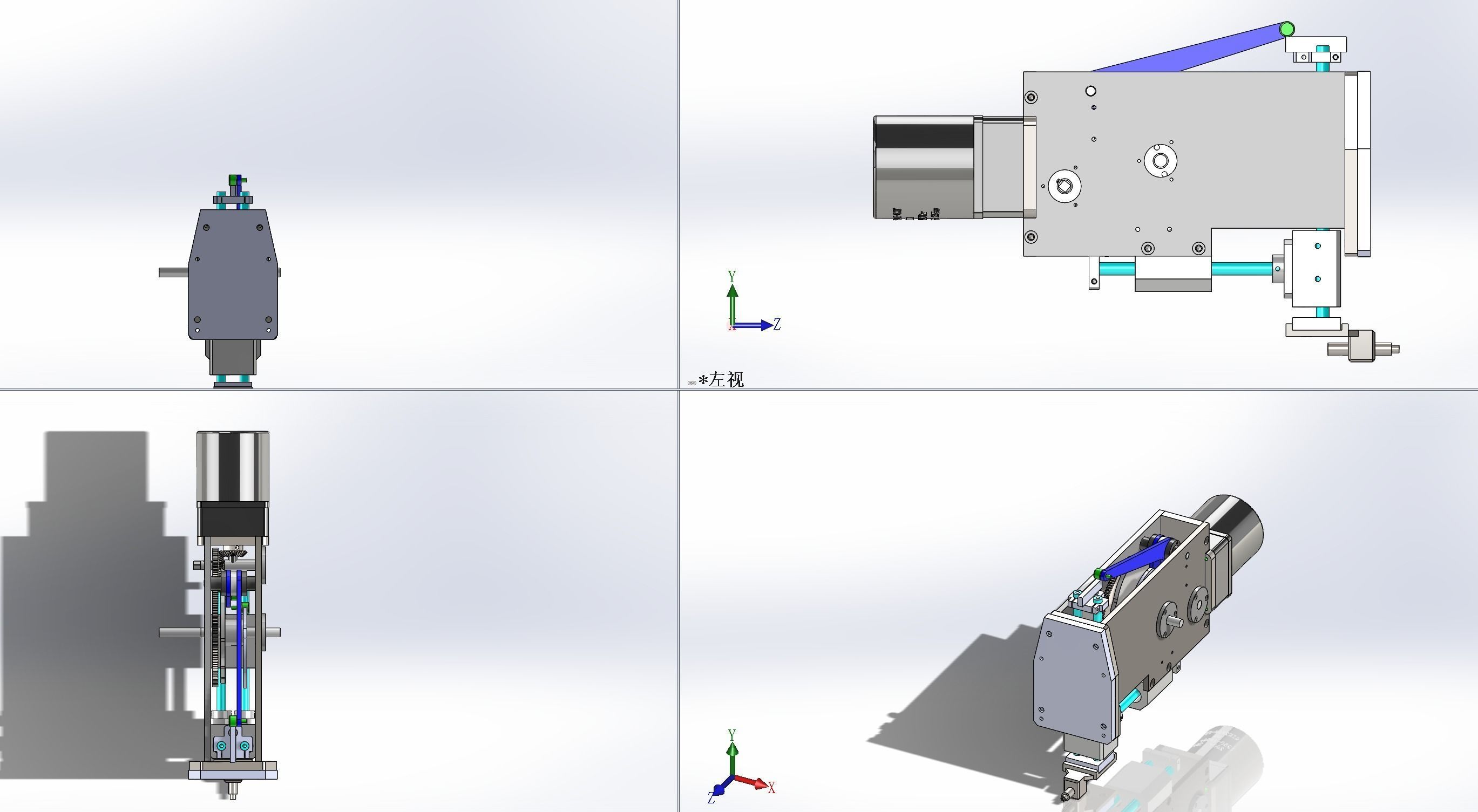

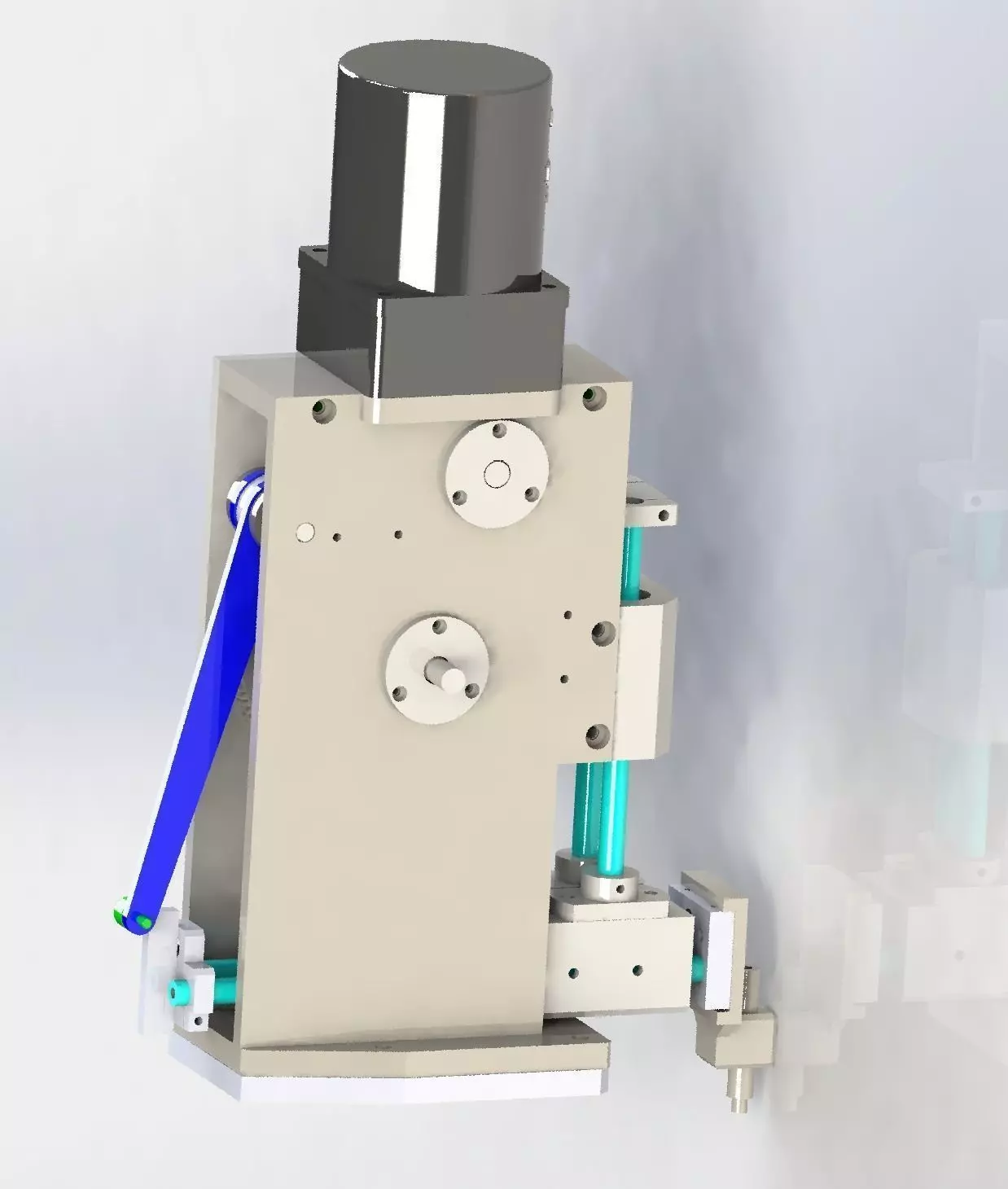

The cams mechanism 3D model
Description
The cams mechanism, the mechanism through a set of motor through multiple sets of CAM structure, both x and z axis fine tuning, after due to the movement, do different shape of the CAM mechanism can solve the problem of common application group action, a way is very clever application in mechanism The mechanism includes:
- Gear meshing mechanism.
- CAM mechanism
- Z-axis fine tuning structure.
- X axis fine tuning mechanism. ************************************** Files format contains -solidworks 2017 -step -iges -stl -obj -3ds
- and other formats ************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me. Designed with SolidWorks 2017, render with PhotoView 360 **************************************
The cams mechanism
Royalty Free License
The cams mechanism
Royalty Free License
3D Model formats
Format limitations
- OBJ (.obj, .mtl)3.95 MB
- 3D Studio (.3ds)4.23 MB
- SolidWorks (.sldprt, .sldasm, .slddrw)4.4 MB
- Autodesk FBX (.fbx)2.43 MB
- Autodesk 3ds Max (.max)3.08 MB
- IGES (.ige, .igs, .iges)24.9 MB
- STEP (.stp)15.2 MB
- Stereolithography (.stl)4.82 MB
3D Model details
- Publish date2018-05-11
- Model ID#896306
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 50,135
- Vertices 100,722
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
