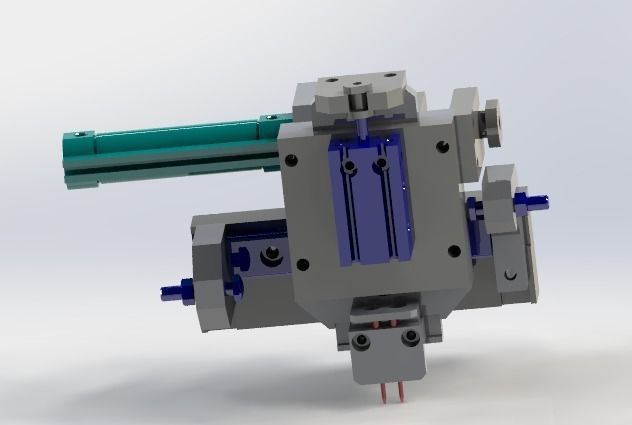

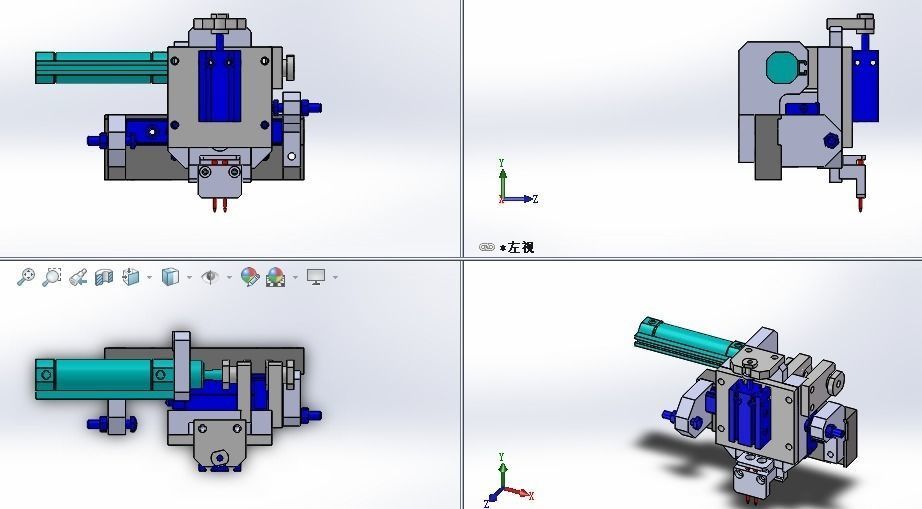

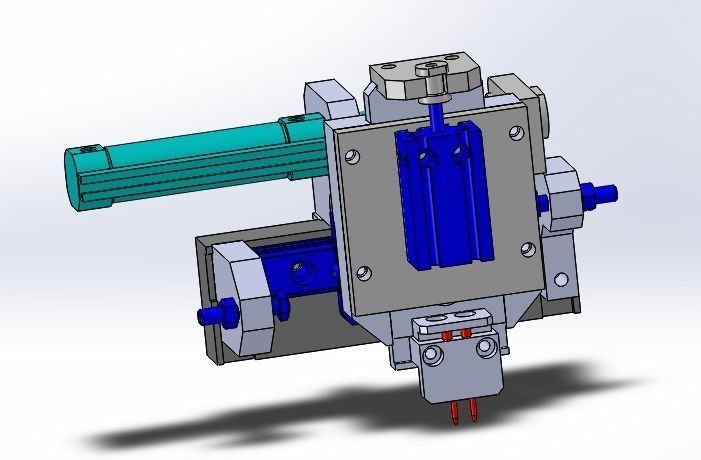

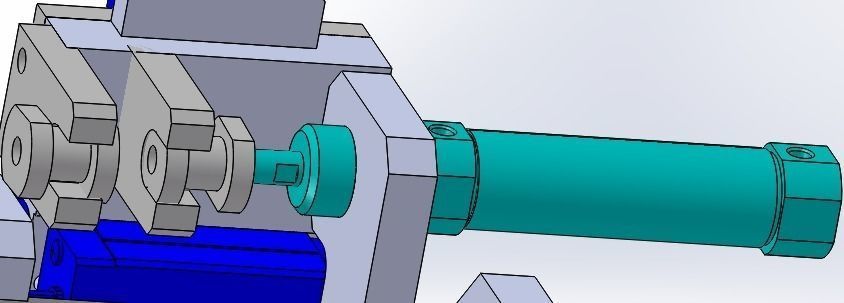

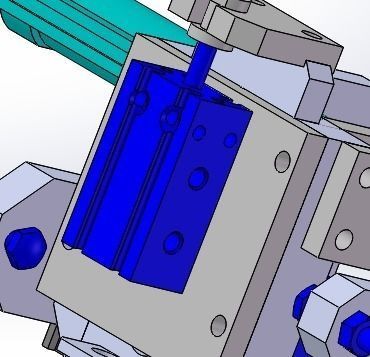

XZ two axis conveying mechanism, a simple cylinder shaft conveying mechanism, the agency through the cylinder drives the slide rail, but unlike other agencies, for some of these institutions need to eliminate the parallel installation problem, the model through an engineering design, to eliminate the error of parallelism.At the same time, in some institutions with less stress, the upper and lower material slide rails, the mechanism is designed directly through the non-standard parts to complete, through the special requirements of tolerance to achieve.The whole body is small, exquisite, welcome common study reference.This model is transformed into step and iges general model download, please refer to!Also includes 3d original files, welcome to download!if you like,you can paypal for you to get this models or if you have any questions also you can email to me.
