DESCRIPTION

Parametric Flange Library – UNI EN 1092-1 (Inventor 2024 + iLogic)

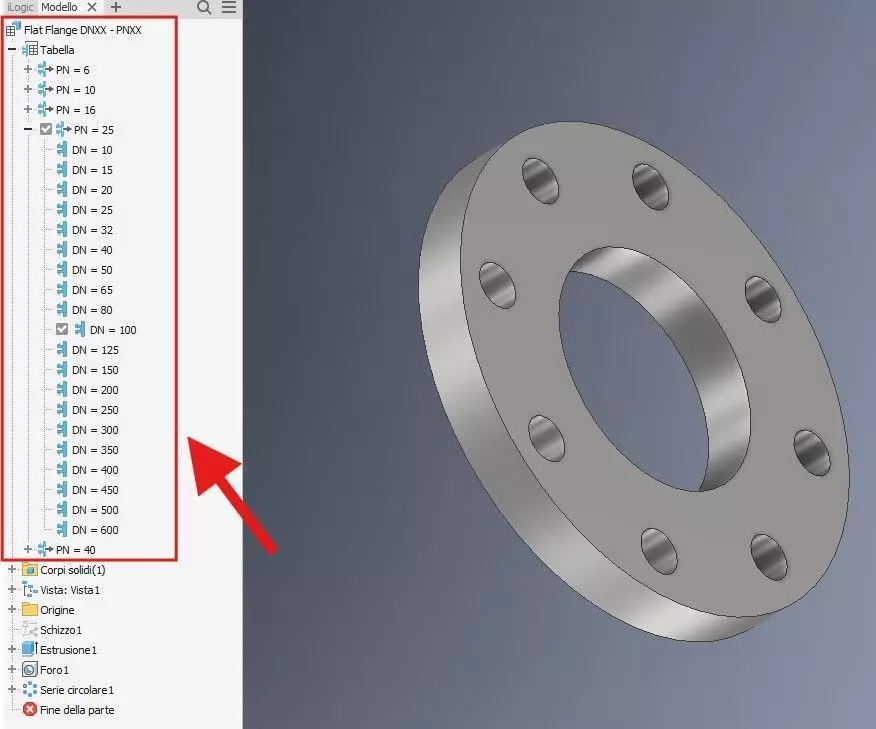

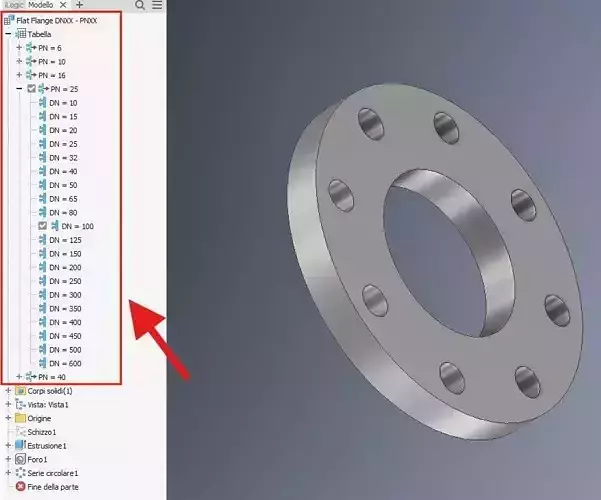

A complete, production-ready library of parametric Plan and Blind flanges, fully compliant with UNI EN 1092-1 and optimized for industrial CAD workflows.Each model is built using clean iPart logic + iLogic rules, so every flange updates instantly by selecting DN and PN values.Perfect for designers who need fast, accurate, standard-based components for piping, plant design, power engineering, and mechanical assemblies.

Why this package saves you hours of work

Unlike free flange models found online, this library is fully parametric, validated, and dimensionally complete.You don’t download 50 separate models — you download two smart files that generate everything you need.

Included in the Package

  • Parametric Plan Flange (Inventor iPart)
  • Parametric Blind Flange (Inventor iPart)
  • Pressure classes: PN6 / PN10 / PN16 / PN25 / PN40
  • Full DN range from DN10 to DN600
  • Correct materials + automatic mass calculation (iLogic)
  • PDF datasheets with full dimensional tables
  • Clean folder structure + README
  • Provided formats: .ipt, .iam, .step, .stl (Pro version)

Technical DetailsSoftware: Autodesk Inventor 2024Units: millimetersExposed parameters: DN, PN, D_out, D_int, Hole Pattern, Thickness, Material, MassIdeal for: industrial piping, plant layouts, mechanical design, energy & process applications

Custom workNeed custom PN, NPS/ASME flanges, or a full piping fitting library (elbows, tees, reducers)?

I can provide fully parametric models upon request.
