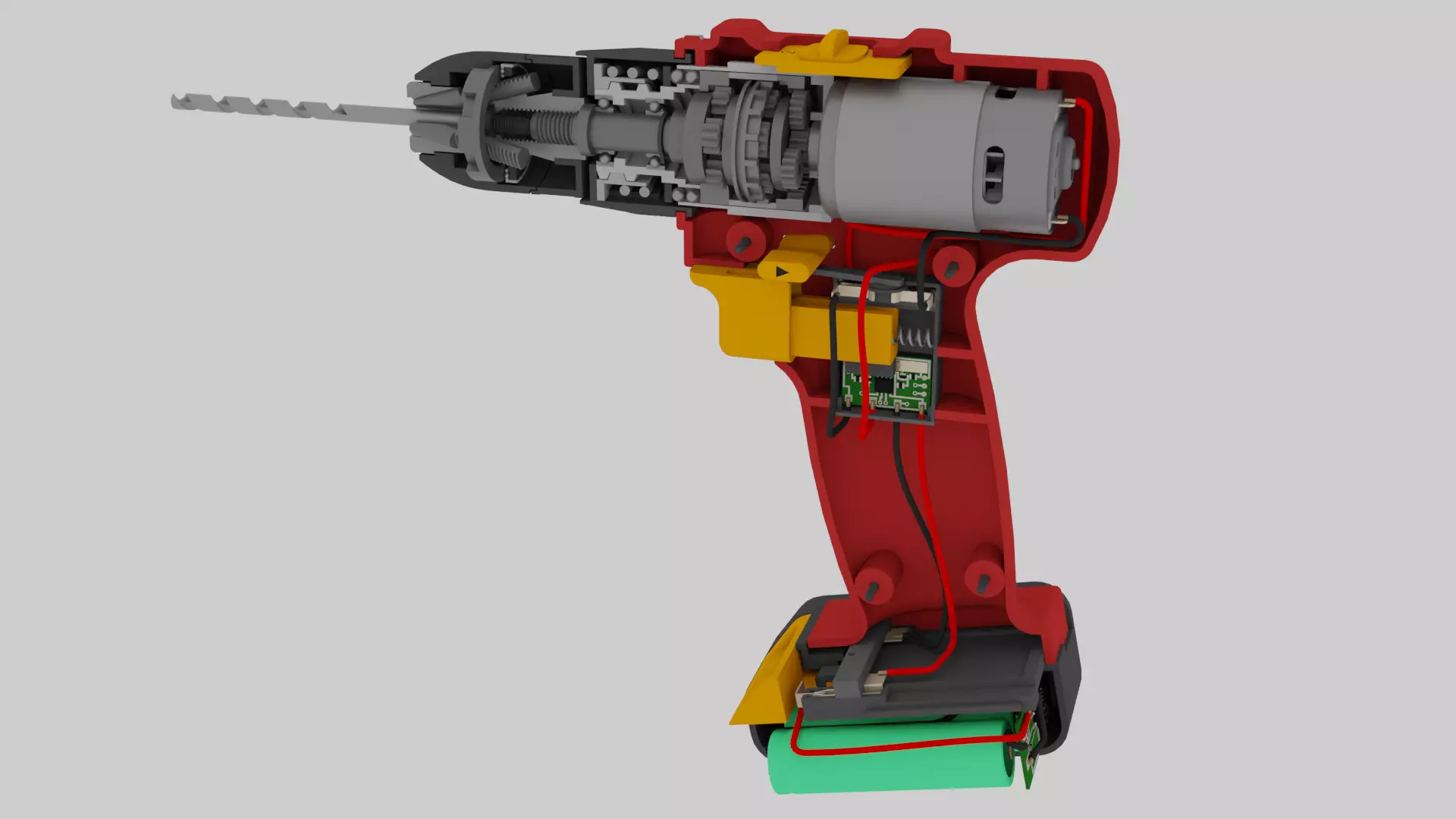

High-detail cordless drill 3D model featuring a fully modeled internal mechanical and electrical assembly. This is a generic, non-branded drill, designed for technical visualization, animation, and educational use, with accurate internal structure derived from a CAD.
The model includes the complete drivetrain from motor to chuck, as well as functional components such as the trigger and direction selector.
Included Internal Components:
- Electric motor
- Planetary gearbox
- Chuck assembly
- Clutch mechanism
- Trigger mechanism
- Forward / reverse button
- Battery
- Printed circuit boards
All major parts are separated, making the model suitable for exploded views, cutaways, and step-by-step animations.
Technical Details
- Model origin: Converted from CAD (STEP/IGES) to polygonal mesh
- Geometry: Fully triangulated
- Topology: Non-subdivision (CAD-derived)
- Scale: Real-world scale
- Units: Metric
- Parts: Individual components separated and organized
Intended Use
- Technical and educational visualization
- Exploded views and cutaway renders
- Product and mechanism animation
- Engineering and training material
- Real-time or offline rendering
