High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

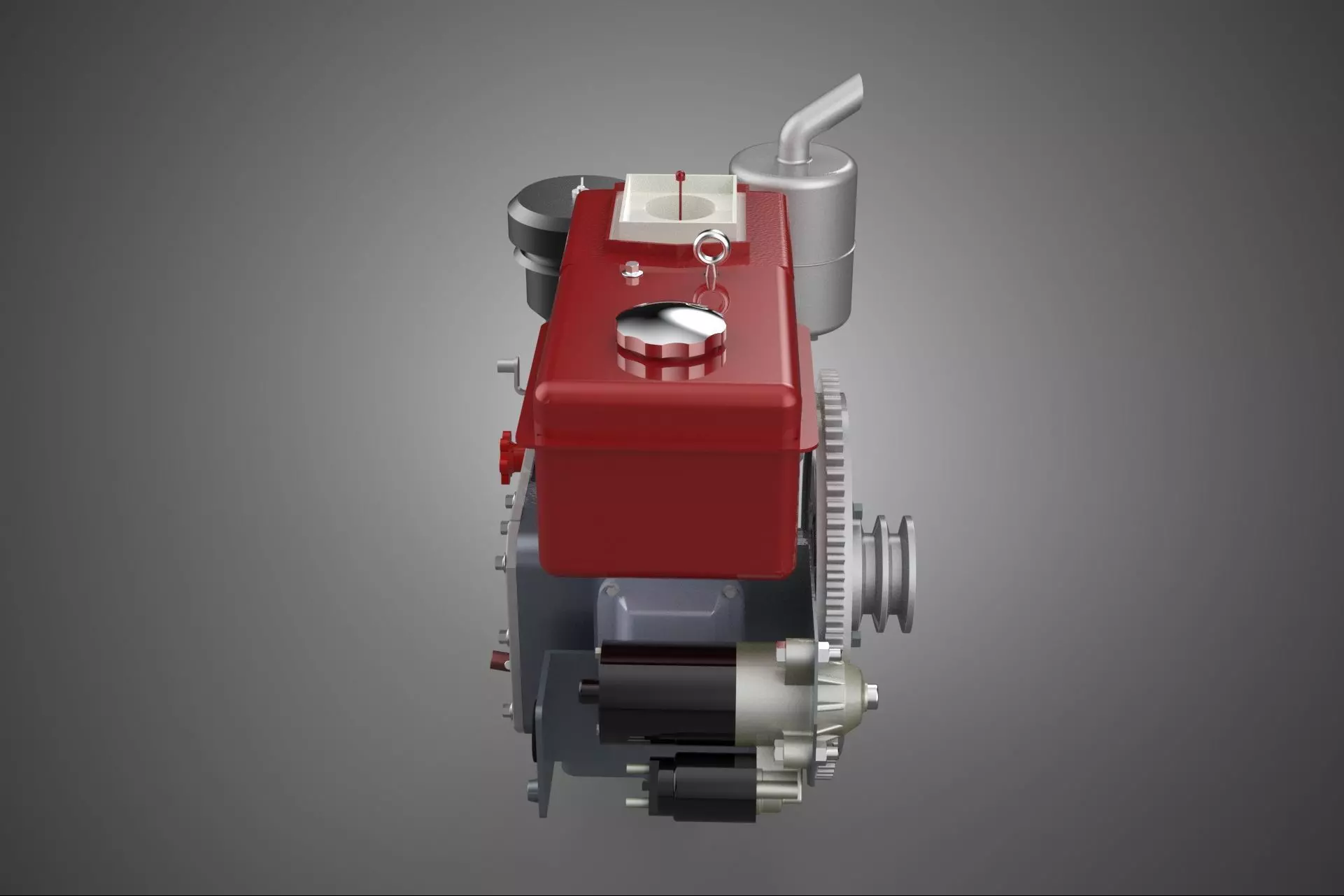

The term China Small Diesel Engine Electric Self Starter Motor Flywheel refers to the integrated electro-mechanical components utilized to initiate combustion in standardized, compact diesel power units manufactured widely across the People’s Republic of China. These power plants, typically single-cylinder or low-displacement multi-cylinder engines (often ranging from 3 kW to 20 kW), are globally prevalent in agricultural machinery (e.g., walking tractors), portable generators, light industrial pumps, and marine auxiliary applications.
The Electric Self-Starter Motor
The electric self-starter motor (or cranking motor) is a direct current (DC) device designed to provide the high torque necessary to rotate the engine crankshaft and overcome the substantial compression resistance inherent to diesel engines. These units generally operate on a 12-volt or 24-volt electrical system, drawing significant amperage during the short duration of the starting cycle.
The starter assembly comprises three primary operational components:
- The DC Motor: A series-wound motor built for high instantaneous torque.
- The Solenoid Switch: An electro-magnetic switch that performs a dual function: it closes the high-current circuit between the battery and the motor windings, and simultaneously, it mechanically actuates the pinion gear.
- The Bendix Drive Mechanism (or Overrunning Clutch): This system ensures that the small pinion gear smoothly engages the flywheel ring gear during starting and automatically disengages once the engine rotational speed exceeds that of the starter motor, preventing damage due to back-drive.
The introduction of electric self-starters standardized in Chinese models significantly improved operational convenience and safety compared to traditional manual crank starting.
### The Flywheel Assembly
The flywheel is an essential inertial component affixed to the rear end of the crankshaft. In the context of small diesel engines, it serves critical mechanical functions:
- Inertia Storage and Power Smoothing: The large mass of the flywheel stores kinetic energy, mitigating the severe torque fluctuations produced by the engine’s cyclical power strokes, ensuring smooth rotational velocity.
- Crankshaft Balancing: It contributes to the overall dynamic balance of the engine assembly.
- Starter Coupling: The outer circumference of the flywheel accommodates the starter ring gear.
The Starter Ring Gear is a crucial, high-wear component, typically manufactured from hardened alloy steel, thermally shrunk or press-fitted onto the flywheel periphery. Its gear teeth precisely mesh with the starter pinion gear, facilitating the transfer of torque from the electric motor to the crankshaft during engine initiation. Due to the high compression ratio of diesel units, the ring gear must withstand intense transient mechanical loads.
The widespread manufacturing standardization within the Chinese internal combustion engine sector ensures high interchangeability of these starter and flywheel components across diverse engine models (e.g.
