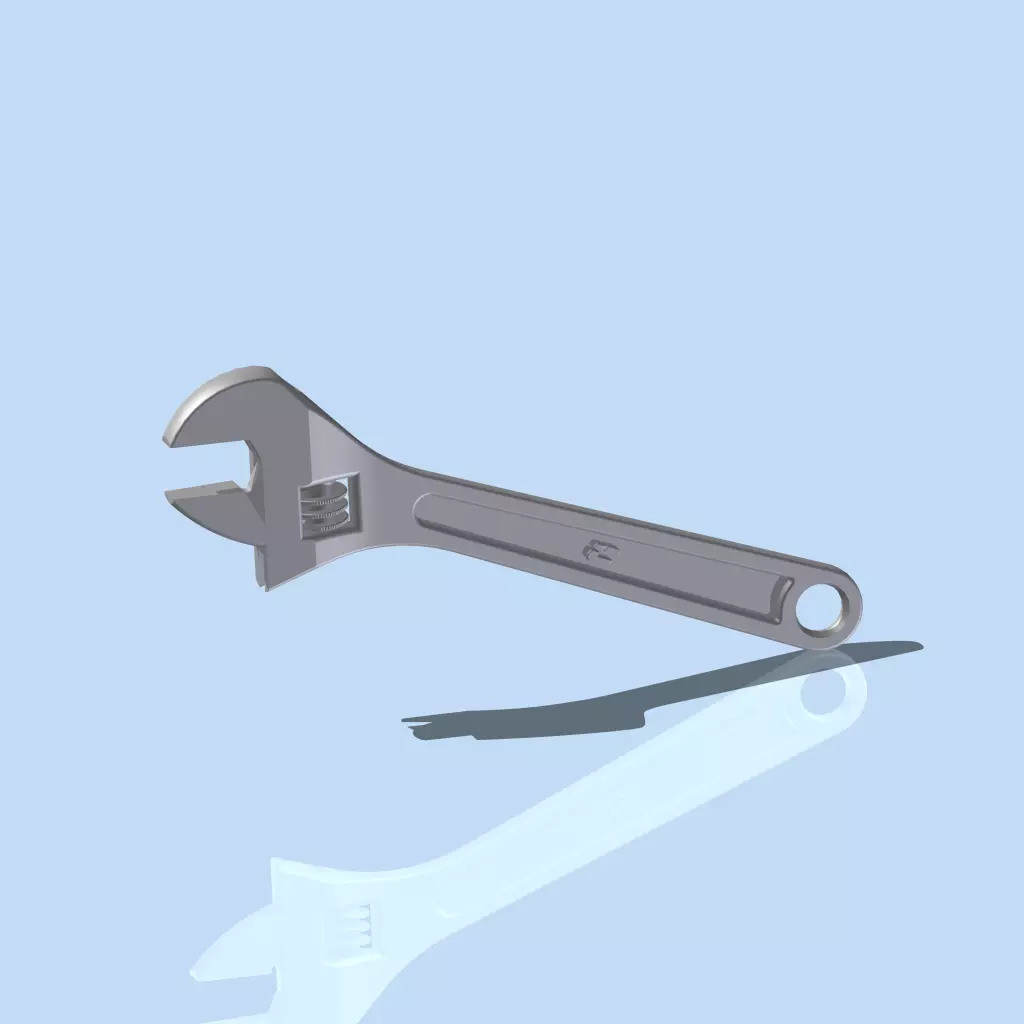

This product is a detailed 3D CAD model of an Adjustable Wrench, created through reverse engineering of a real mechanical object.
The model is designed with a focus on mechanical accuracy and clear assembly structure, making it suitable for engineering reference, educational purposes, and general mechanical design studies.
The assembly includes all major functional components such as fixed jaw, movable jaw, worm screw, handle, and pins, modeled as individual parts and assembled using proper constraints.
TECHNICAL DETAILS:
- Model type: Mechanical assembly
- Design method: Reverse engineering
- Original CAD software: Autodesk Inventor Professional 2015
- Units: Millimeters (mm)
- Assembly: Fully assembled with individual part files
INCLUDED FILE FORMATS:
- STEP (.stp) – universal CAD format
- Autodesk Inventor native files (.iam, .ipt)
- PDF technical drawing
- STL (.stl) for visualization or 3D printing reference
- ZGL Files
- CATIA V5 Files
- IGES Files
- Pro/ENGGINER Files
INTENDED USE:
- Mechanical engineering reference
- Educational and training purposes
- Reverse engineering study
- General CAD practice and demonstration
DISCLAIMER:This model is intended for reference and educational use.Dimensions and tolerances are not guaranteed for direct manufacturing or safety-critical applications.This model does not represent any specific brand or trademarked product.
