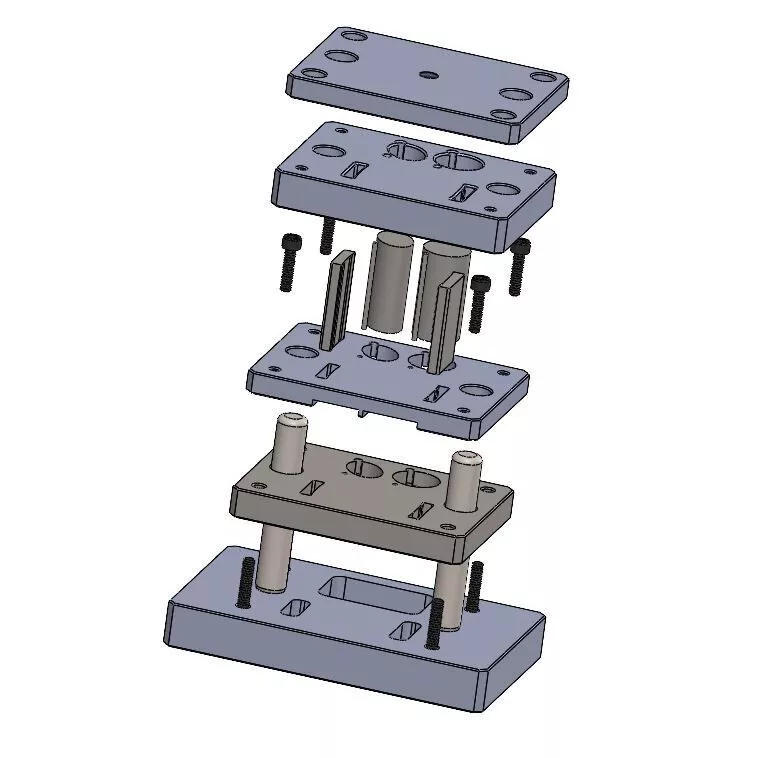

15mm Oval & Round Medal Die Package
Professional stamping die package designed for the manufacturing of 15 mm oval and round medals.
This package provides a complete tooling solution including the finished medal designs, die assembly, manufacturing documentation, EDM drilling coordinates, and the complete 4x3 blank die set engineering package used as the tooling foundation.
Designed for toolmakers, manufacturing engineers, die designers, workshops, educational institutions, and custom medal production projects.
Package IncludesMedal Designs15 mm Oval Medal15 mm Round Medal3D CAD FilesComplete Die AssemblyIndividual Component FilesOval Medal ModelRound Medal ModelSTEP FilesSTL FilesManufacturing DocumentationComplete Manufacturing Drawings (PDF)Individual Plate DocumentationAssembly Reference DrawingsEDM DocumentationEDM Drilling CoordinatesHole Location DocumentationWire EDM Preparation InformationBonus IncludedComplete 4x3 Blank Die Set Engineering PackageDie Set Assembly FilesIndividual Die Set ComponentsManufacturing Drawings for the Blank Die SetRecommended Materials
This die design is intended for blanking operations on the following materials:
Carbon SteelUp to Gauge 24Stainless SteelUp to Gauge 24BrassUp to Gauge 20BronzeUp to Gauge 20CopperUp to Gauge 20Nickel Silver (Alpaca)Up to Gauge 20TumbagaUp to Gauge 20
Material capability may vary depending on press capacity, die clearance, heat treatment, lubrication, and production requirements.
Tool Steel Recommendation
For optimal performance and service life:
Punches and Die BlocksMaterial: D2 Tool SteelHardness: 56–60 HRC
Recommended heat treatment should be performed prior to final EDM drilling operations.
Suitable ForMedal ManufacturingJewelry ProductionSouvenir ManufacturingCustom Badge ProductionTool & Die Design TrainingManufacturing Engineering ProjectsPrototype and Small Production RunsDeliverables
STEP Files
Complete Die Assembly
Individual Component Files
Manufacturing Drawings (PDF)
EDM Drilling Coordinates
Oval Medal Design
Round Medal Design
4x3 Blank Die Set Package Included
Manufacturing Ready Documentation
Professional tooling package developed to accelerate medal die manufacturing while providing complete engineering documentation for production, customization, and future development.
