DESCRIPTION

Loader on tractor. Technical Drawing

This comprehensive pack contains detailed technical drawings for manufacturing and assembly. Available in PDF (for easy viewing and printing), DXF (for laser/plasma cutting and CNC machining), and DWG (for full editing in AutoCAD and other CAD software).

The drawings include:

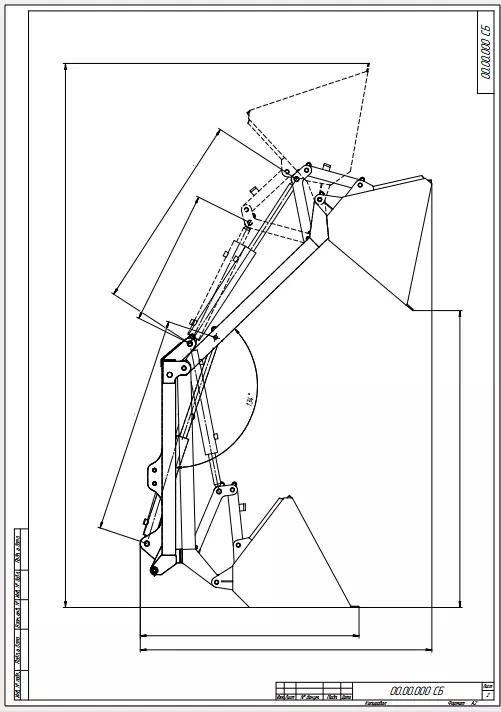

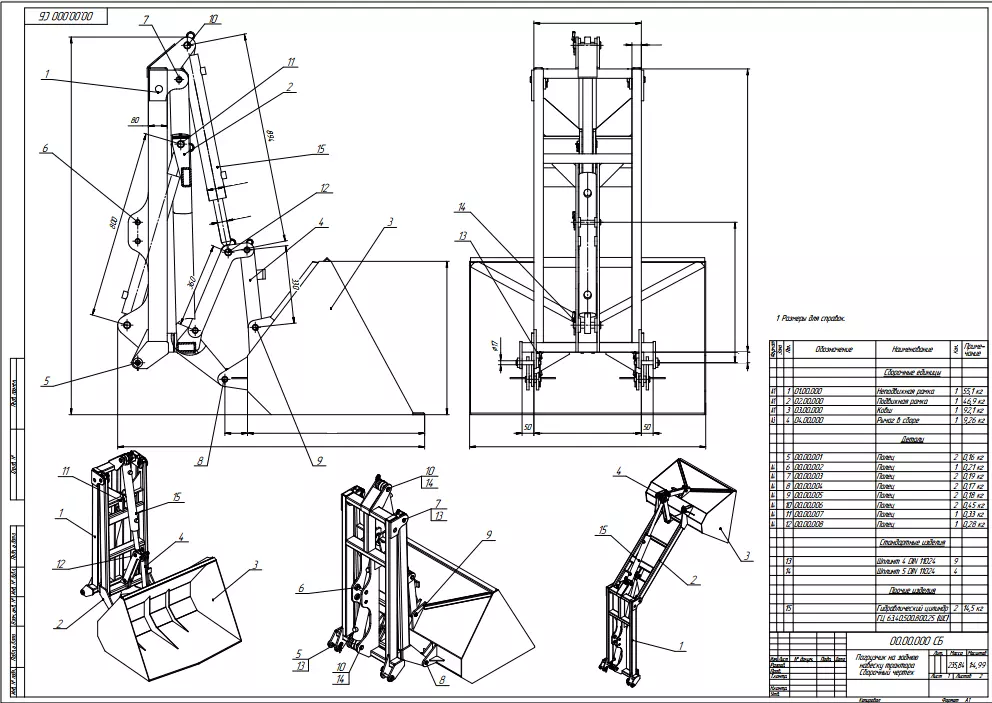

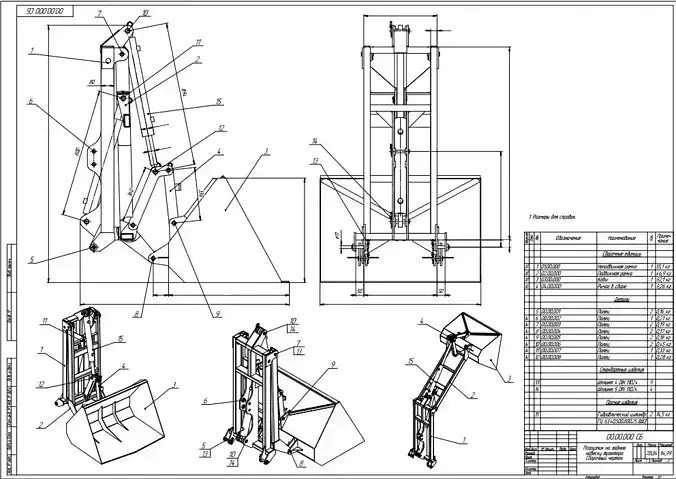

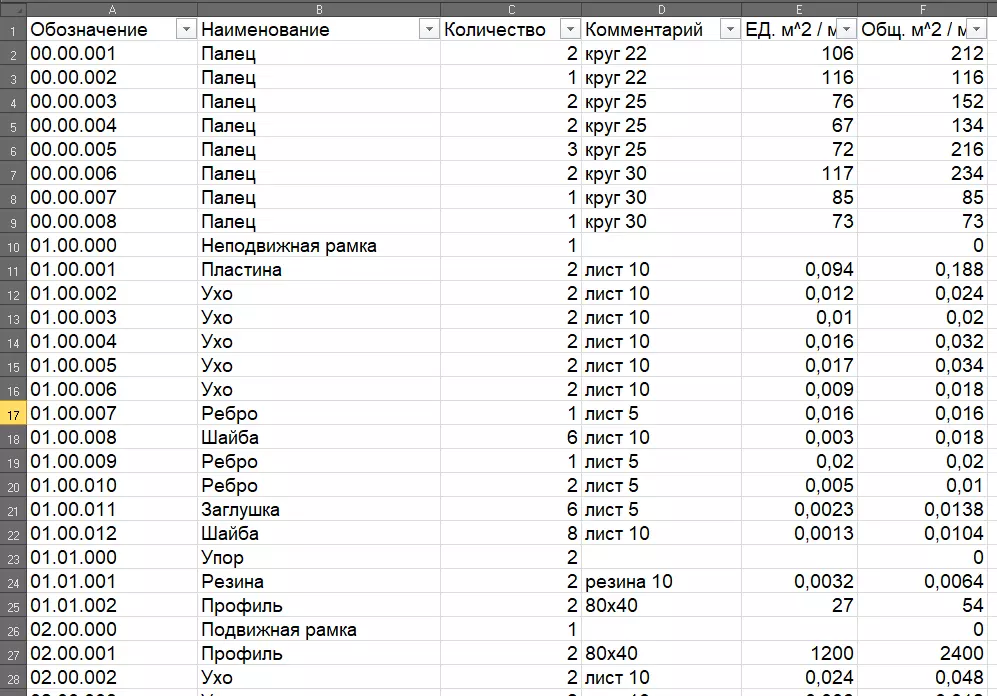

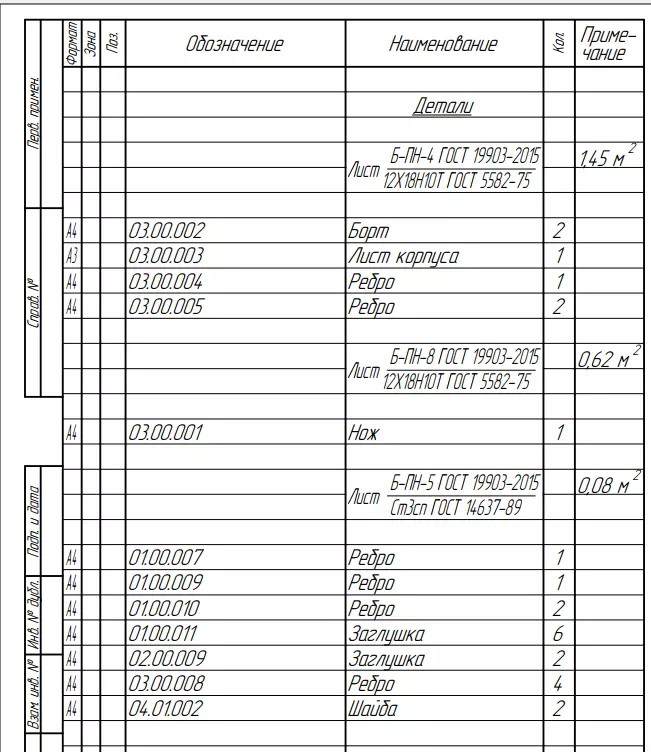

General Assembly with key dimensions and BOM.

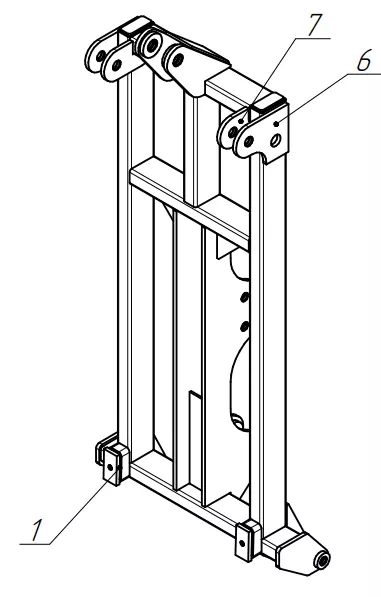

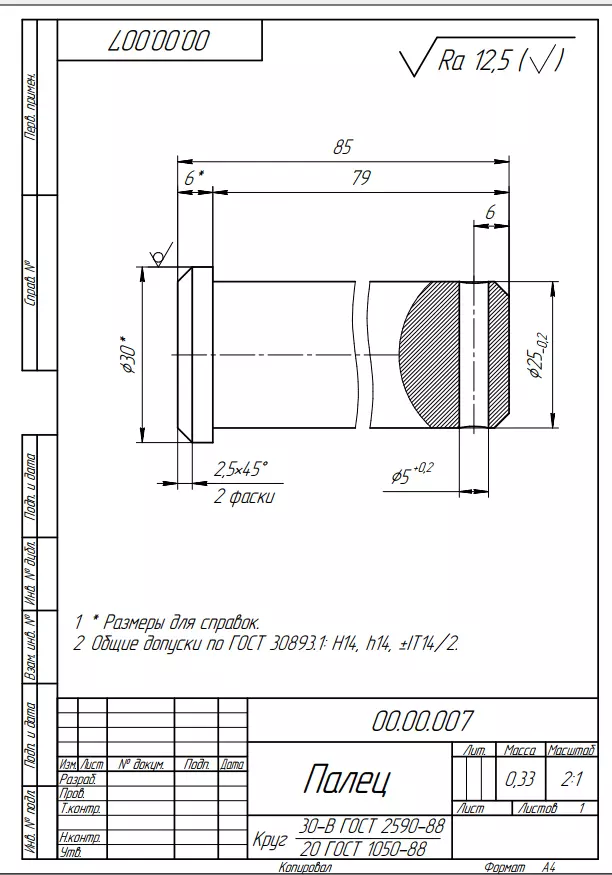

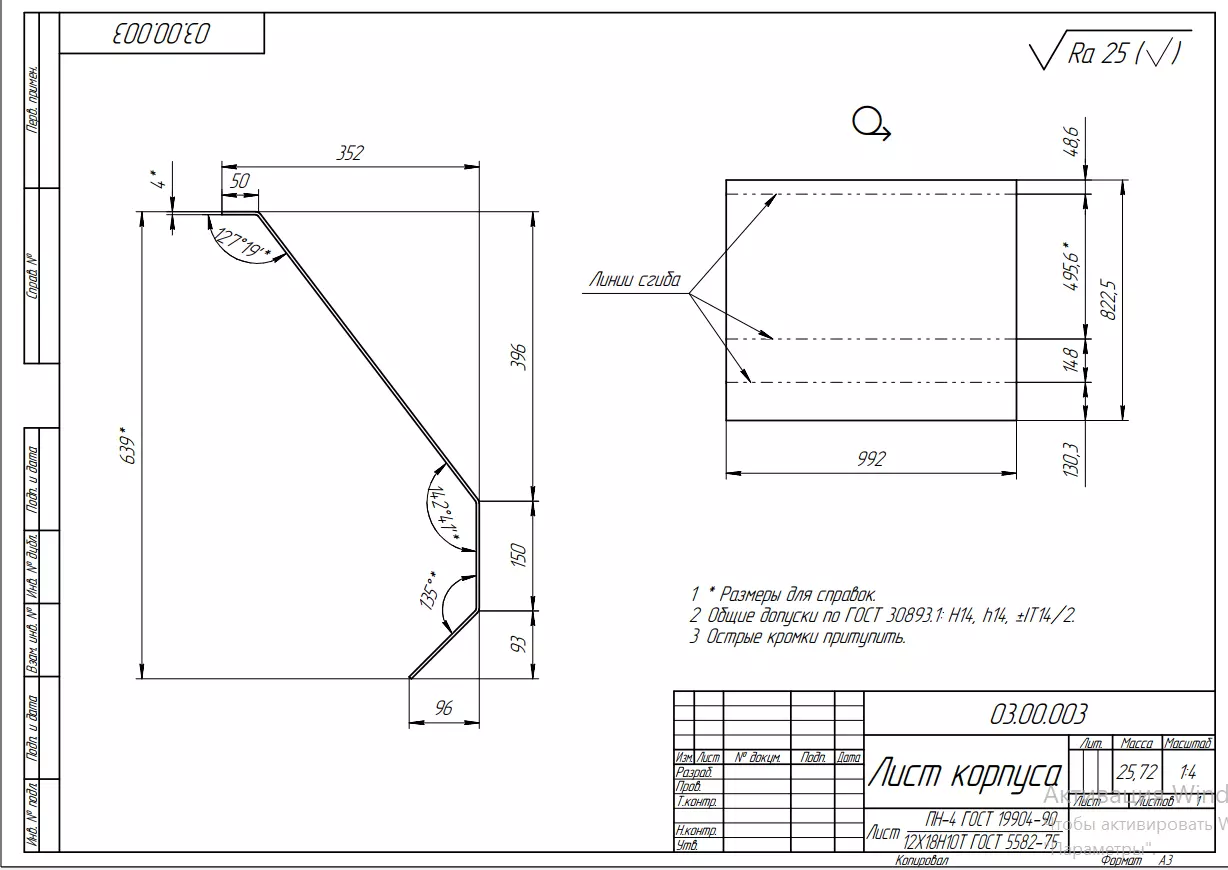

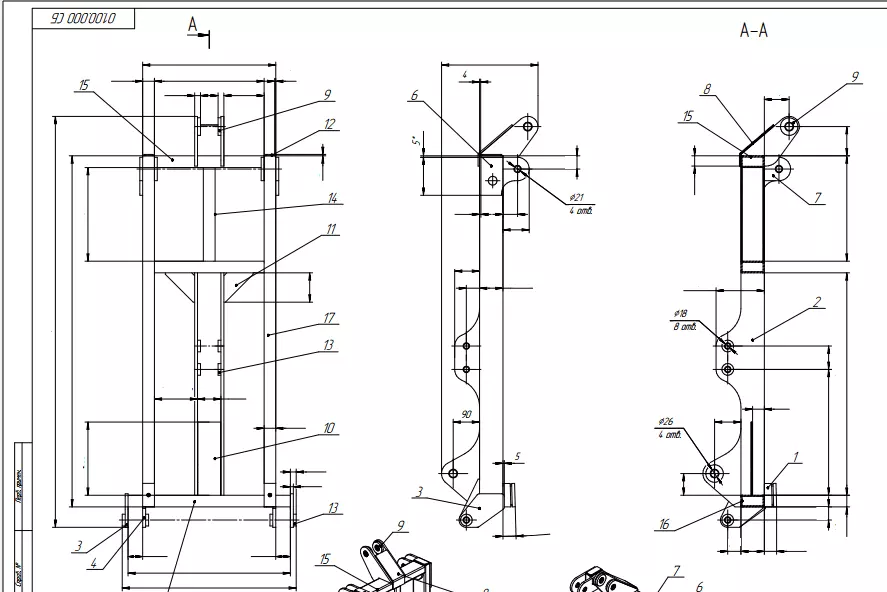

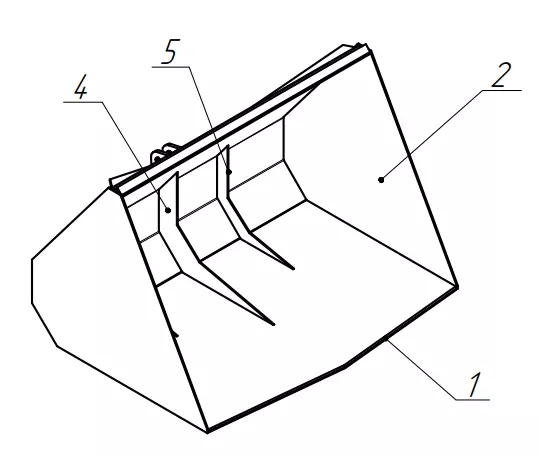

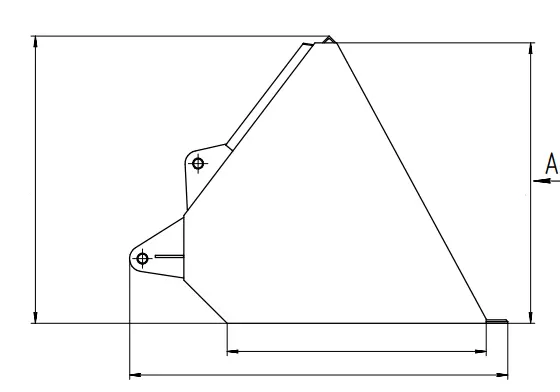

Detailed part drawings for all components (boom arms, bucket, mounting frame, linkages).

Specifications for materials, welding, and machining.

3d model - https://www.cgtrader.com/3d-models/industrial/other/loader-on-tractor
