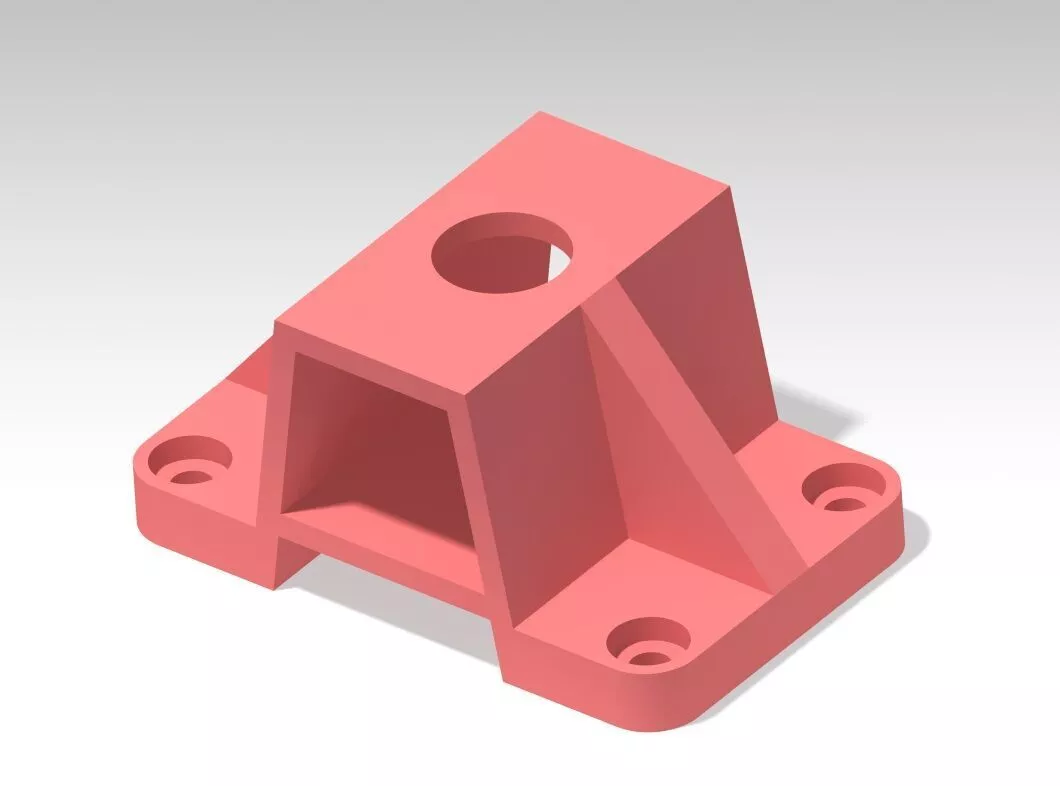

Elevate your mechanical design projects with this high-precision Industrial Yoke Bracket.

This model has been meticulously engineered using professional CATIA V5/V6 strategies, focusing on structural integrity and manufacturing feasibility. Designed with Design for Manufacturing (DfM) principles in mind, this bracket is optimized for CNC machining and casting processes.

Key Features:

Mathematical Precision: Features strategic axis alignment for perfect hole intersections.

Structural Integrity: Engineered with optimized wall thickness to handle complex mechanical loads.

Production-Ready: Modeled with advanced Generative Shape Design techniques to ensure reliability on the factory floor.

Versatile Application: Ideal for use in hydraulic systems, mechanical linkages, and industrial machinery assemblies.

Whether you are a mechanical engineer, industrial designer, or student, this model provides a perfect benchmark for advanced CAD modeling and surfacing techniques.
