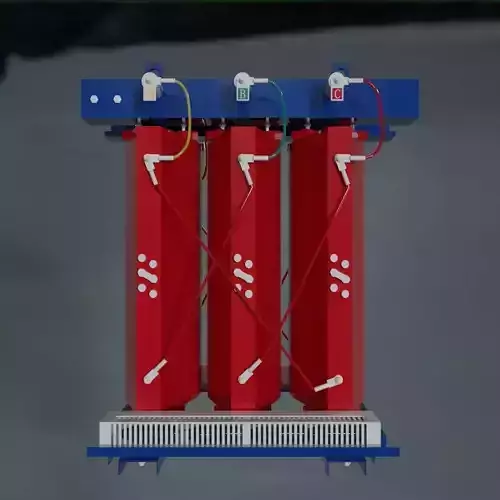

Dry-Type Transformer Low-poly 3D model

The 3D model of a dry-type transformer created in Blender is a detailed digital representation of this essential electrical device.

Dry-type transformers are widely used in various industries due to their safety, efficiency, and environmental friendliness.

This model showcases the transformer's key components, including the core, windings, insulation, and cooling system, all meticulously designed to reflect real-world specifications.

Key Features of the 3D Model:

Core: The core is typically made of high-grade silicon steel, designed to minimize energy loss and enhance magnetic flux.

Windings: The primary and secondary windings are modeled with precision, highlighting their arrangement and insulation.

Insulation: The model emphasizes the insulation materials used to prevent electrical faults and ensure safe operation.

Cooling System: The cooling system, often consisting of fans or natural air convection, is depicted to illustrate how the transformer manages heat dissipation.

Enclosure: The protective enclosure, usually made of metal or other durable materials, is included to show how the transformer is shielded from environmental factors.

Functionality in Blender:

Realistic Rendering: The model is rendered with high-quality textures and materials to provide a lifelike appearance.

Animation: The cooling system can be animated to demonstrate its operation.

Interactive Elements: Users can interact with the model to explore different components and their functions.
