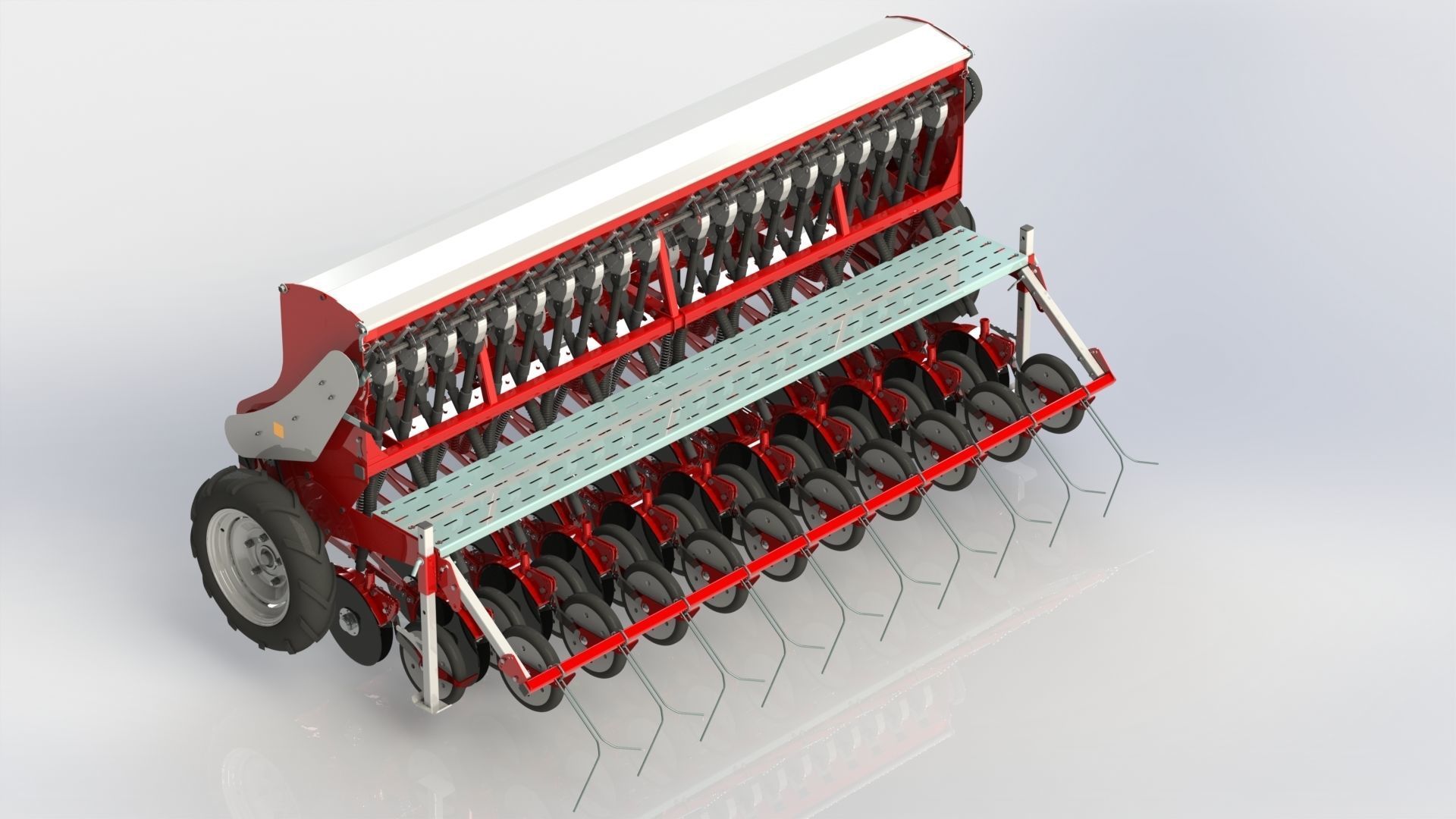

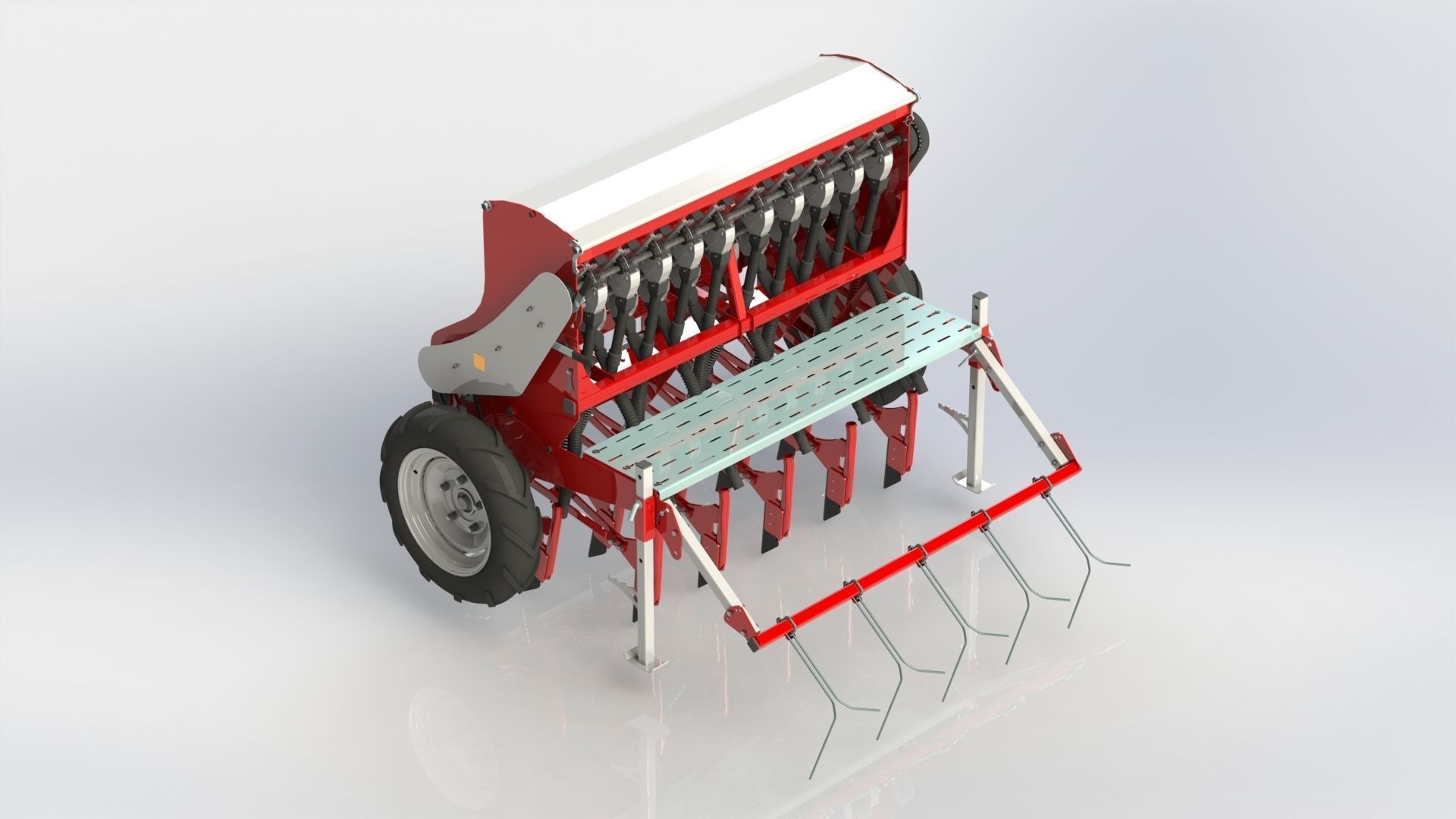

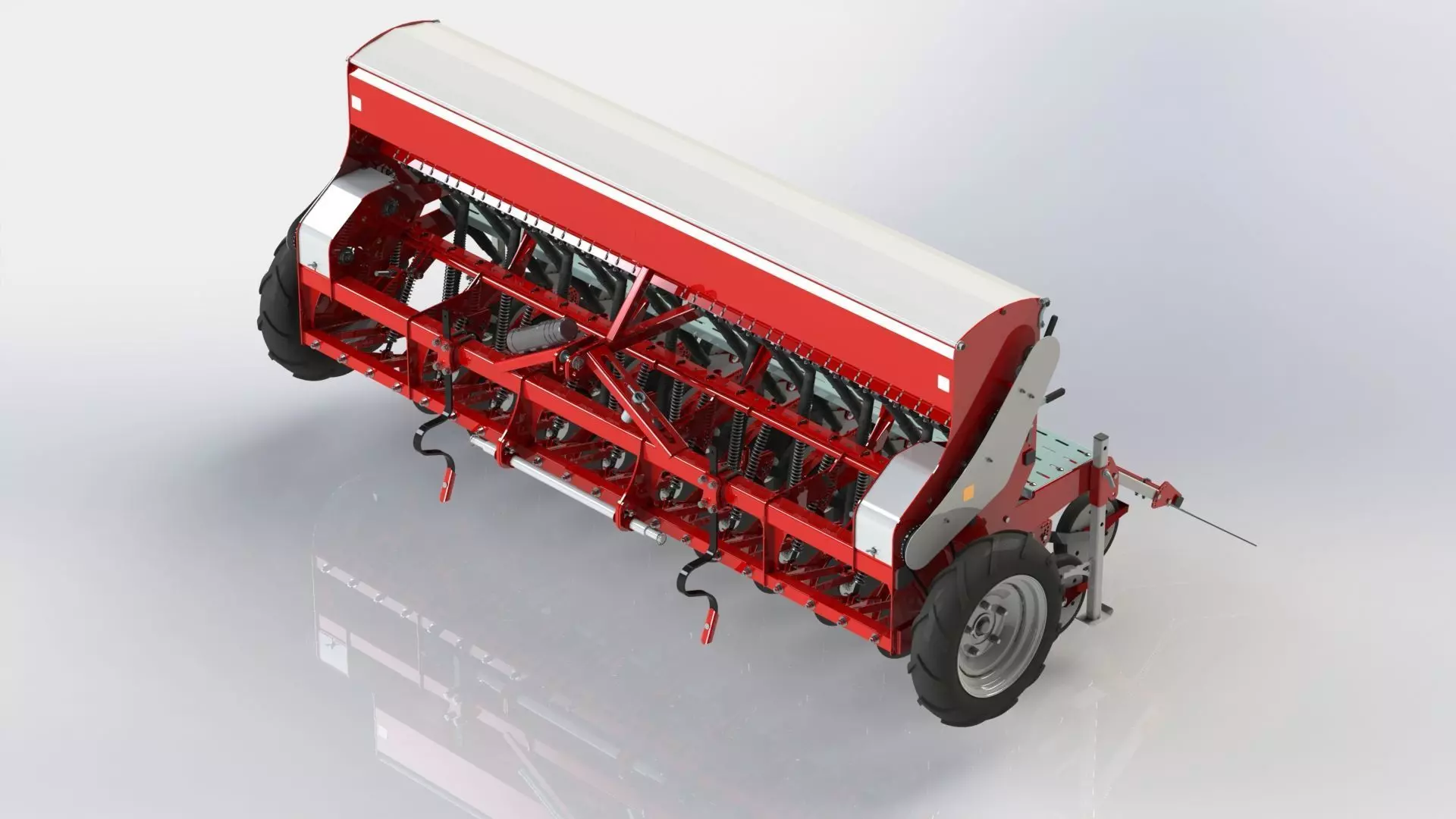

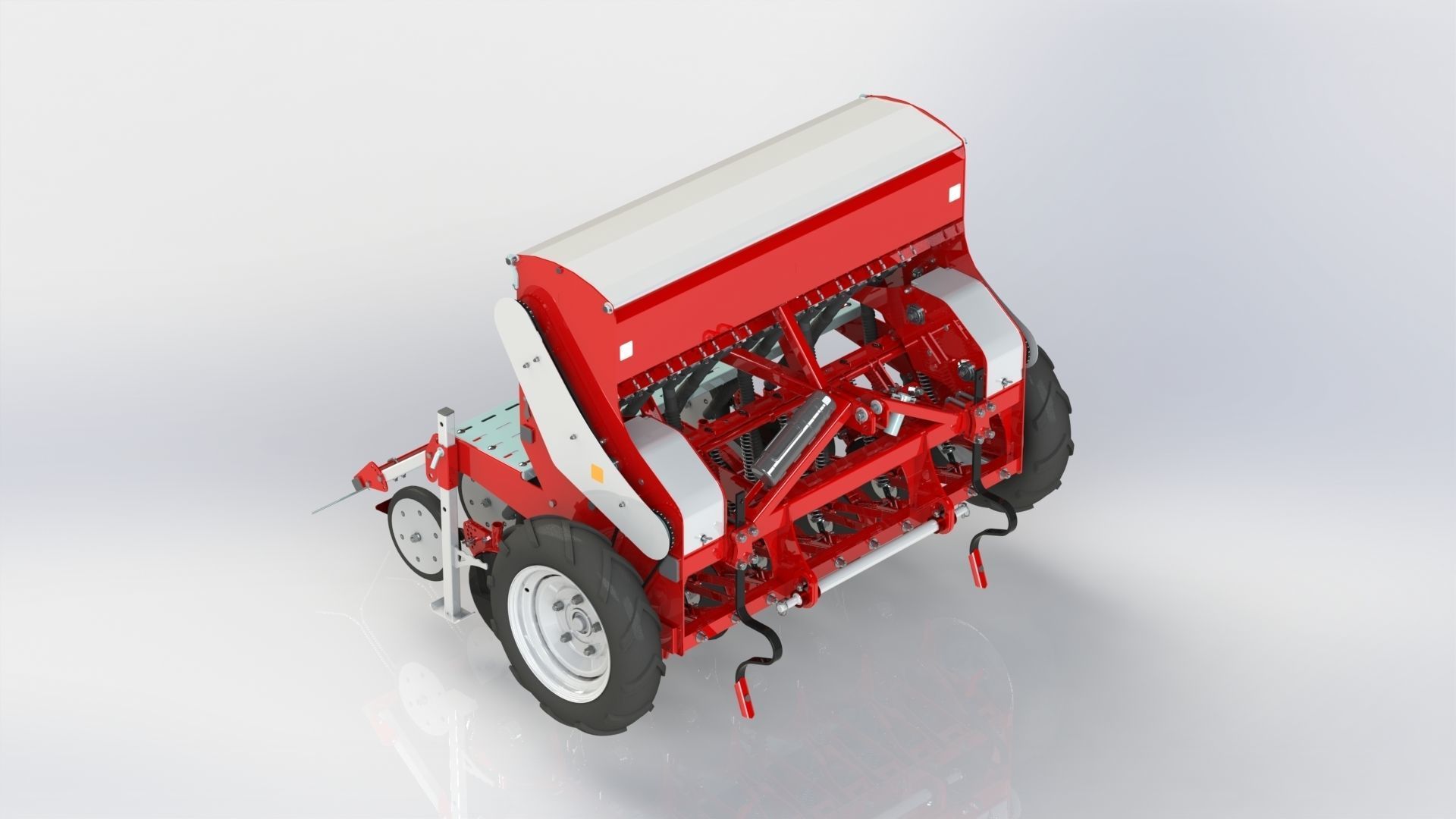

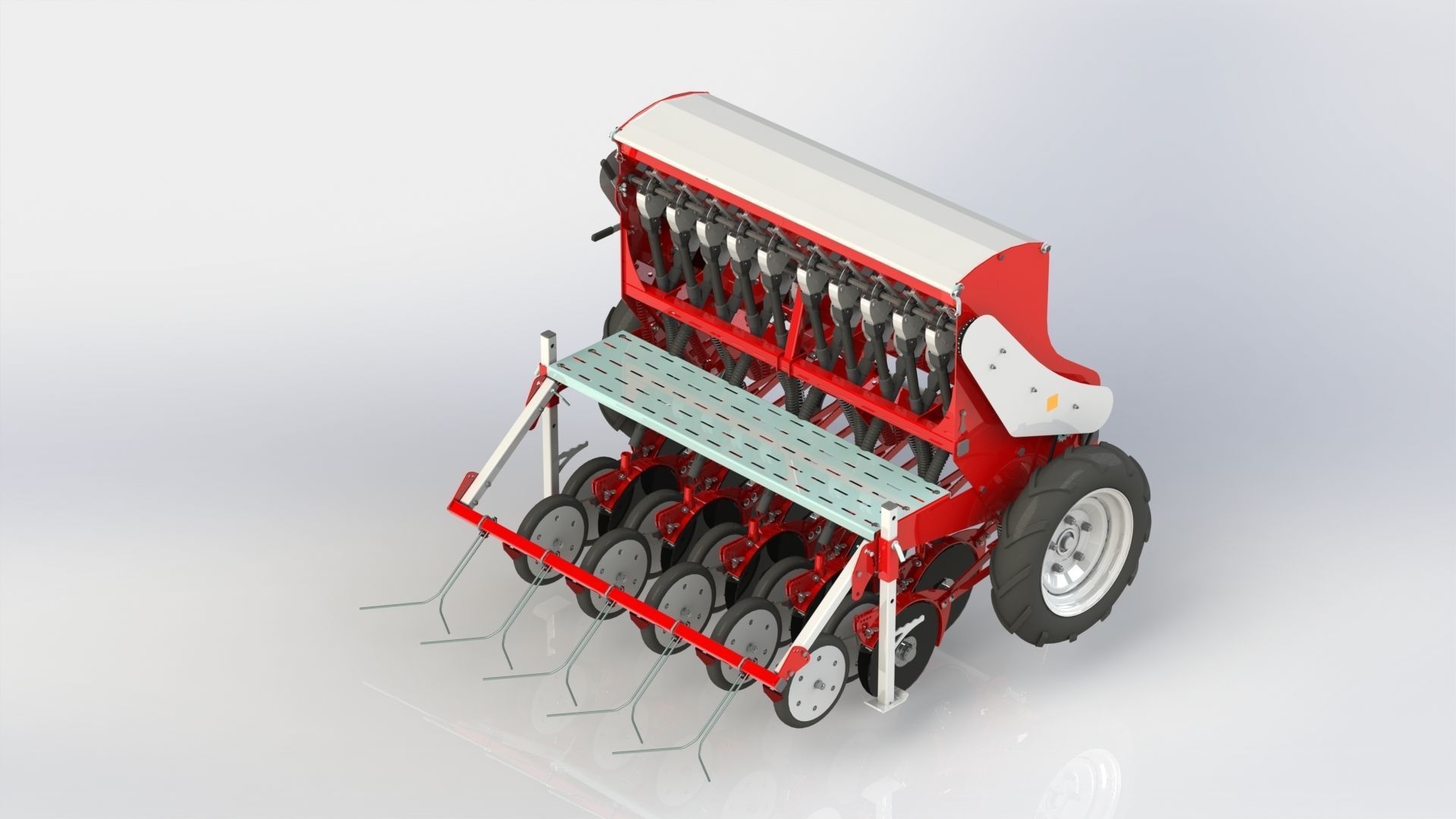

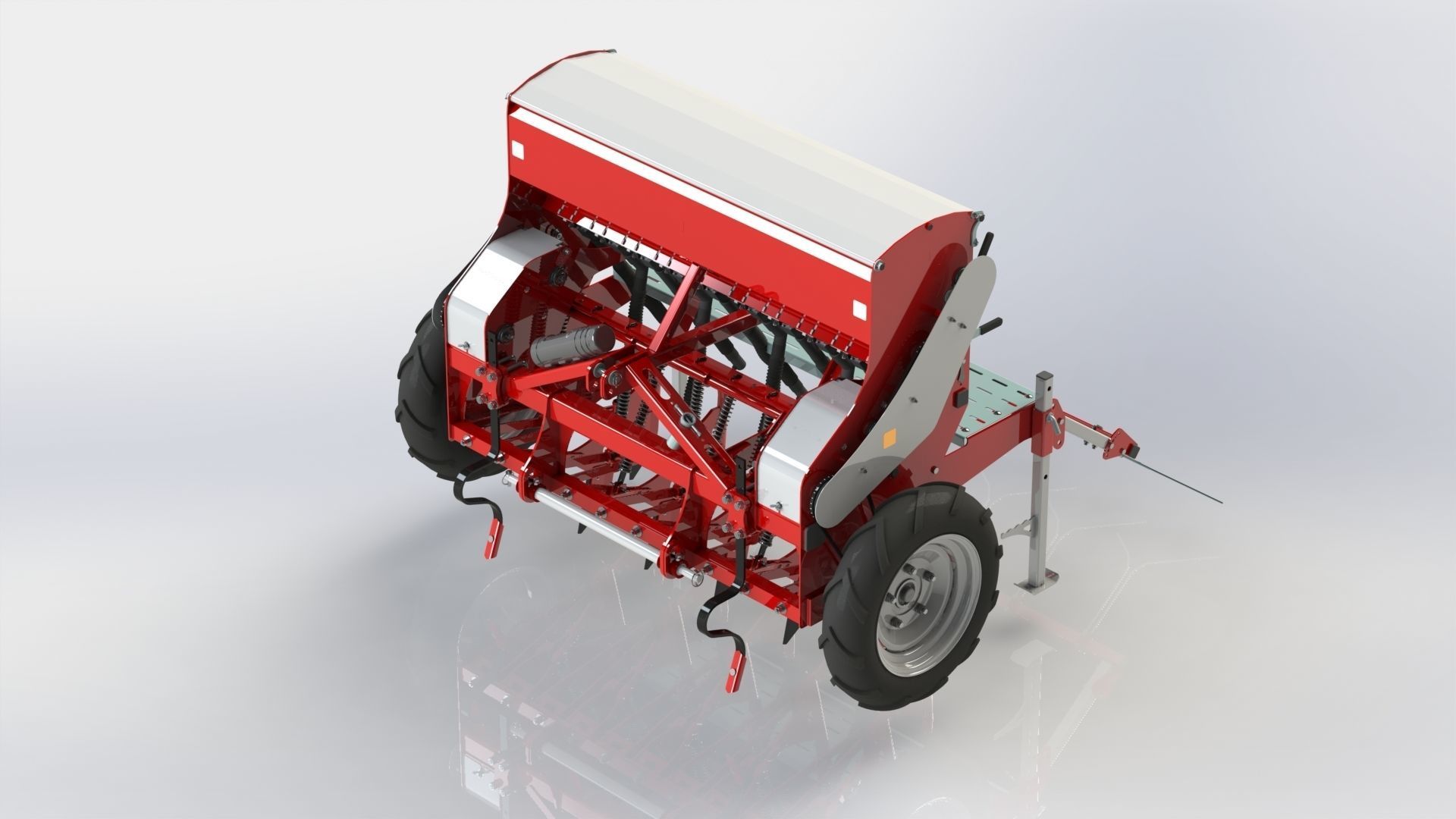

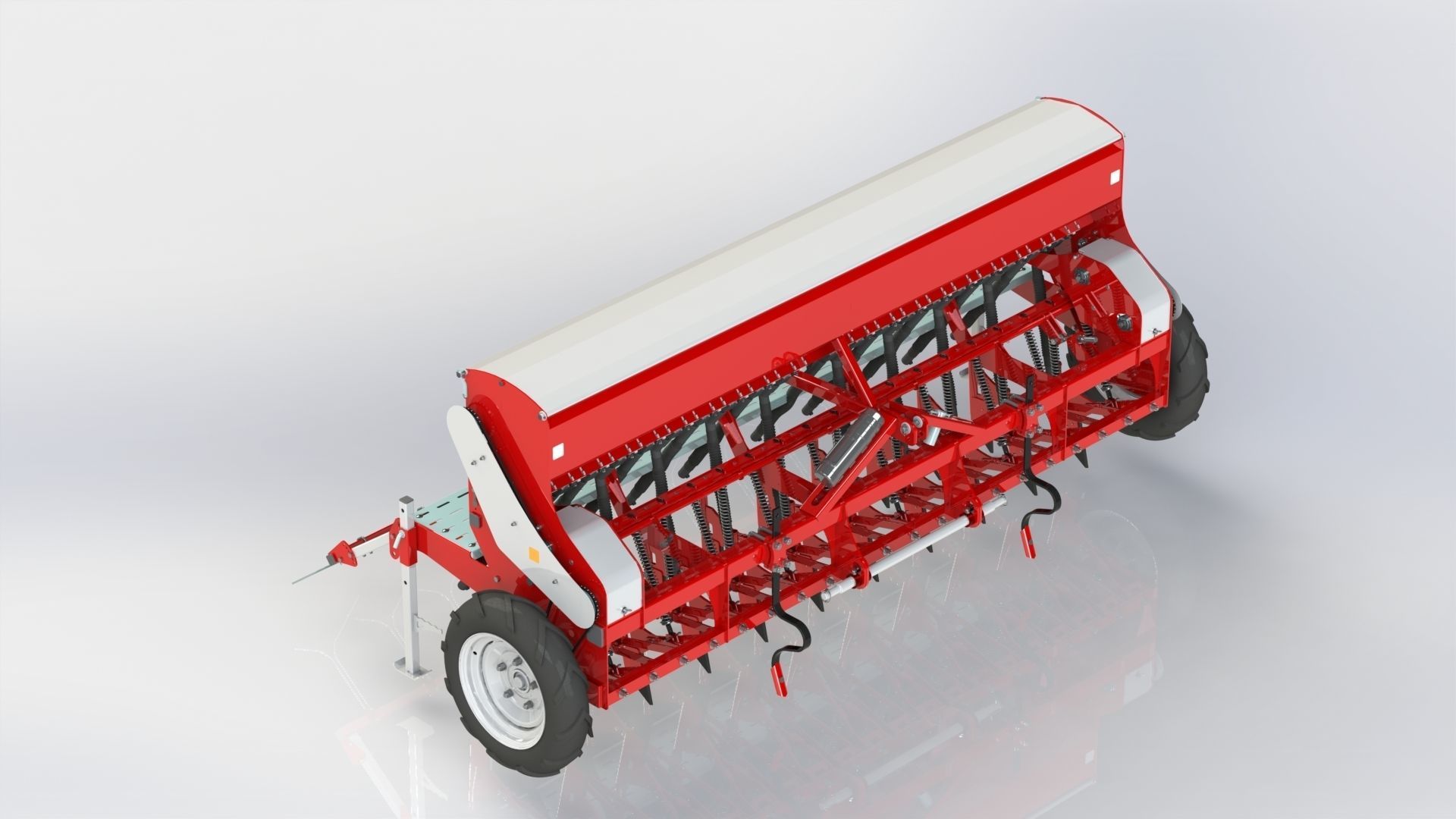

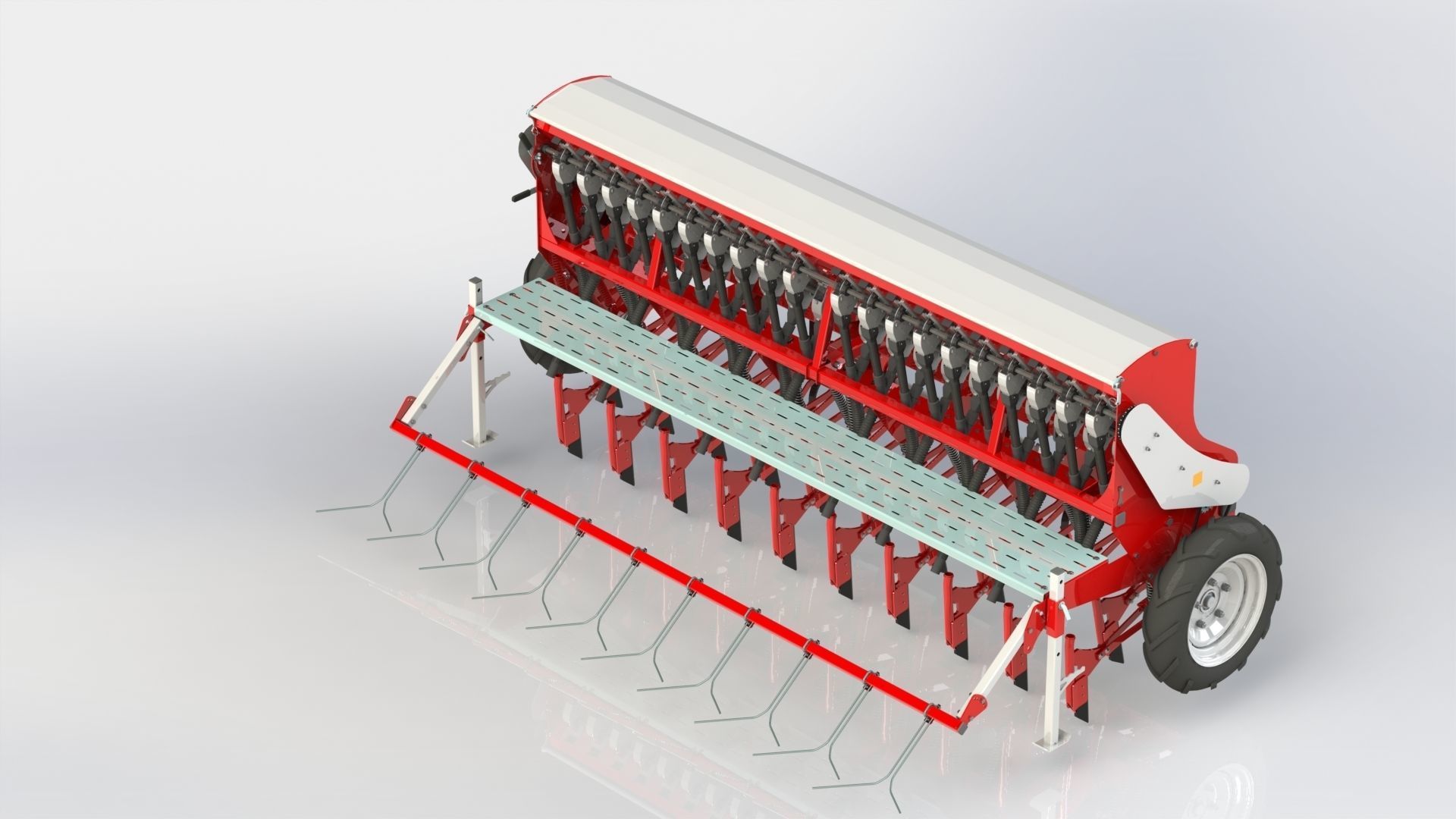

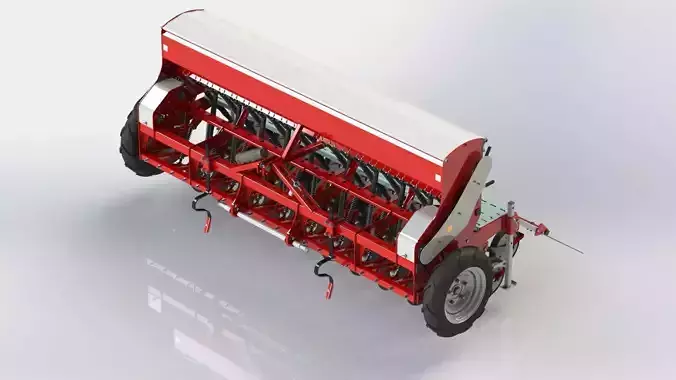

WG 1024 - Mounted mechanical seed drill Low-poly 3D model

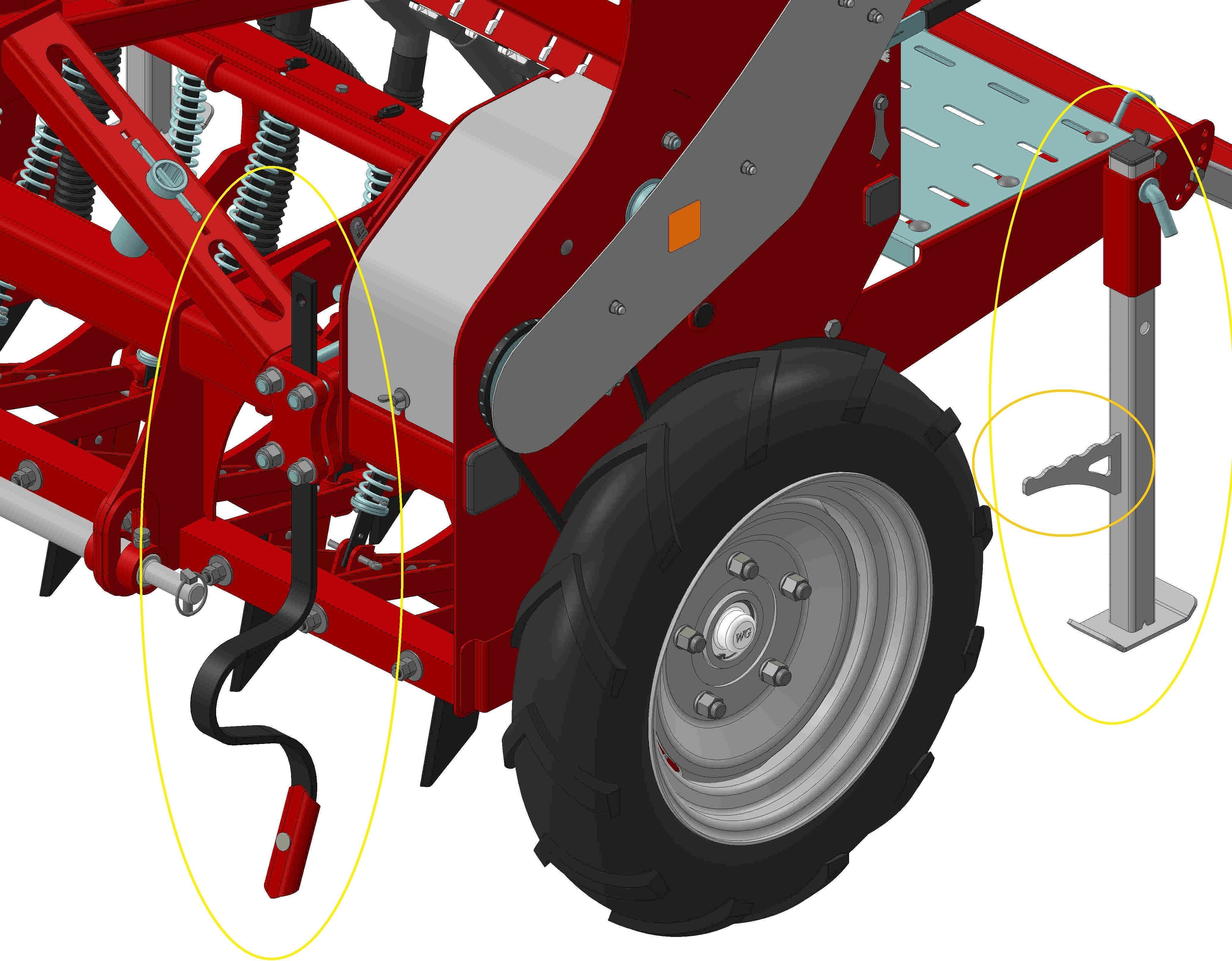

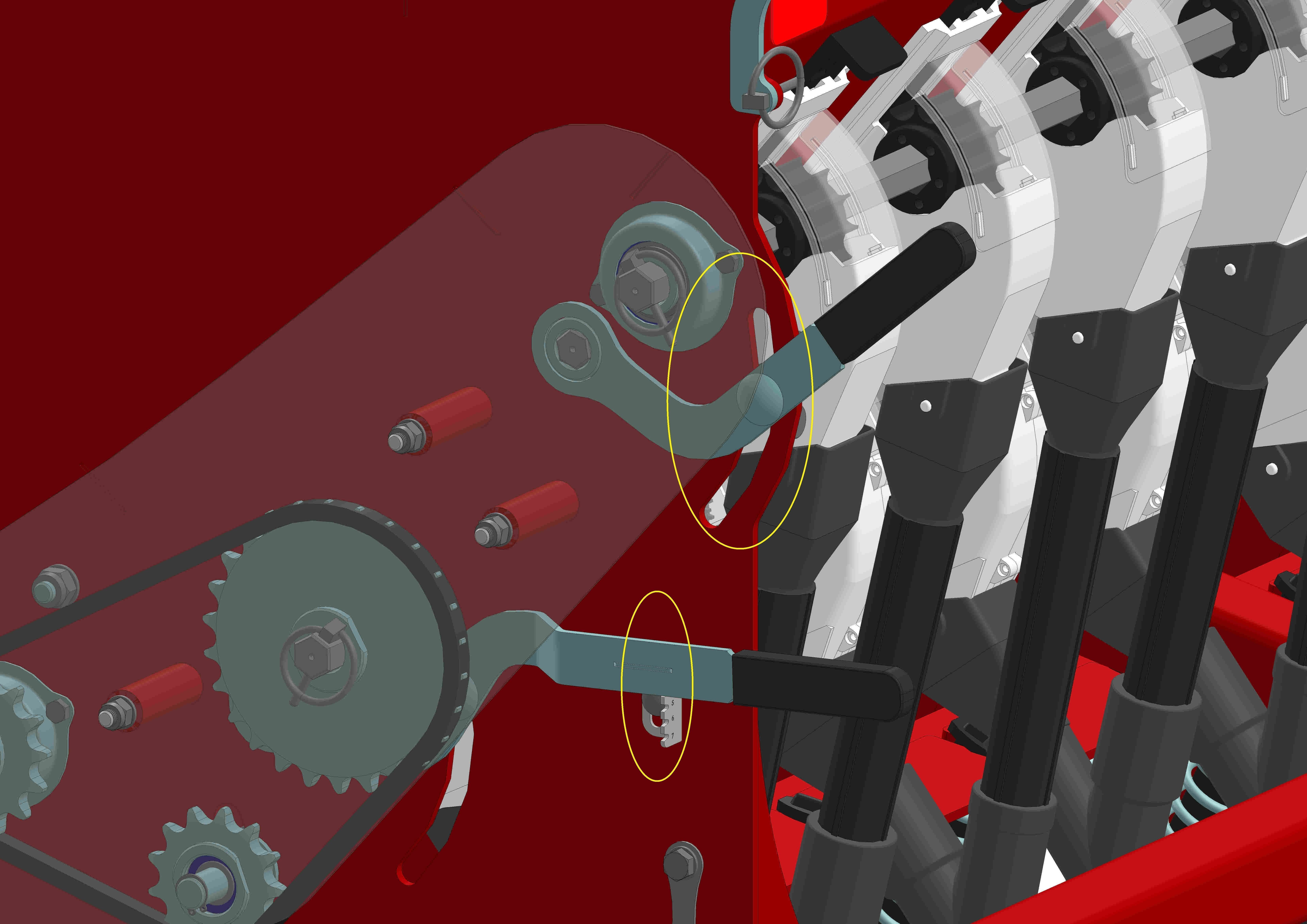

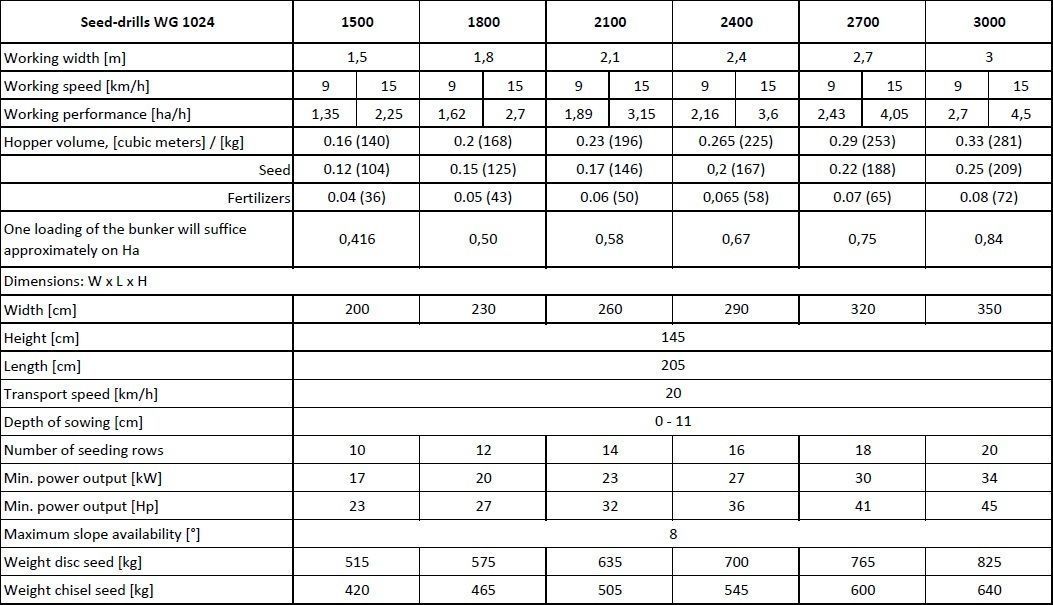

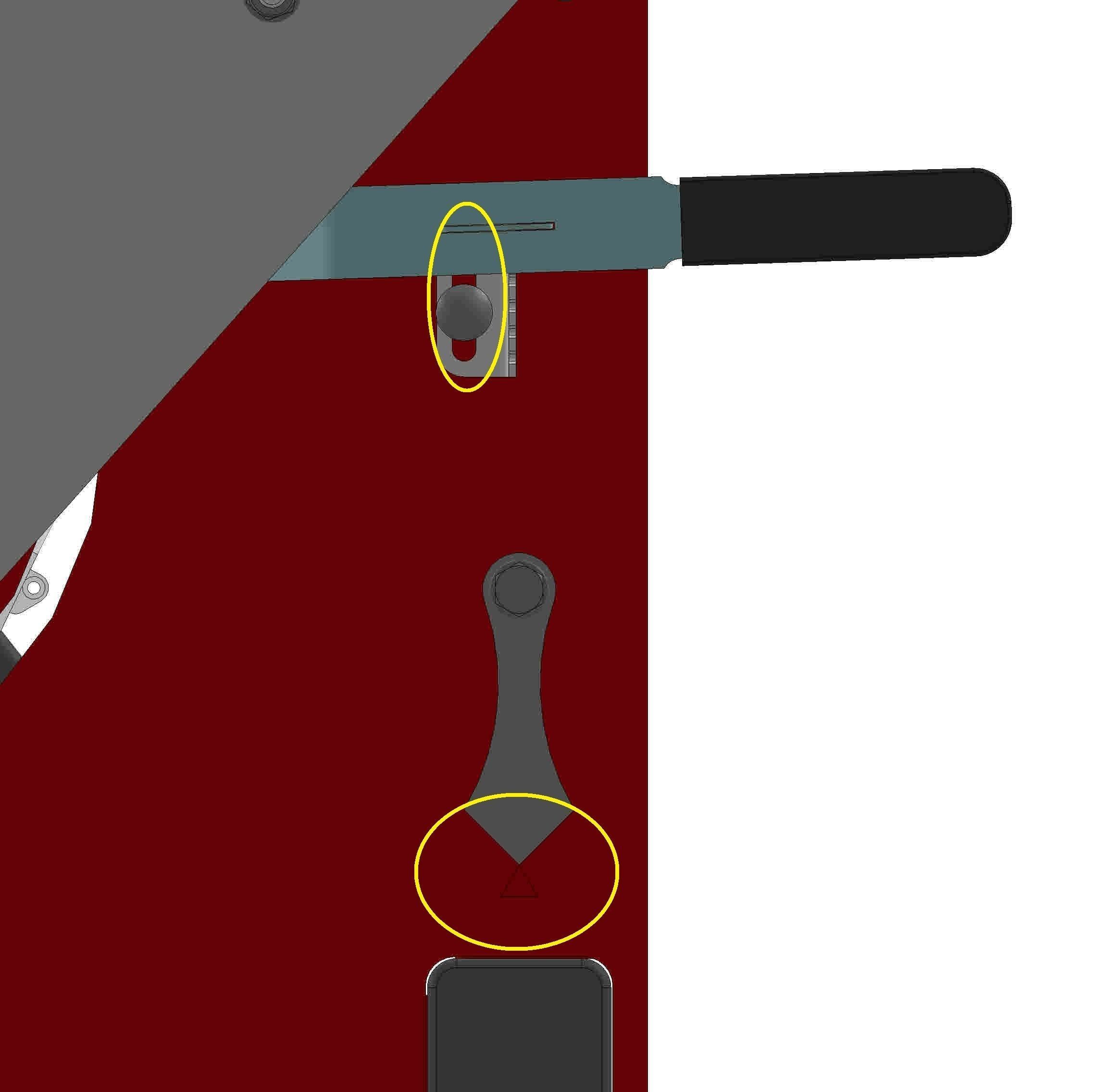

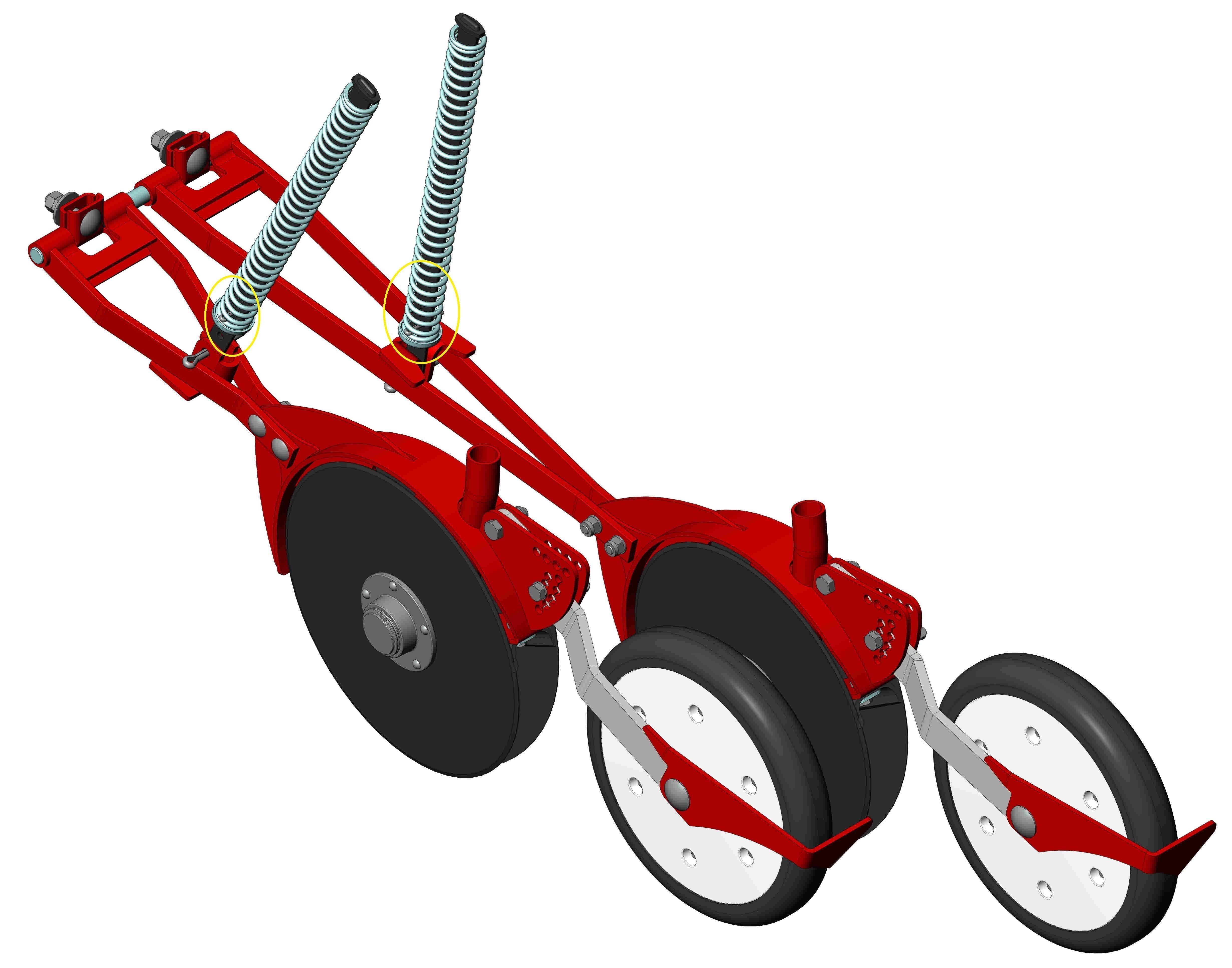

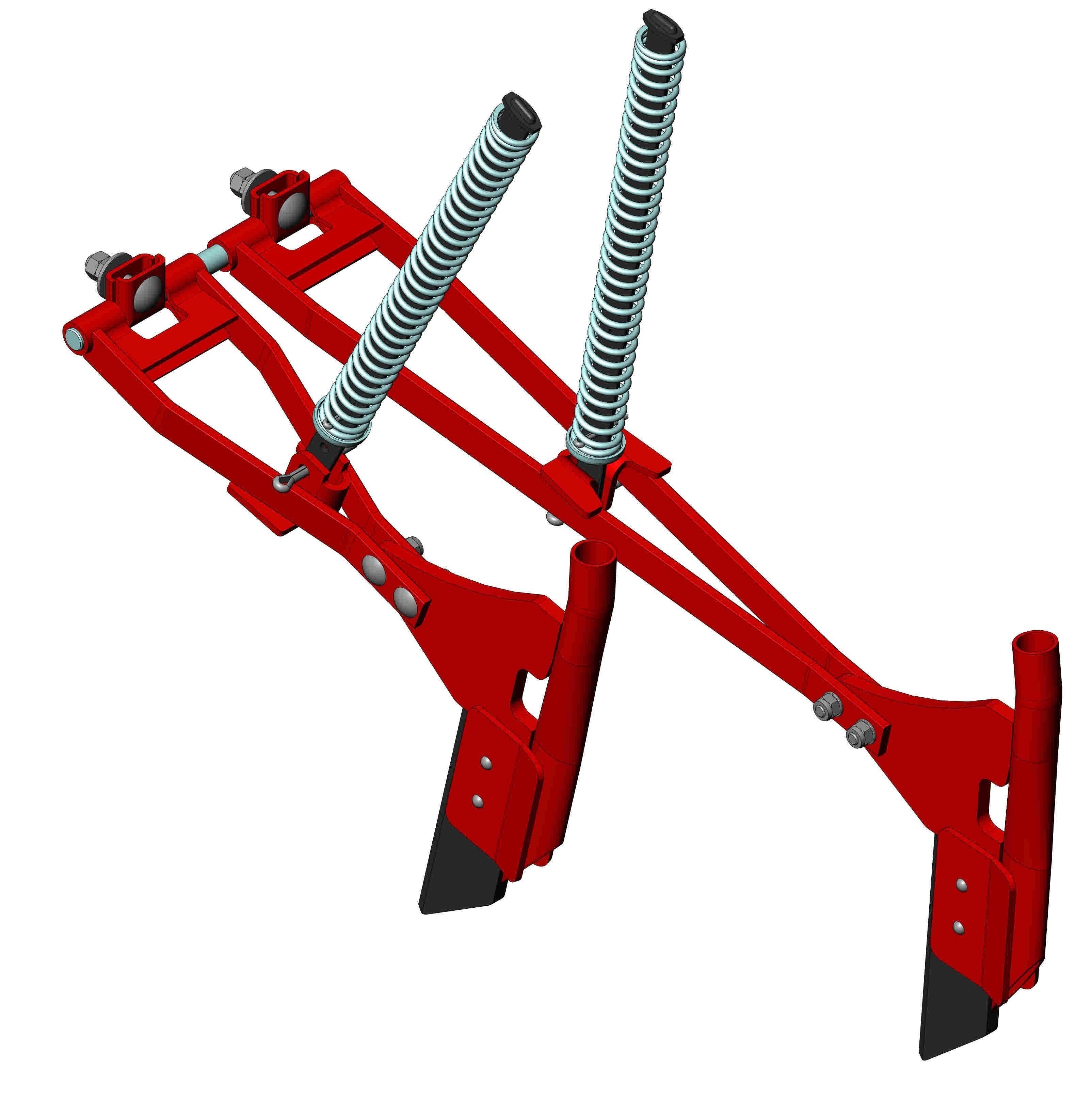

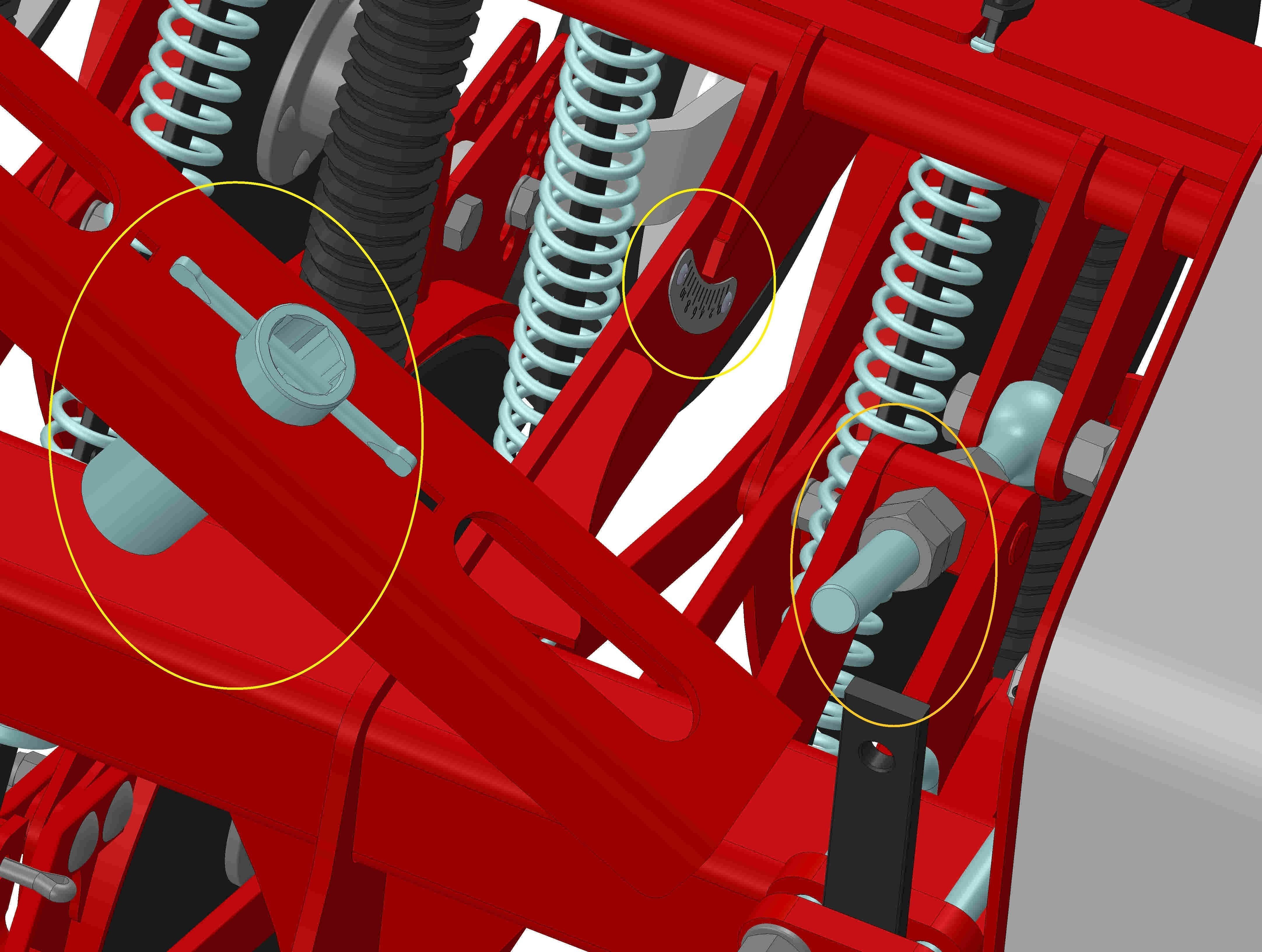

The mounted mechanical seed drill of WG 1024 is intended for sowing of grain crops with a possibility of simultaneous entering of dry fertilizers. A mechanical reducer is used to change the rotation speed of seeding machines. Developed for small and mini tractors. May have a disc or anchor coulter. Adjustment of sowing depth - using screws. The coulter battery is mounted on rubber dampers. This lot consists of 6 drills with a width of capture from 1,5 to 3,0 meters (1500, 1800, 2100, 2400, 2700, 3000 mm).

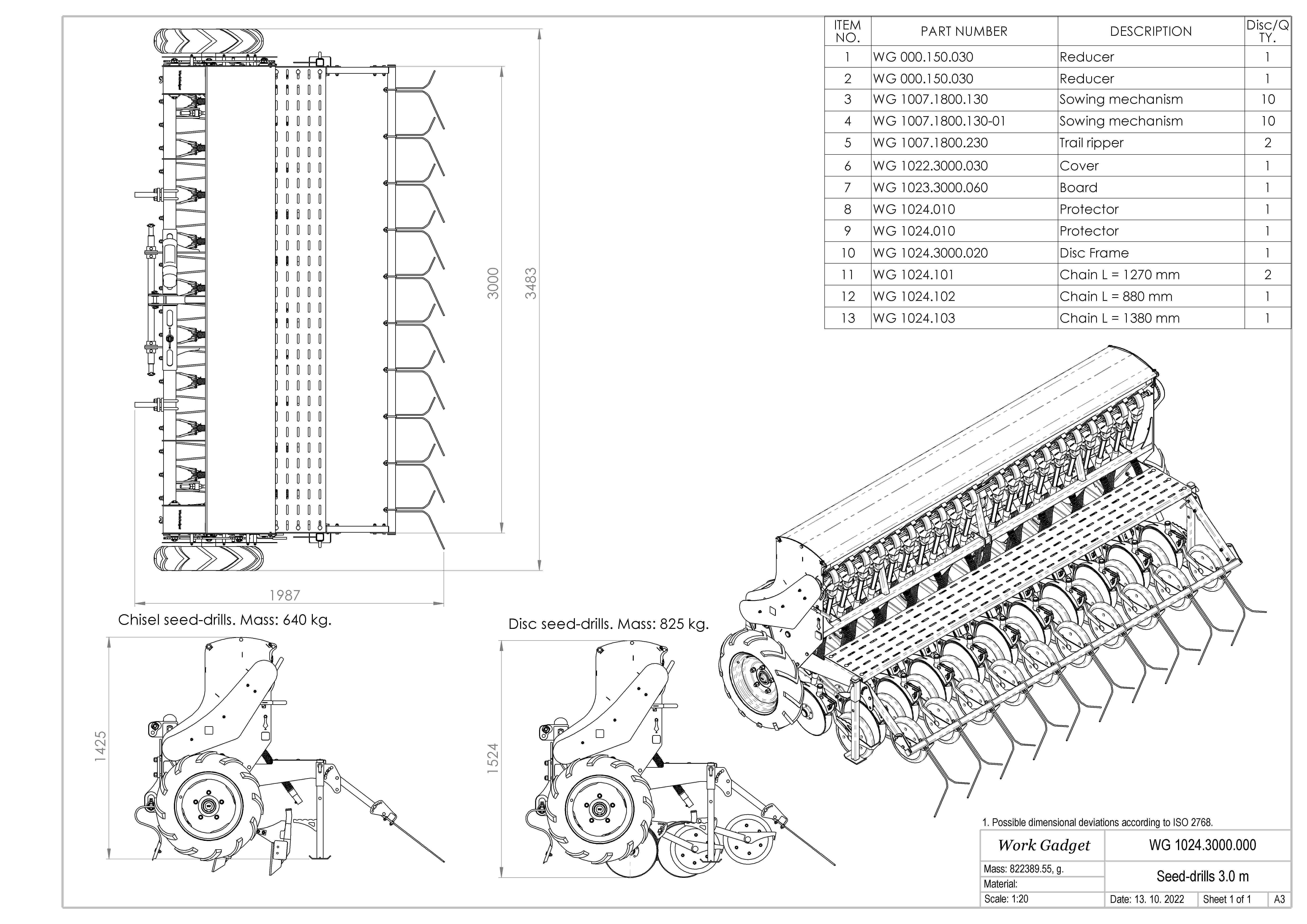

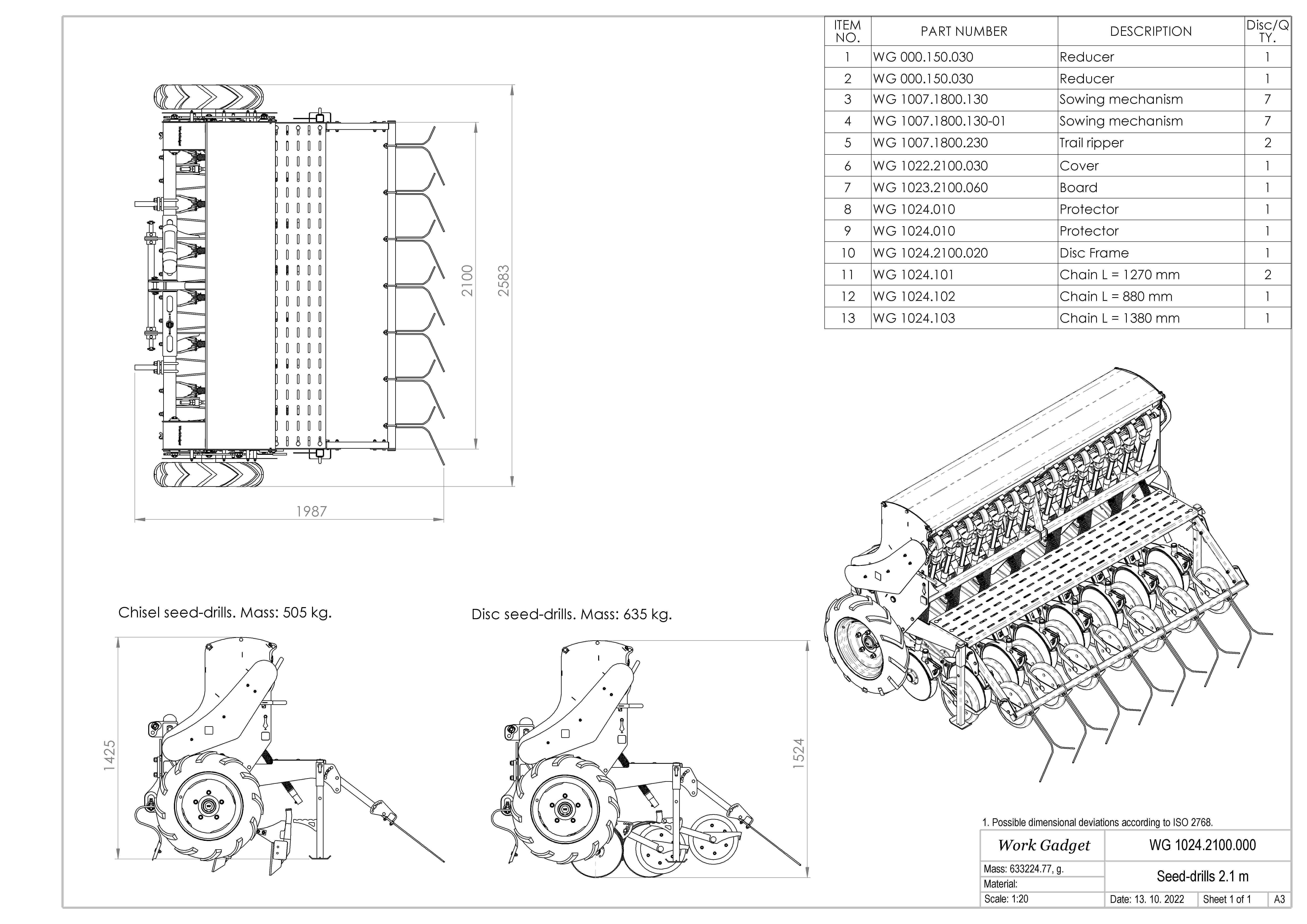

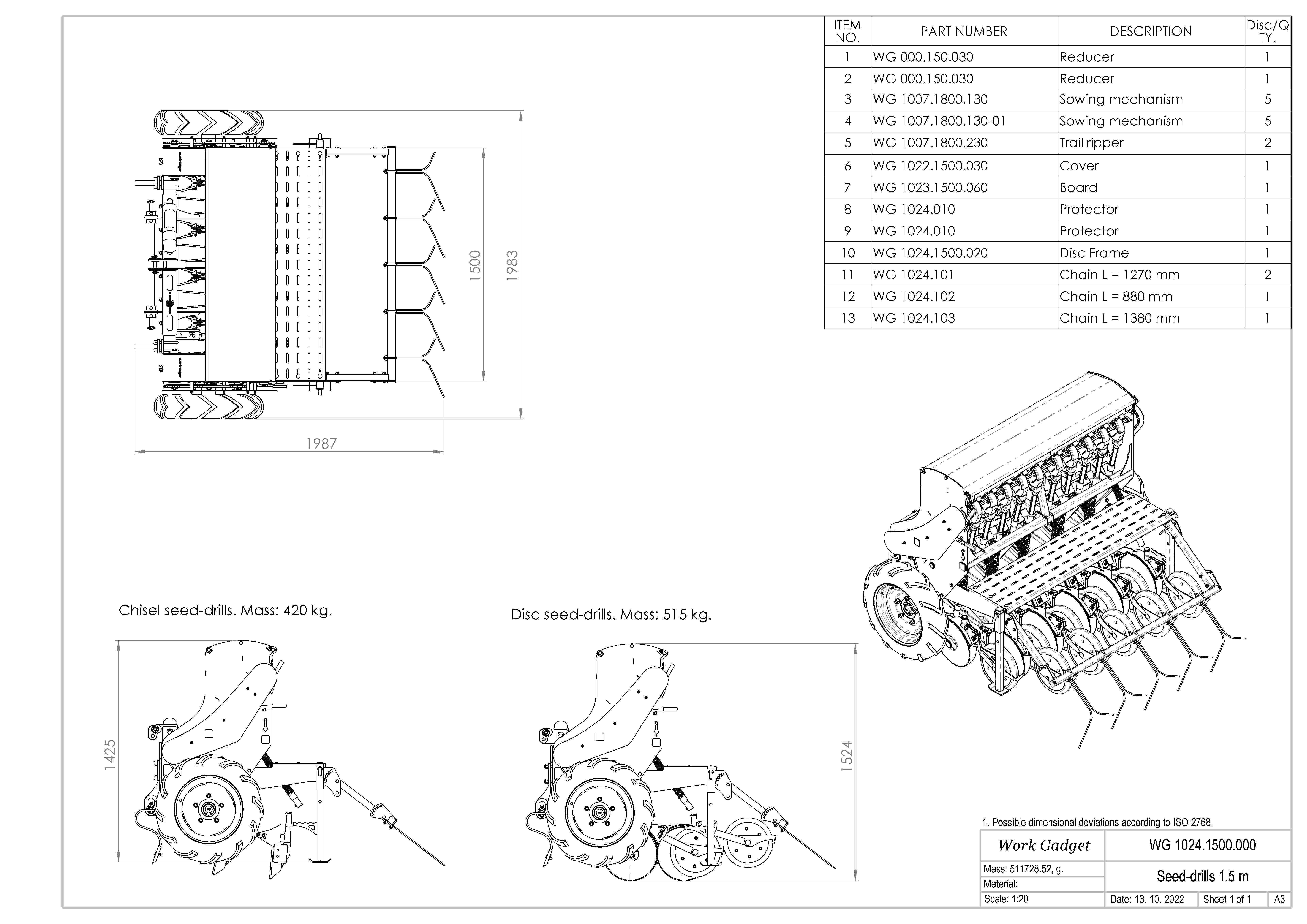

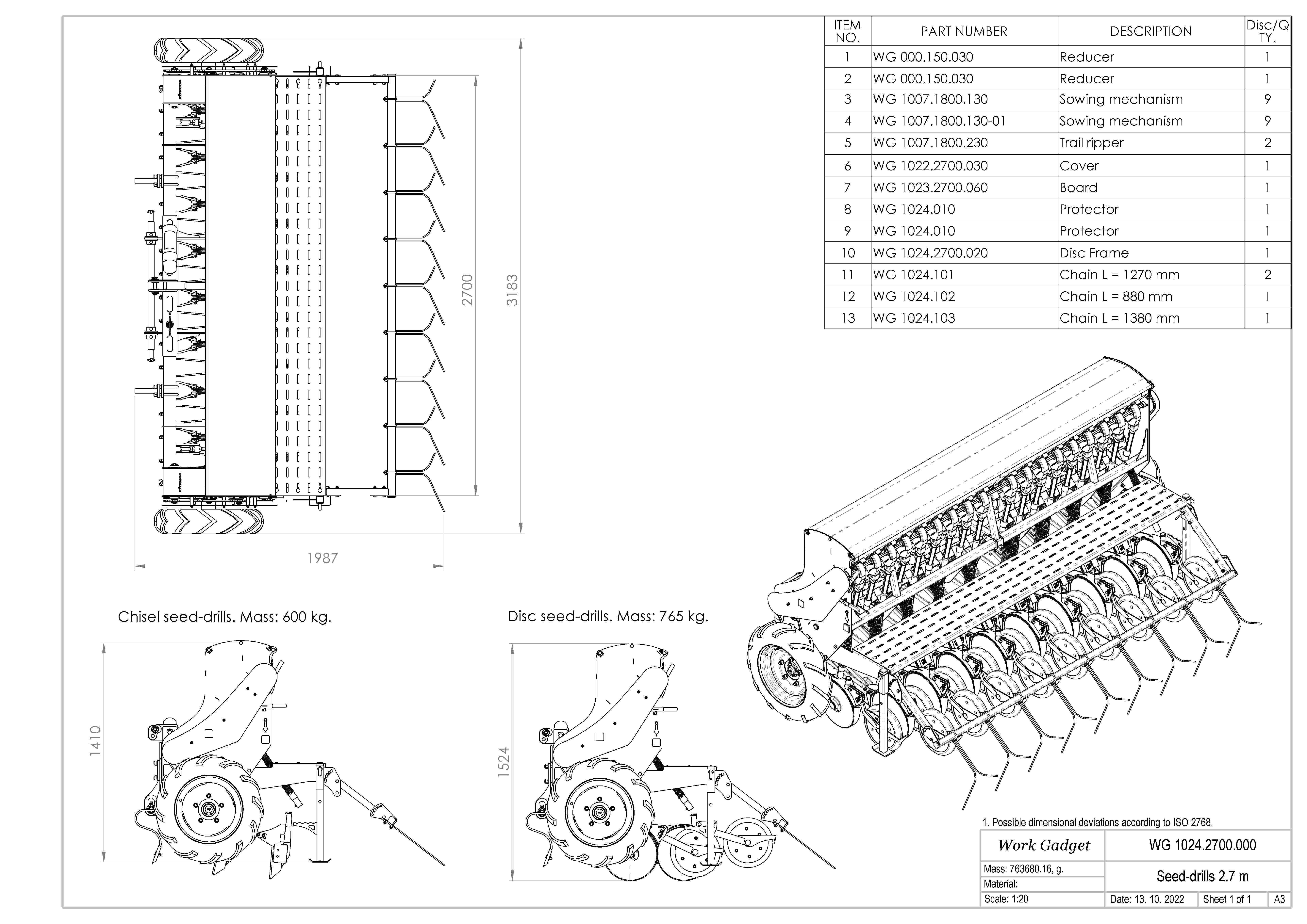

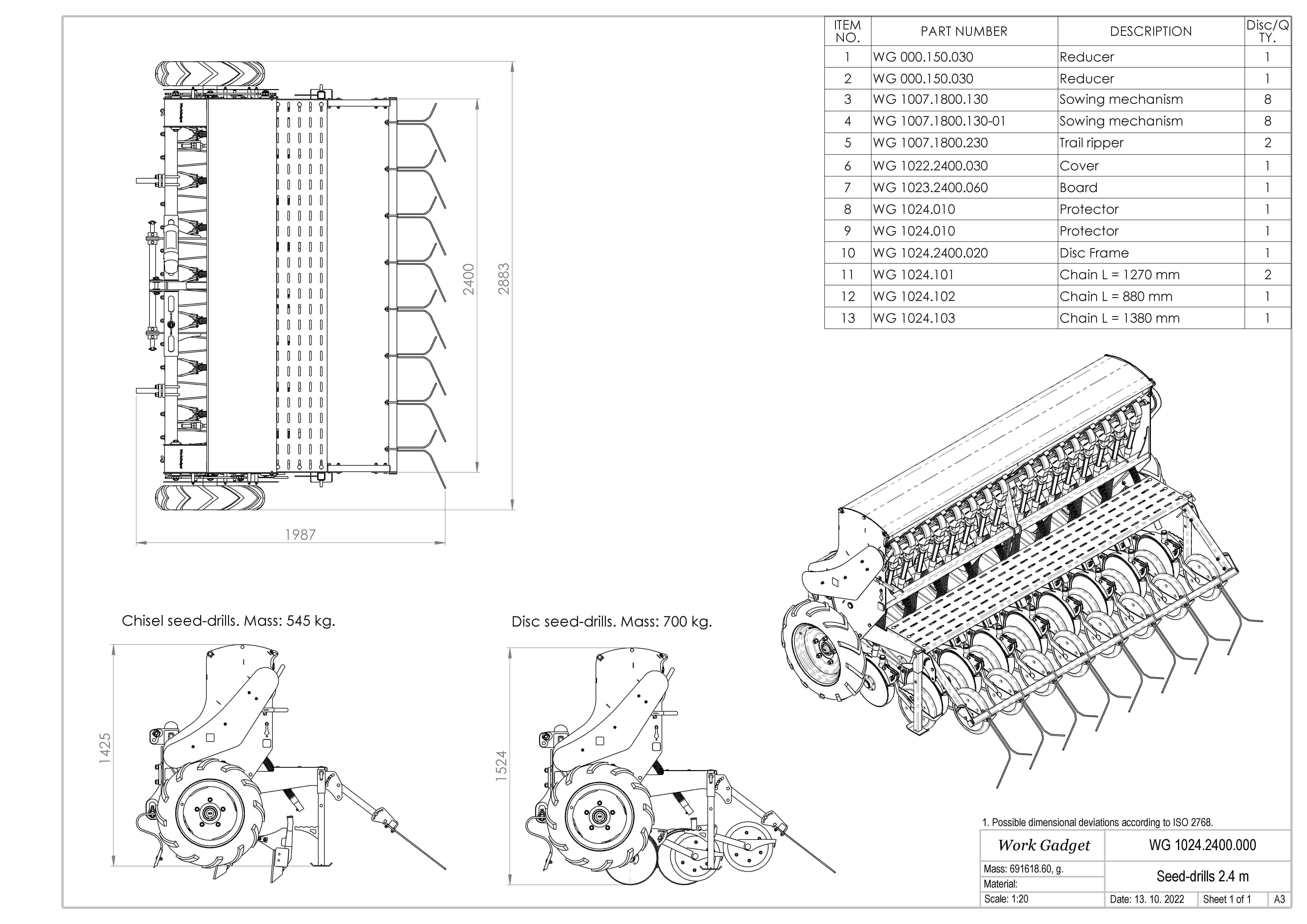

Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production! Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

The lot DOES NOT CONTAIN SolidWorks documents and drawings! If you are interested in the full set of documentation, please contact us via private messages, and we will arrange to adapt the drawings to the capabilities of your production.

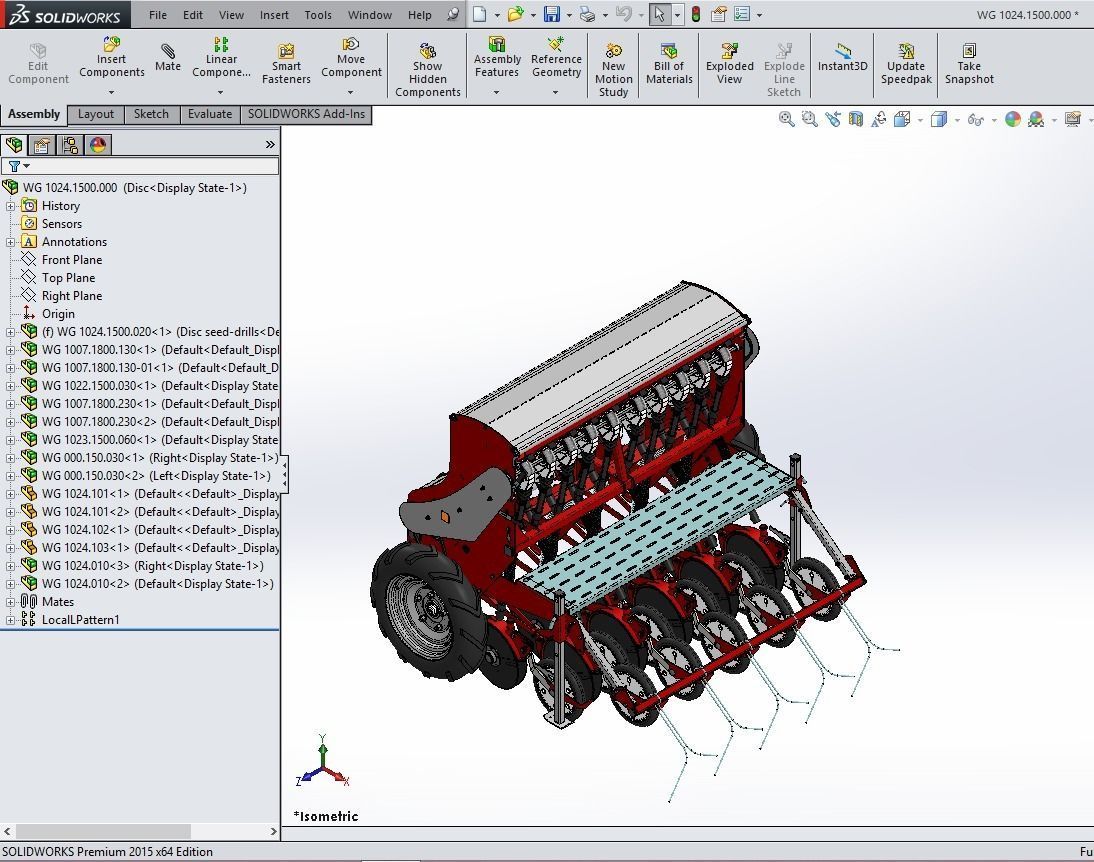

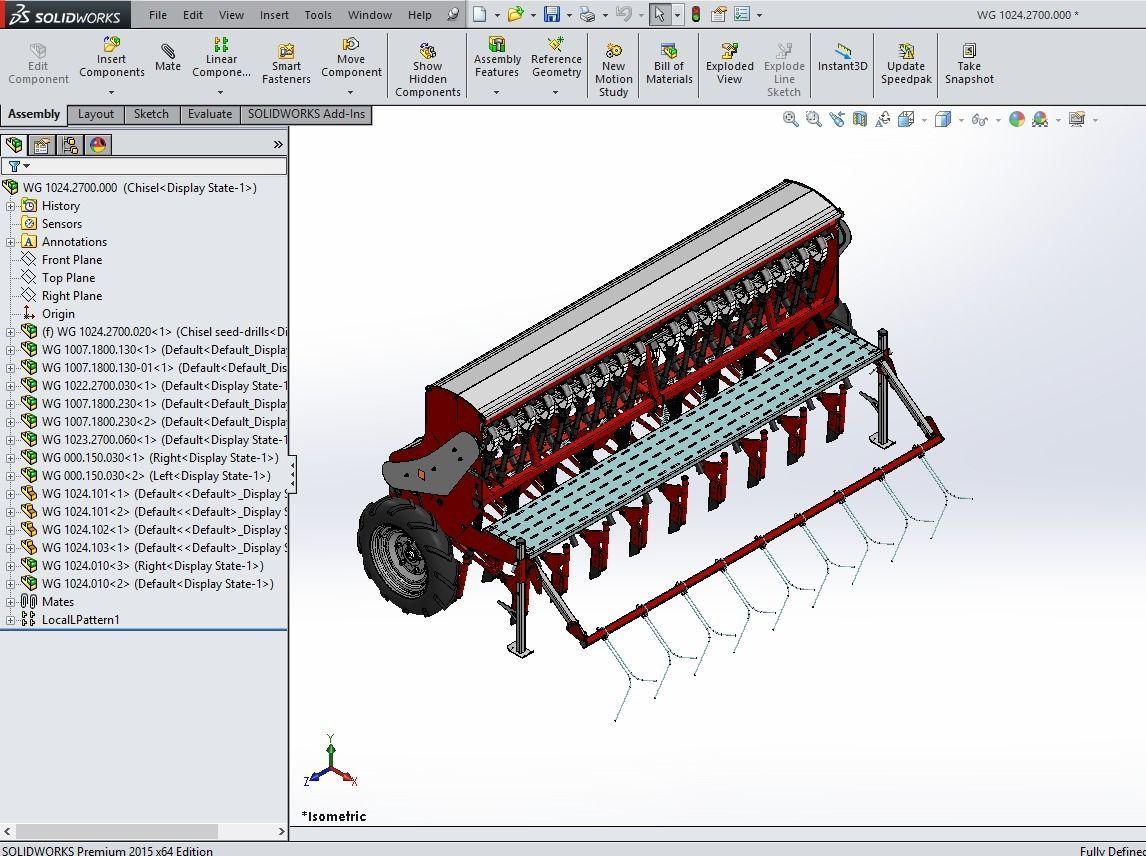

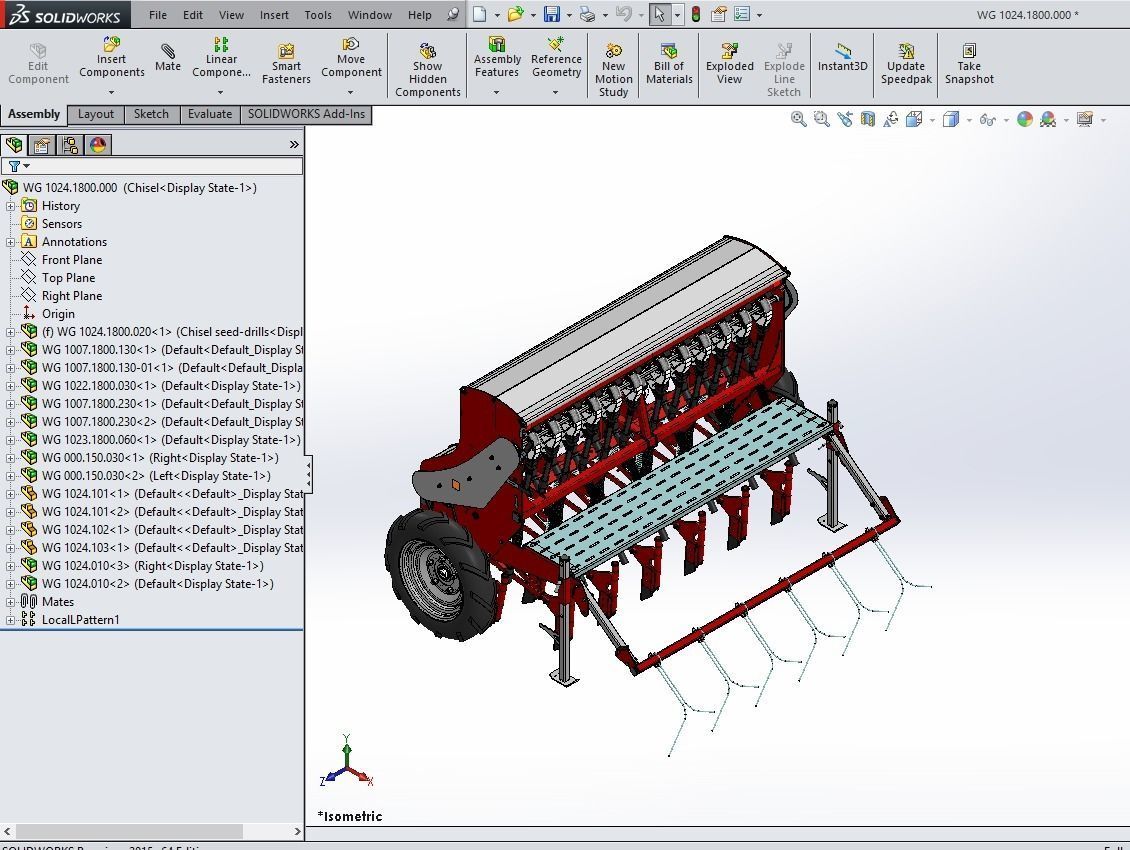

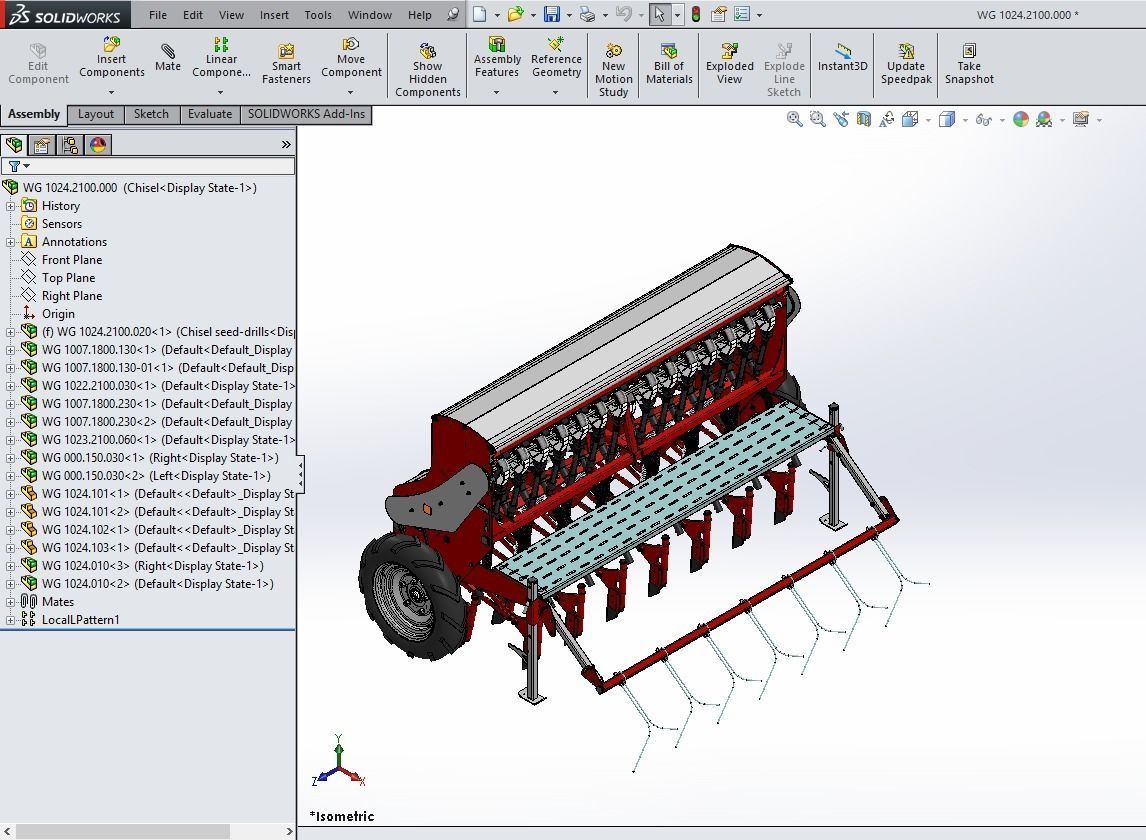

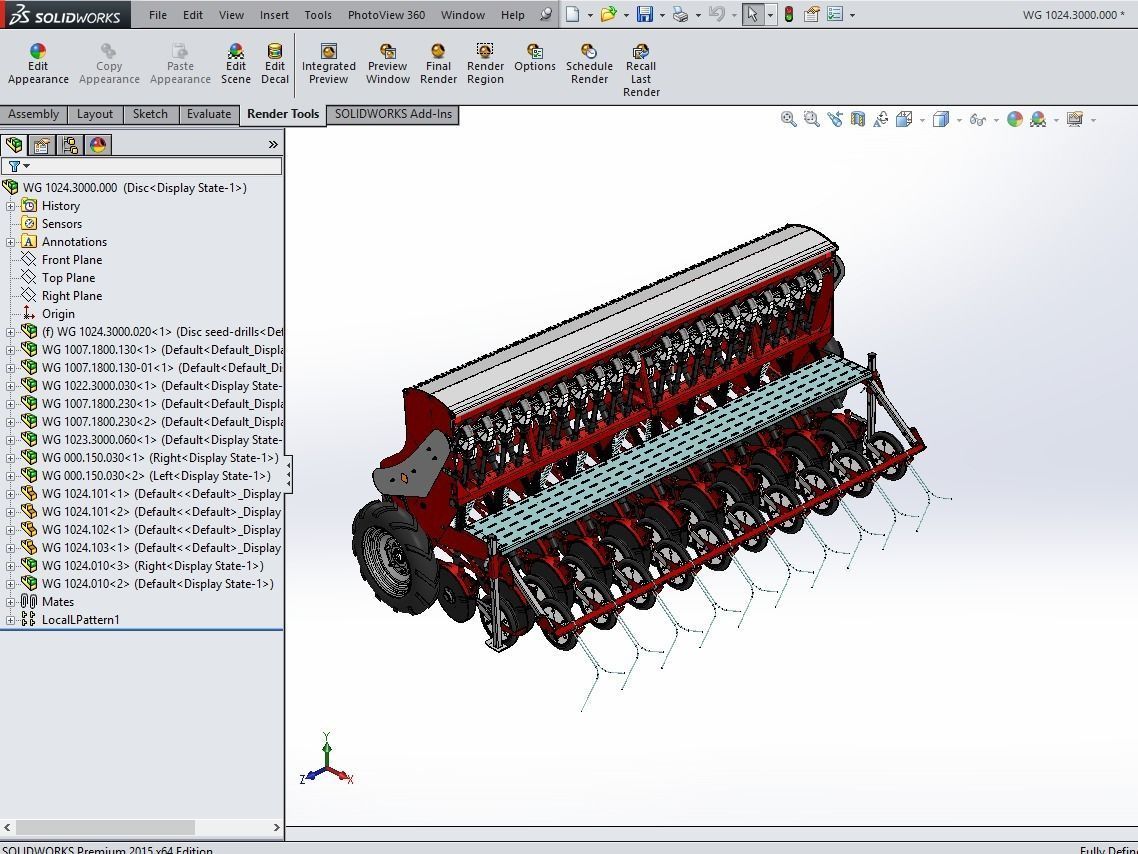

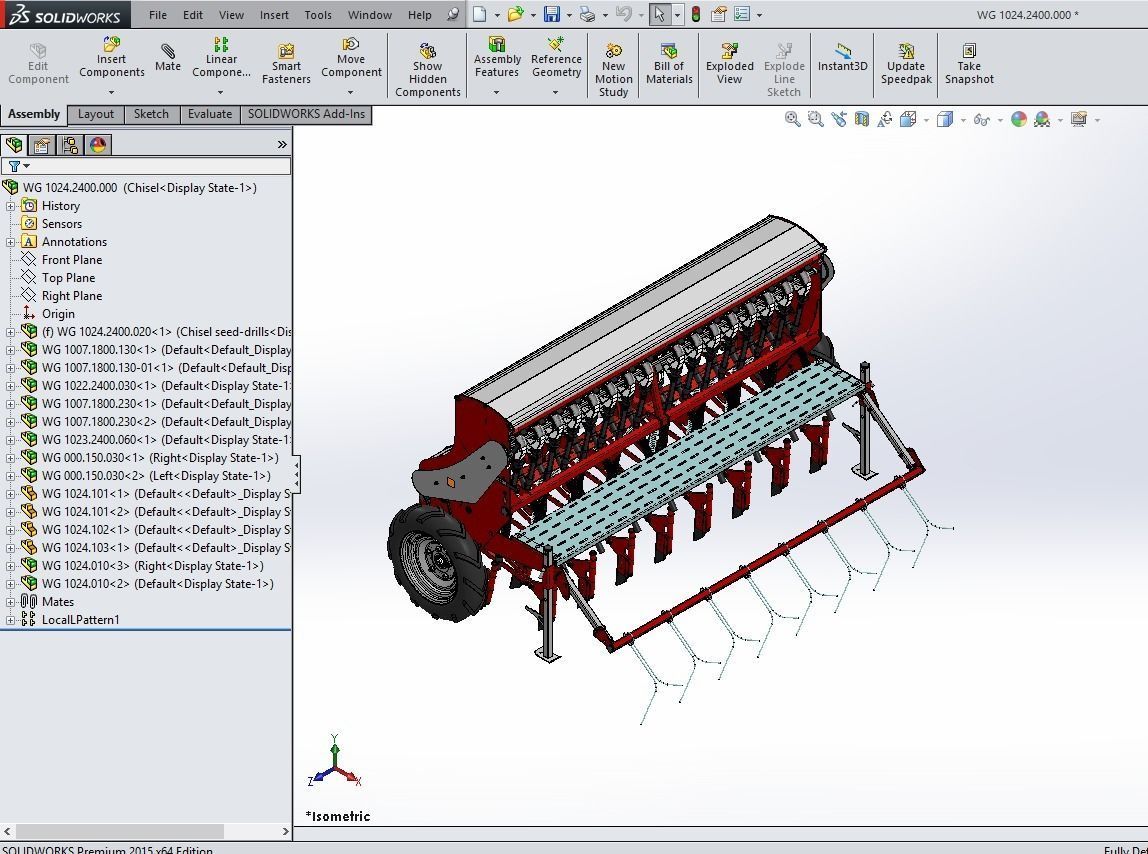

Modeled in SolidWorks 2020. The model contains the most popular formats: IGES: *.iges *.igs STEP: *.step *.stp Stereolithography: *.stl
