WG 1023 - Mounted mechanical seed drill

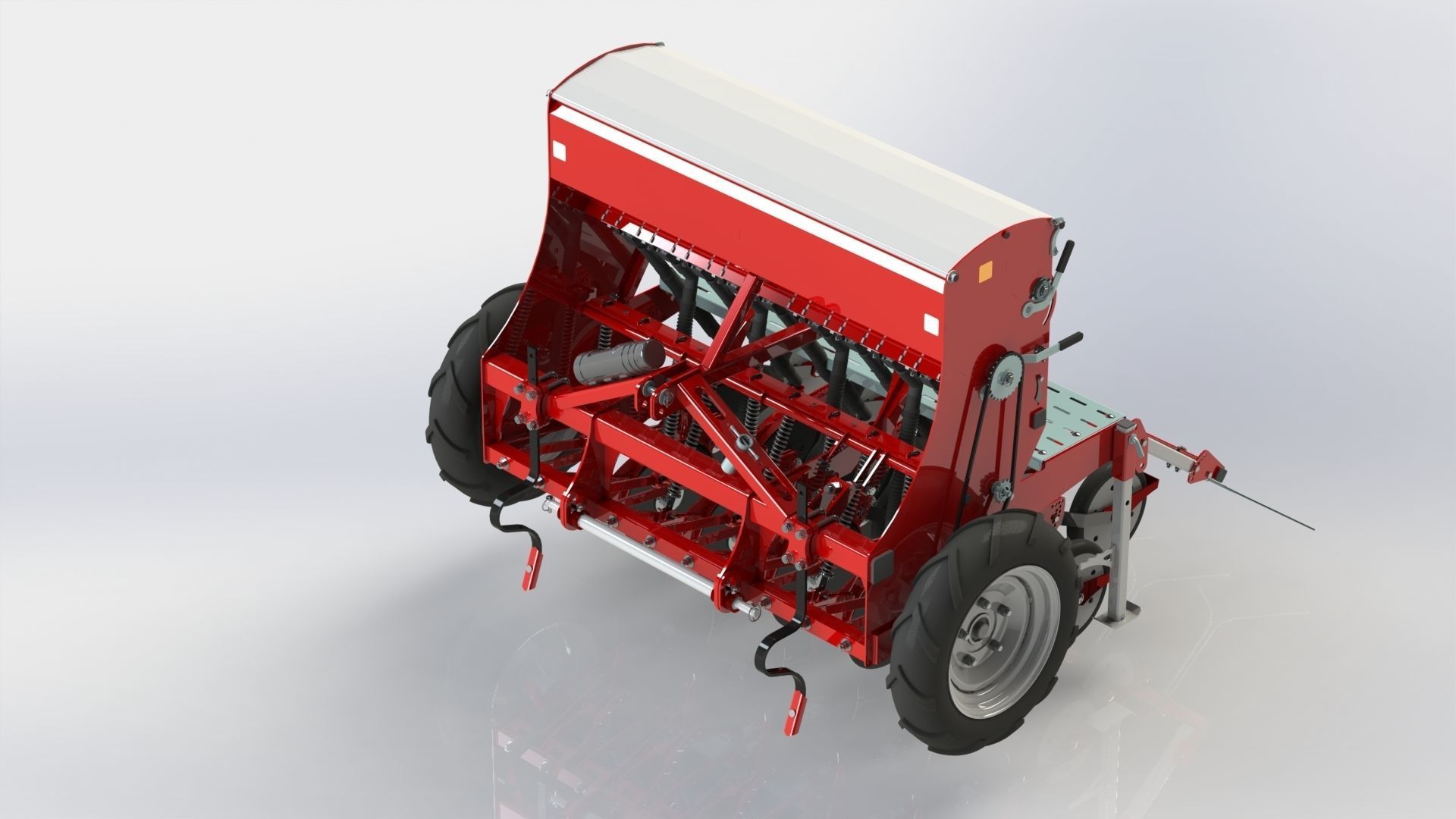

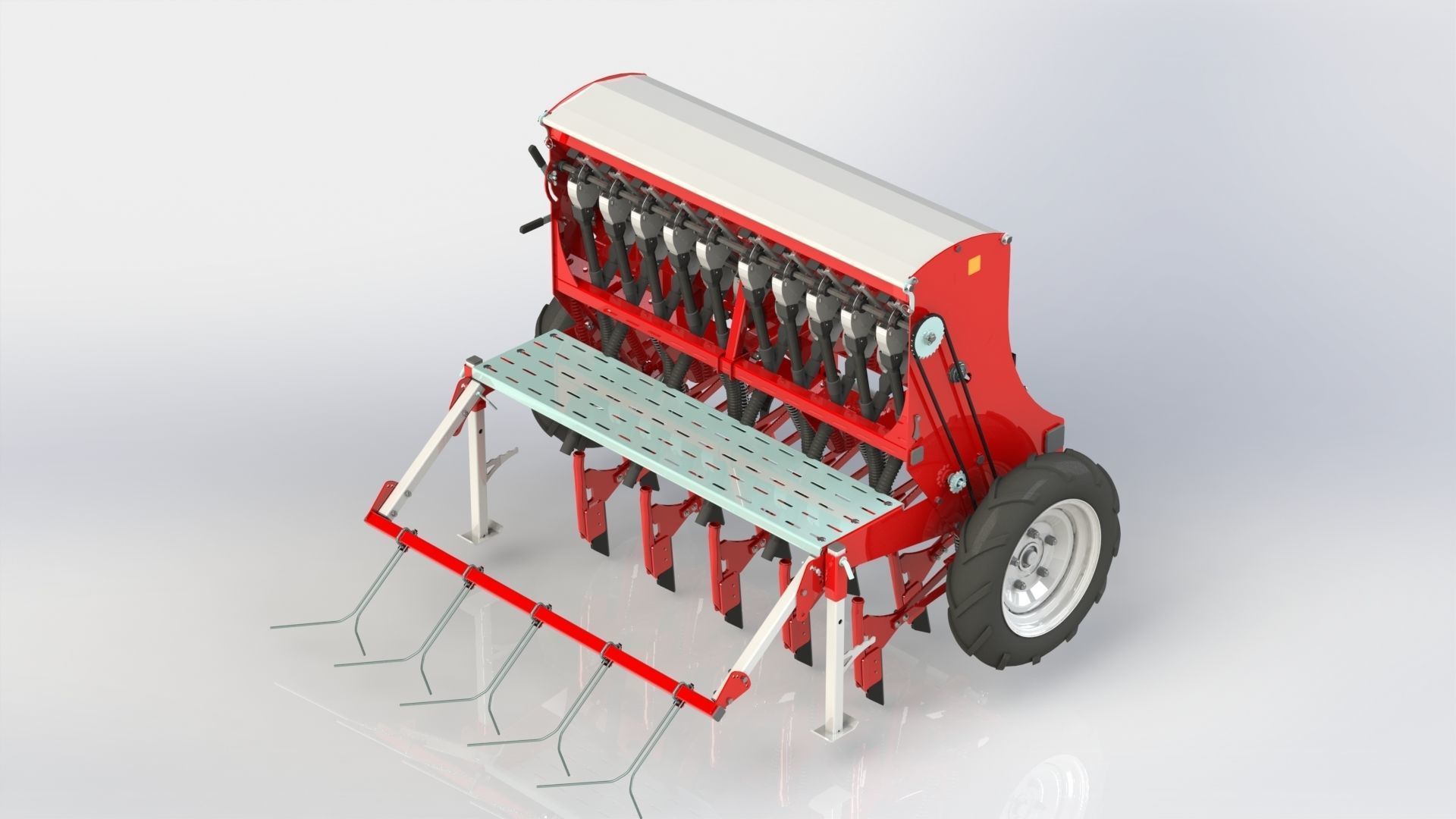

WG 1023 - Mounted mechanical seed drill Low-poly 3D model

Description

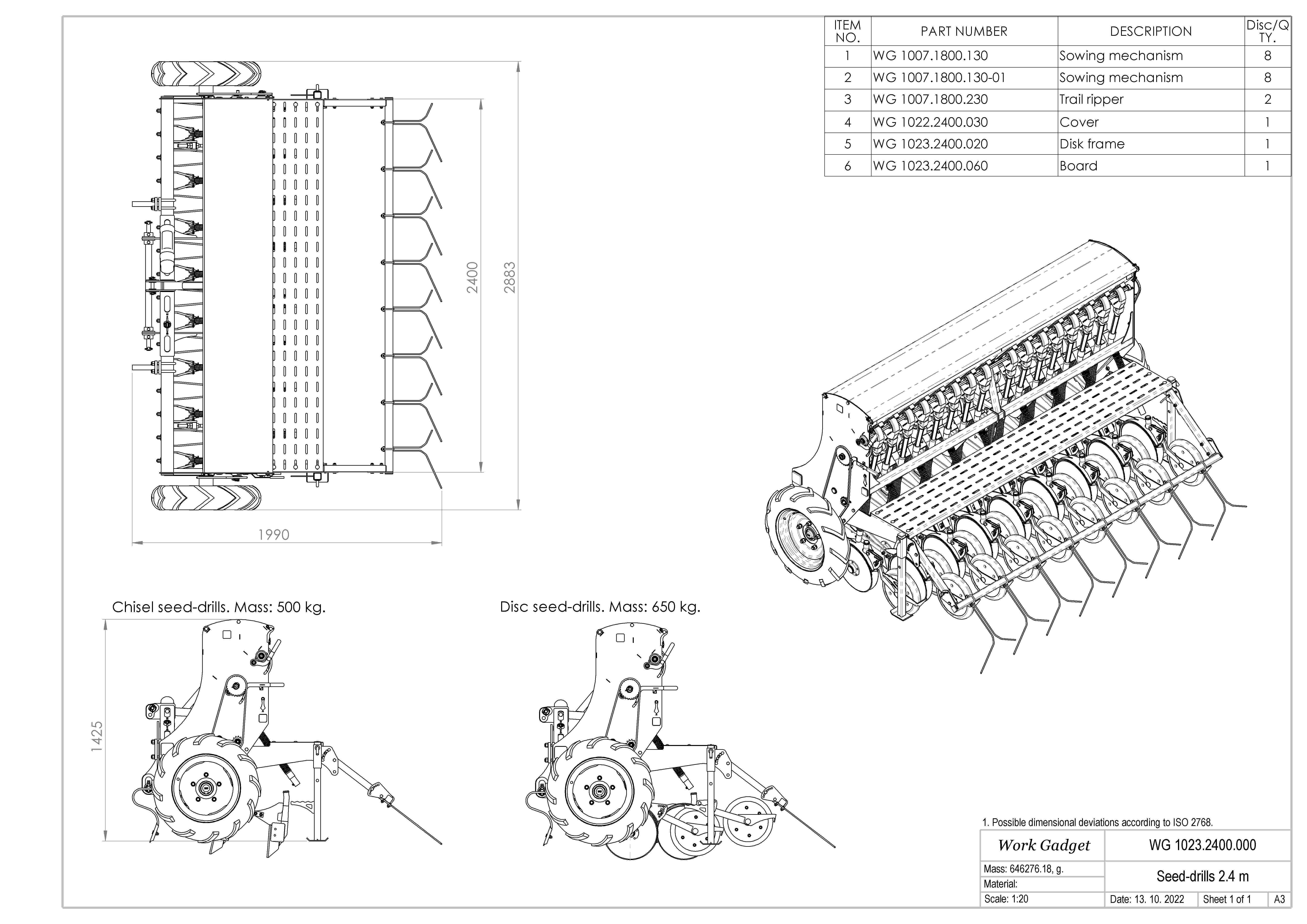

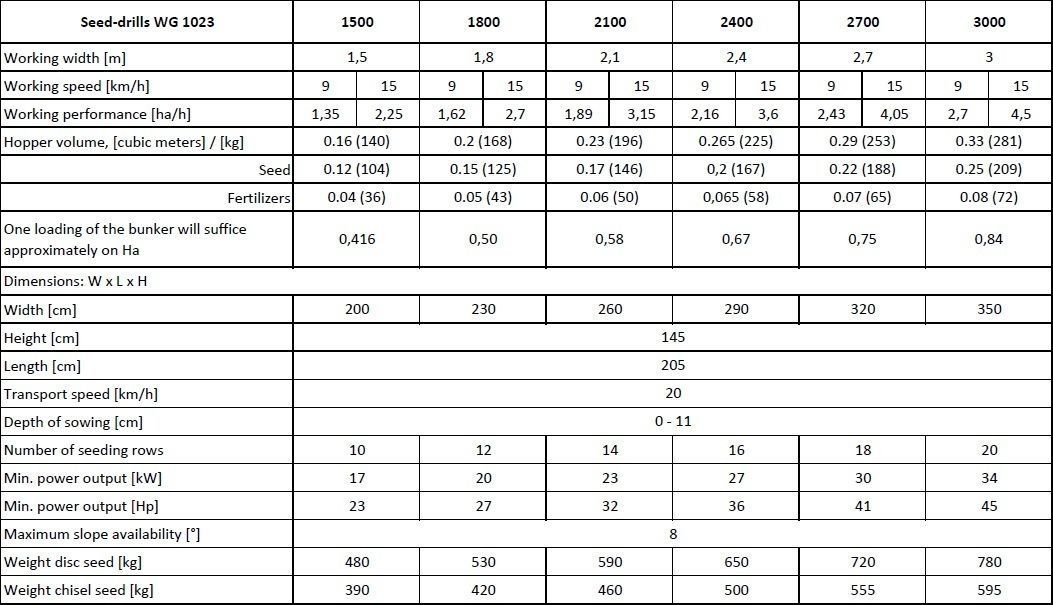

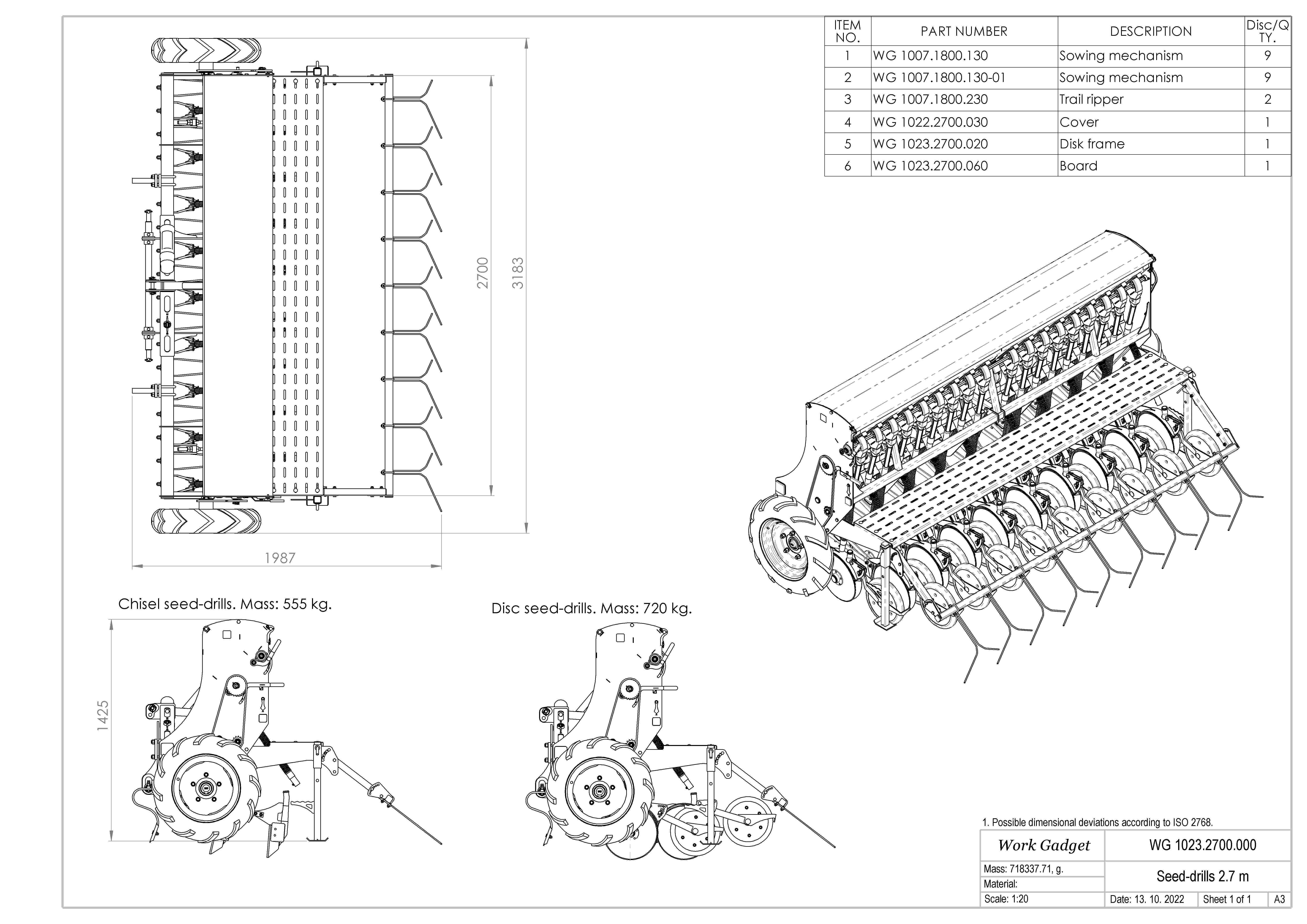

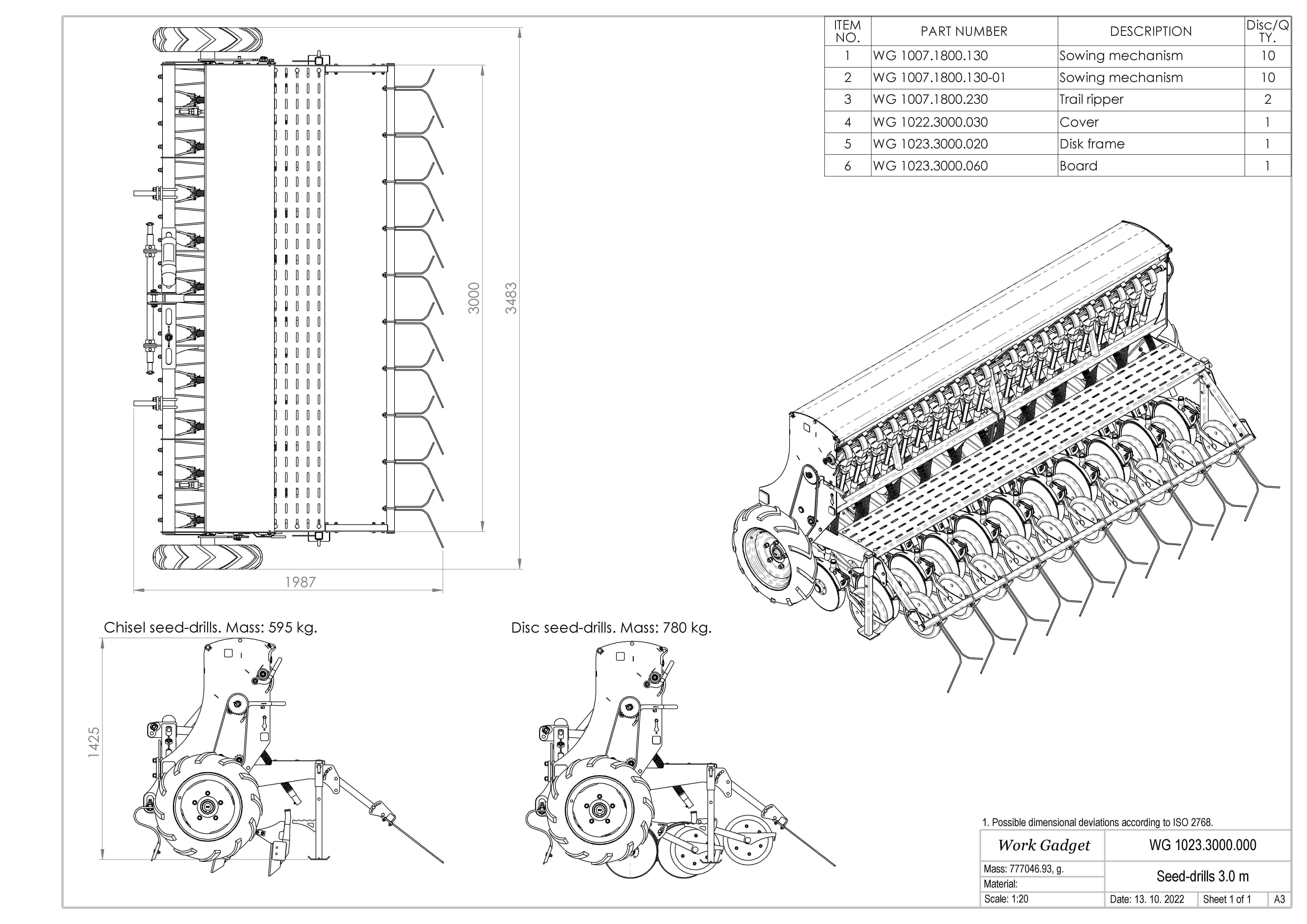

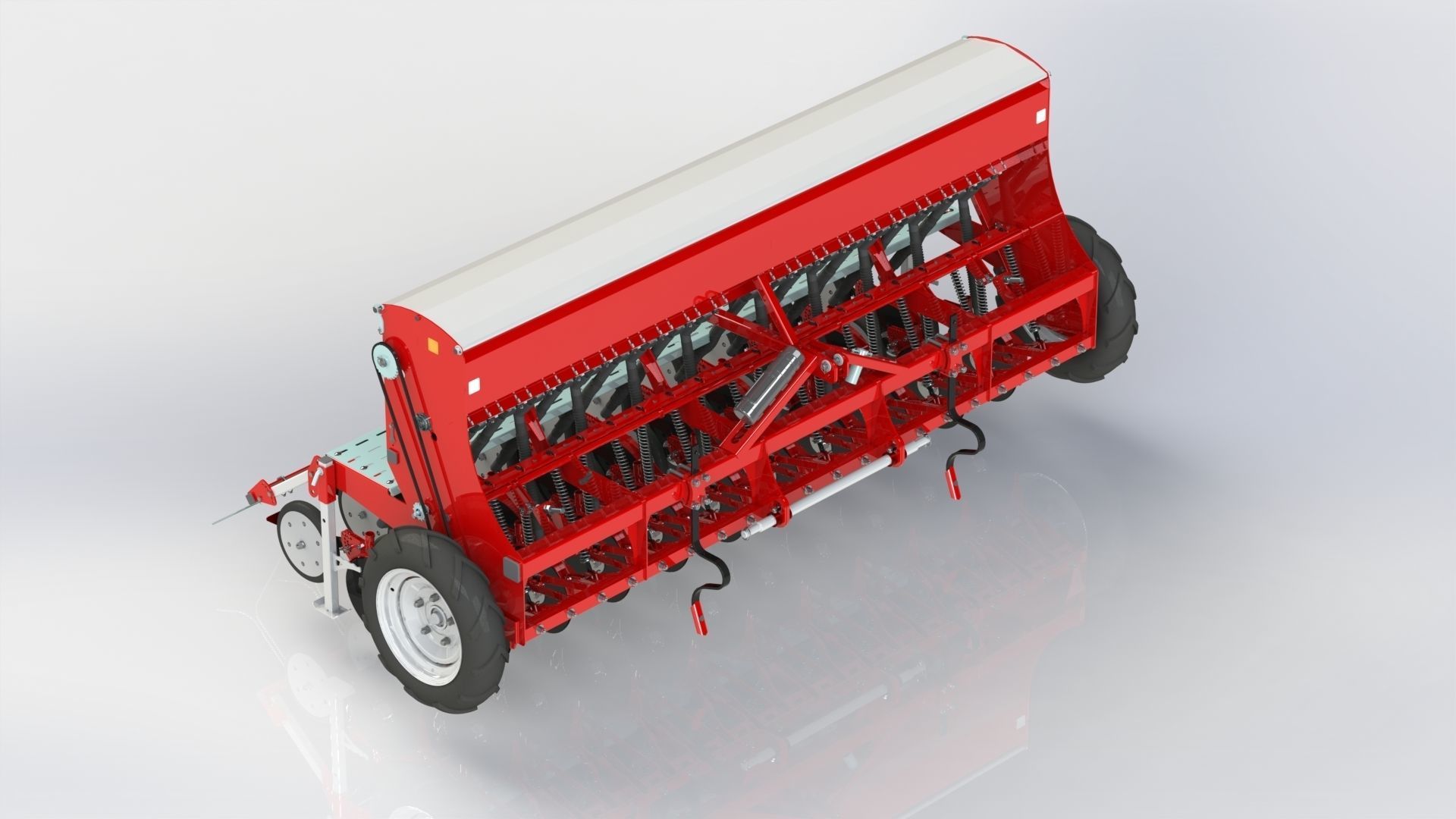

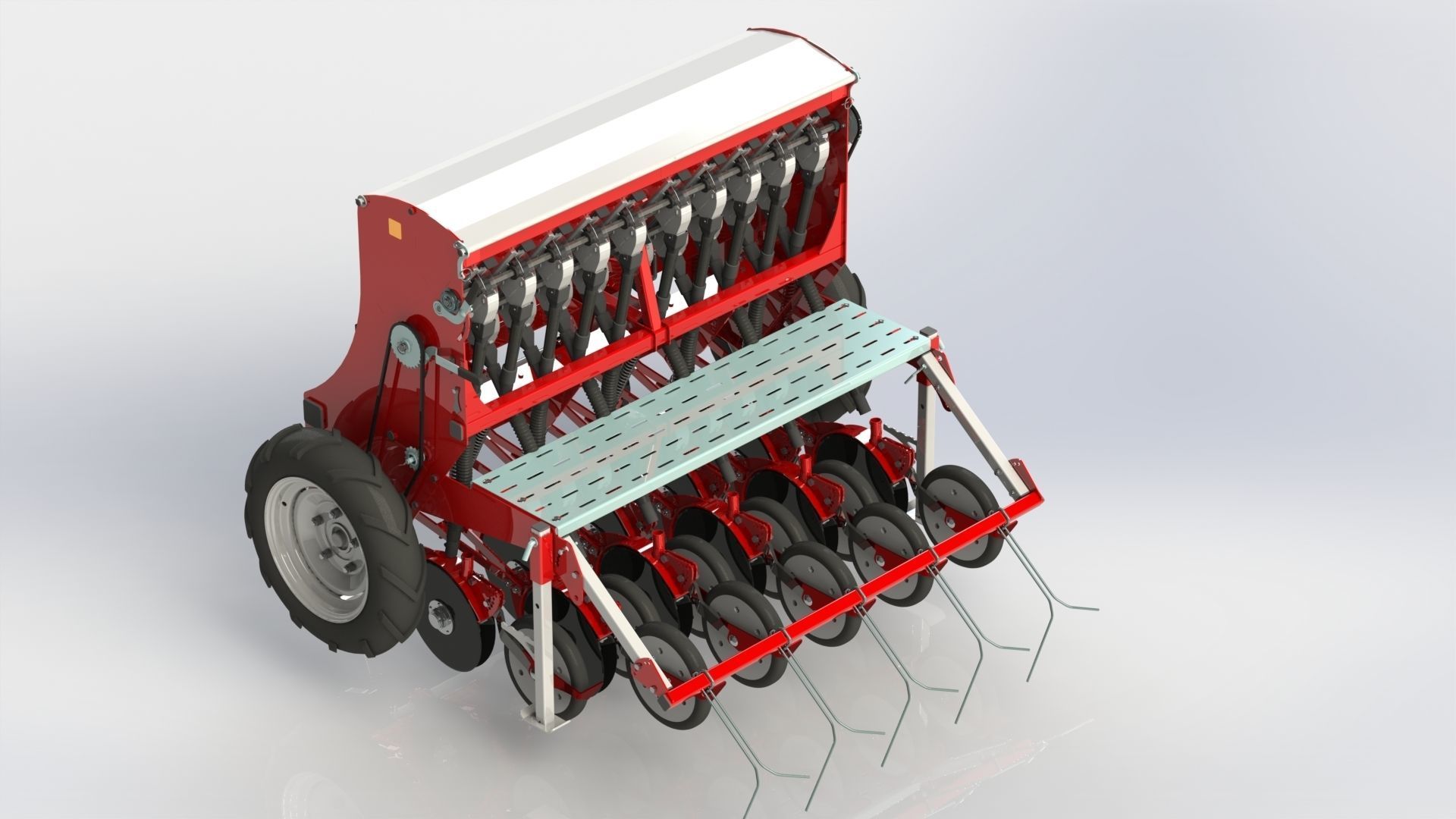

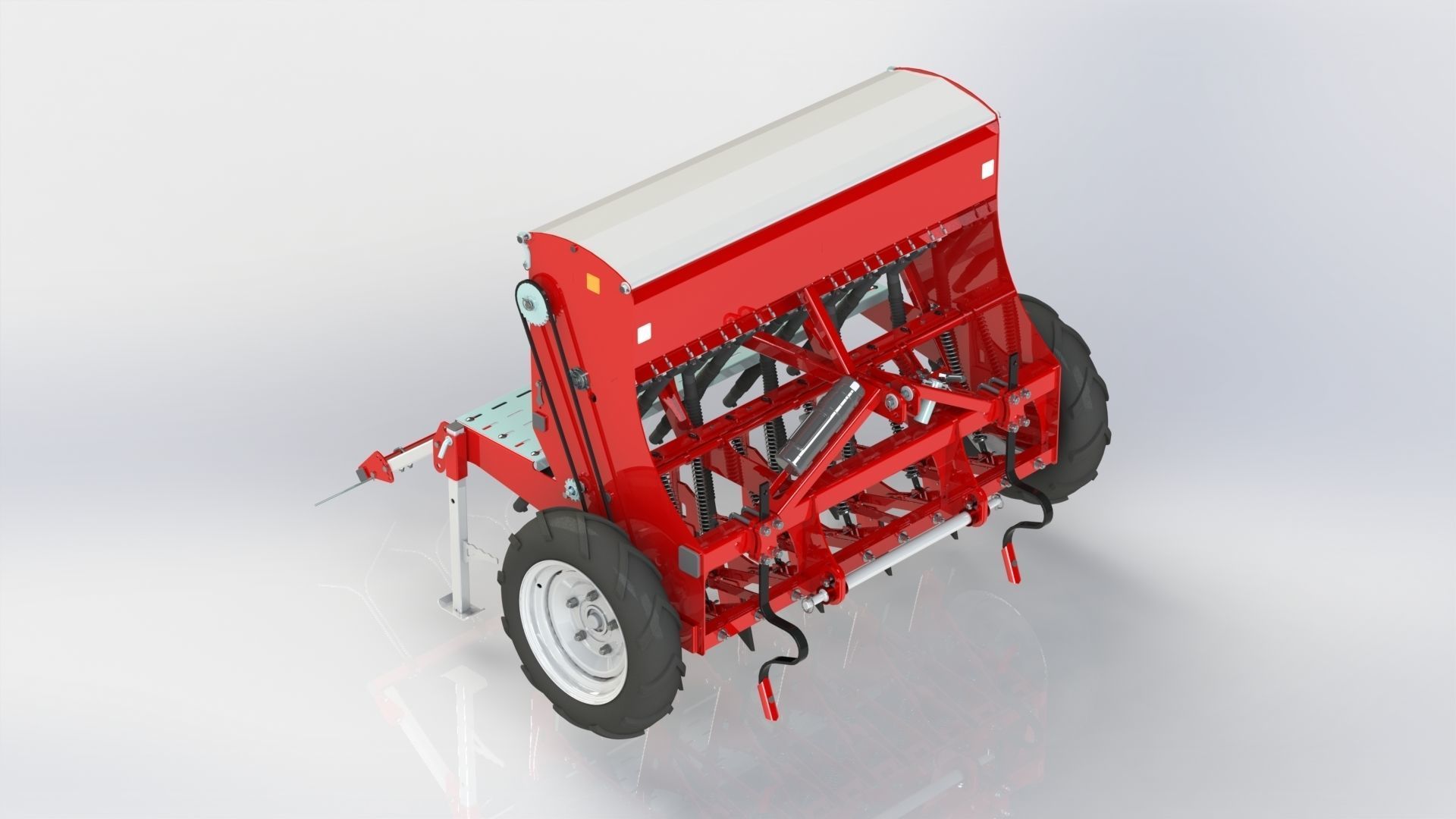

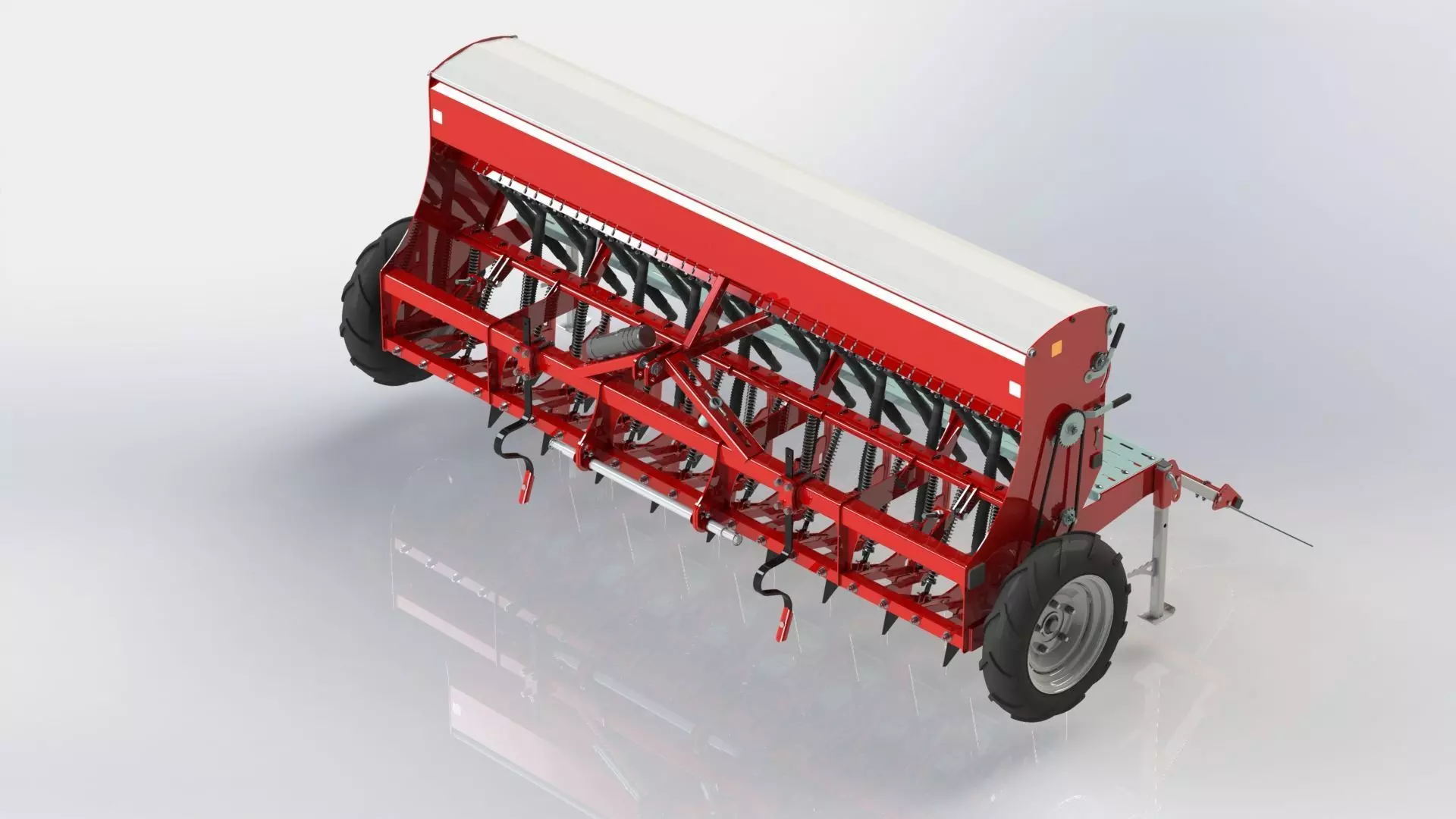

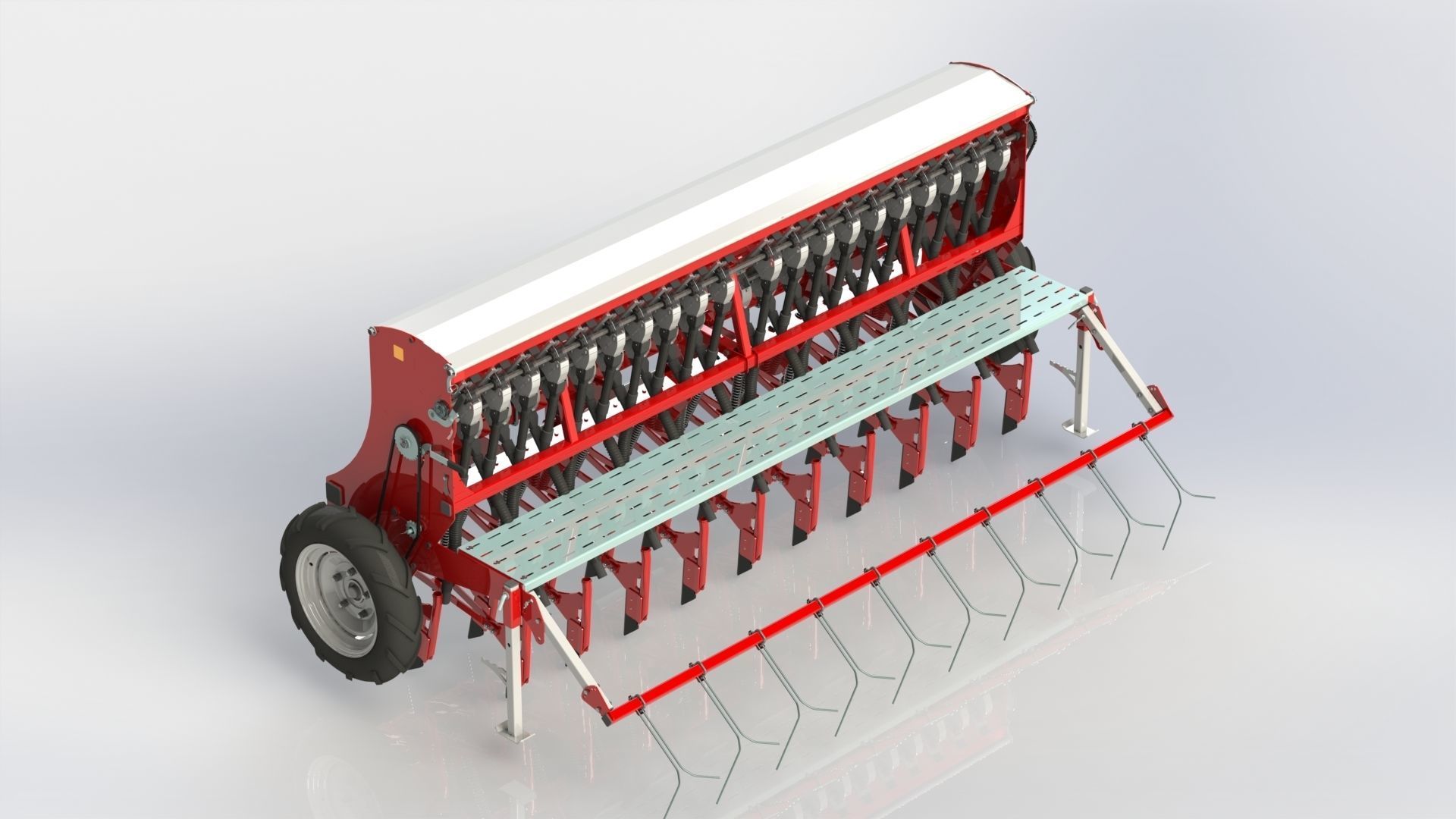

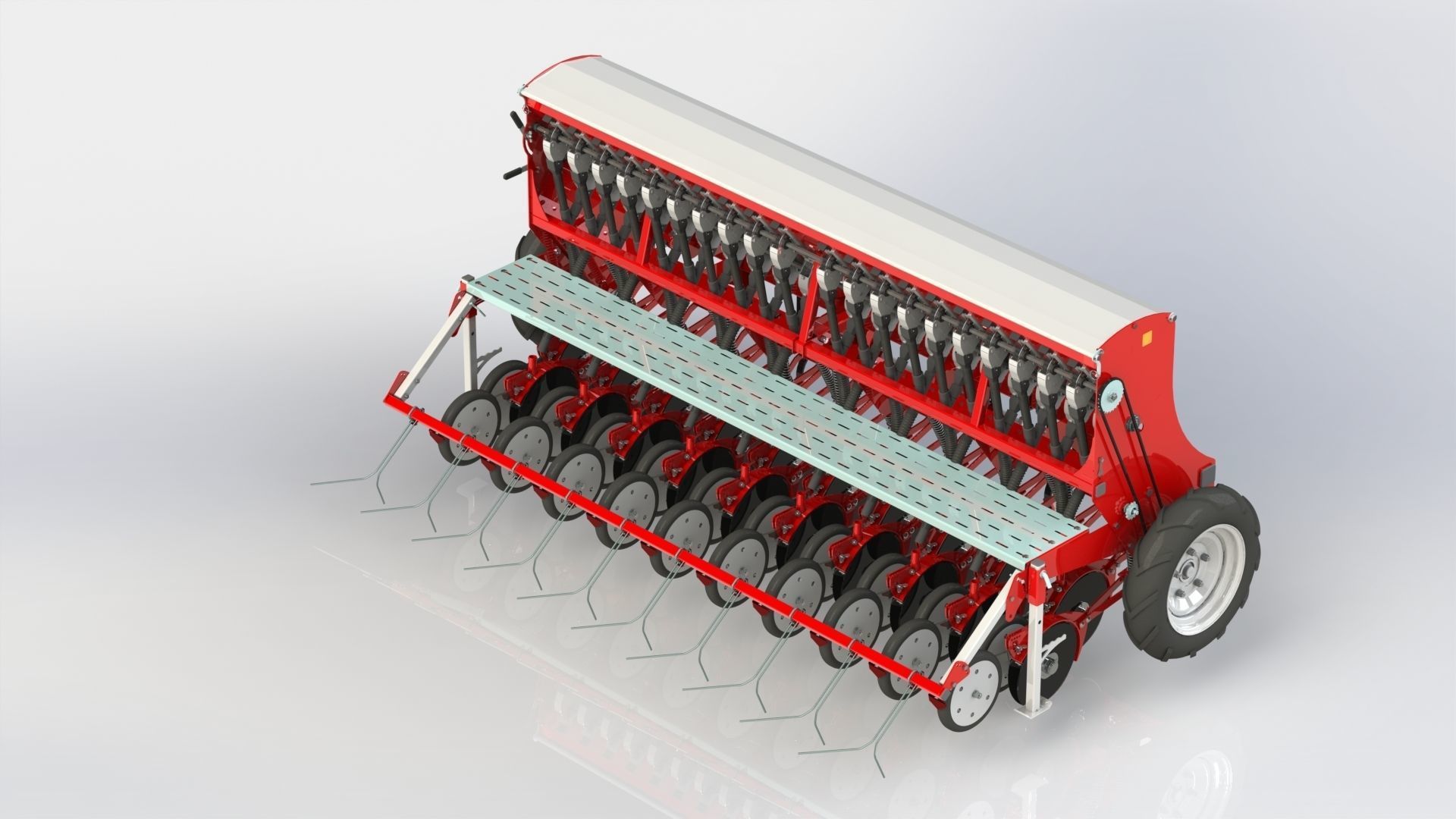

The mounted mechanical seed drill of WG 1023 is intended for sowing of grain crops with a possibility of simultaneous entering of dry fertilizers. Developed for small and mini tractors. May have a disc or anchor coulter. Adjustment of sowing depth - using screws. The coulter battery is mounted on rubber dampers. This lot consists of 6 drills with a width of capture from 1,5 to 3,0 meters (1500, 1800, 2100, 2400, 2700, 3000 mm)

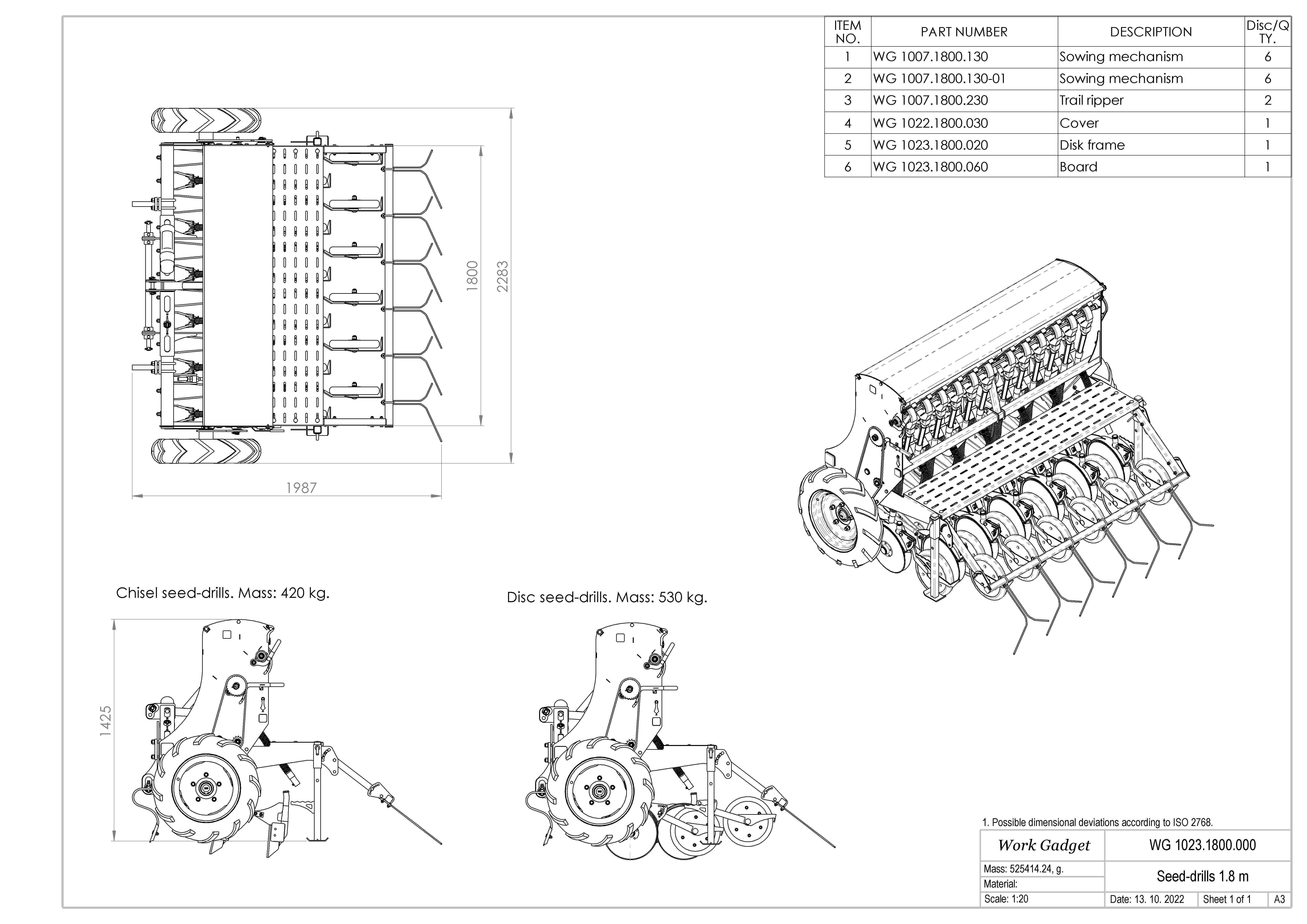

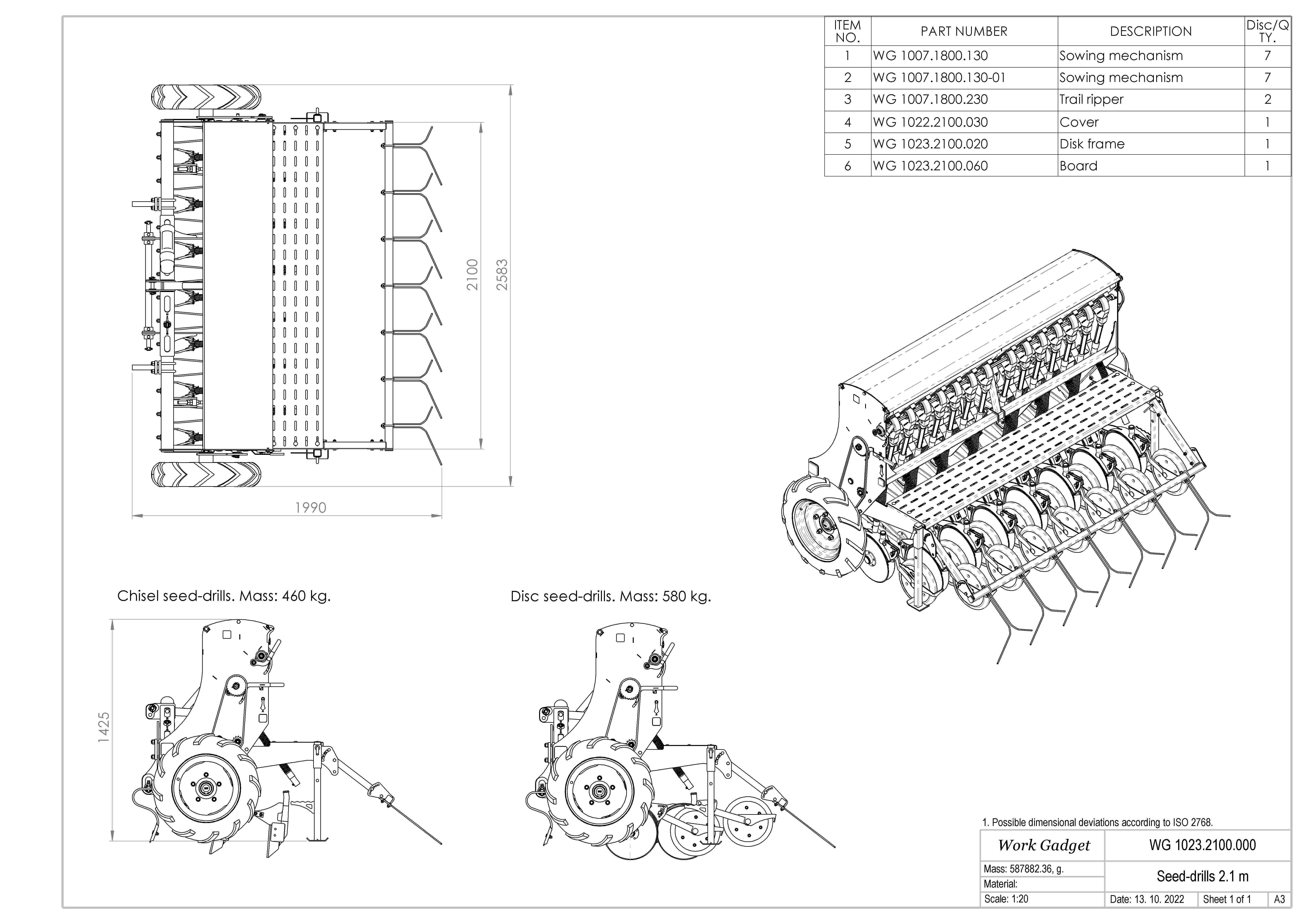

Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production! Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

The lot DOES NOT CONTAIN SolidWorks documents and drawings! If you are interested in the full set of documentation, please contact us via private messages, and we will arrange to adapt the drawings to the capabilities of your production.

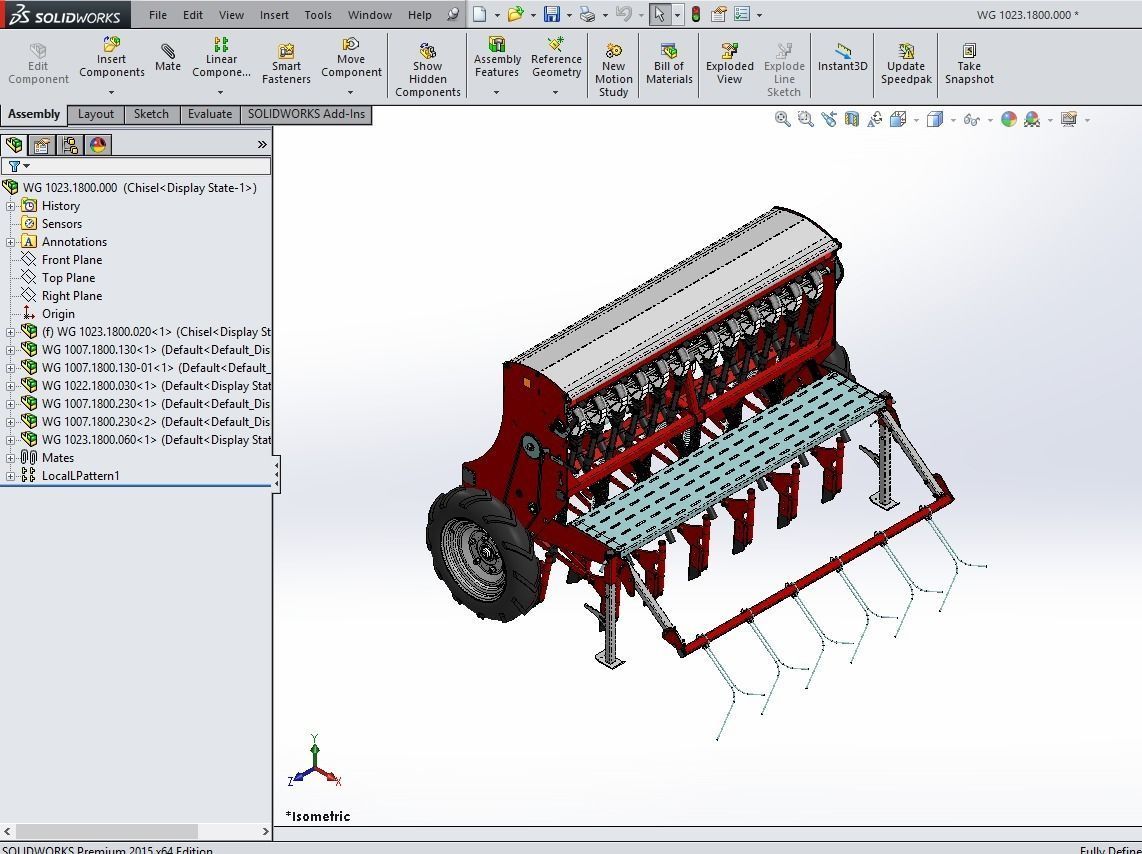

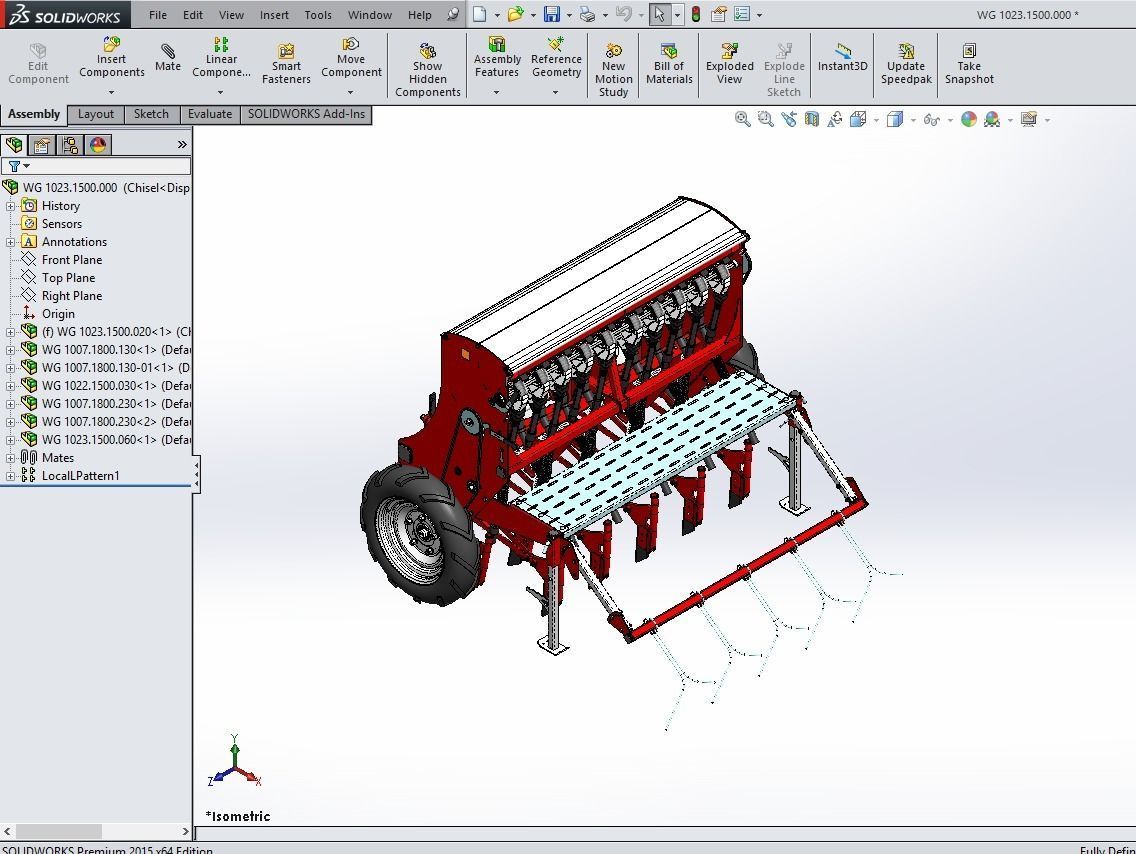

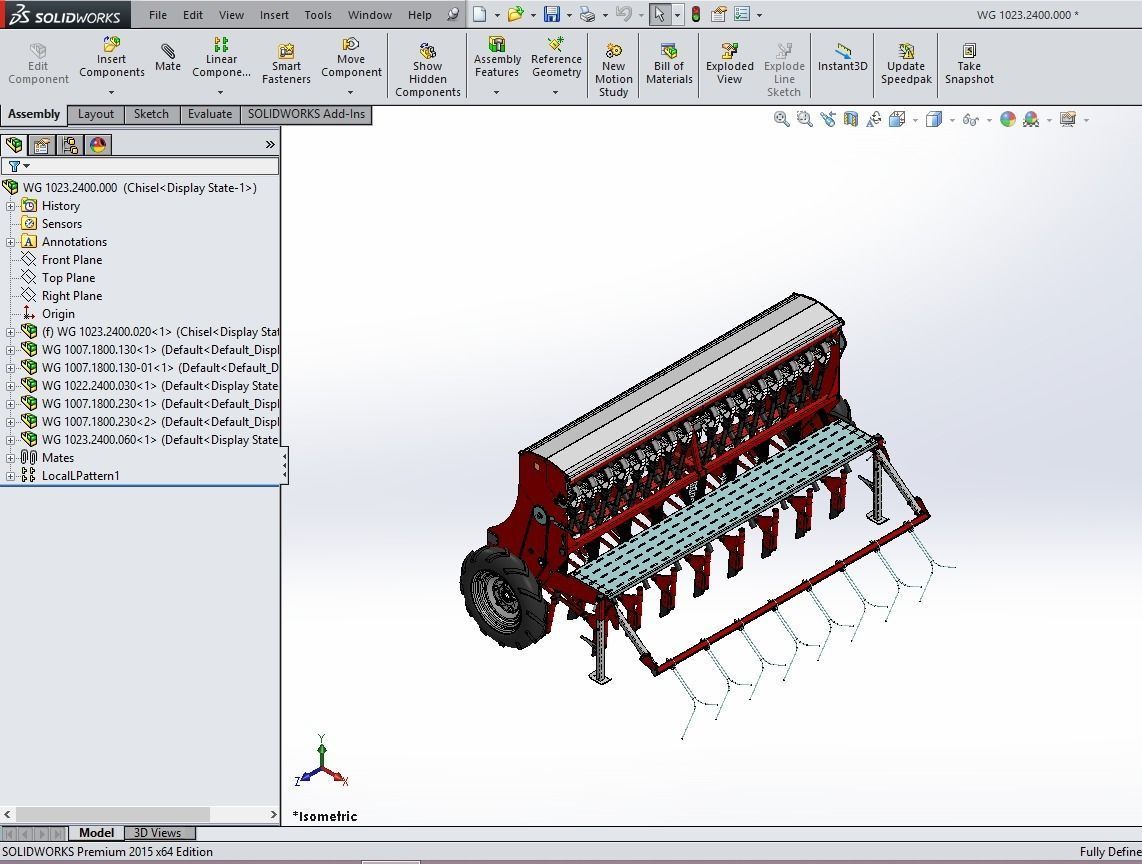

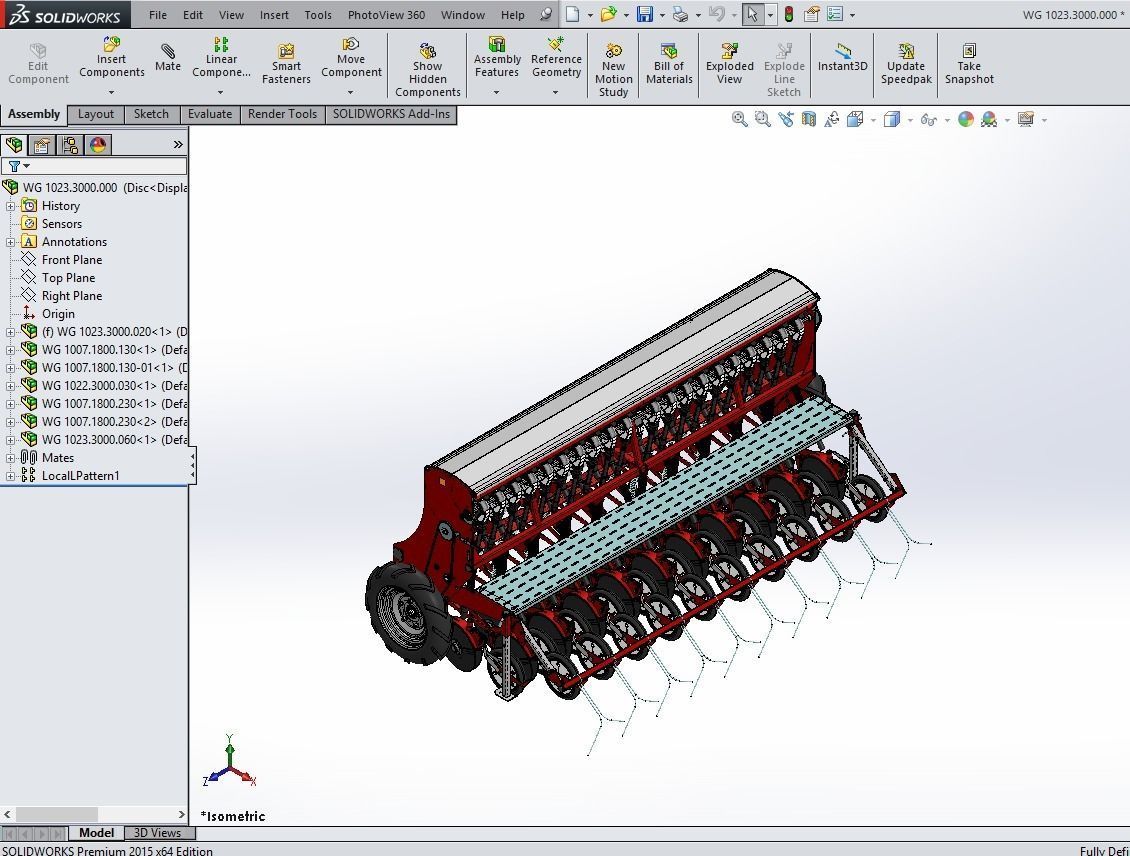

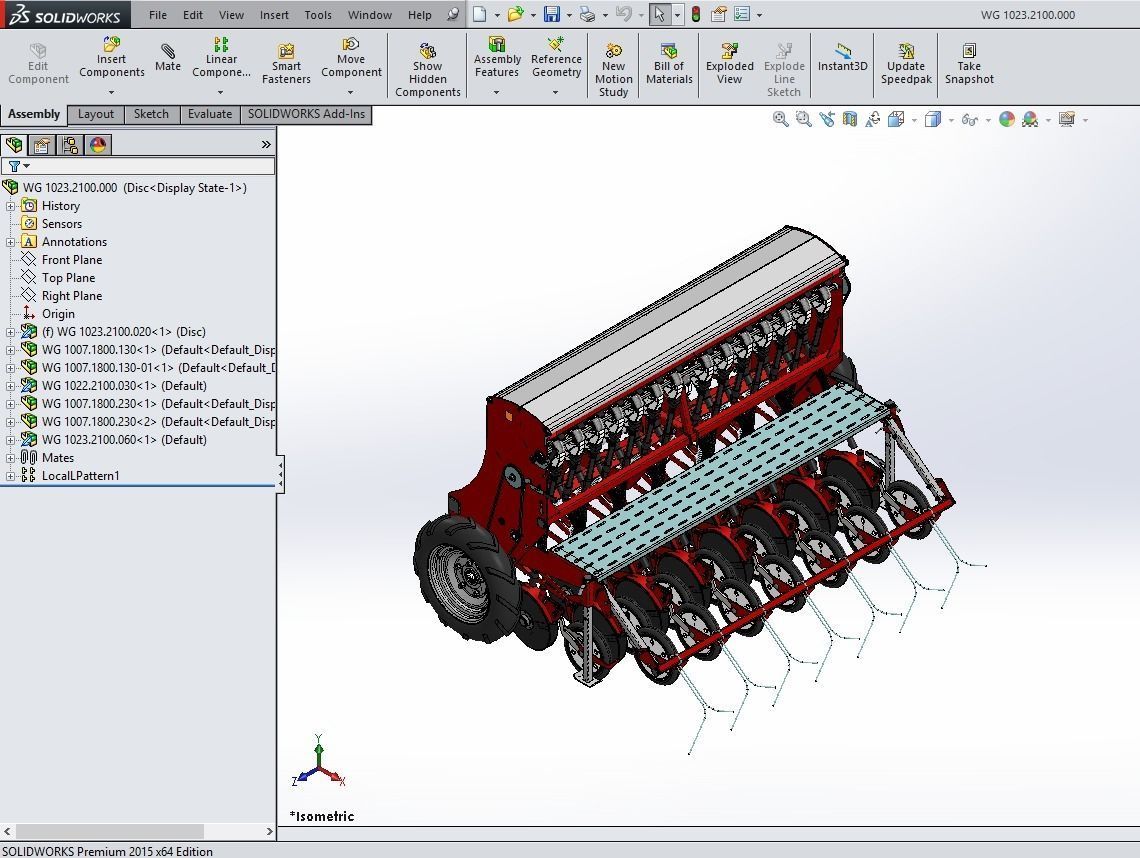

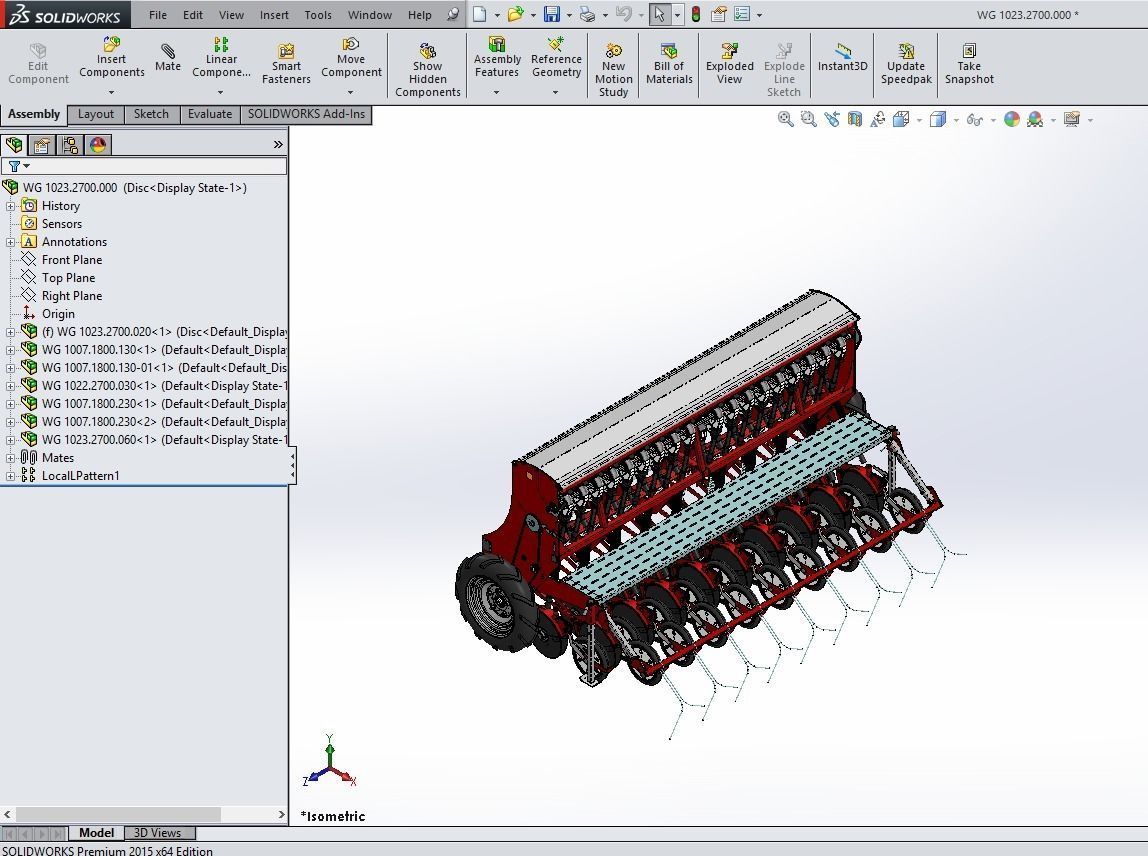

Modeled in SolidWorks 2020. The model contains the most popular formats: IGES: *.iges *.igs STEP: *.step *.stp Stereolithography: *.stl

Item rating
0 0
WG 1023 - Mounted mechanical seed drill
$111.00

Royalty Free License
WG 1023 - Mounted mechanical seed drill
$111.00

Royalty Free License
Response 50% in 35.4h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • Parasolid (.x_t, .x_b)79.3 MB
  • IGES (.ige, .igs, .iges)98.1 MB
  • STEP (.stp)49.3 MB
  • Other 49.3 MB
  • Stereolithography (.stl)528 MB

3D Model details

  • Publish date2022-10-15
  • Model ID#4051910
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Other
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
