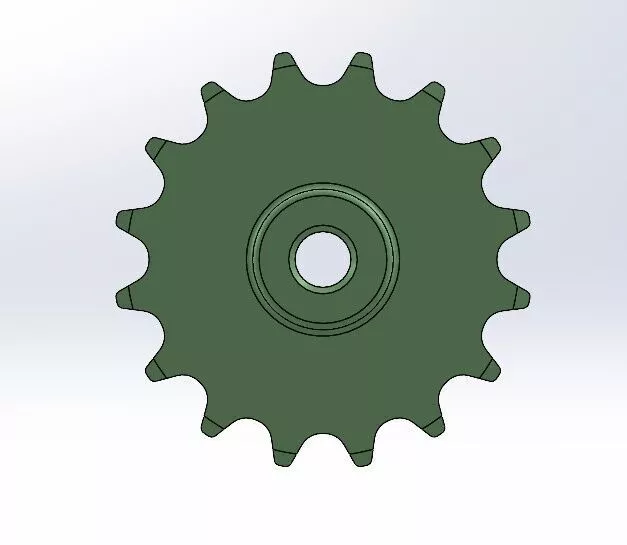

Sprocket ANSI 2122B 16 Teeth Type B Hub 3D model
DESCRIPTION

High-precision 3D CAD model of a Sprocket, Type B hub configuration (extended hub on one side). Specifically designed to work with ANSI 2122 conveyor chains in power transmission and heavy material handling systems.Chain Standard: ANSI 2122 / 2122H (Double Pitch)Number of Teeth: 16Hub Type: Type B (Single hub extension)Design Features: Clean parametric geometry with standard industrial tooth profile and central bore. Ready for factory layout integration.Software: SolidWorksFormats included: Parasolid (.x_t) / Native Part (.SLDPRT)
