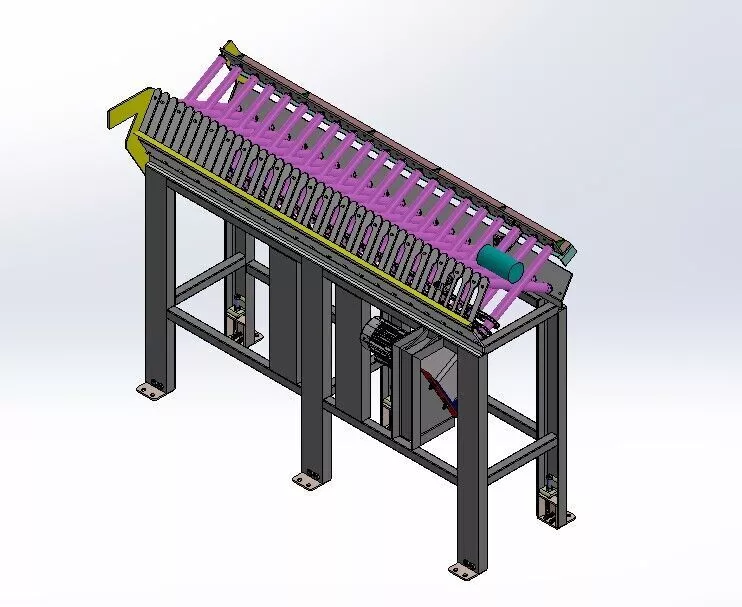

Professional 3D CAD model of an Industrial V-Roll / X-Shape Roller Conveyor System, specially engineered for the safe transport of cylindrical parts, pipes, and round bars.Capacity / Range: Handles cylindrical bars from 200 mm up to 1500 mm in length.Design Feature: X-shaped roller configuration ensures perfect centering and prevents side-rolling during operation.Software: SolidWorks 2024Formats included: Parasolid (.x_t) / Native Assembly (.SLDASM)Ideal for: Steel mills, pipe manufacturing, heavy industry layouts, and automation lines.

Note: The electric motor and gearbox included in this assembly are commercial standard components downloaded from an open-source supplier for spatial reference only. All conveyor structures, frames, X-roller configurations, and assembly integrations are 100% original designs.

Important Note for SolidWorks Users: The native .SLDASM file is included, but for full assembly visualization and compatibility across other CAD software, please use the provided Parasolid (.x_t) file, which contains all components integrated into a single solid model.
