DESCRIPTION

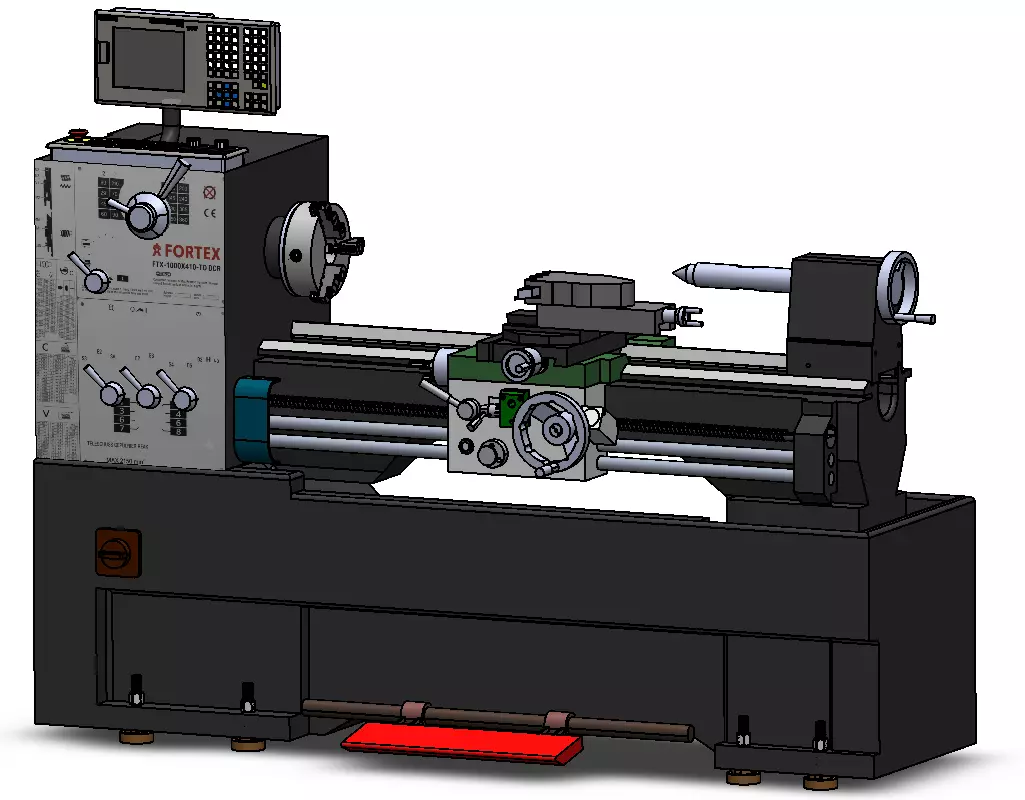

Industrial CNC Lathe Machine – Complete 3D CAD Assembly

This is a highly detailed 3D model of an industrial CNC lathe machine created in SolidWorks. The model includes the complete mechanical assembly with realistic proportions and carefully modeled components, making it suitable for engineering visualization, technical presentations, manufacturing projects, training, and educational purposes.

FeaturesComplete CNC lathe assemblyDetailed machine structureHeadstock with 3-jaw chuckTailstock assemblyCarriage and cross slideCompound restTool postLeadscrew and feed shaftControl panel and monitorIndustrial machine baseClean and organized assemblyReal-world scaleSuitable for close-up rendering Perfect forMechanical engineeringManufacturing simulationsCNC machining visualizationTechnical presentationsEducational projectsIndustrial animationCAD reference

Related Tagslatheturningmachinetoolsolidworkscadmechanicalengineeringindustrialmanufacturingmachiningmetalworkingworkshopfactoryprecisionpostchuck
