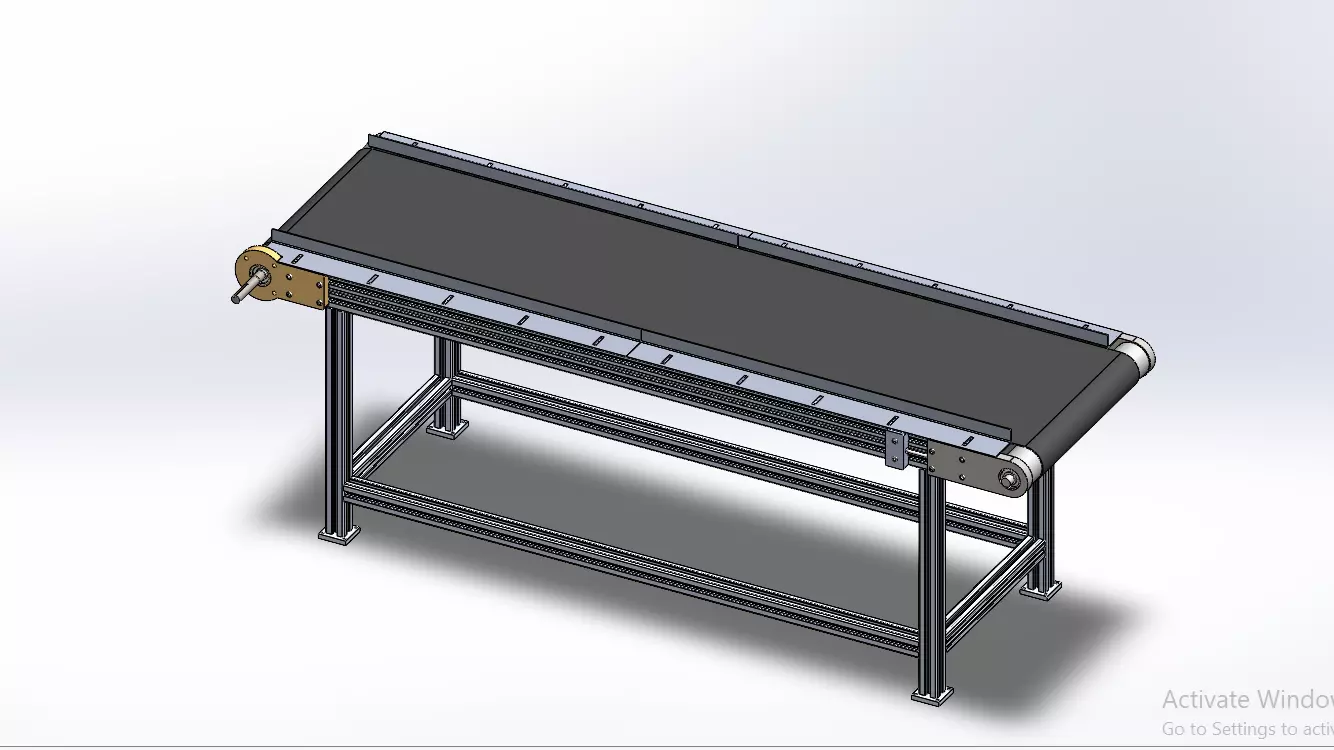

This project presents a fully detailed 3D model of an industrial belt conveyor system designed using SolidWorks. The model is suitable for material handling applications in production lines, packaging systems, and automated manufacturing environments.

The design focuses on structural stability, smooth belt motion, and ease of assembly. It can be integrated with robotic systems such as pick-and-place units or Cartesian robots, making it ideal for smart factory applications.

The conveyor structure includes a rigid modular frame, motor mounting support, adjustable legs, and a belt-driven mechanism optimized for medium-weight carton transportation.

Key Features:

Complete SolidWorks assembly

Parametric and editable design

Industrial-grade frame structure

Motor mounting provision

Automation-ready configuration

Suitable for packaging and material handling systems

Files Included:

SLDASM (Assembly)

SLDPRT (Parts)

Applications:

Production lines

Packaging systems

Industrial automation

Robotic integration projects

For customized versions or additional configurations, feel free to contact me.
