- The mesh is separated into moving parts.
- All weld materials share the same map to optimize the model.

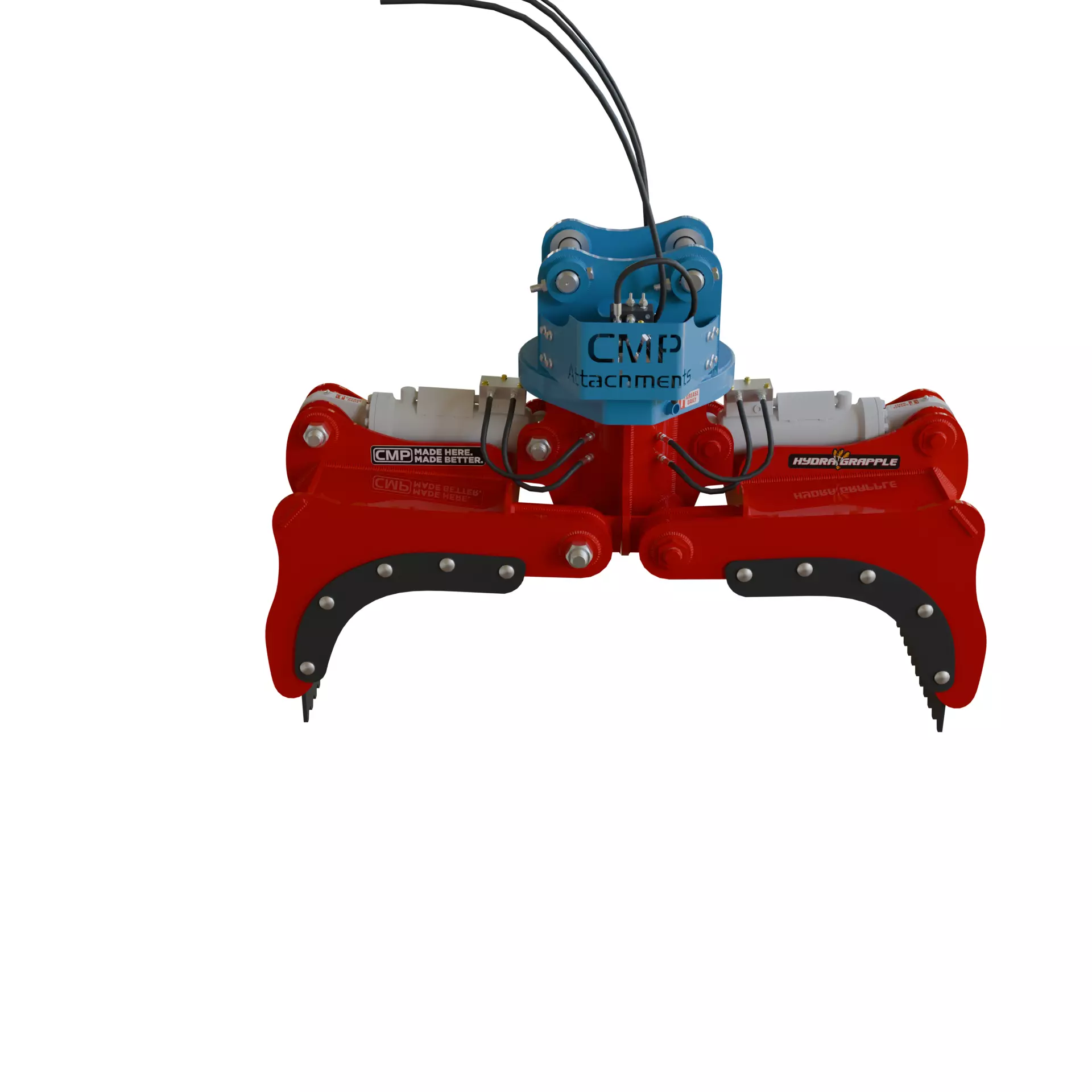

Render images made using all texture maps at 2K resolution , Blender 4.3 using Cycles.
[ Coupler Dimension Reference
│ ├ 60mm pin // 280mm C-C // 210mm ear-to-ear coupler pivot
│ └ Typical excavator range:
- │ • 5–6 ton excavators
- │ ├ 65mm pin // 310mm C-C // 270mm ear-to-ear coupler pivot
- │ └ Typical excavator range:
- │ • 7–9 ton excavators
- │ ├ 70mm pin // 360mm C-C // 300mm ear-to-ear coupler pivot
- │ └ Typical excavator range:
- │ • 10–15 ton excavators
- │ ├ 80mm pin // 450mm C-C // 360mm ear-to-ear coupler pivot
- │ └ Typical excavator range:
- │ • 18–25 ton excavators
- │ ├ 90mm pin // 500mm C-C // 420mm ear-to-ear coupler pivot
- │ └ Typical excavator range:
- │ • 30–38 ton excavators
- │ ├ 110mm pin // 620mm C-C // 520mm ear-to-ear coupler pivot
- │ └ Typical excavator range:
- │ • 45–55 ton excavators
- ╔ [ Dimension Legend ]
- │ ├ Pin
- │ │ └ Pin / shaft diameter used by the coupler
- │ ├ C-C (Center-to-Center)
- │ │ └ Distance between the center of both attachment pins
- │ │ └ Internal width between the excavator mounting ears / brackets
- │ └ Main attachment connection dimensions for coupler fitment
.........................................................
╔ [ File Formats ]
╞ BLENDER .BLEND
╞ .FBX
╞ COLLADA .DAE
╞ .OBJ
╞ glTF 2.0 .glb/gltf
╚ .STL
.........................................................
╔ [ Mesh ]
╞ 64,420 verts(each grapple).
╞ 66,957 faces(each grapple).
╞ 118,671 triangles(each grapple).
╞ real world scale object
╞.blend file with smooth normals at 69 °, seams and weight normal.
╞ .blend file with collections and pivot placed.
╞ This model is Not Rigged or animated !
╚Game-optimized topology (not strictly quad-based).
.........................................................
╔ [ Materials and Texturing ]
╞ This model has separated and applied materials.
╚ with weld and decal maps with uv done.
.........................................................
╔ [ UV Mapping ]
╞ Single UV set per model file, uv non- overlapping per material.
╚ 0-1 UV space
.........................................................
╔ [ Disclaimer ]
╞ This model is not designed for CAD use or 3D printing.
╞ This 3D model was created based solely on image references, not on official files, assets, or scans.
╞ The model may not include all real-world details.
╞ The model may not follow the exact real-world measurements.
╞ This model is intended for visualization, educational, or gaming purposes only.
╞ I do not own any rights to the real-world product, its brand, trademarks, or related patents.
╚ This is a fan-made digital product and is not affiliated with or endorsed by the original brand.
.........................................................
