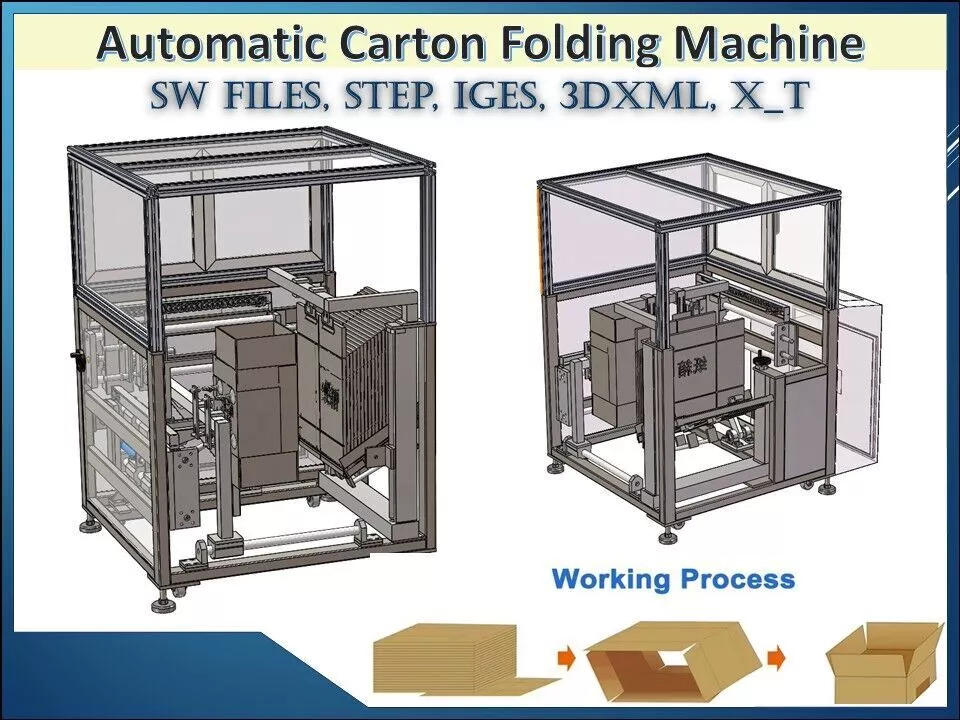

Industrial Carton Folding Machine 3D CAD model designed for automated forming and folding of carton boxes used in packaging industries. The system efficiently converts flat carton sheets into pre-formed boxes through precise folding, positioning, and pressing mechanisms, enabling high-speed and consistent production.The machine operates by feeding flat carton blanks into a guided conveyor system, where they are aligned and transferred to the folding station. Mechanical arms, guides, and pneumatic actuators fold the carton panels along predefined creases, forming the box structure. The folded cartons are then held and pressed to maintain shape before further processing such as filling or sealing.Built with a rigid frame and enclosed safety structure, the system integrates linear motion systems, synchronized actuators, and sensor-based controls to ensure accurate operation and minimal errors during continuous production.This CAD assembly demonstrates essential principles of packaging automation, carton forming systems, and industrial material handling, making it ideal for FMCG packaging lines, logistics automation, and manufacturing system design projects.Key Features• Automatic carton feeding and alignment • Precision folding mechanism for box formation • Pneumatic or servo-driven actuators • Conveyor-based material handling system • Enclosed structure for operator safety • High-speed continuous production capability • Accurate and repeatable folding process • Integrated control panel and automation system Main Components• Carton feeding unit • Conveyor and guide rail system • Folding arms and mechanical linkages • Pneumatic cylinders and actuators • Pressing and holding mechanism • Structural frame and enclosure • Sensors and control system (PLC/HMI) • Motor and drive assemblies Typical Applications• Carton box forming in packaging lines • FMCG and e-commerce packaging • Food and beverage packaging systems • Pharmaceutical packaging automation • Logistics and warehouse operations • Industrial box manufacturing
