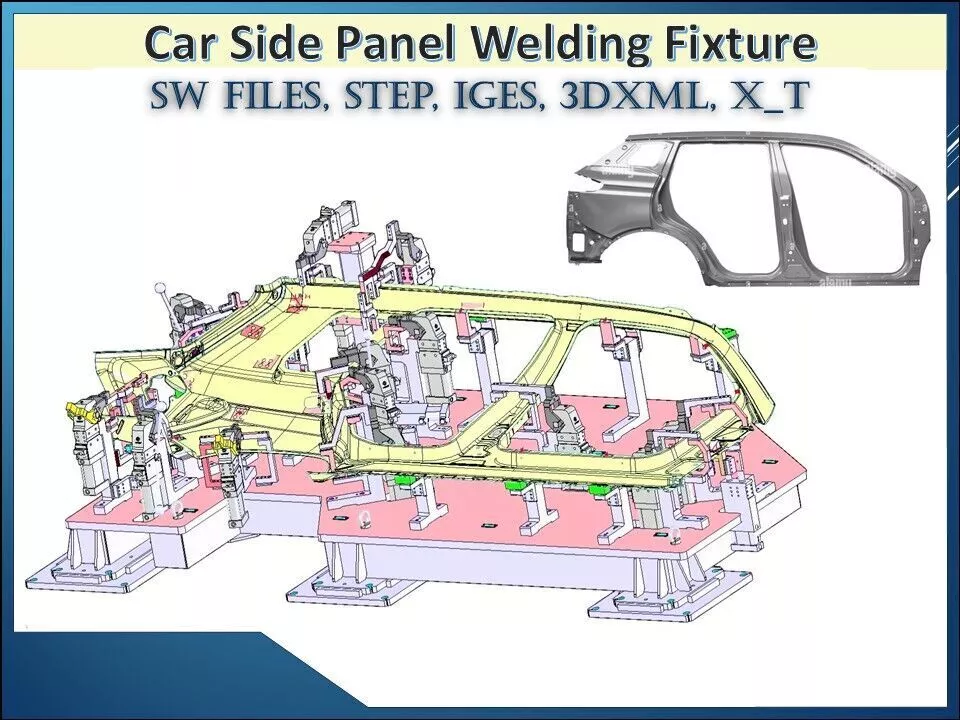

Industrial Car Side Panel Welding Fixture 3D CAD model designed for accurate positioning, clamping, and welding of automotive side panels during body assembly. This fixture ensures high precision alignment, repeatability, and dimensional consistency in automotive manufacturing processes.The fixture uses locators, clamps, and support blocks to hold sheet metal panels firmly in position while welding operations such as spot welding or robotic welding are performed. Designed with datum referencing principles (3-2-1 locating), it guarantees correct positioning of the panel relative to critical geometry.Built on a rigid structural base, the system integrates pneumatic clamping mechanisms, adjustable supports, and precision machined locating pins to minimize distortion and improve weld quality. It is compatible with manual, semi-automatic, or robotic welding lines.This CAD assembly reflects core design principles used in BIW (Body in White) fixtures, welding jigs, and automotive assembly tooling, making it suitable for automotive manufacturing, fixture design projects, and industrial engineering applications.Key Features• High-precision panel positioning system • 3-2-1 locating principle implementation • Pneumatic or manual clamping mechanisms • Rigid base frame for vibration-free welding • Adjustable supports for different panel variants • Compatible with robotic welding systems • Repeatable and accurate fixture design • Optimized for high-volume production Main Components• Base plate and structural frame • Locating pins and datum blocks • Clamping units (pneumatic/manual) • Rest pads and support structures • Guide elements and stopper blocks • Actuators and linkage mechanisms • Sensors (optional for automation) • Mounting interfaces for robots/tools Typical Applications• Automotive body side panel welding • BIW (Body in White) assembly lines • Sheet metal welding fixtures • Car door and panel alignment systems • Robotic welding cells • Automotive manufacturing plants
