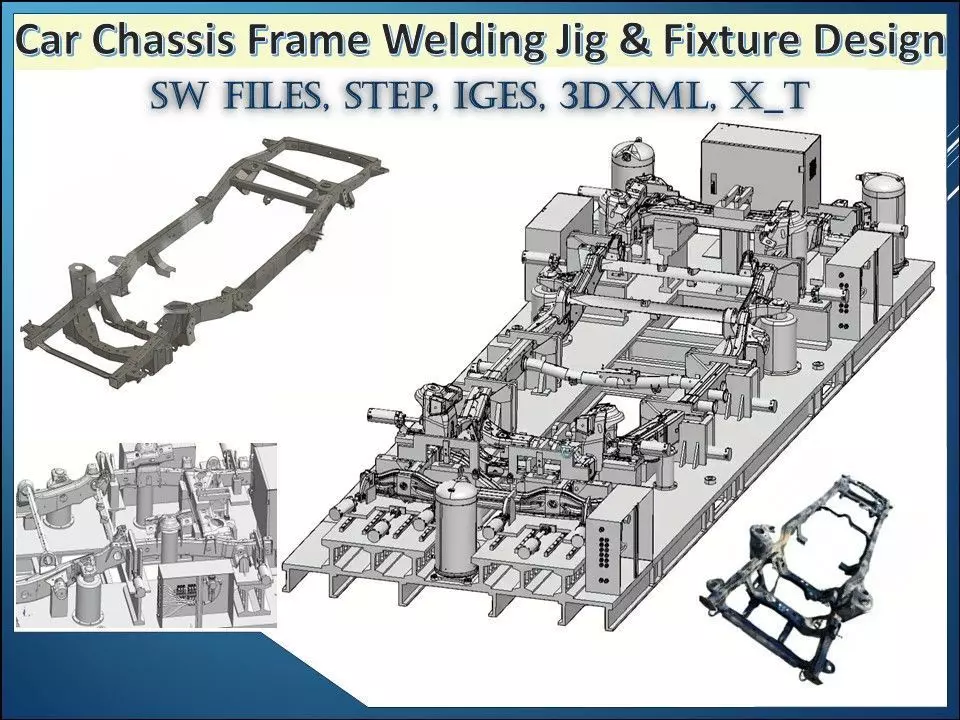

High-precision car chassis welding fixture 3D CAD model engineered for accurate positioning, clamping, and welding of automotive frames. This fixture is designed to ensure dimensional stability, repeatability, and weld quality in high-volume automotive production.Key Features• Dedicated automotive chassis welding fixture design• Accurate locating pins, clamps, and supports for frame alignment• Rigid base structure to maintain geometry during welding• Suitable for manual, semi-automatic, and robotic welding lines• Designed to minimize distortion and ensure consistent weld quality• Modular fixture elements for easy adjustment and maintenance• Clean, production-ready CAD model for tooling validationFixture Design Highlights• Precise datum referencing for chassis geometry control• Optimized access for welding torches and robots• Stable clamping system to handle complex frame structures• Suitable for MIG / MAG / spot welding applicationsTypical Applications• Passenger vehicle chassis welding• SUV and pickup truck frame assembly• Automotive BIW (Body-in-White) production• Welding process planning and simulation• Fixture design reference for OEM and Tier-1 suppliers
