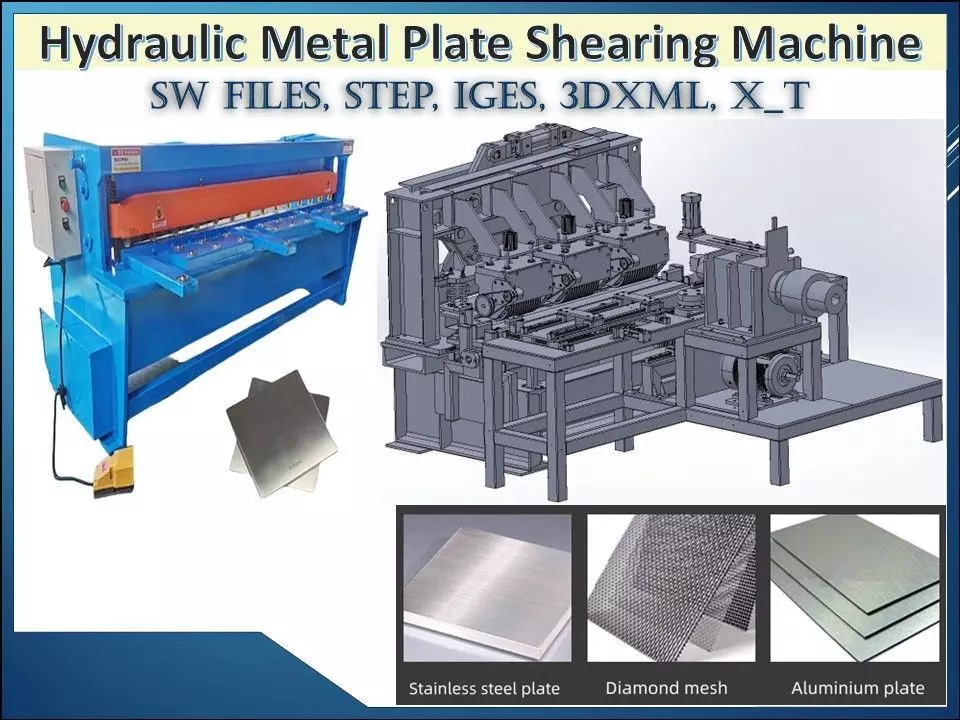

Heavy-duty Sheet Cutting Machine 3D CAD model designed for precision cutting of metal and non-metal plates in industrial manufacturing environments. This machine supports stainless steel, aluminum, iron, copper, diamond mesh, plastic sheets, PCB boards, and composite materials.Built with a rigid welded frame and high-strength cutting blade system, the shearing mechanism ensures clean edges, dimensional accuracy, and stable performance in continuous production operations.

Key Features• High-precision sheet cutting system• Hydraulic / mechanical shear configuration• Heavy-duty welded steel frame• Adjustable back gauge for accurate length control• Replaceable hardened cutting blades• Foot pedal operation option• Industrial electrical control panel• Detailed 3D CAD assembly model

Supported Materials• Stainless steel plate• Aluminum sheet• Iron sheet• Copper plate• Diamond mesh• PCB circuit boards• Plastic sheets• Leather• Composite panels

Design Advantages• High cutting accuracy and repeatability• Smooth shearing with minimal burr formation• Stable structure reduces vibration• Suitable for medium to high production volume• Easy blade adjustment and maintenance

Typical Applications• Sheet metal fabrication shops• HVAC duct manufacturing• Electrical panel manufacturing• Automotive component production• PCB panel cutting• Industrial enclosure fabrication• Hardware and appliance manufacturing
