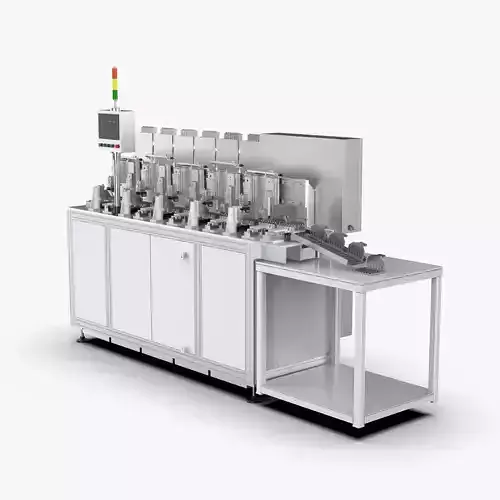

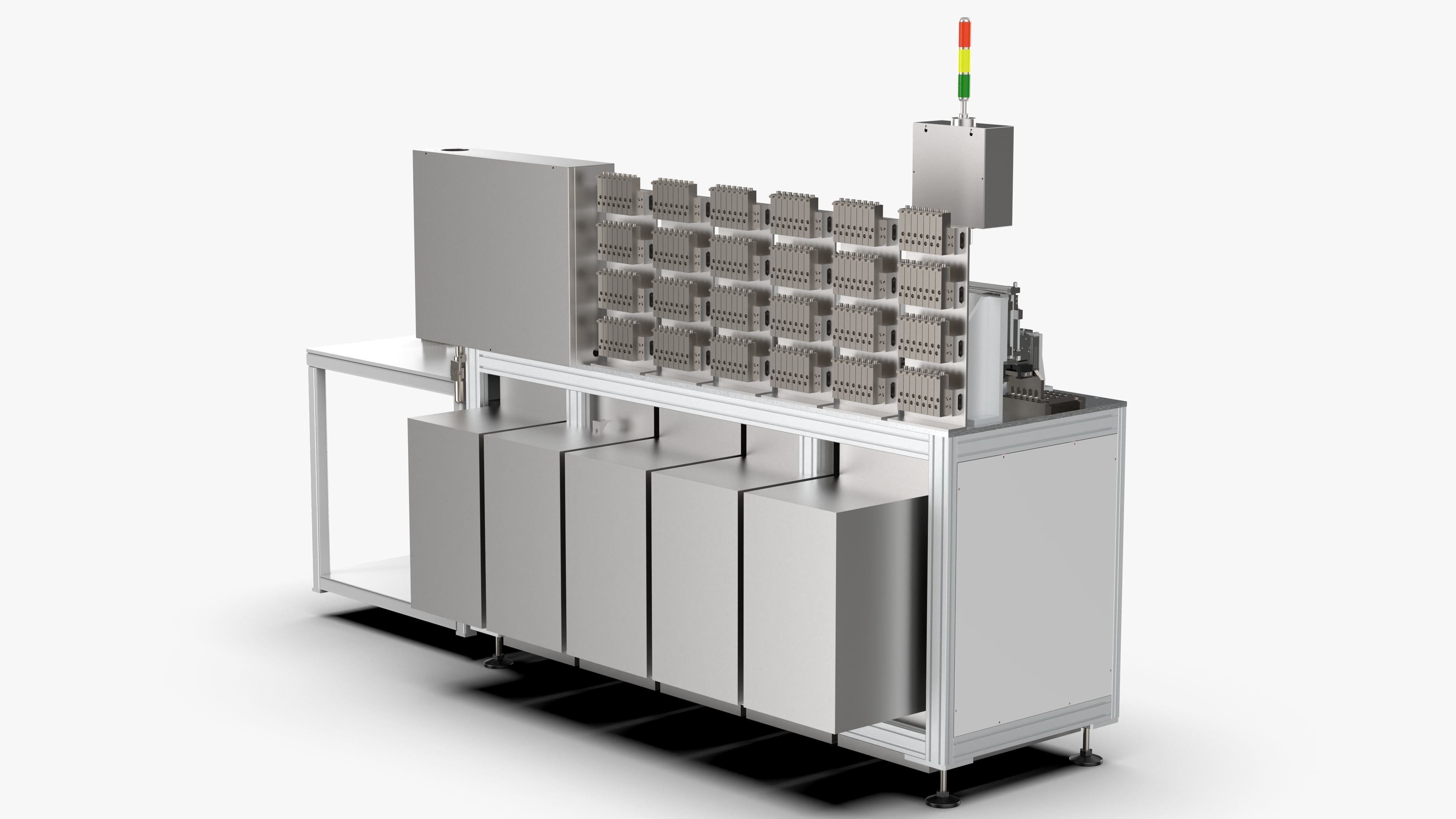

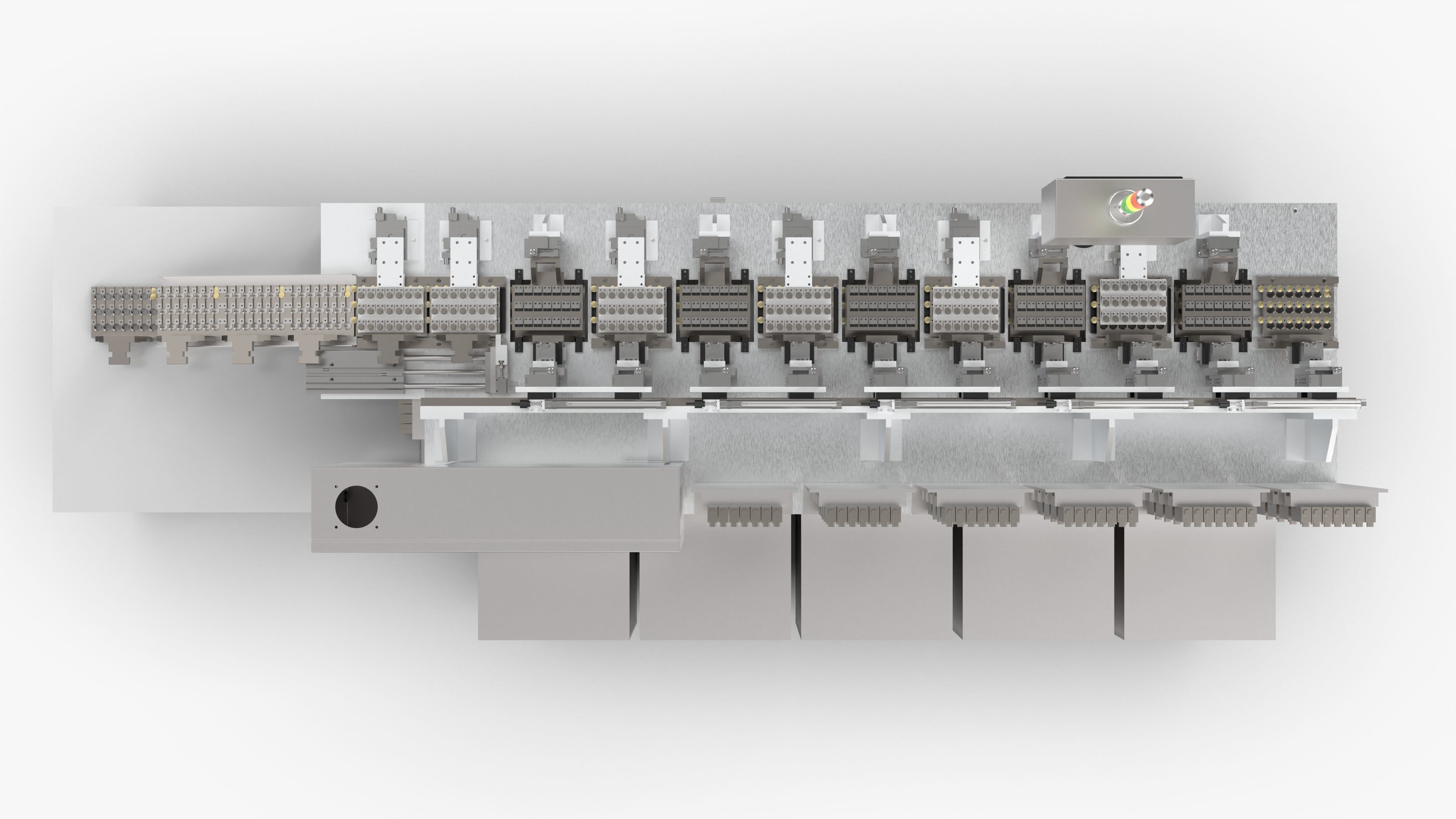

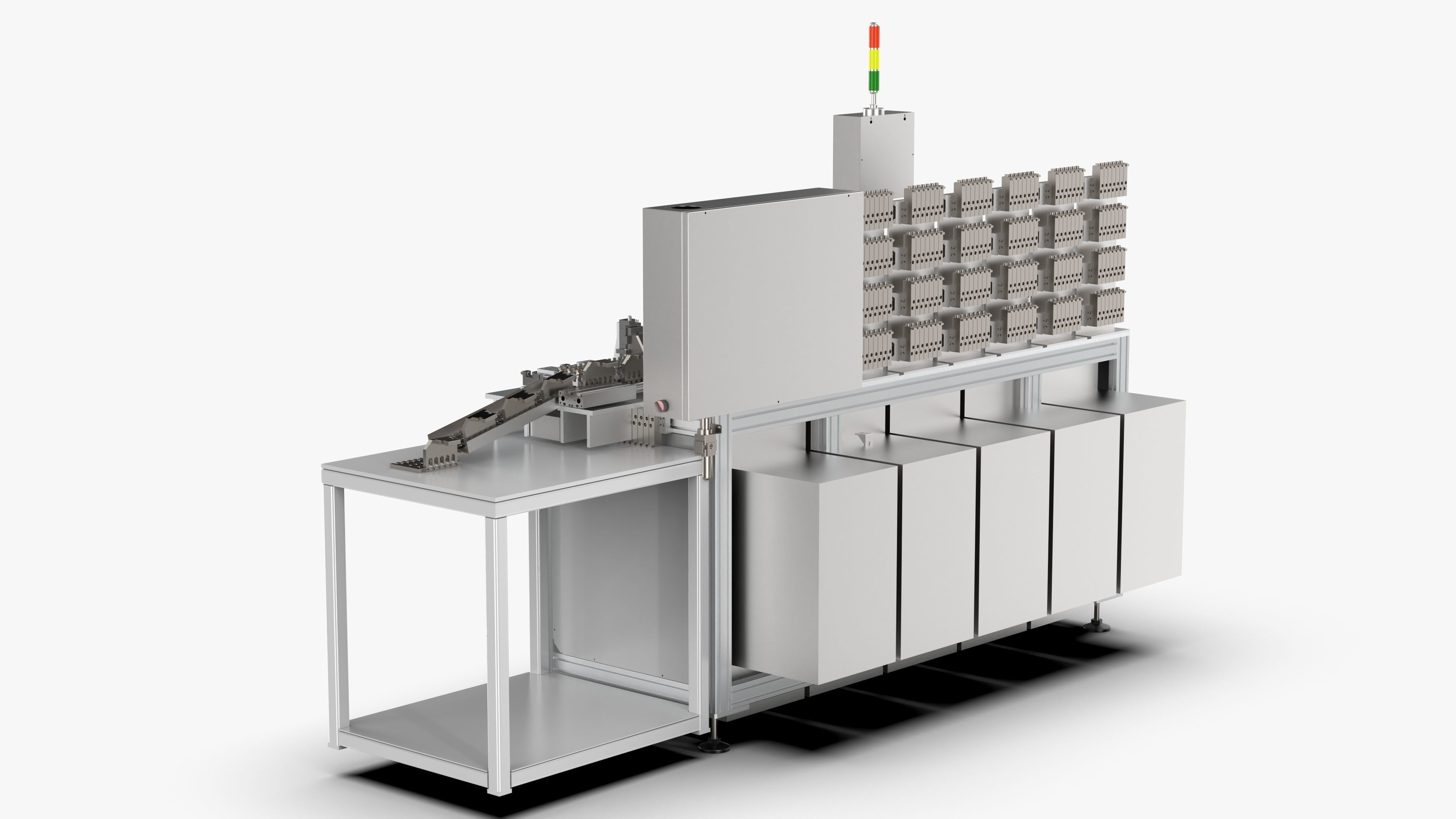

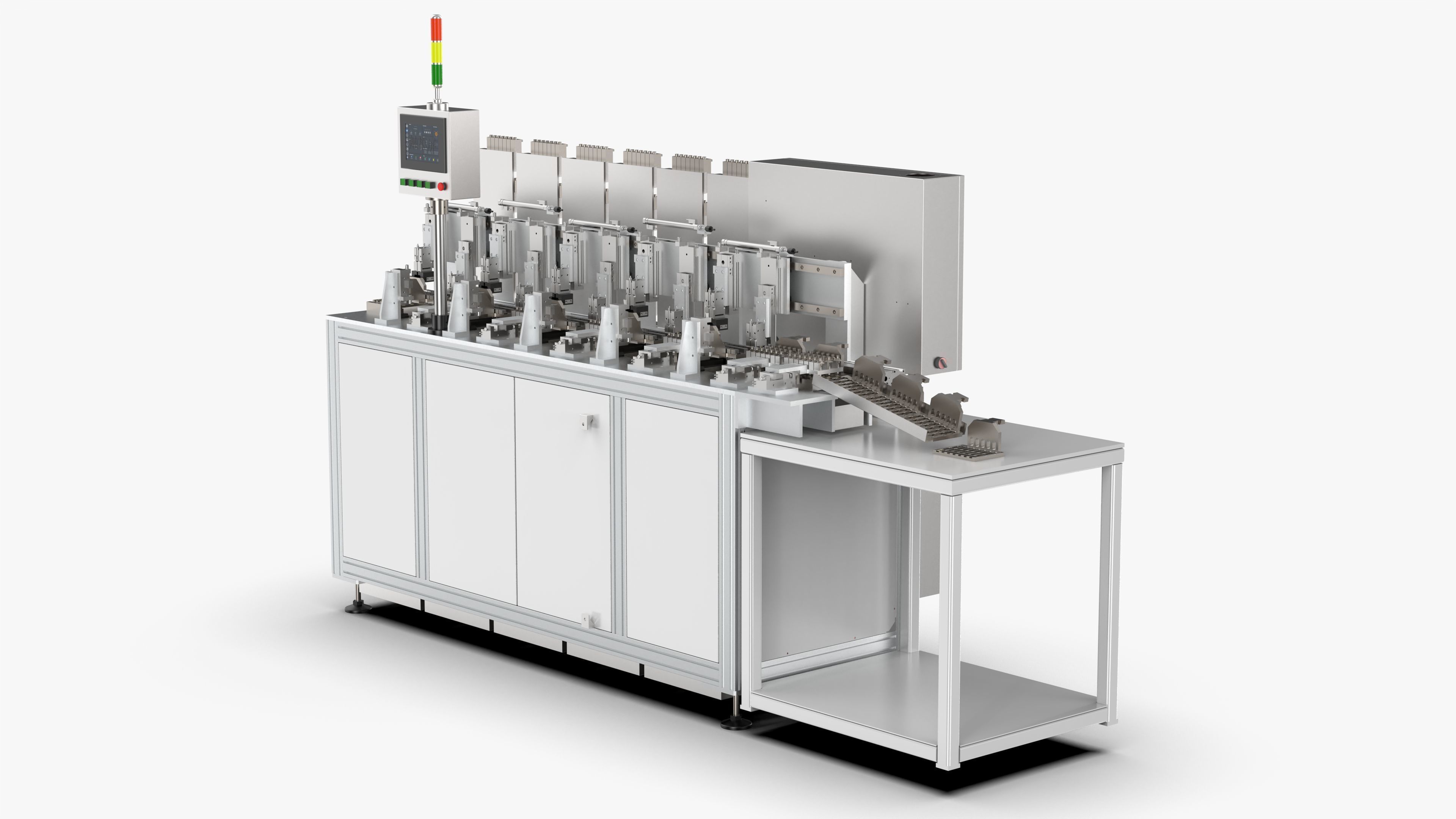

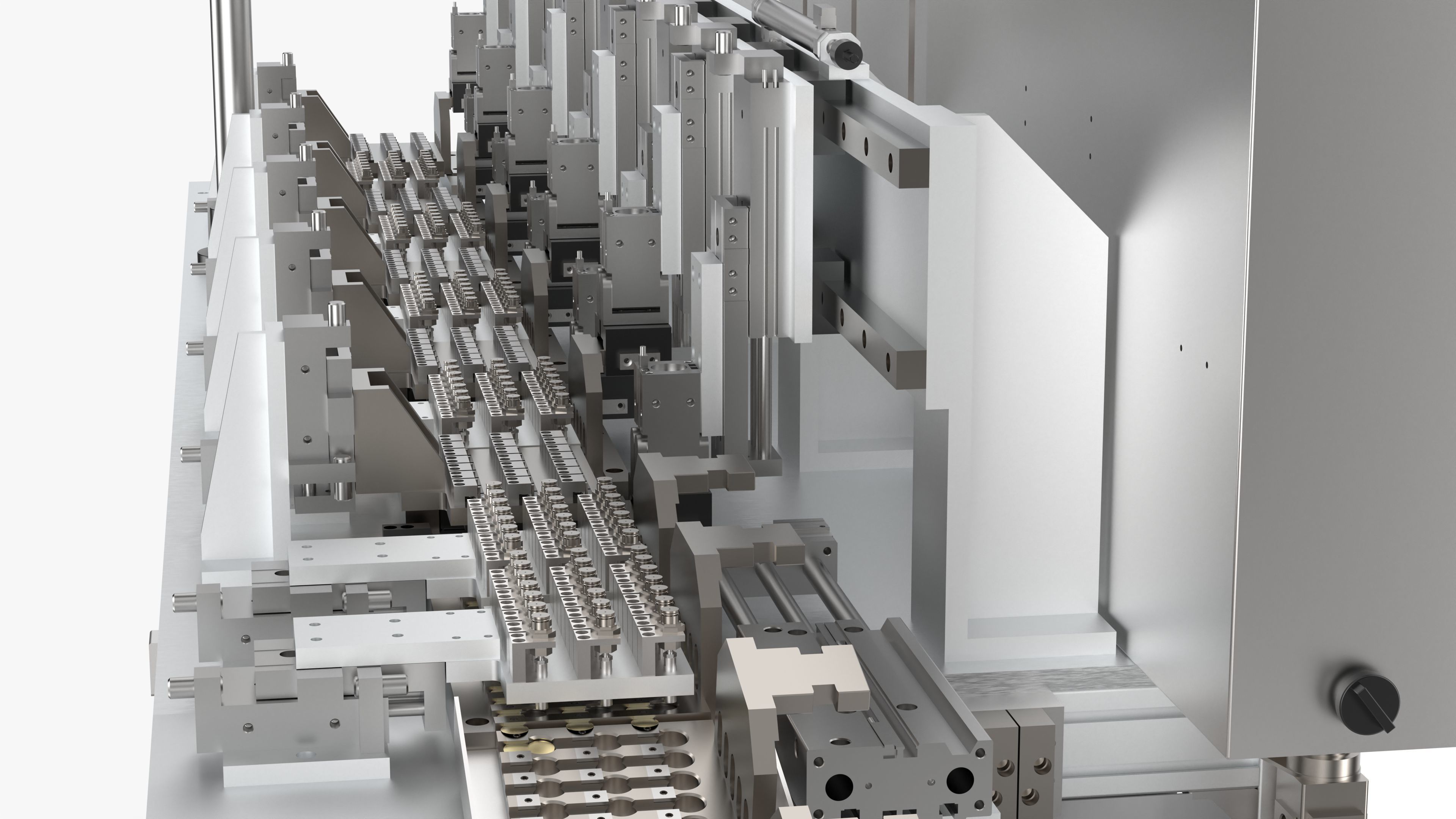

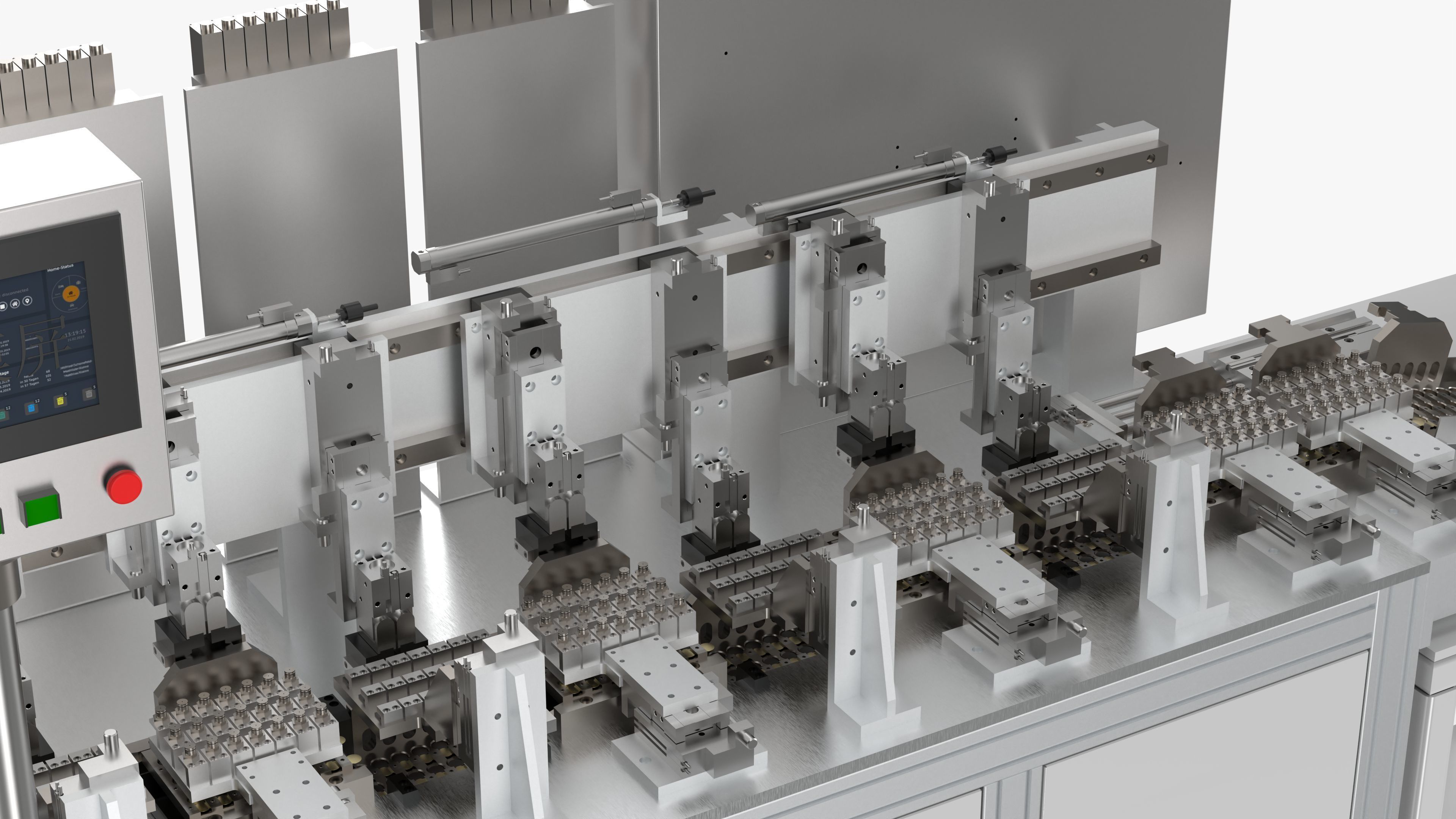

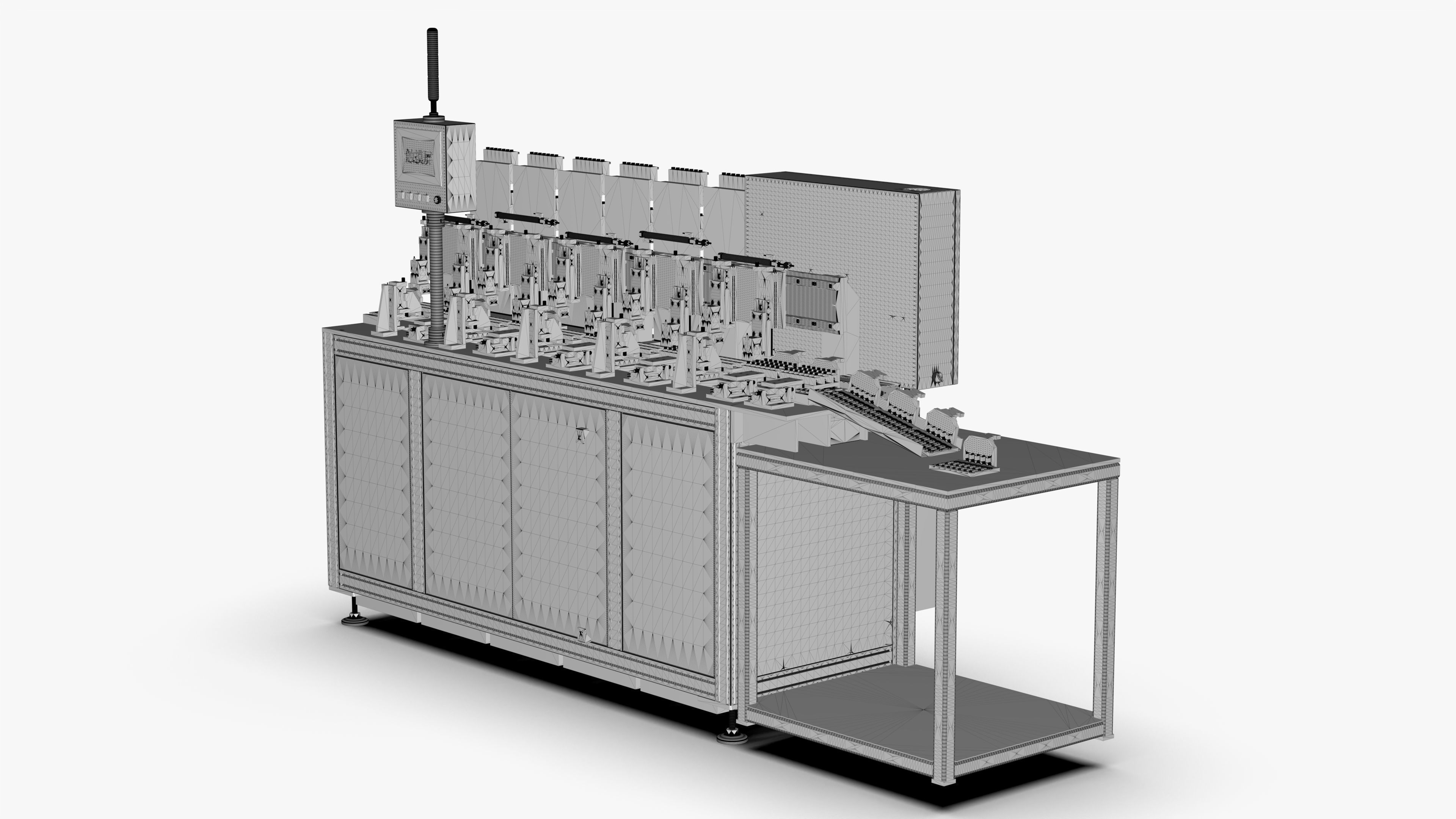

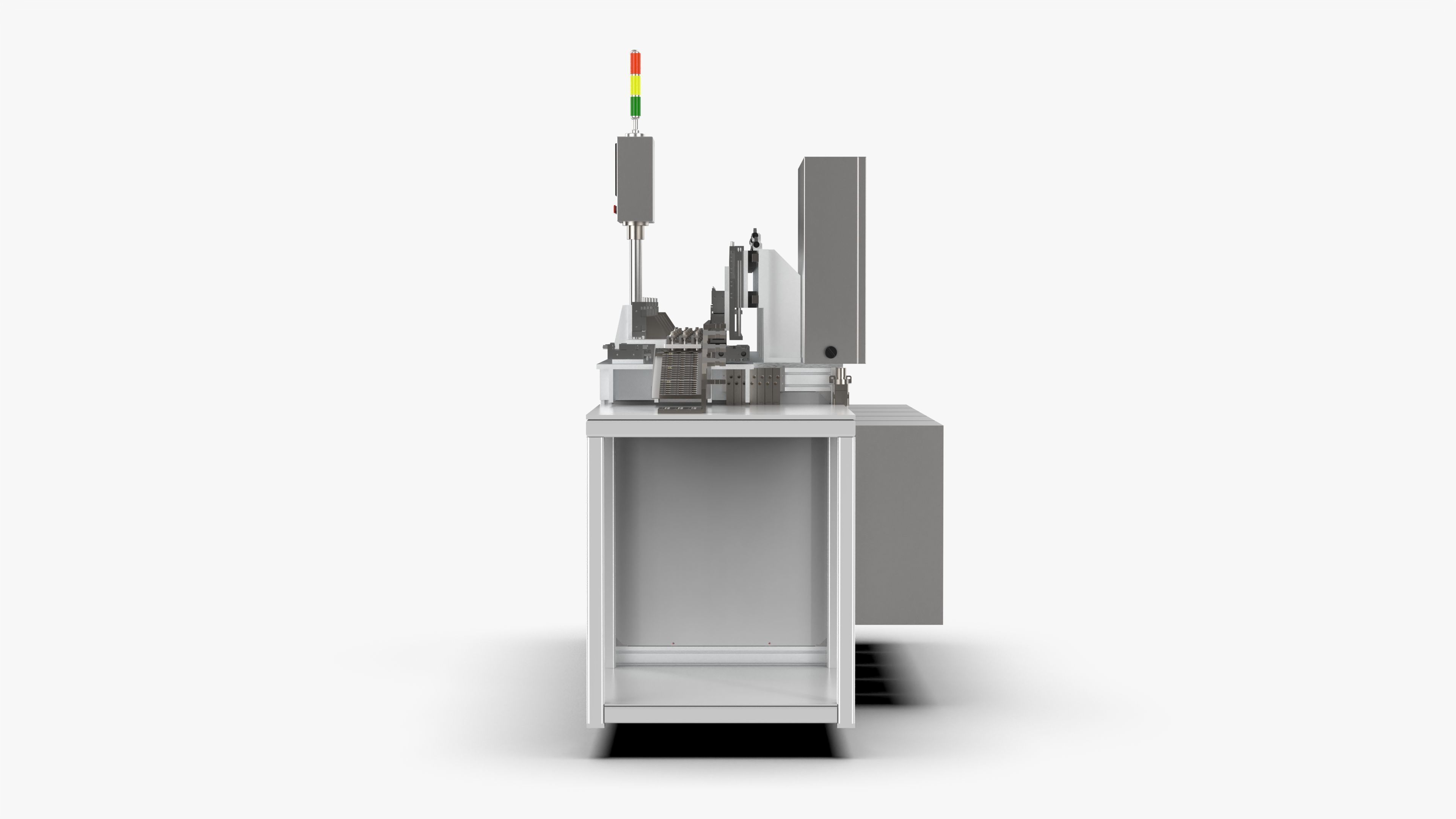

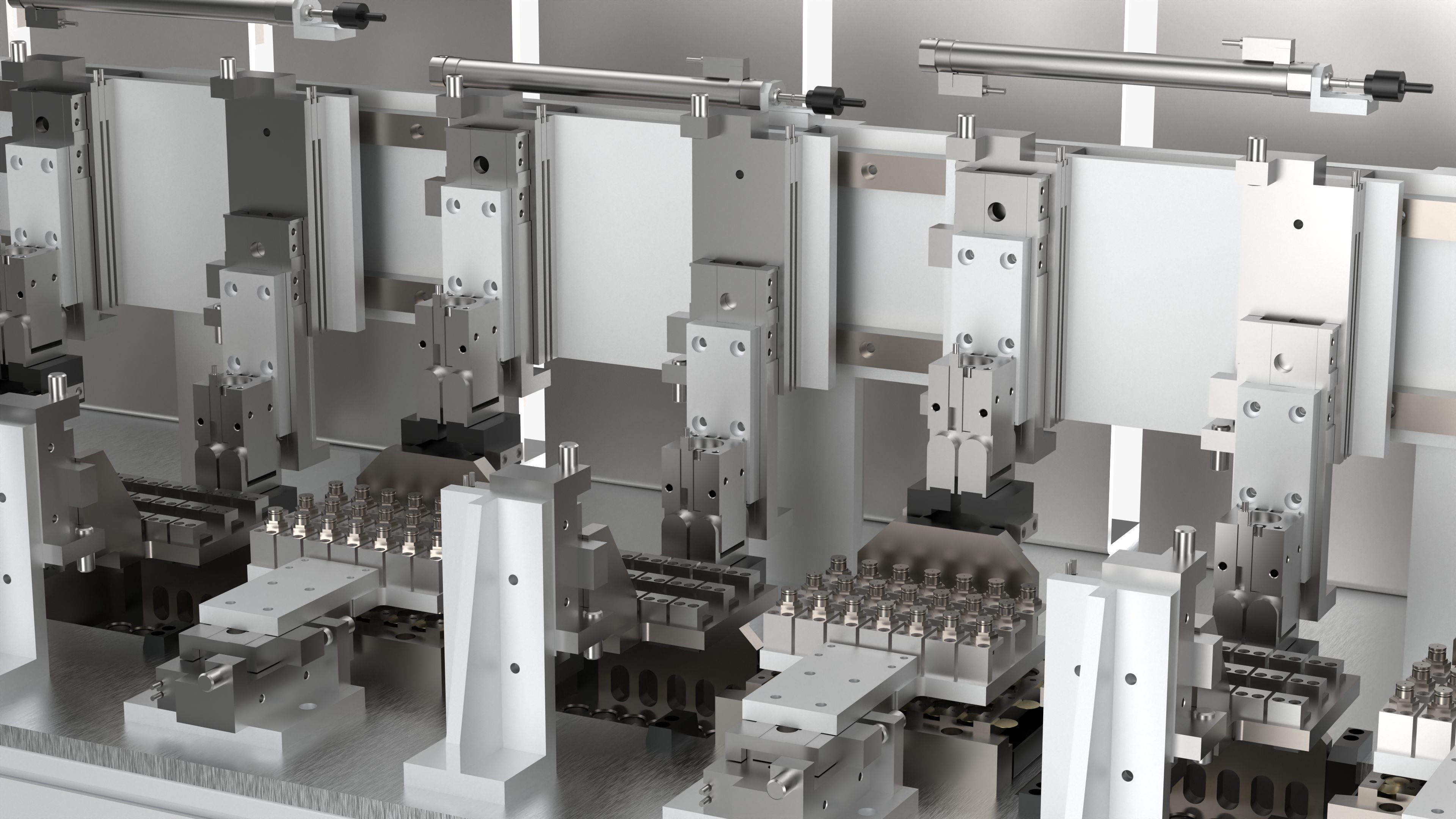

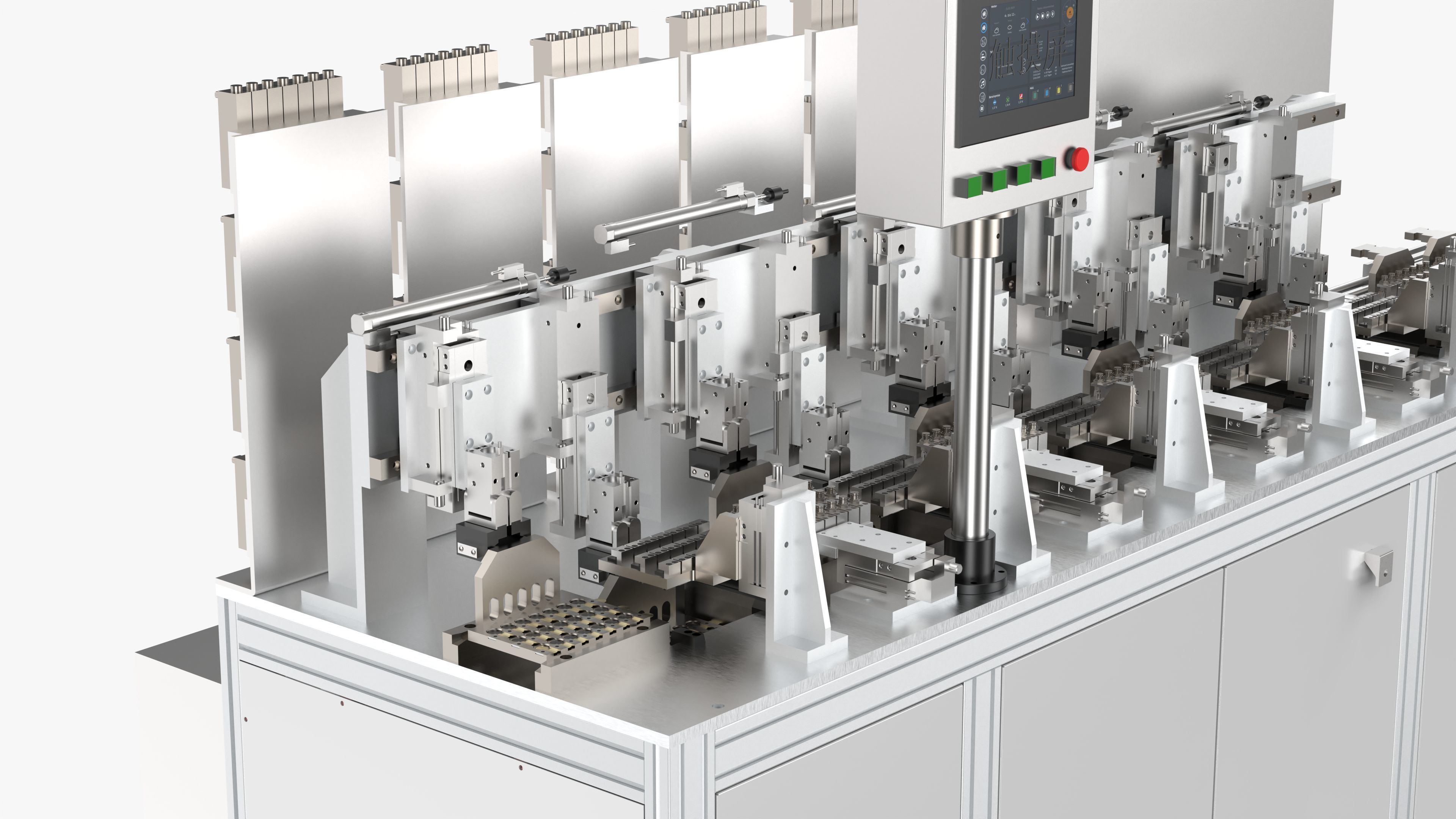

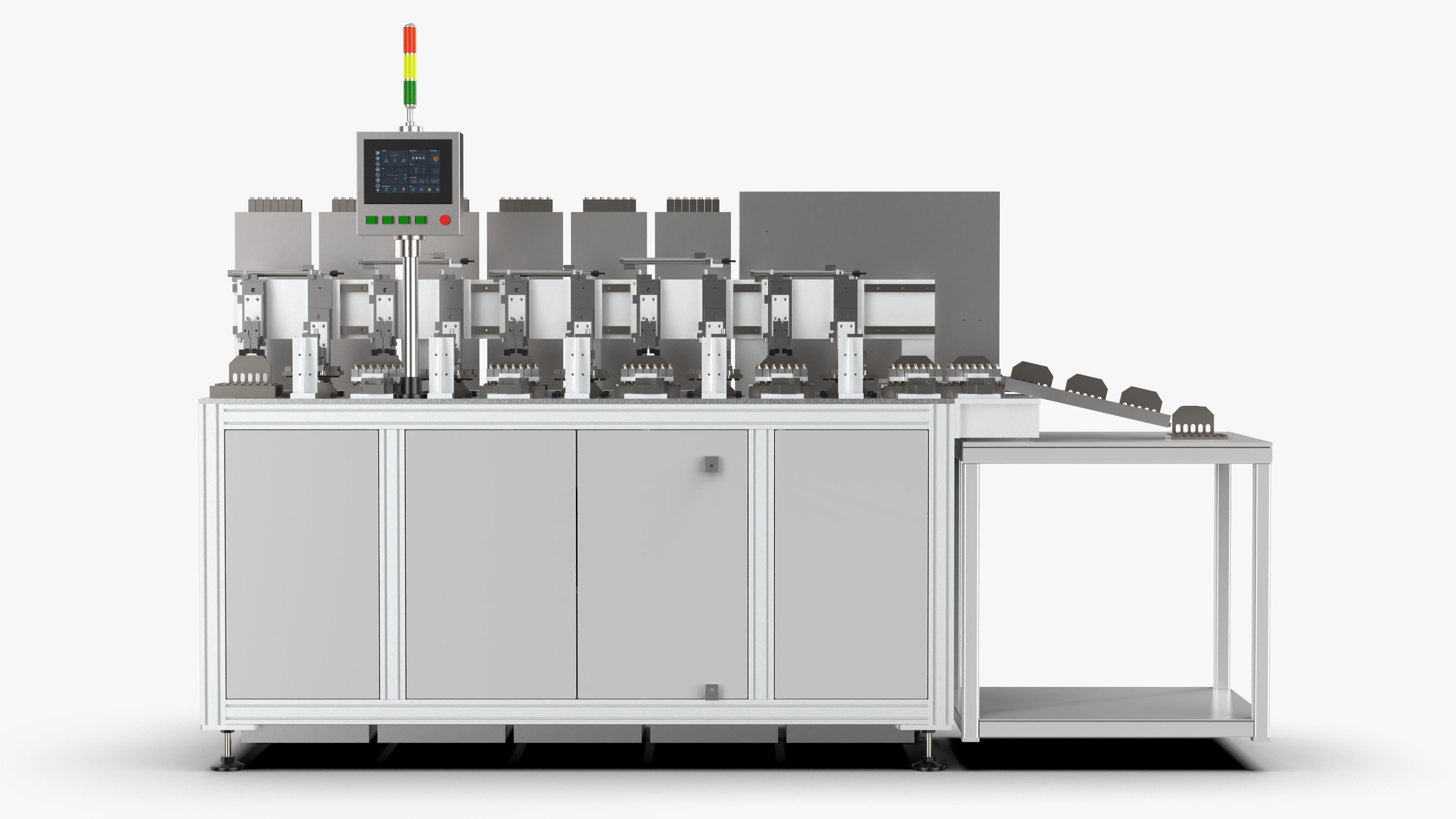

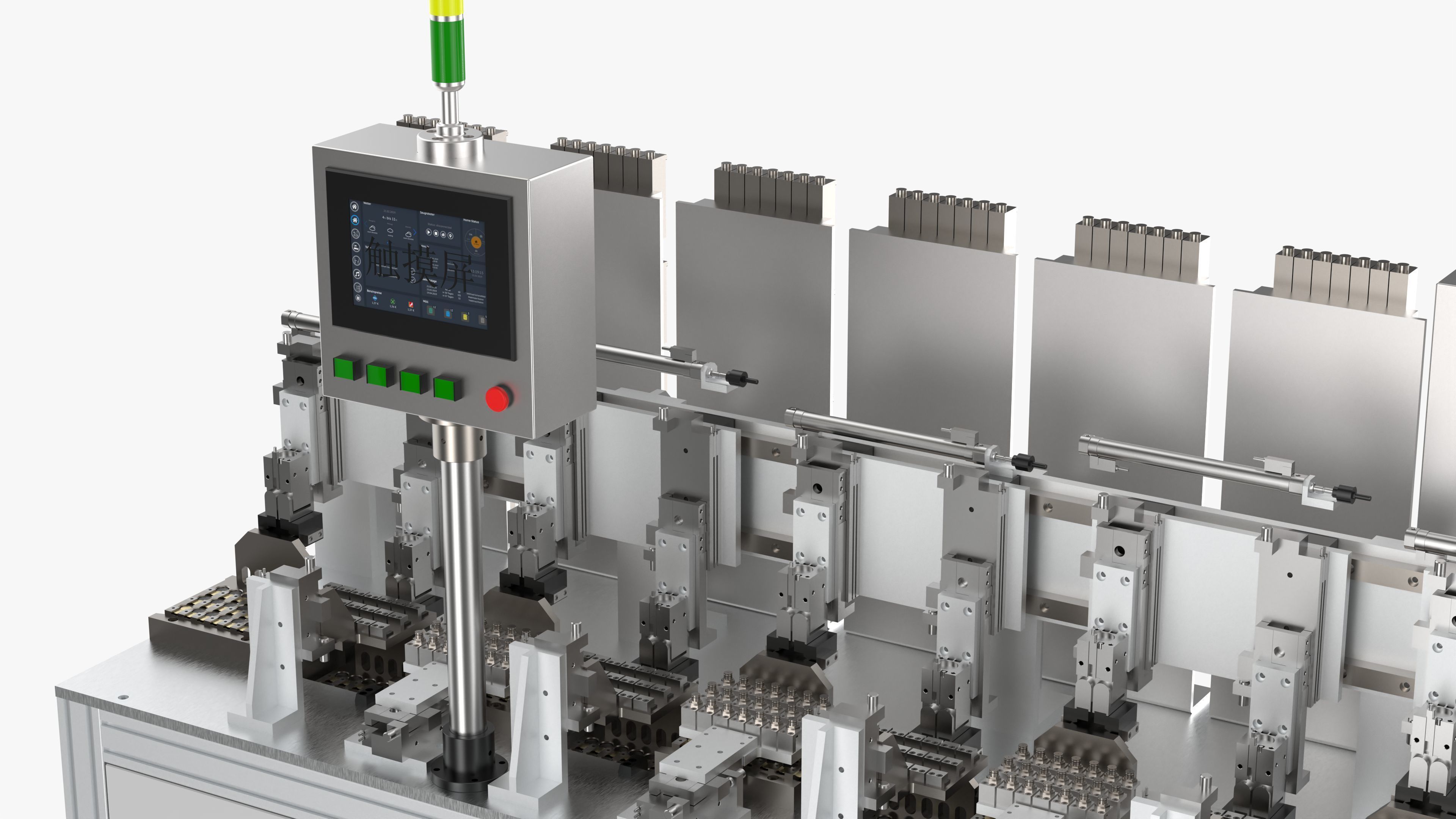

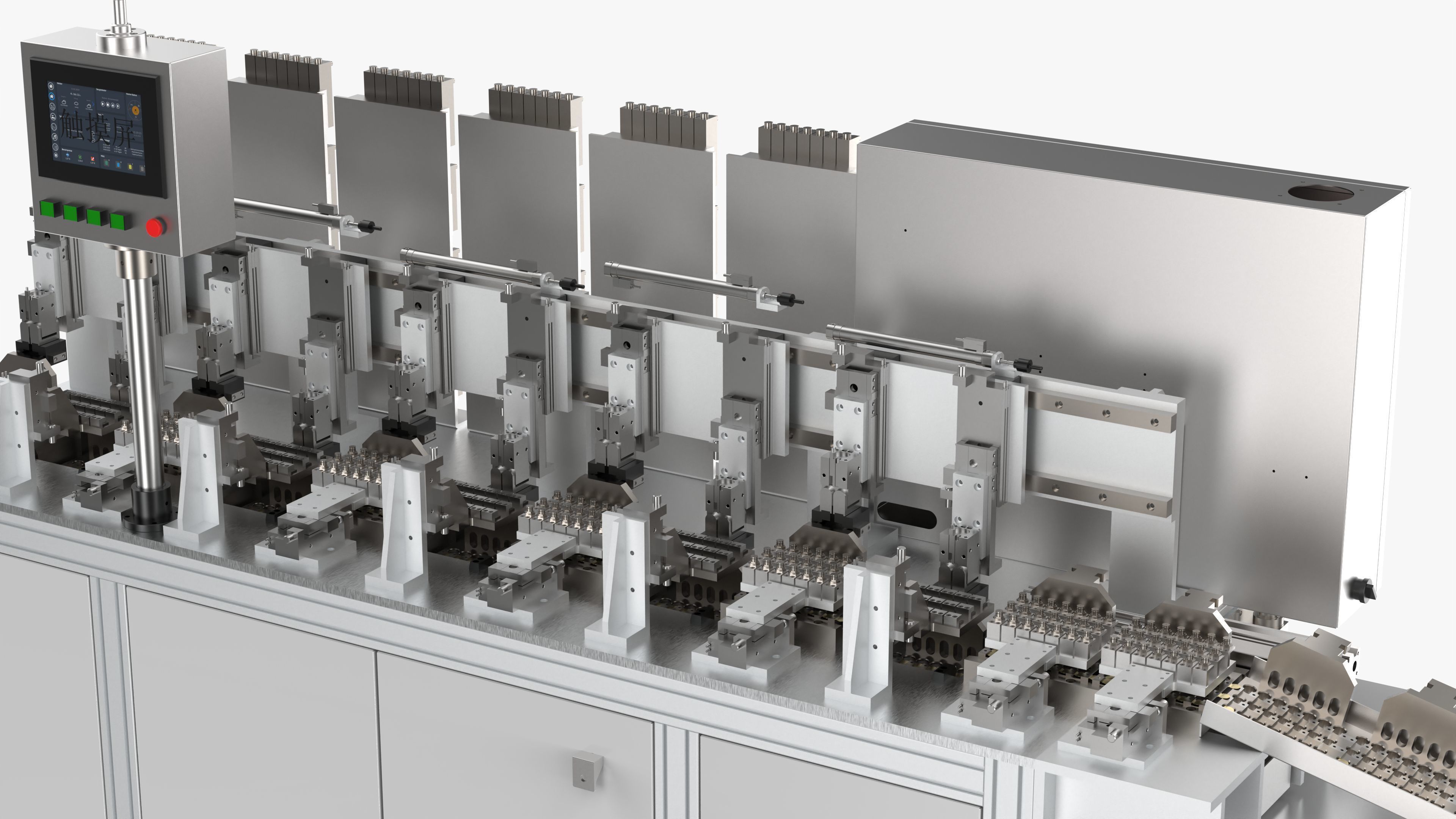

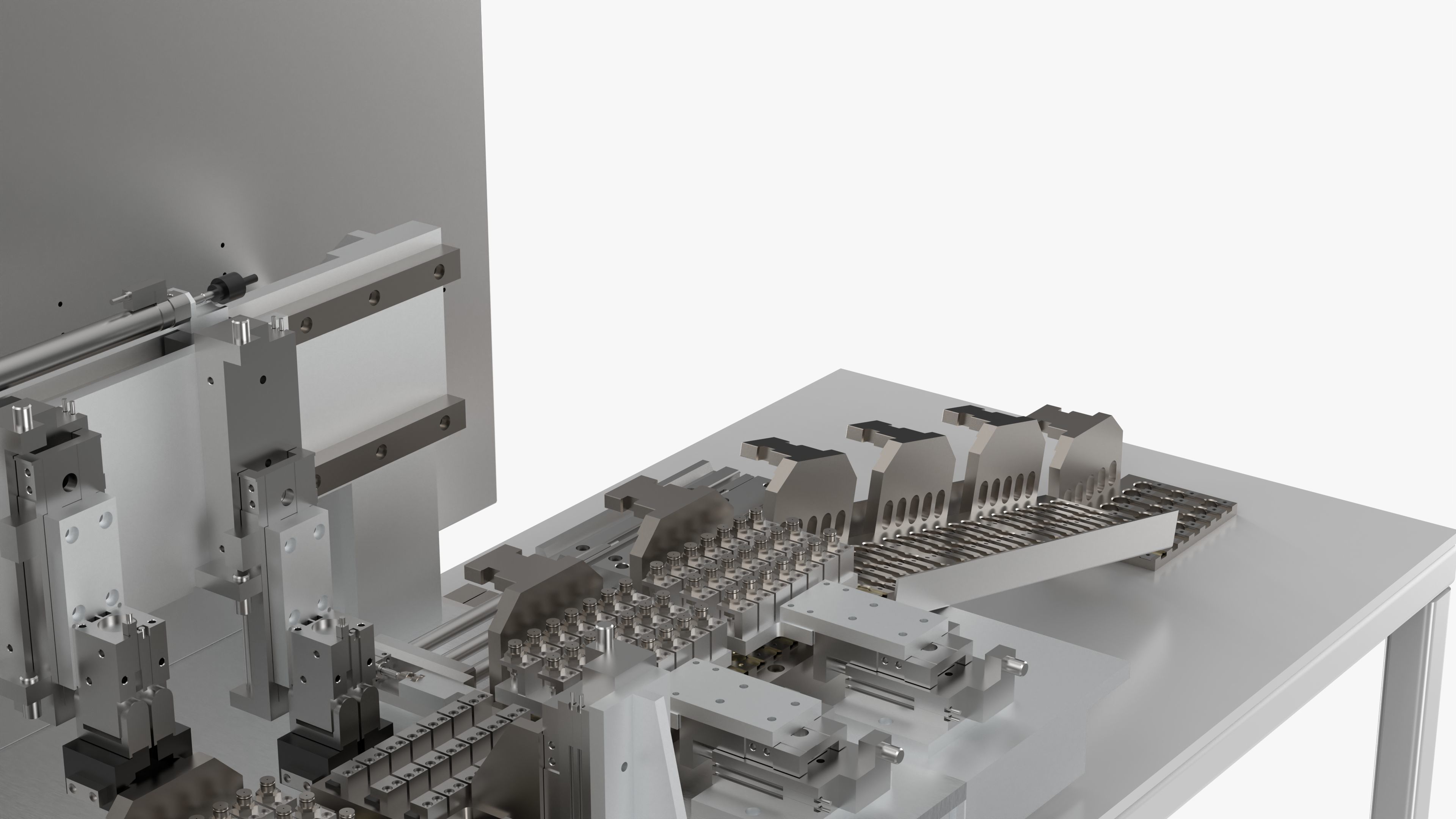

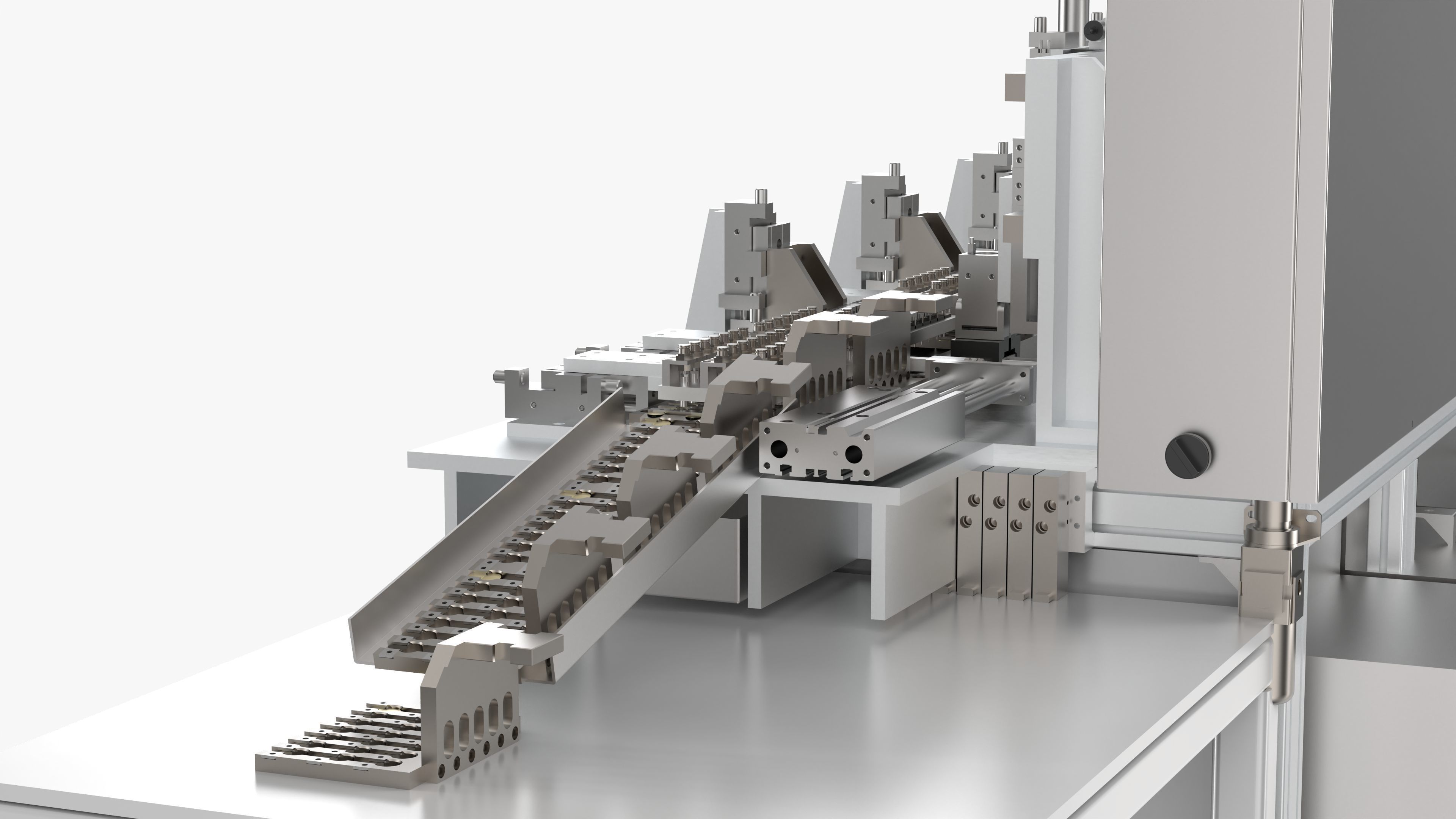

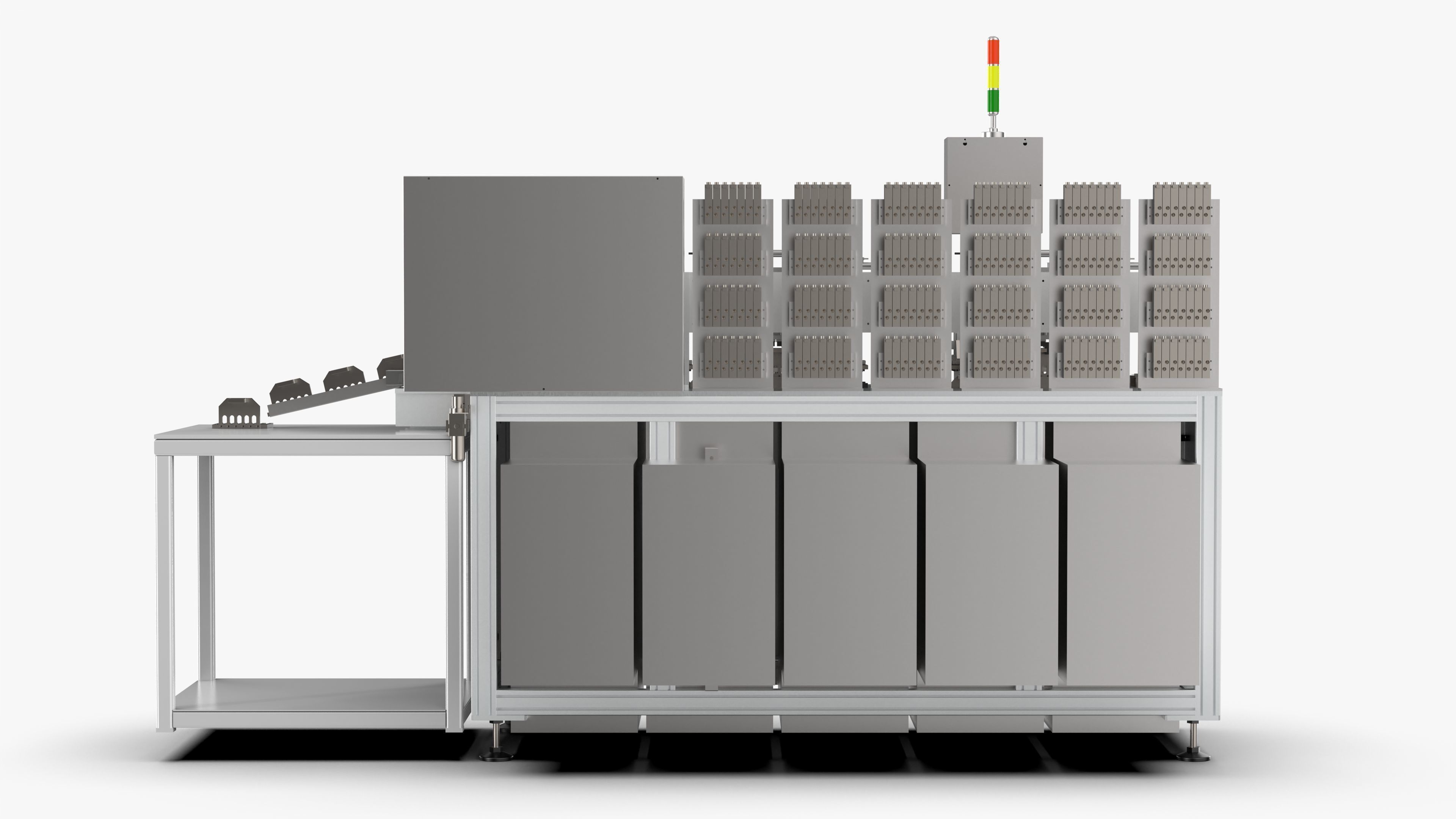

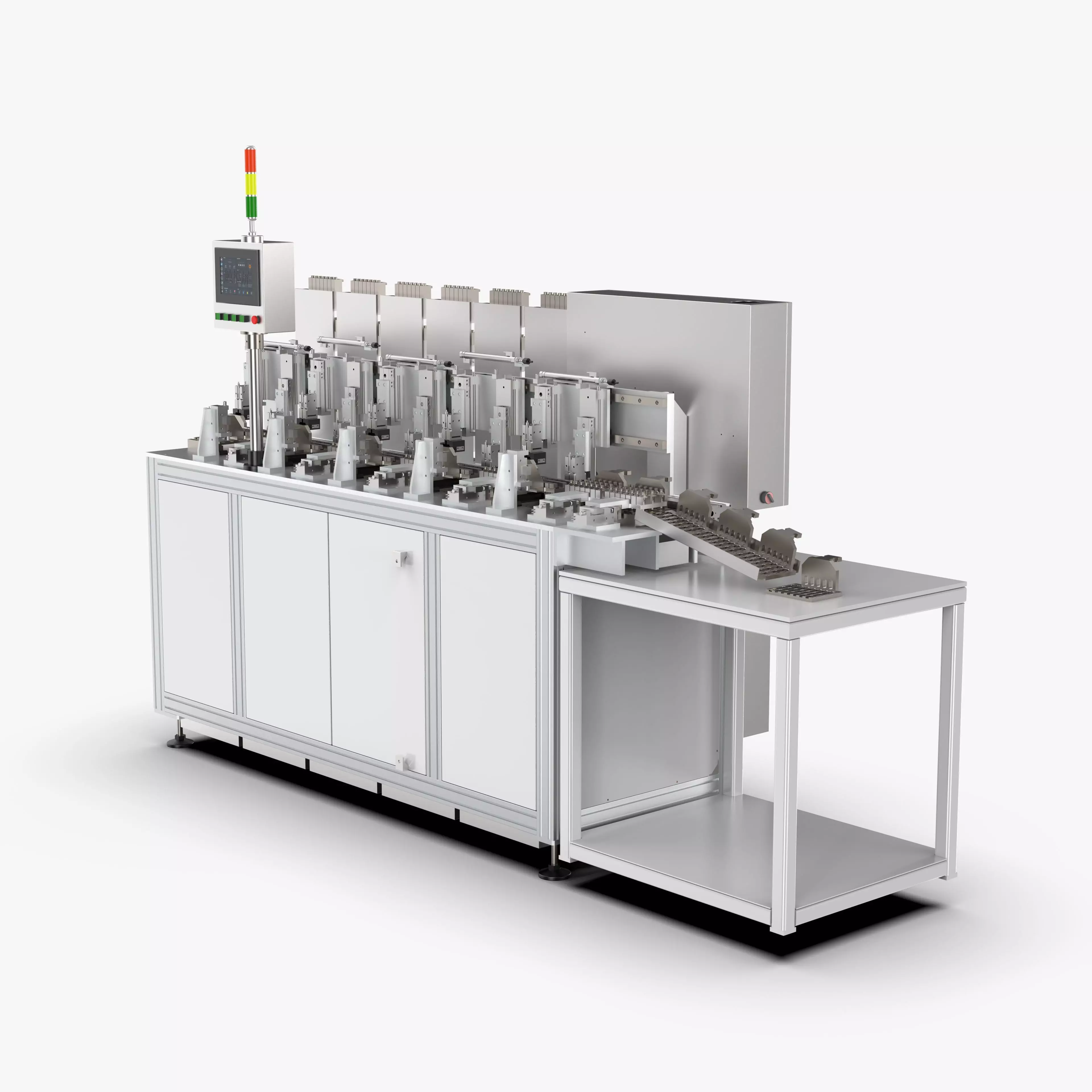

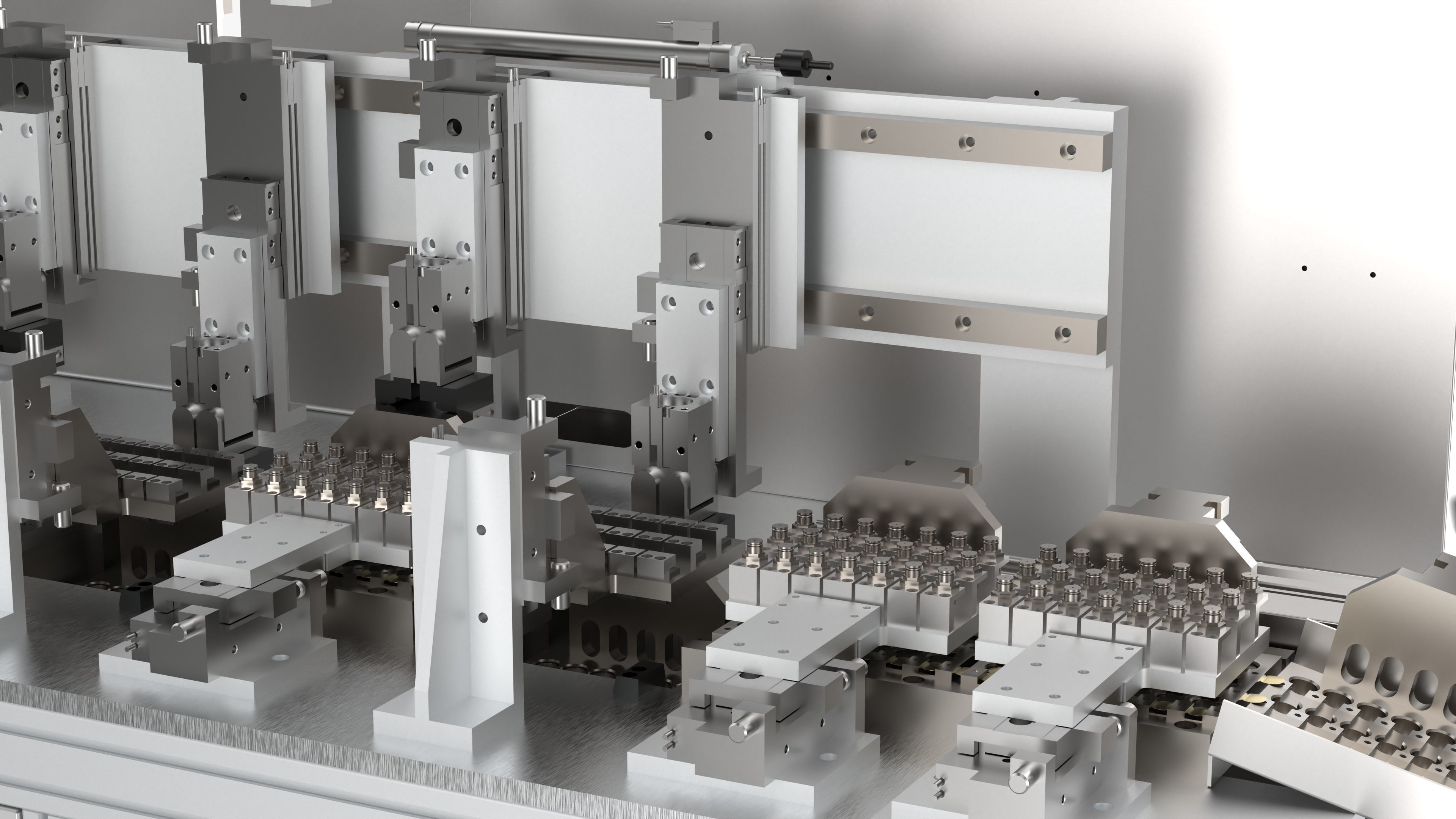

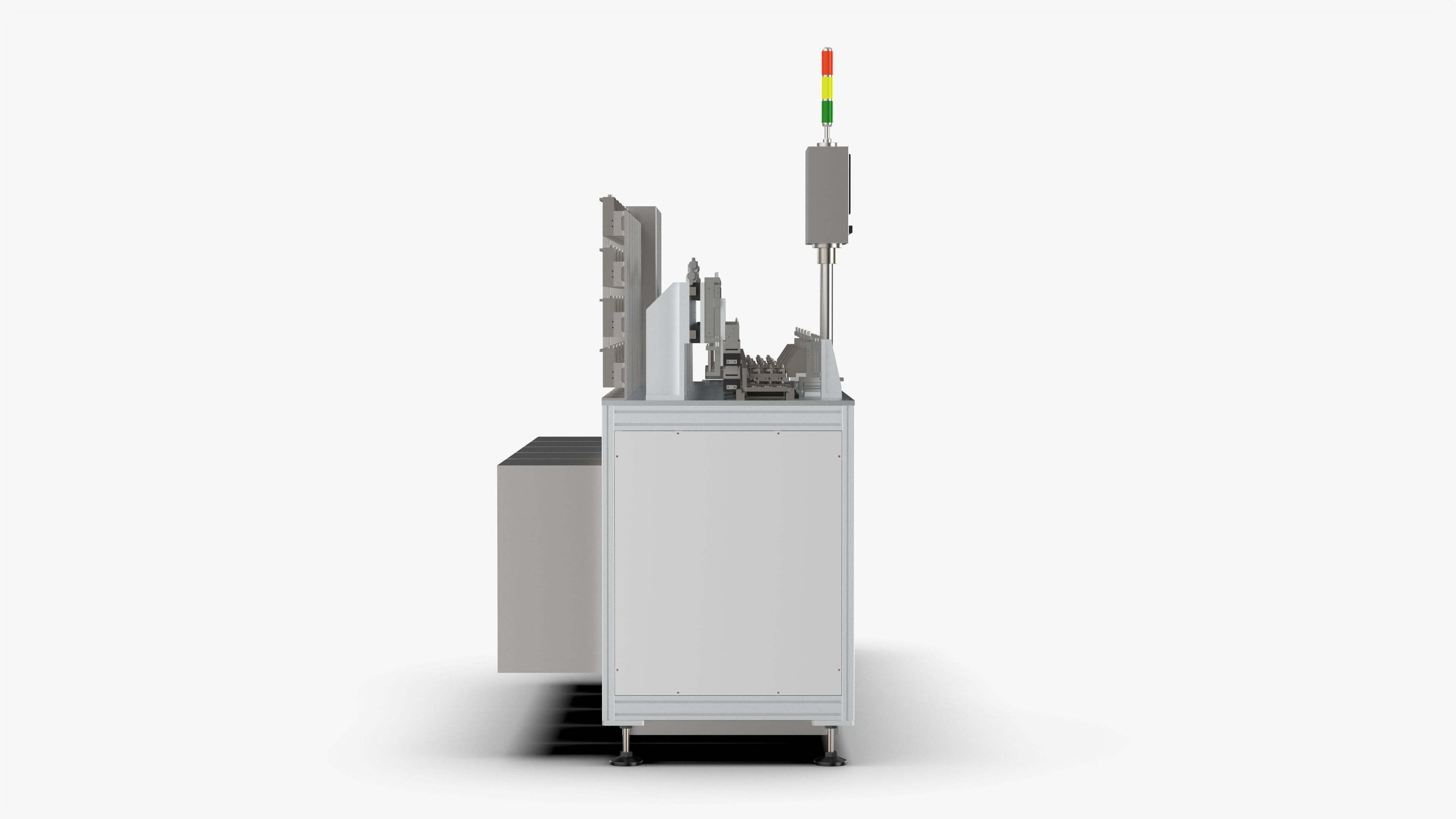

Automatic Wafer Oil Tank Sorting Machine 3D model

Automatic Wafer Oil Tank Sorting Machine

Introduction

Automatic Wafer Oil Tank Sorting Machine

1. The disc is a curved lens;
2. It can detect the quality and color of the original film at different oil temperatures;
3. Control the temperature of the oil tank in several parts;
4. Automatic handling and cutting
5. Fully automatic control.

File Formats

• SolidWorks 2020 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)
• x_t (Parasolic Model Part File)

Geometry

• Polygons: 2,489,455
• Vertice: 7,486,365
