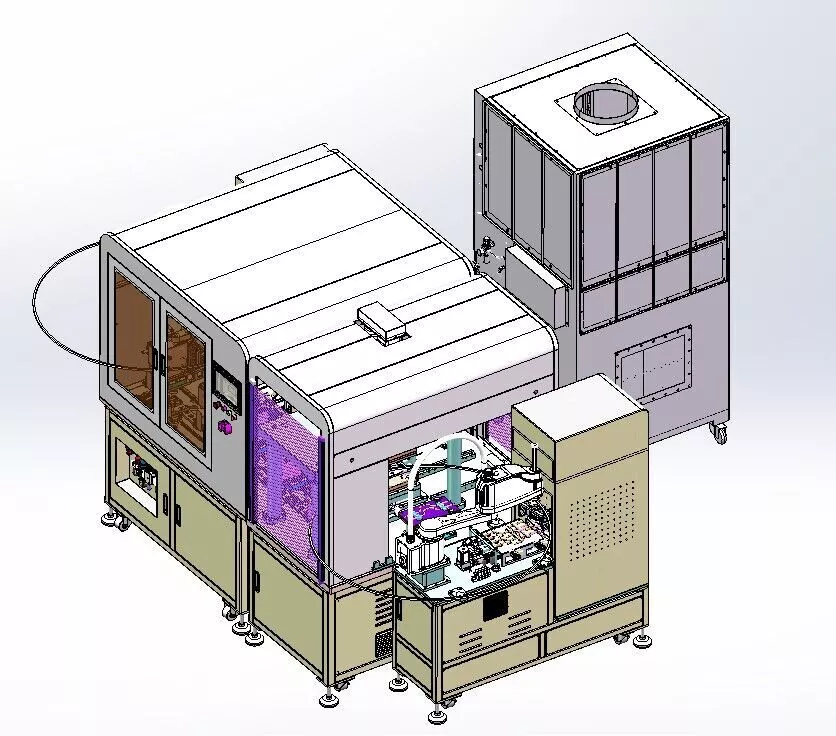

Professional Automatic Gravure Surface Grinding Machine 3D CAD Model designed for precision surface finishing, cleaning, shaping, polishing, erasing, buffering, and unloading operations. The equipment is widely used for gravure rollers, engraved components, precision molds, cylindrical parts, optical components, and high-accuracy industrial finishing applications.The machine integrates multiple workstations including buffer loading, gravure surface grinding, surface cleaning, gravure shaping, buffer erasing, and automatic blanking, enabling continuous and stable operation with high positioning accuracy. The system incorporates robotic handling, precision fixtures, cleaning modules, dust collection systems, and automatic transfer mechanisms for high-volume production environments.This industrial CAD model contains detailed structures suitable for manufacturing, simulation, process development, and custom automation projects.

Key Features• Automatic loading and unloading • Buffer transfer system • Precision surface grinding • Surface cleaning station • Gravure shaping mechanism • Buffer erasing unit • Automatic blanking system • High-precision positioning • Robotic handling mechanism • PLC and HMI control • Stable and continuous operation • Dust collection and cleaning module
